INSPECTION AND ADJUSTMENT

BRC-9

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

>> GO TO 2

2.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

1. On the CONSULT screen, touch “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” in order.

2. Touch “START”.

CAUTION:

Do not touch steering wheel while adjusting steering angle sensor.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0

±2.5°.

Is the steering angle within the specified range?

YES

>> GO TO 4

NO

>> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

• ABS actuator and electric unit (control unit): Refer to

BRC-24, "CONSULT Function (ABS)"

.

• ECM: Refer to

EC-49, "CONSULT Function"

.

Are the memories erased?

YES

>> Inspection End

NO

>> Check the items indicated by the self-diagnosis.

CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR : Description

INFOID:0000000009883584

Refer to the table below to determine if calibration of the decel G sensor is required.

×: Required –: Not required

CALIBRATION OF DECEL G SENSOR : Special Repair Requirement

INFOID:0000000009883585

CALIBRATION OF DECEL G SENSOR

CAUTION:

To calibrate the decel G sensor, make sure to use CONSULT

Situation

Calibration of decel G sensor

Removing/Installing ABS actuator and electric unit (control unit)

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering components

Replacing steering components

Removing/Installing suspension components

Replacing suspension components

Change tires to new ones

Tire rotation

Adjusting wheel alignment

Removing/Installing yaw rate/side/decel G sensor

×

Replacing yaw rate/side/decel G sensor

×

BRC-10

< BASIC INSPECTION >

[VDC/TCS/ABS]

INSPECTION AND ADJUSTMENT

(Calibration cannot be done without CONSULT)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

>> GO TO 2

2.

PERFORM CALIBRATION OF DECEL G SENSOR

1. On the CONSULT screen, touch “WORK SUPPORT” and “DECEL G SEN CALIBRATION” in order.

2. Touch “START”.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “DECEL G-SEN” is within

± 0.08G.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Perform calibration of decel G sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

• ABS actuator and electric unit (control unit): Refer to

BRC-24, "CONSULT Function (ABS)"

.

• ECM: Refer to

EC-49, "CONSULT Function"

.

Are the memories erased?

YES

>> Inspection End

NO

>> Check the items indicated by the self-diagnosis.

VDC

BRC-11

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SYSTEM DESCRIPTION

VDC

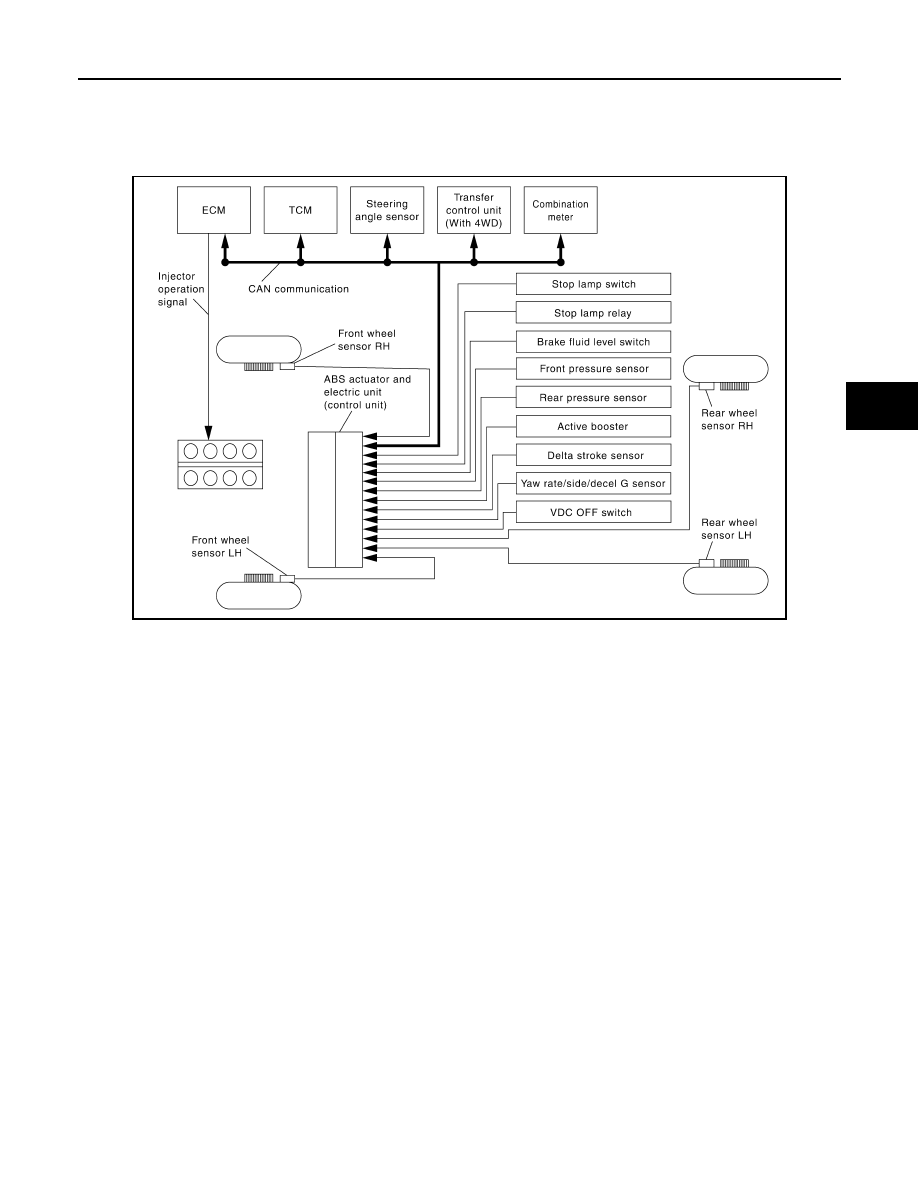

System Diagram

INFOID:0000000009883586

AWFIA0461GB

BRC-12

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

VDC

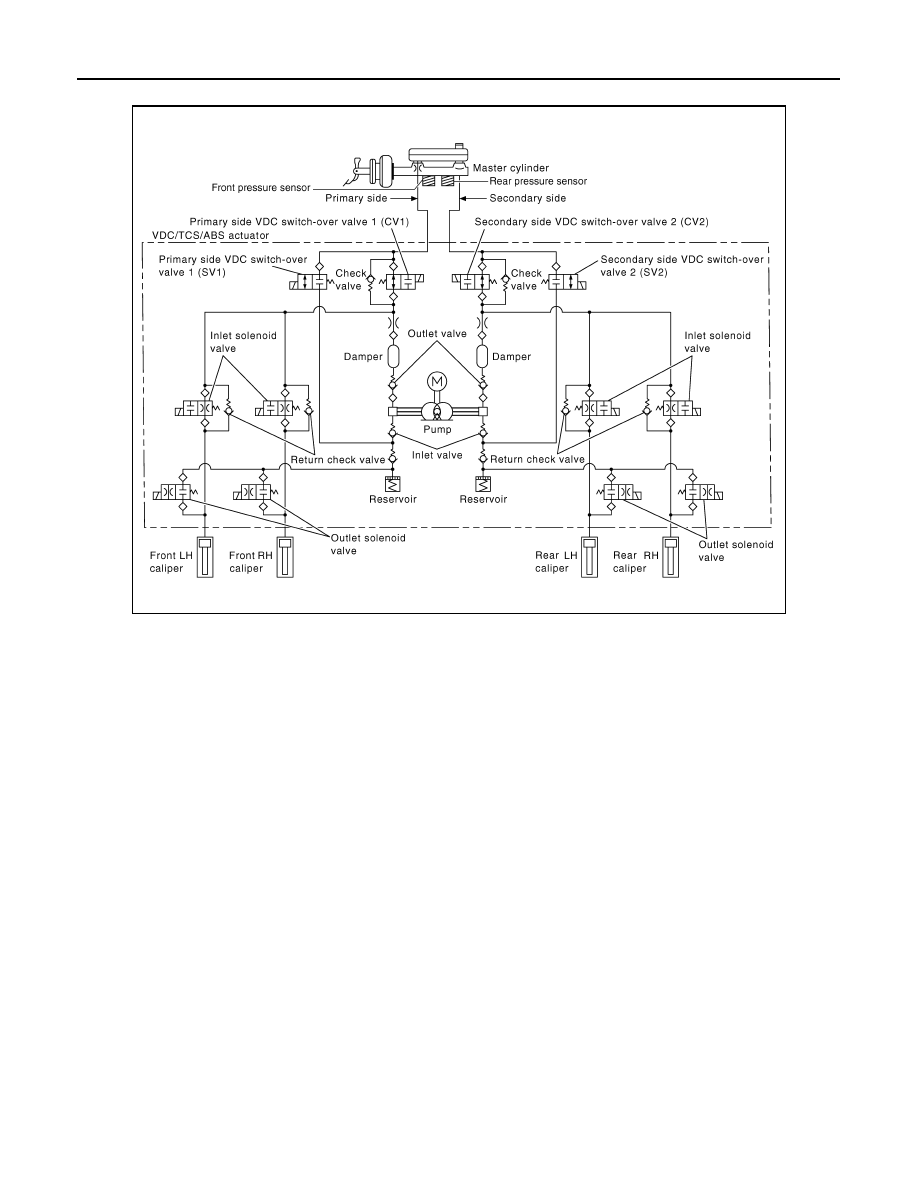

Hydraulic Circuit Diagram

INFOID:0000000009883587

System Description

INFOID:0000000009883588

• Vehicle Dynamics Control system detects driver

′s steering operation amount and brake pedal travel from

steering angle sensor and pressure sensors. Using information from yaw rate/side/decel G sensor and

wheel sensor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle

driving stability by controlling brake application to 4 wheels and engine output.

• During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT is available.

WFIA0187E
