< UNIT DISASSEMBLY AND ASSEMBLY >

REAR DISC BRAKE

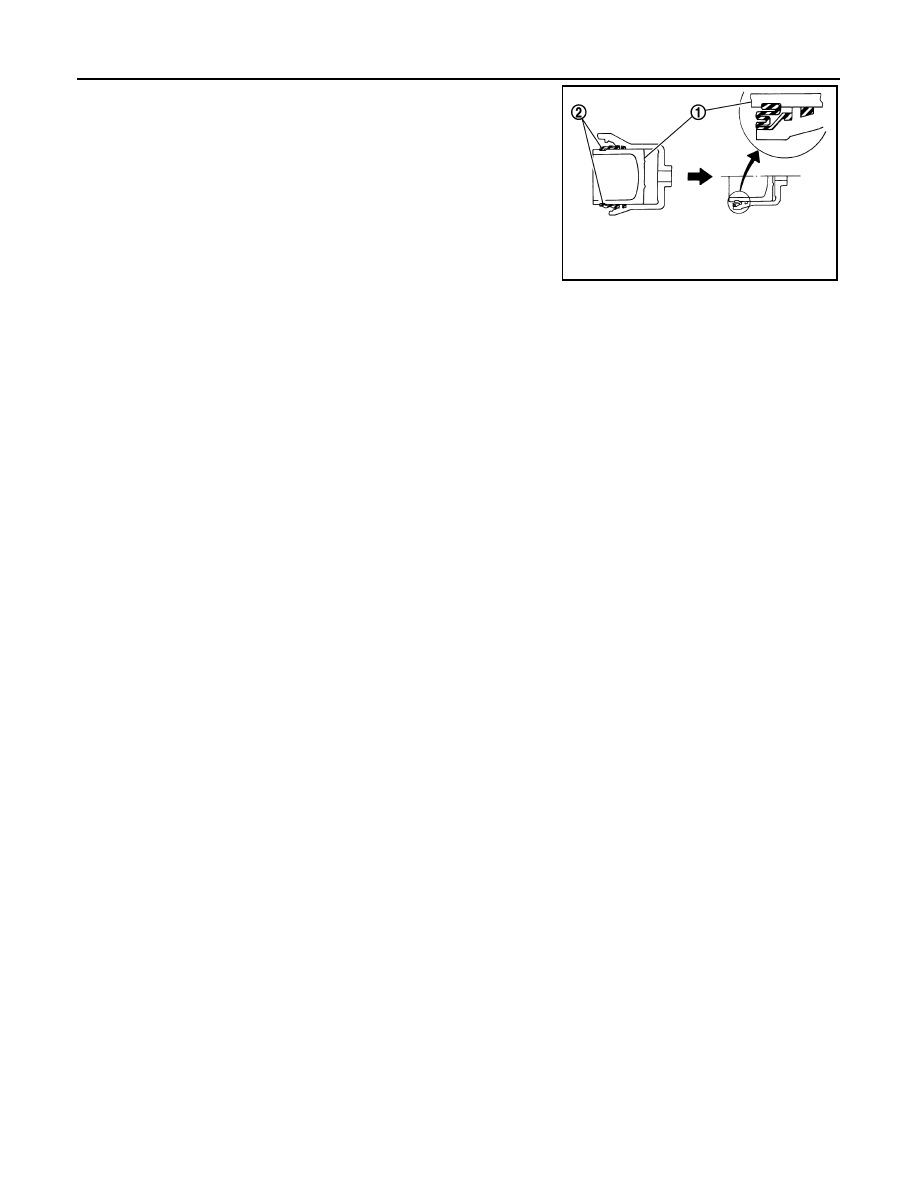

4. Install the piston (1) into the cylinder body and insert the piston

boot (2) side lip into piston grooves as shown.

CAUTION:

Press piston evenly and vary the pressing point to prevent

cylinder body inner wall from being rubbed.

5. Apply rubber grease to sliding sleeves, then install sliding boots and sleeves to cylinder body.

JPFIA0041ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009883564

Unit: mm (in)

Brake Pedal

INFOID:0000000009883565

STANDARD PEDAL

Unit: mm (in)

ADJUSTABLE PEDAL

Front brake

Rotor outer diameter

× thickness

350

× 30 (13.78 × 1.18)

Pad Length

× width × thickness

152

× 56.5 × 12.0 (5.98 × 2.22 × 0.47)

Cylinder bore diameter (each)

2 x 50.8 (2.00)

Rear brake

Rotor outer diameter

× thickness

320

× 14 (12.6 × 0.55)

Pad Length

× width × thickness

114

× 36.5 × 12.0 (4.49 × 1.44 × 0.47)

Cylinder bore diameter

48 (1.89)

Control valve

Valve model

Electric brake force distribution

Brake booster

Booster model

9/10 inch active booster

Recommended brake fluid

Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubri-

cants"

 (United States and Canada),

MA-16, "FOR MEXICO :

Fluids and Lubricants"

 (Mexico).

Free height (H)

182.3 +10/-0 (7.18 +0.39/-0)

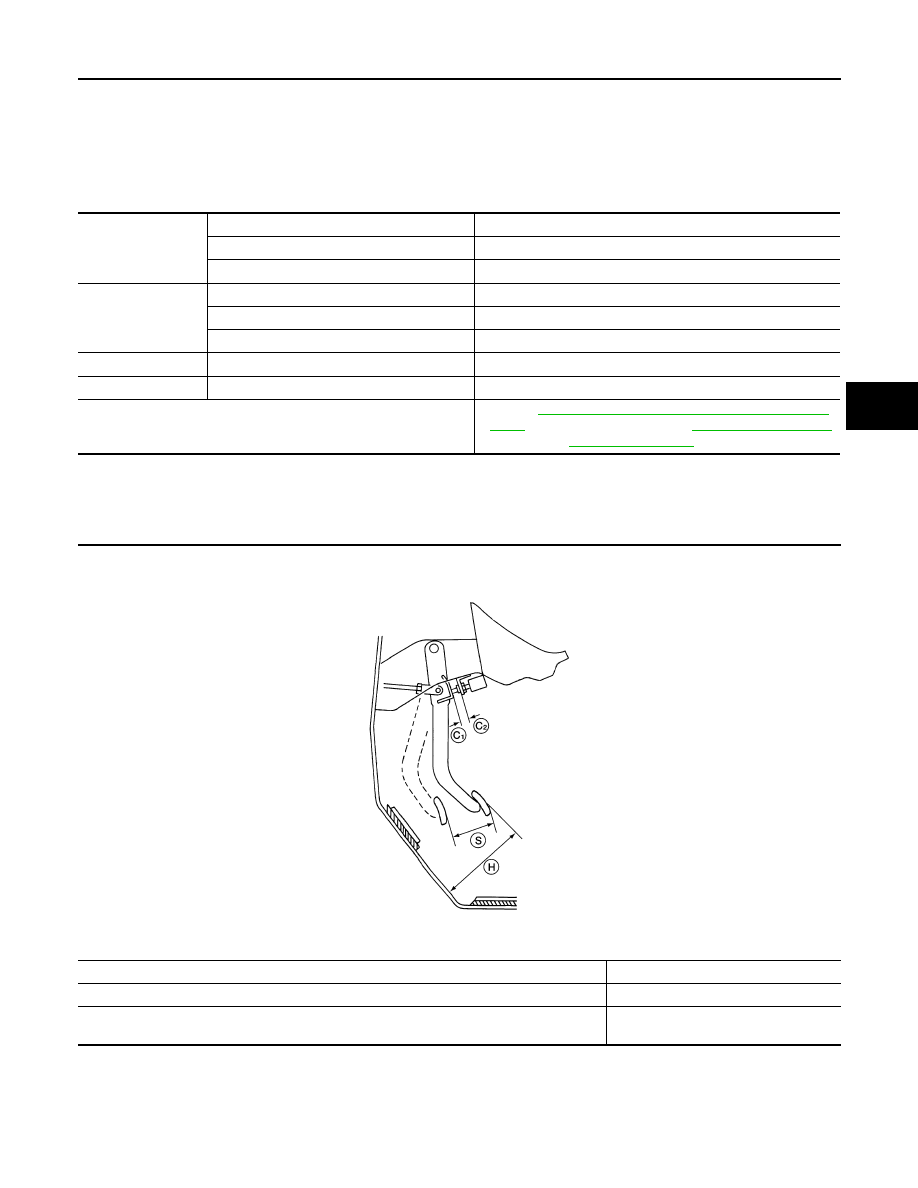

Pedal full stroke (S)

152.3 (6.00)

Clearance between brake pedal bracket and the threaded end of stop lamp switch (C1) and
ASCD cancel switch [if equipped] (C

2

)

0.74

− 1.96 (0.03 − 0.08)

AWFIA0557ZZ

BR-48

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

CAUTION:

When equipped with adjustable pedal, the pedal must be in the forward most position (closest to the floor) for pedal height
adjustment.

Brake Booster

INFOID:0000000009883566

Unit: mm (in)

Pedal free height (H) with pedal in forward most position

182.3 +10/-0 (7.18 +0.39/-0)

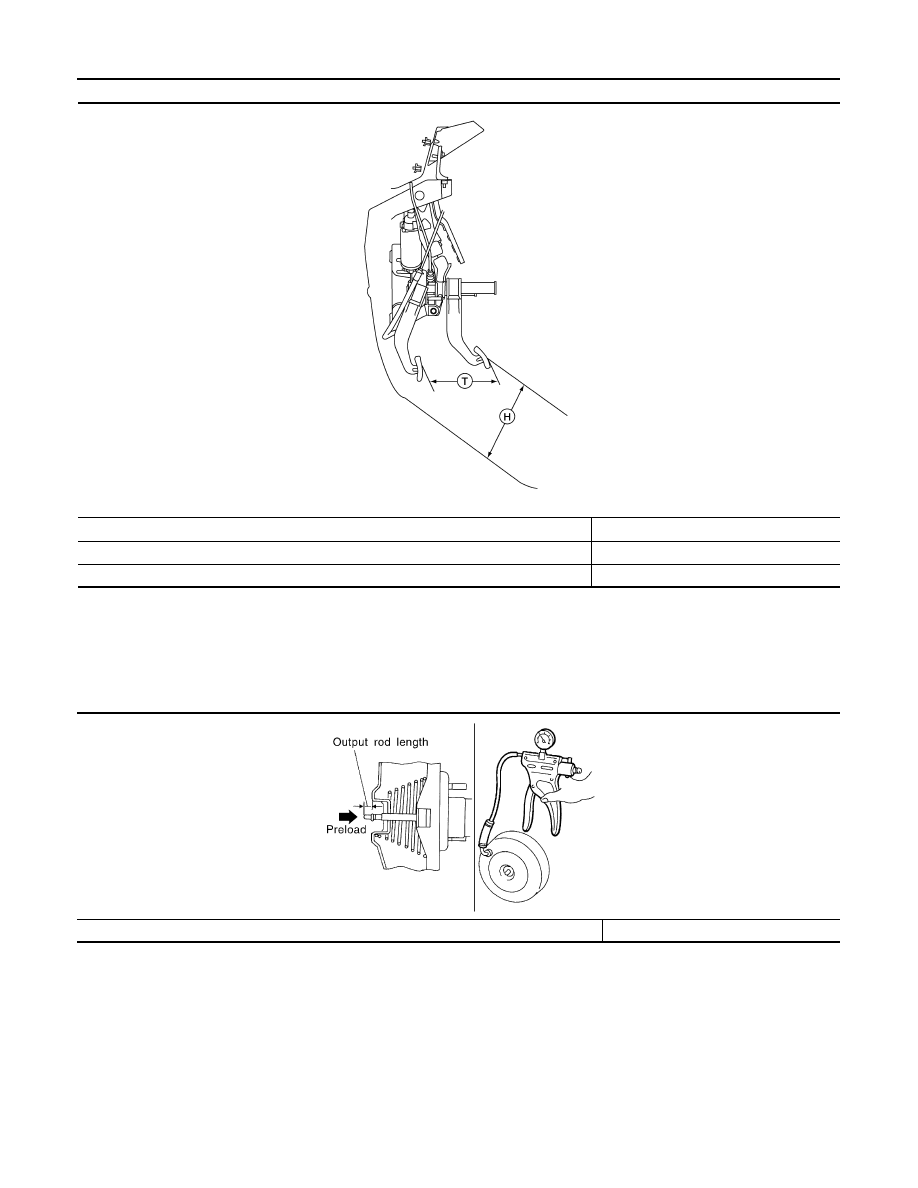

Pedal full stroke (T)

153.3 (6.04)

Stop lamp switch and ASCD cancel switch threaded end to brake pedal bracket gap

0.74 - 1.96 (0.03 - 0.08)

ALFIA0149ZZ

Output rod length [at -66.7 kPa (-500 mmHg, -19.69 inHg) vacuum]

15.6 - 15.9 (0.614 - 0.626)

SBR208E

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-49

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Check Valve

INFOID:0000000009883567

Front Disc Brake

INFOID:0000000009883568

Unit: mm (in)

Rear Disc Brake

INFOID:0000000009883569

Unit: mm (in)

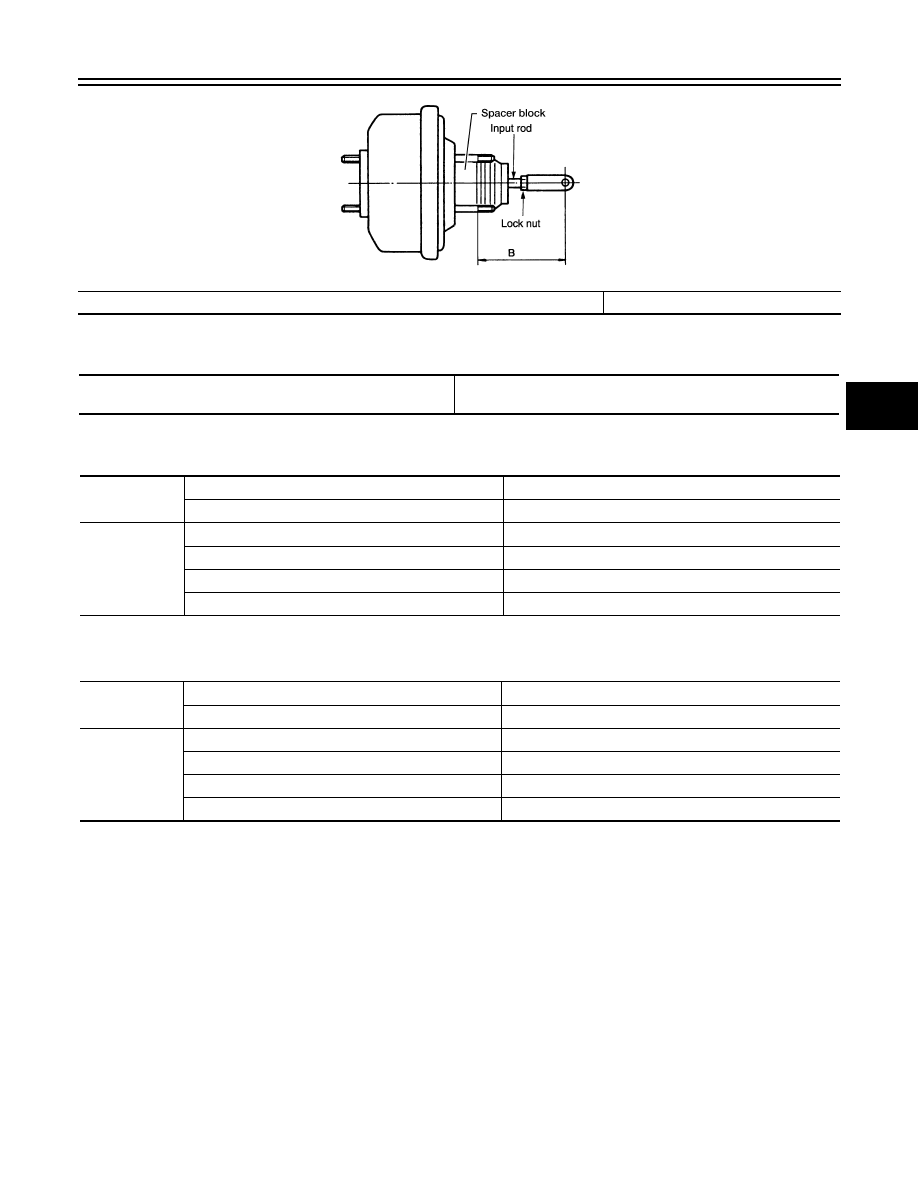

Input rod installation length (B)

145 - 152 (5.71 - 5.98)

WFIA0382E

Vacuum leakage
[at vacuum of – 66.7 kPa (– 500 mmHg, – 19.69 inHg)]

Within 1.3 kPa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds

Brake pad

Standard thickness (new)

12.0 (0.47)

Minimum thickness

1.0 (0.04)

Disc rotor

Standard thickness (new)

30.0 (1.18)

Minimum thickness

28.5 (1.12)

Maximum uneven wear (measured at 8 positions)

0.015 (0.001)

Runout limit (with it attached to the vehicle)

0.03 (0.001)

Brake pad

Standard thickness (new)

12.0 (0.47)

Minimum thickness

1.0 (0.04)

Disc rotor

Standard thickness (new)

14.0 (0.55)

Minimum Thickness

12.5 (0.47)

Maximum uneven wear (measured at 8 positions)

0.015 (0.001)

Runout limit (with it attached to the vehicle)

0.05 (0.002)
