BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

On Board Inspection

INFOID:0000000009883532

LEAK INSPECTION

Check for leaks at master cylinder to brake booster attachment point, reservoir tank, and brake tube connec-

tions.

BRAKE TUBE AND HOSE

BR-11

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE TUBE AND HOSE

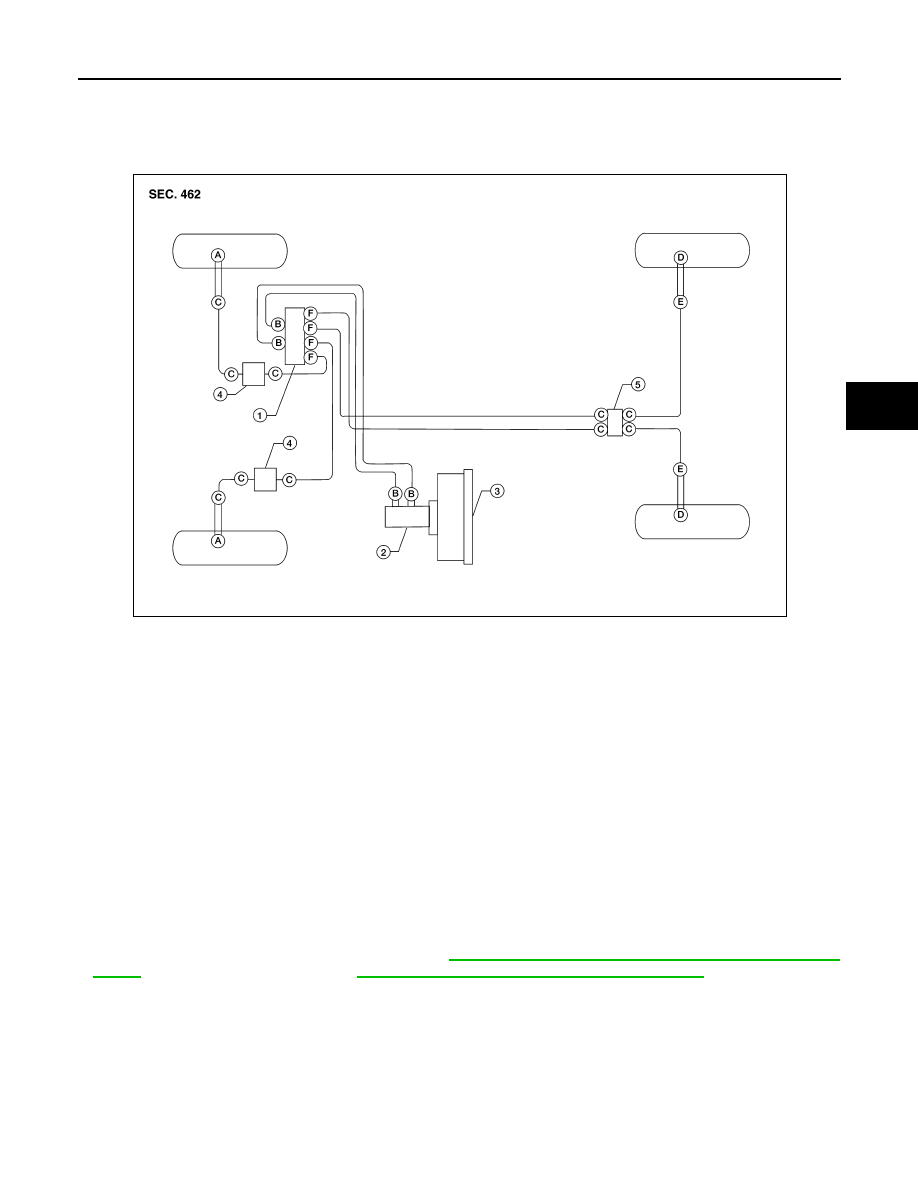

Hydraulic Circuit

INFOID:0000000009883533

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

• Make sure there is no interference with other parts when turning the steering wheel both clockwise

and counterclockwise.

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.

• Refill with new specified brake fluid. Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubri-

cants"

 (United States and Canada),

MA-16, "FOR MEXICO : Fluids and Lubricants"

 (Mexico).

• Do not reuse drained brake fluid.

FRONT BRAKE
FRONT BRAKE : Inspection

INFOID:0000000009883534

INSPECTION AFTER REMOVAL

CAUTION:

1.

Actuator

2.

Master cylinder

3.

Brake booster

4.

Connector

5.

Axle mounted connector
9.3 N·m (0.95 kg-m, 82 in-lb)

A.

Union bolt (front caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

B.

Flare nut M12
18.2 N·m (1.9 kg-m, 13 ft-lb)

C.

Flare nut M10
16.2 N·m (1.7 kg-m, 12 ft-lb)

D.

Hose connection (rear caliper)
18.2 N·m (1.9 kg-m, 13 ft-lb)

E.

Flare nut to rear hose
16.2 N·m (1.7 kg-m, 12 ft-lb)

F.

Flare nut M10
13.0 N·m (1.3 kg-m, 10 ft-lb)

—

Brake  line

=

Brake  hose

AWFIA0960ZZ

BR-12

< BASIC INSPECTION >

BRAKE TUBE AND HOSE

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.
1. Check brake lines (tubes and hoses) and connections for fluid leaks, damage, twists, deformation, contact

with other parts, and loose connections. Replace any parts as necessary. Refer to

BR-21, "Hydraulic Cir-

cuit"

.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, check each part for fluid leaks.

REAR BRAKE
REAR BRAKE : Inspection

INFOID:0000000009883535

INSPECTION AFTER REMOVAL

CAUTION:

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.
1. Check brake lines (tubes and hoses) and connections for fluid leaks, damage, twists, deformation, contact

with other parts, and loose connections. Replace any parts as necessary. Refer to

BR-21, "Hydraulic Cir-

cuit"

.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, check each part for fluid leaks.

BRAKE PEDAL

BR-13

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PERIODIC MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment - Standard Pedal

INFOID:0000000009883536

INSPECTION

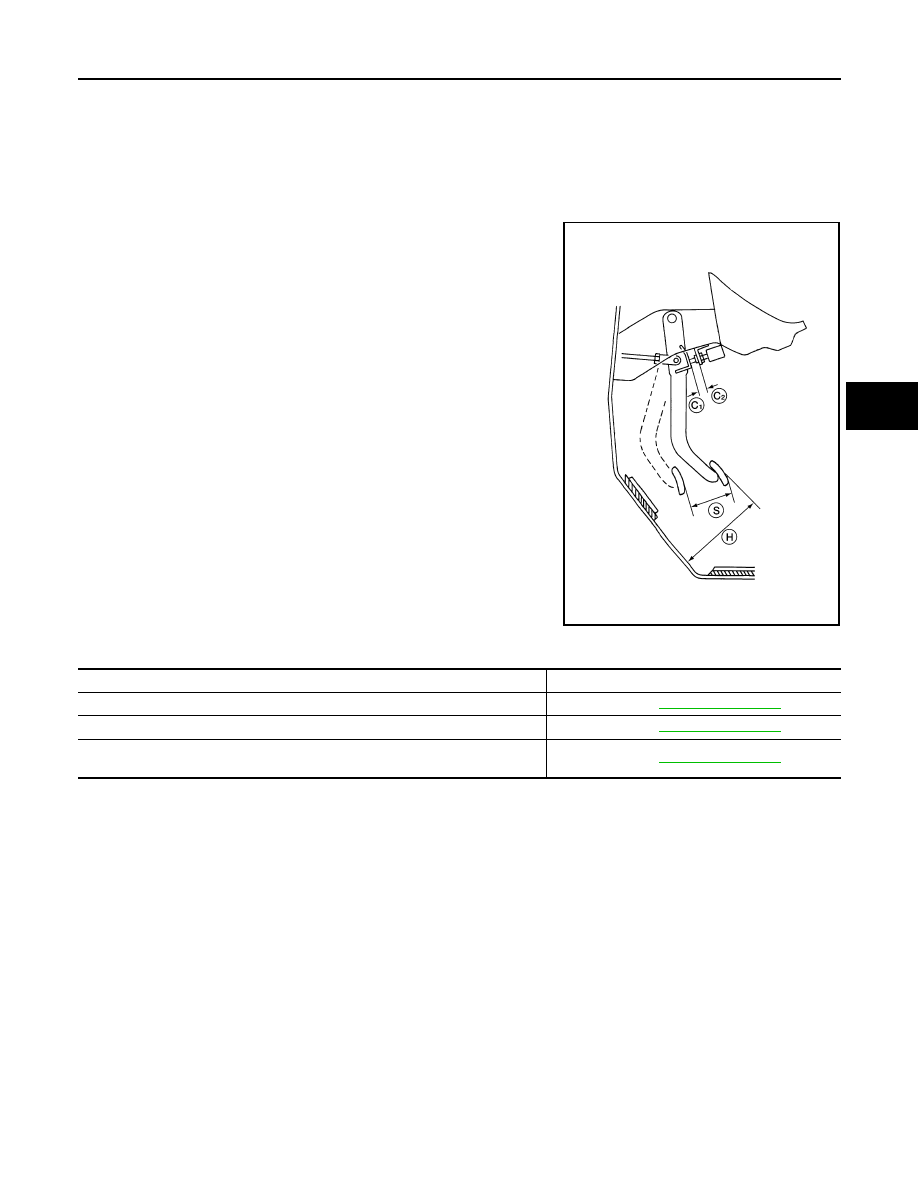

1. Inspect the brake pedal free height (H) from the floor using Tool

at a 90

° angle to the floor as shown.

2. Adjust the brake pedal height to specifications.

Unit: mm (in)

ADJUSTMENT

1. Loosen the stop lamp switch and ASCD cancel switch (if equipped) by turning 45

° counterclockwise.

Tool number :

—

(J-46532)

AWFIA0557ZZ

Brake Pedal Specifications

Pedal free height (H)

Refer to

BR-47, "Brake Pedal"

Pedal full stroke (S)

Refer to

BR-47, "Brake Pedal"

Clearance between brake pedal bracket (C

1

) and threaded end of stop lamp switch

and ASCD cancel switch [if equipped] (C

2

)

Refer to

BR-47, "Brake Pedal"
