Nissan Titan. Manual - part 1





ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009886991

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

ACCELERATOR CONTROL SYSTEM

ACC-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

REMOVAL AND INSTALLATION

ACCELERATOR CONTROL SYSTEM

Removal and Installation

INFOID:0000000009886992

ADJUSTABLE ACCELERATOR PEDAL ASSEMBLY

Adjustable Accelerator Pedal

CAUTION:

• Do not disassemble the accelerator pedal adjusting mechanism.

• Before removal and installation, the accelerator and brake pedals must be in the front most position.

This is to align the base position of the accelerator and brake pedals.

• Do not disassemble the accelerator pedal assembly.

• Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.

• Avoid damage from dropping the accelerator pedal assembly during handling.

• Keep the accelerator pedal assembly away from water.

Removal

1. Move the accelerator and brake pedals to the front most position.
2. Turn the ignition switch OFF and disconnect the negative battery terminal. Refer to

PG-80, "Removal and

Installation"

.

3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.

• Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.

LBIA0379E

1.

Adjustable accelerator pedal assem-
bly

2.

Adjustable accelerator pedal bracket
(part of the accelerator pedal assembly)

3.

Adjustable pedal electric motor (part
of the accelerator pedal assembly)

4.

Adjustable brake pedal cable (part of
the accelerator pedal assembly)

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

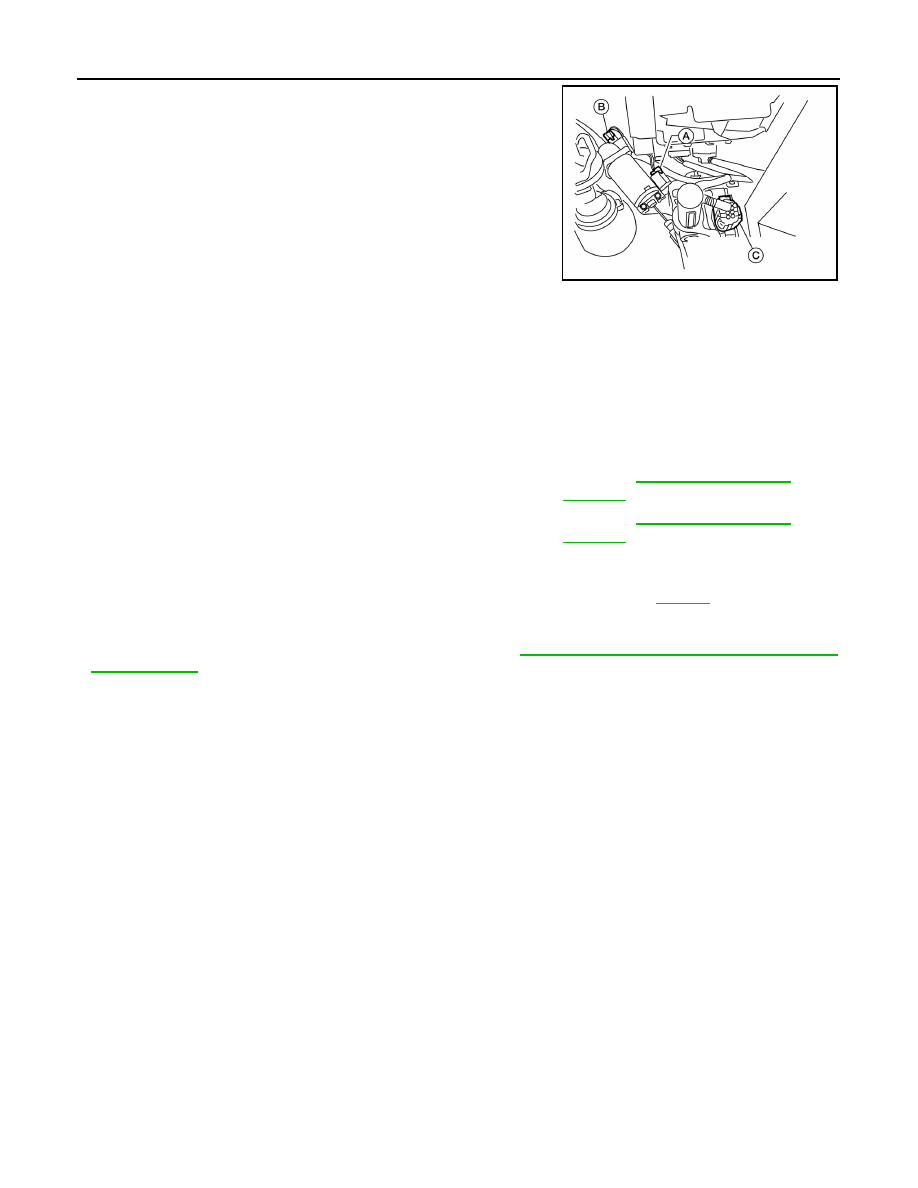

4. Disconnect the harness connector (A) from the adjustable pedal

electric motor.

5. Disconnect the harness connector (B) (if equipped) from the

adjustable pedal electric motor.

6. Disconnect the harness connector (C) from the accelerator

pedal position sensor.

7. Remove the two upper and one lower accelerator pedal nuts.
8. Remove the adjustable accelerator pedal assembly.

CAUTION:

• Do not disassemble the accelerator pedal assembly.

• Do not remove the accelerator pedal position sensor from

the accelerator pedal bracket.

• Do not disassemble the accelerator pedal adjusting mechanism.

• Avoid damage from dropping the accelerator pedal assembly during handling.

• Keep the accelerator pedal assembly away from water.

Installation

Installation is in the reverse order of removal.

Inspection After Installation

• Check that the accelerator pedal moves smoothly within the specified ranges.

• Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original

released position.

• Perform an electrical inspection of the accelerator pedal position sensor. Refer to

EC-128

.

CAUTION:

When the harness connector of the accelerator pedal position sensor is disconnected, perform

″Accelerator Pedal Released Position Learning″. Refer to

EC-128, "Accelerator Pedal Released Posi-

tion Learning"

.

NON-ADJUSTABLE ACCELERATOR PEDAL ASSEMBLY

AWBIA1414ZZ

Adjustable accelerator pedal – total pedal applied stroke : Refer to

ACC-7, "Accelerator

Control"

.

Adjustable accelerator pedal – total pedal height

: Refer to

ACC-7, "Accelerator

Control"

.
