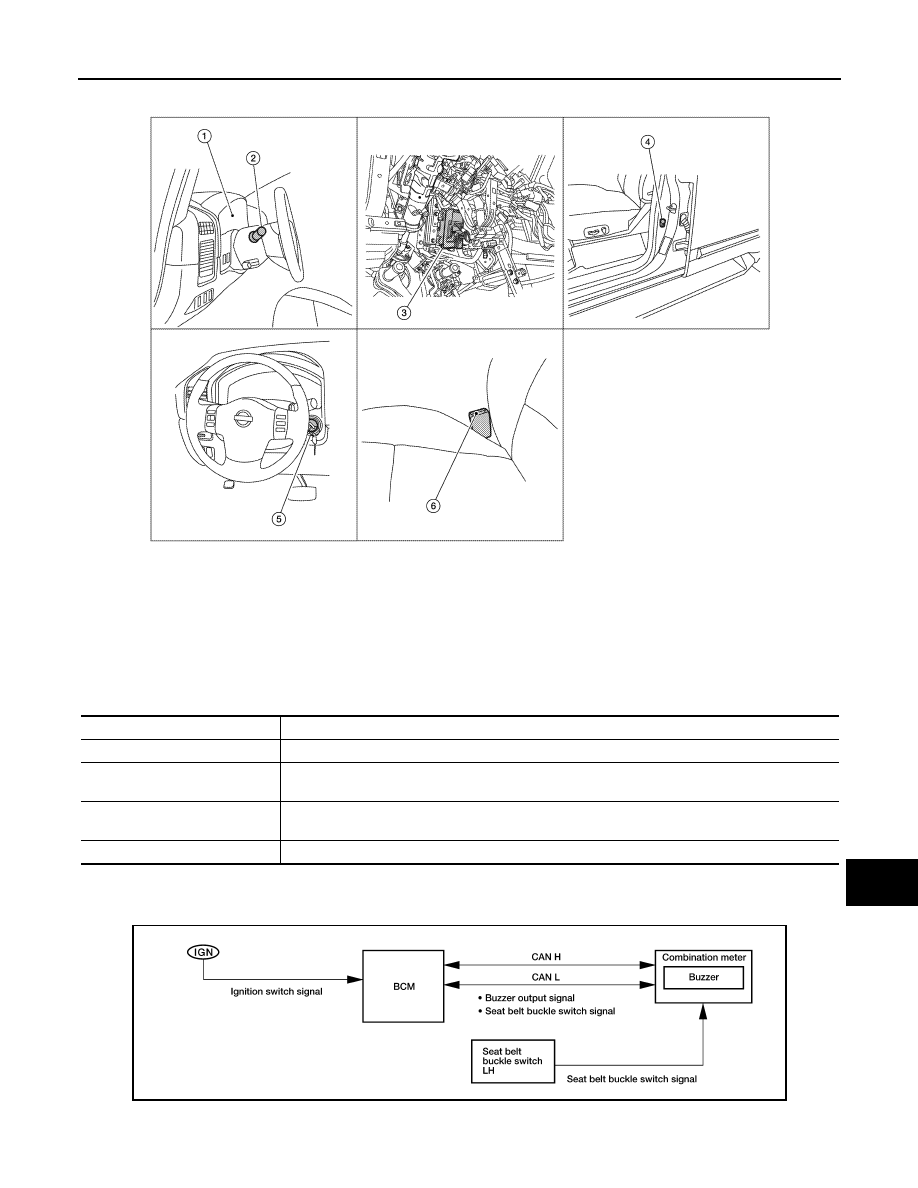

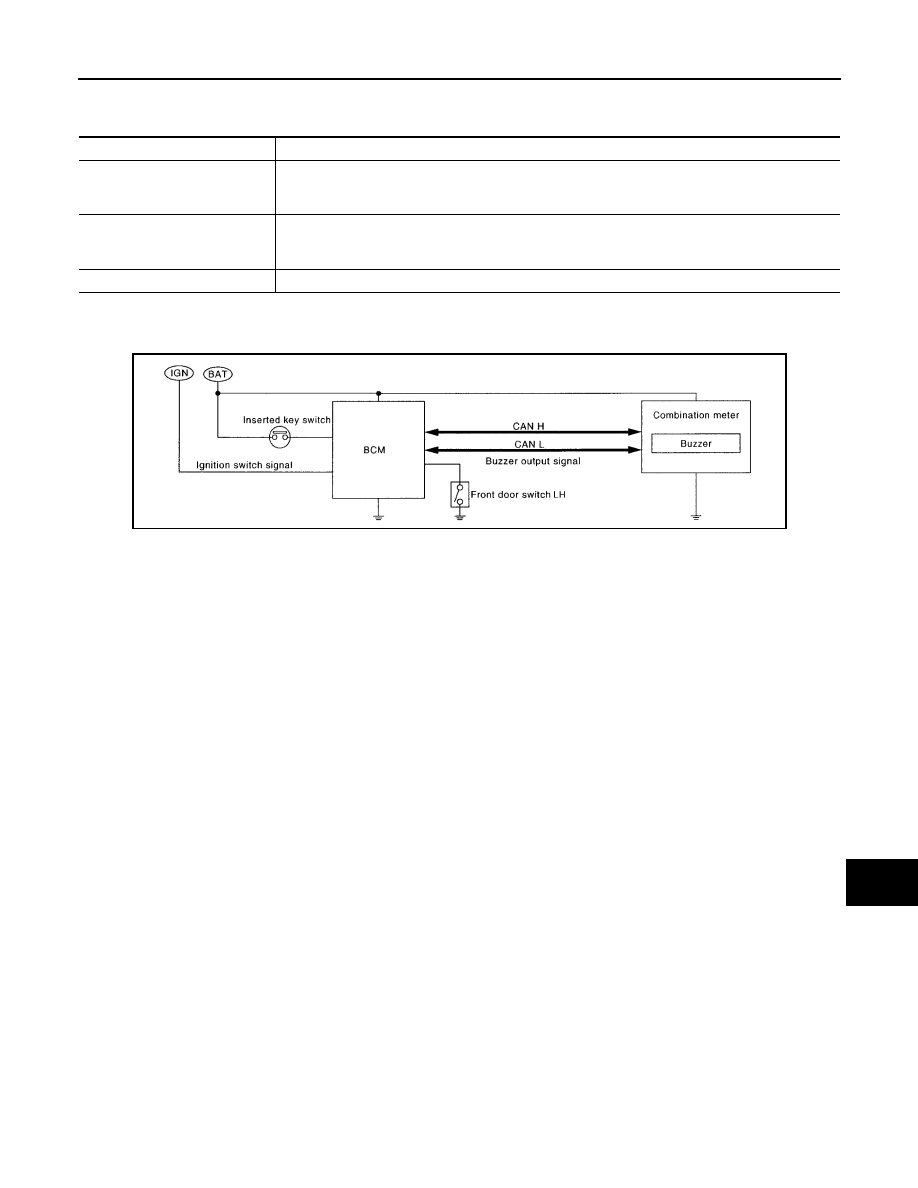

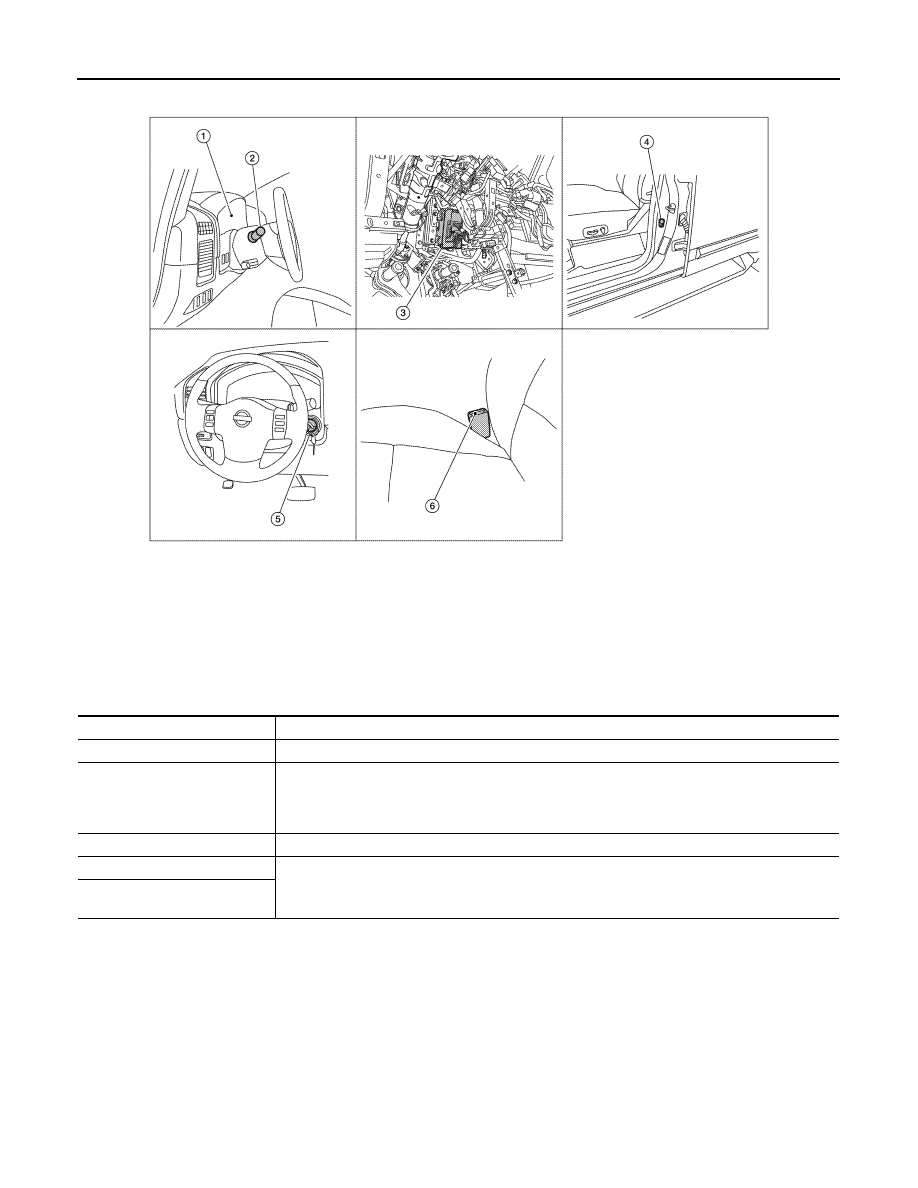

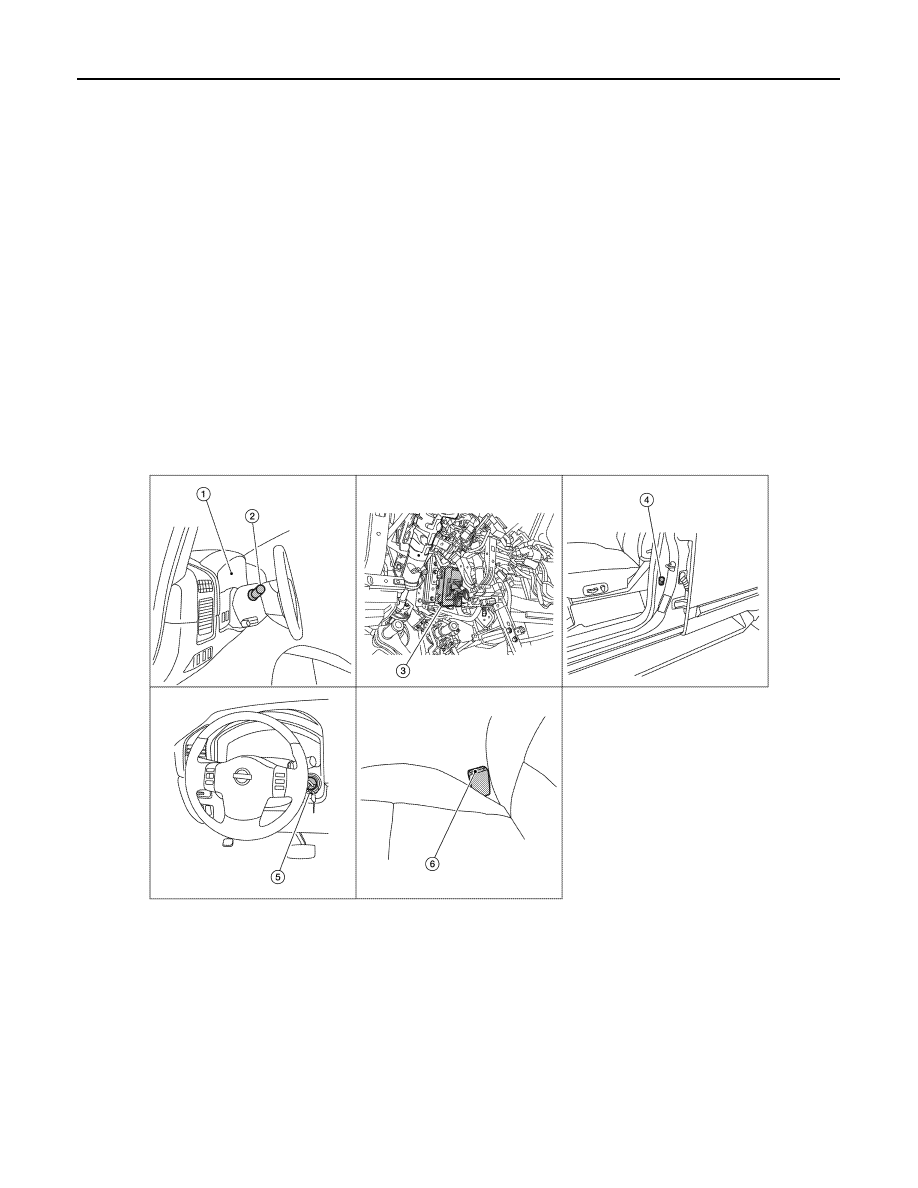

WCS WARNING CHIME SYSTEM WCS-7 < SYSTEM DESCRIPTION > C D E F G H I J K L M B A O P LIGHT REMINDER WARNING CHIME : Component Parts Location INFOID:0000000006624428 LIGHT REMINDER WARNING CHIME : Component Description INFOID:0000000006166391 SEAT BELT WARNING CHIME INFOID:0000000006166392 AWNIA0176ZZ 1. Combination meter M24 2. Combination switch (lighting and turn 3. BCM M18, M19, M20 (view with instru- 4. Front door switch LH B8 5. Key switch and key lock solenoid M27 6. Seat belt buckle switch LH B12 Unit Description Combination meter Receives a buzzer output signal from BCM via CAN communication line and sounds the buzzer. BCM Judges the light warning conditions from the signals provided by various switches and transmits a Combination switch Transmits the lighting switch position signal to BCM. Front door switch LH Transmits the door switch signal to BCM. LKIA0878E |
