Nissan Titan A60. Manual - part 980





BLOWER FAN RESISTOR

VTL-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

BLOWER FAN RESISTOR

Removal and Installation

INFOID:0000000006161803

Front Blower Motor Resistor - Heater and Cooling Unit Assembly

REMOVAL

1. Remove the glove box assembly. Refer to

IP-16, "Removal and Installation"

.

2. Disconnect the front blower motor resistor electrical connector.
3. Remove the two screws and remove the front blower motor resistor.

INSTALLATION

Installation is in the reverse order of removal.

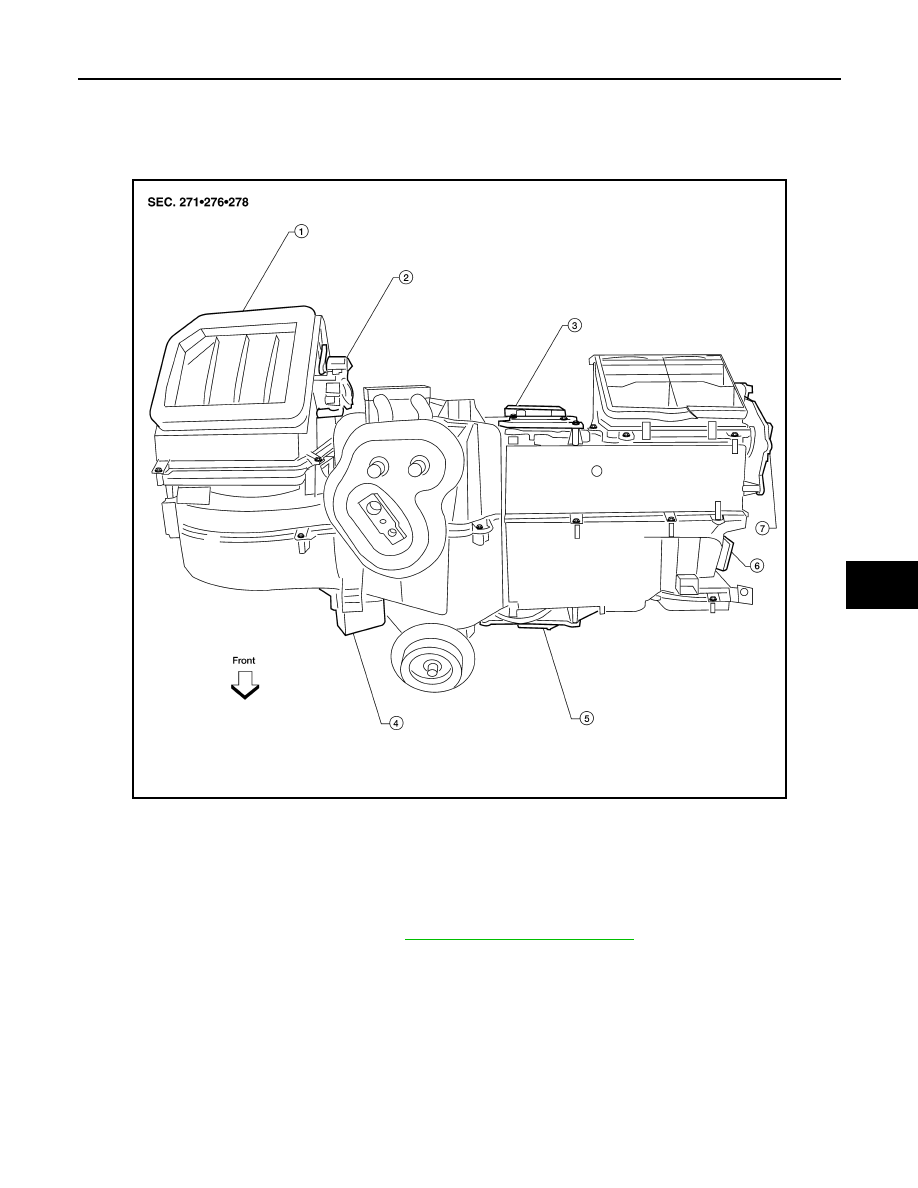

LJIA0139E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control or front blower
motor resistor if equipped

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

VTL-24

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

DUCTS AND GRILLES

Component

INFOID:0000000006161804

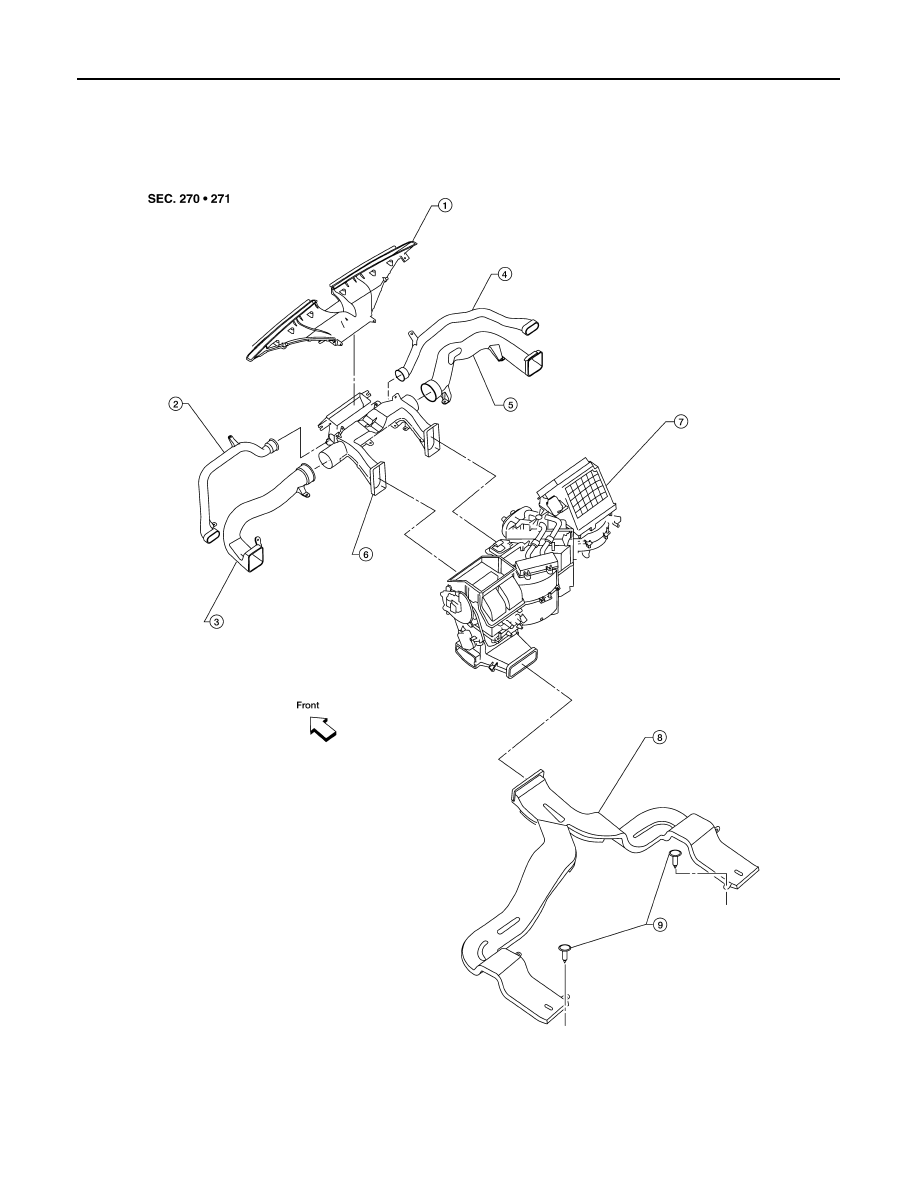

Ducts - Heater and Cooling Unit Assembly

LJIA0141E

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct

7.

Heater and cooling unit assembly

8.

Floor duct

9.

Clips

DUCTS AND GRILLES

VTL-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Grilles

Removal and Installation

INFOID:0000000006161805

DEFROSTER NOZZLE

Removal

1. Remove the instrument panel. Refer to

IP-12, "Removal and Installation"

.

2. Remove the heater and cooling unit assembly. Refer to

VTL-13, "Removal and Installation"

.

3. Remove the defroster nozzle.

Installation

Installation is in the reverse order of removal.

RH AND LH SIDE DEMISTER DUCT

Removal

1. Remove the instrument panel. Refer to

IP-12, "Removal and Installation"

.

2. Remove the heater and cooling unit assembly. Refer to

VTL-13, "Removal and Installation"

.

3. Remove the RH or LH side demister duct.

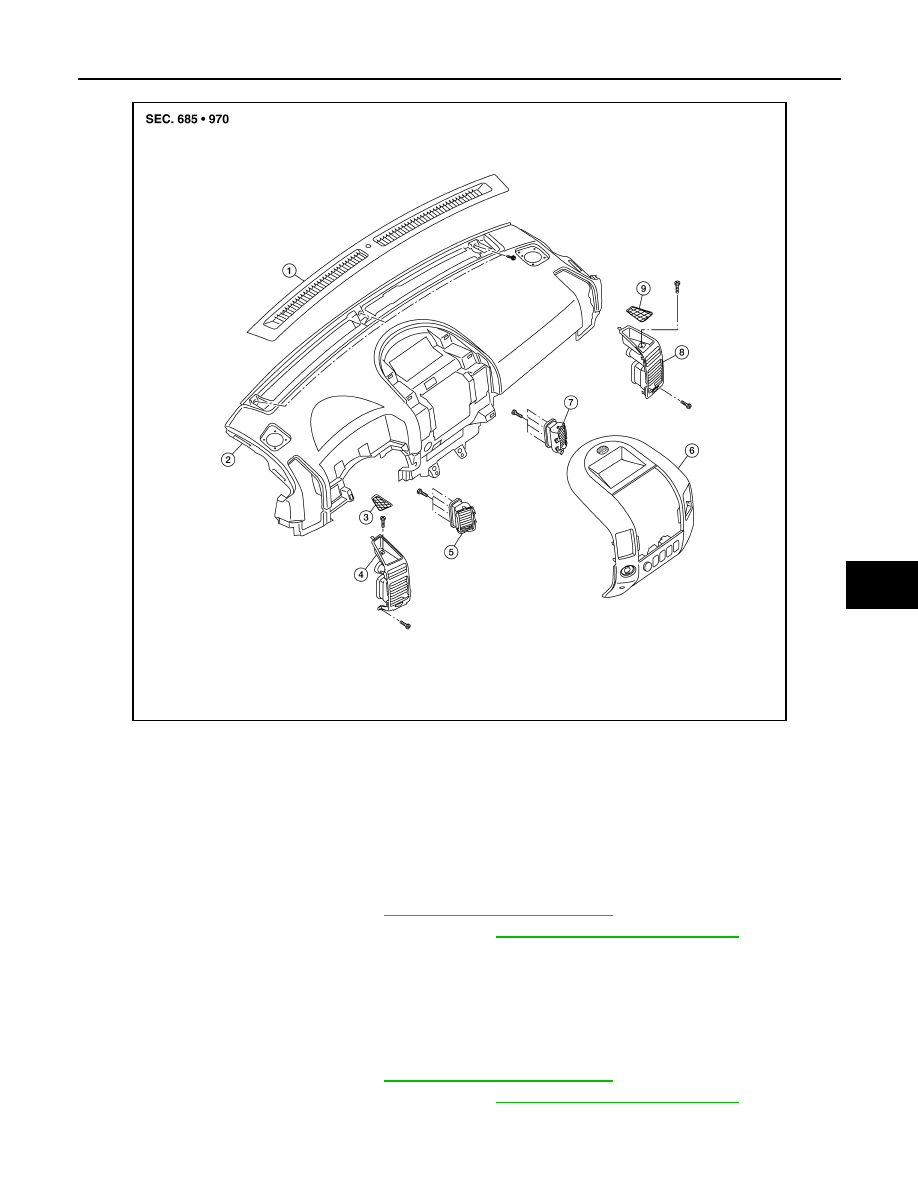

AWIIA0237ZZ

1.

Defroster grille

2.

Instrument panel

3.

Storage tray bottom cover (LH)

4.

Side ventilator assembly LH

5.

Cluster lid C ventilator LH

6.

Cluster lid C

7.

Cluster lid C ventilator RH

8.

Side ventilator assembly RH

9.

Storage tray bottom cover (RH)

VTL-26

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

4. Remove the RH or LH ventilator duct.
5. Remove the defroster nozzle.

Installation

Installation is in the reverse order of removal.

RH AND LH VENTILATOR DUCT

Removal

1. Remove the instrument panel. Refer to

IP-12, "Removal and Installation"

.

2. Remove the heater and cooling unit assembly. Refer to

VTL-13, "Removal and Installation"

.

3. Remove the RH or LH ventilator duct.

Installation

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT

Removal

1. Remove the instrument panel. Refer to

IP-12, "Removal and Installation"

.

2. Remove the heater and cooling unit assembly. Refer to

VTL-13, "Removal and Installation"

.

3. Remove the defroster nozzle.
4. Remove the RH and LH side demister ducts.
5. Remove the RH and LH ventilator ducts.
6. Remove the center ventilator duct.

Installation

Installation is in the reverse order of removal.

FLOOR DUCT

Removal

1. Remove the floor carpet. Refer to

INT-19, "Removal and Installation"

.

2. Remove the two clips and remove the floor duct.

Installation

Installation is in the reverse order of removal.

GRILLES

Removal

1. Remove the interior trim panels as necessary. Refer to

IP-12, "Removal and Installation"

.

2. Remove the grille from the interior trim panel.

Installation

Installation is in the reverse order of removal.
