Nissan Titan A60. Manual - part 979

MODE DOOR MOTOR

VTL-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

MODE DOOR MOTOR

Removal and Installation

INFOID:0000000006161800

Mode Door Motor - Heater and Cooling Unit Assembly

REMOVAL

1. Remove the center console lower cover LH. Refer to

IP-19, "Exploded View"

.

2. Disconnect the mode door motor electrical connector.
3. Remove the two screws and remove the mode door motor.

INSTALLATION

Installation is in the reverse order of removal.

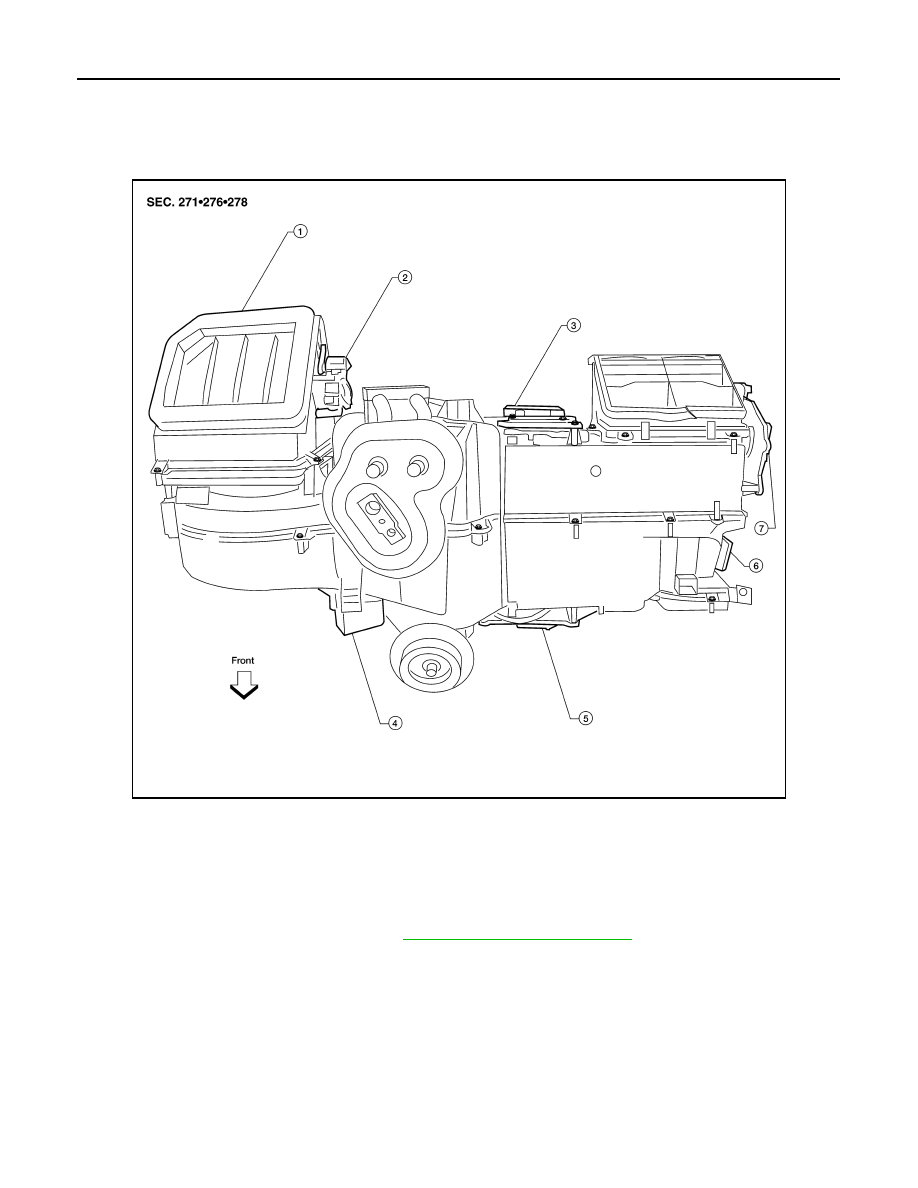

LJIA0139E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control or front blower
motor resistor if equipped

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

VTL-20

< REMOVAL AND INSTALLATION >

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR

Removal and Installation

INFOID:0000000006161801

Air Mix Door Motors - Heater and Cooling Unit Assembly

AIR MIX DOOR MOTOR (DRIVER)

Removal

1. Remove the heater and cooling unit assembly. Refer to

VTL-13, "Removal and Installation"

.

2. Remove the steering member from the heater and cooling unit assembly.
3. Disconnect the air mix door motor electrical connector.
4. Remove the three screws and remove the air mix door motor.

Installation

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR (PASSENGER)

Removal

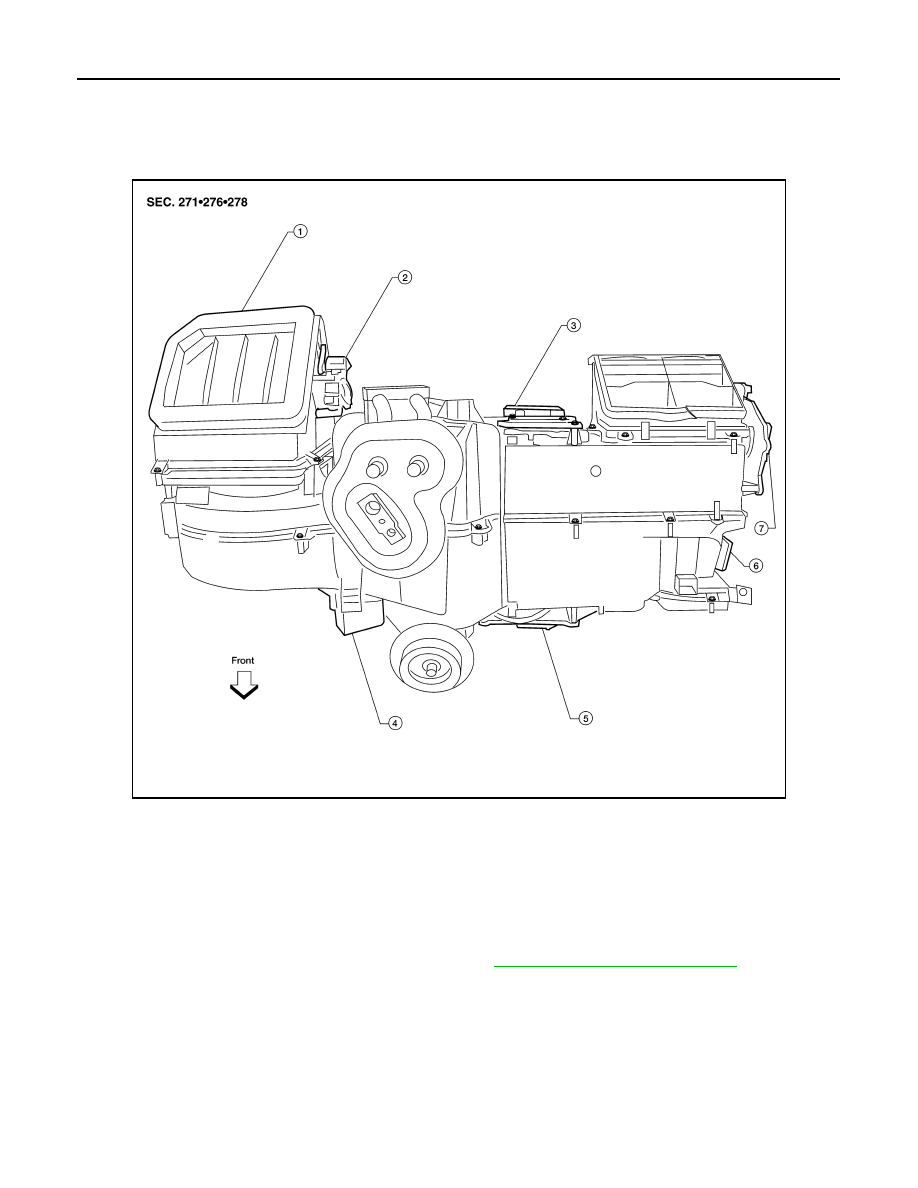

LJIA0139E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control or front blower
motor resistor if equipped

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor

AIR MIX DOOR MOTOR

VTL-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

1. Remove the center console lower cover LH. Refer to

IP-19, "Exploded View"

.

2. Disconnect the air mix door motor electrical connector.
3. Remove the three screws and remove the air mix door motor.

Installation

Installation is in the reverse order of removal.

VTL-22

< REMOVAL AND INSTALLATION >

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

Removal and Installation

INFOID:0000000006161802

Variable Blower Control - Heater and Cooling Unit Assembly

REMOVAL

1. Remove the glove box assembly. Refer to

IP-16, "Removal and Installation"

.

2. Disconnect the variable blower control electrical connector.
3. Remove the two screws and remove the variable blower control.

INSTALLATION

Installation is in the reverse order of removal.

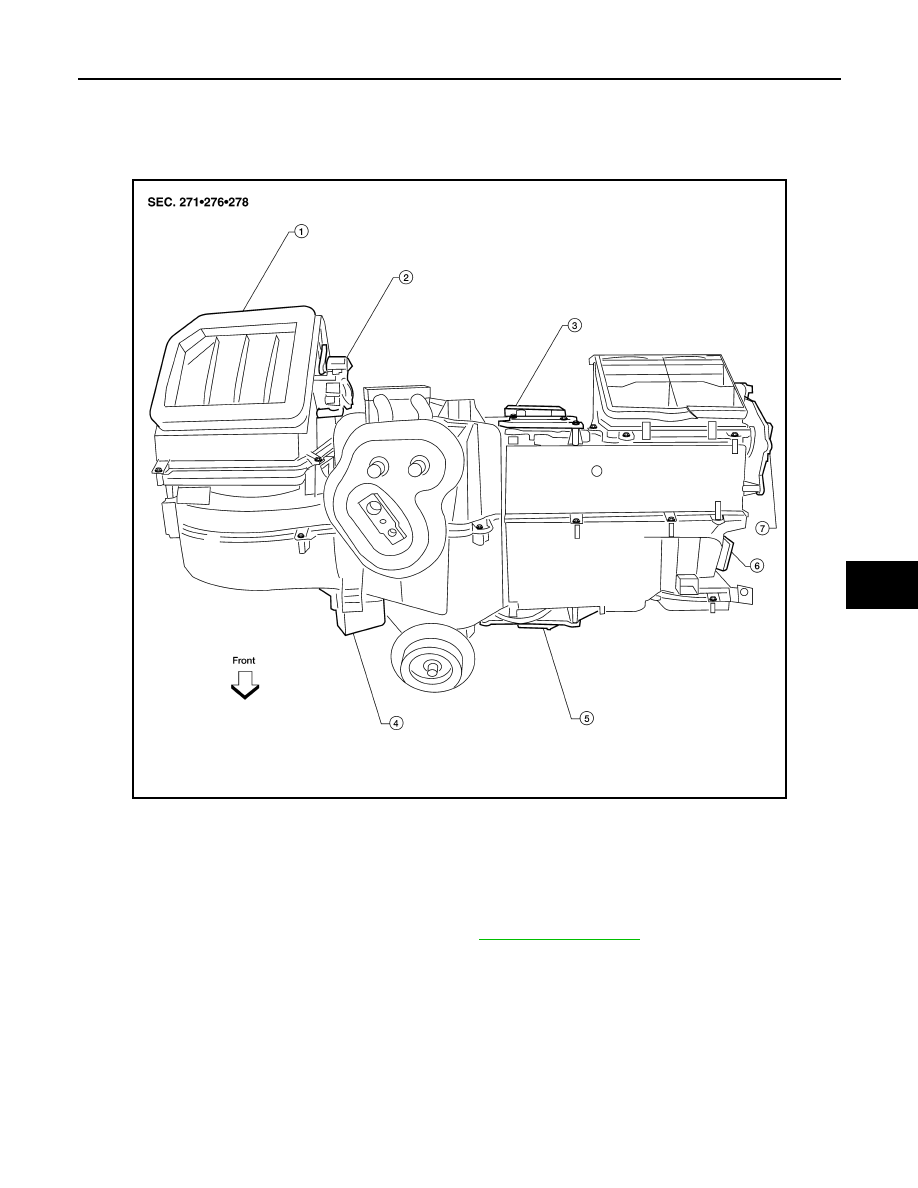

LJIA0139E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control or front blower
motor resistor if equipped

5.

Air mix door motor (passenger)

6.

Mode door motor

7.

Defroster door motor
