TM-280

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

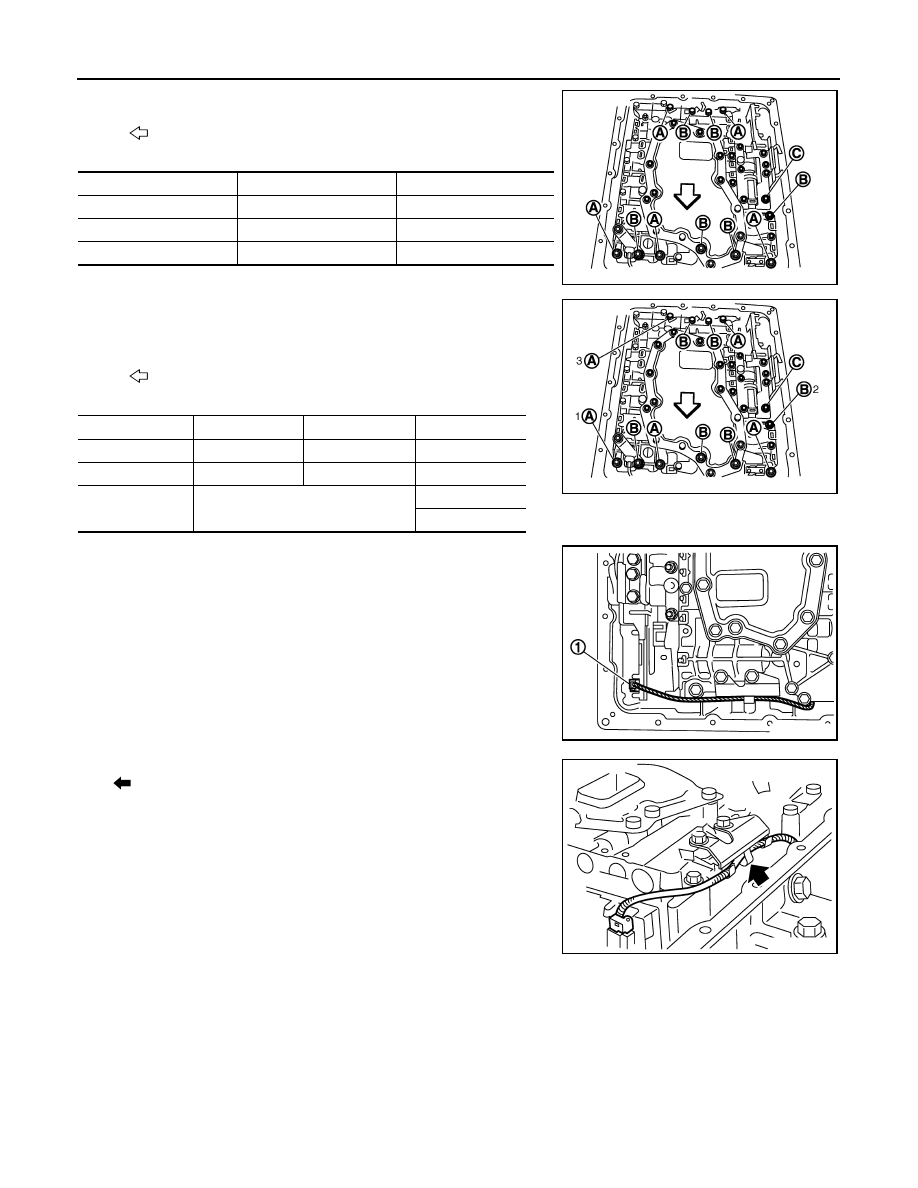

17. Install bolts (A), (B) and (C) to control valve with TCM.

18. Tighten bolt (A), (B) and (C) temporarily to prevent dislocation.

After that tighten them in order (A

→ B → C), and then tighten

other bolts.

19. Connect output speed sensor connector (1).

20. Securely fasten output speed sensor harness with terminal clip

(

).

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8078E

JSDIA1319ZZ

JSDIA1320ZZ

ASSEMBLY

TM-281

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

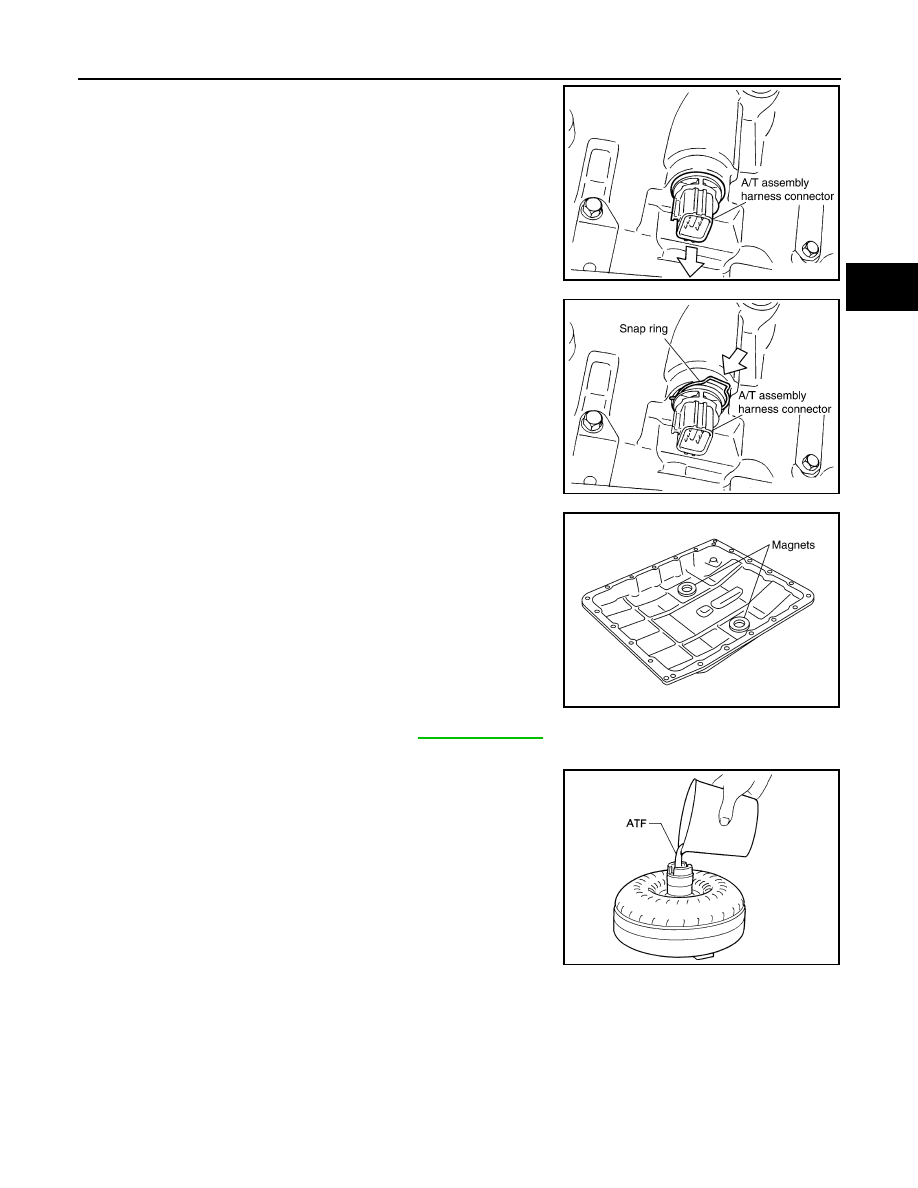

21. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

22. Install snap ring to A/T assembly harness connector.

23. Install magnets in oil pan.

24. Install oil pan to transmission case. Refer to

TM-195, "Oil Pan"

.

25. Install torque converter.
a. Pour ATF into torque converter.

NOTE:

• Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is

required for a new torque converter.

• When reusing old torque converter, add the same amount of

fluid as was drained.

SCIA5299E

SCIA5300E

SCIA5200E

SAT428DA

TM-282

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

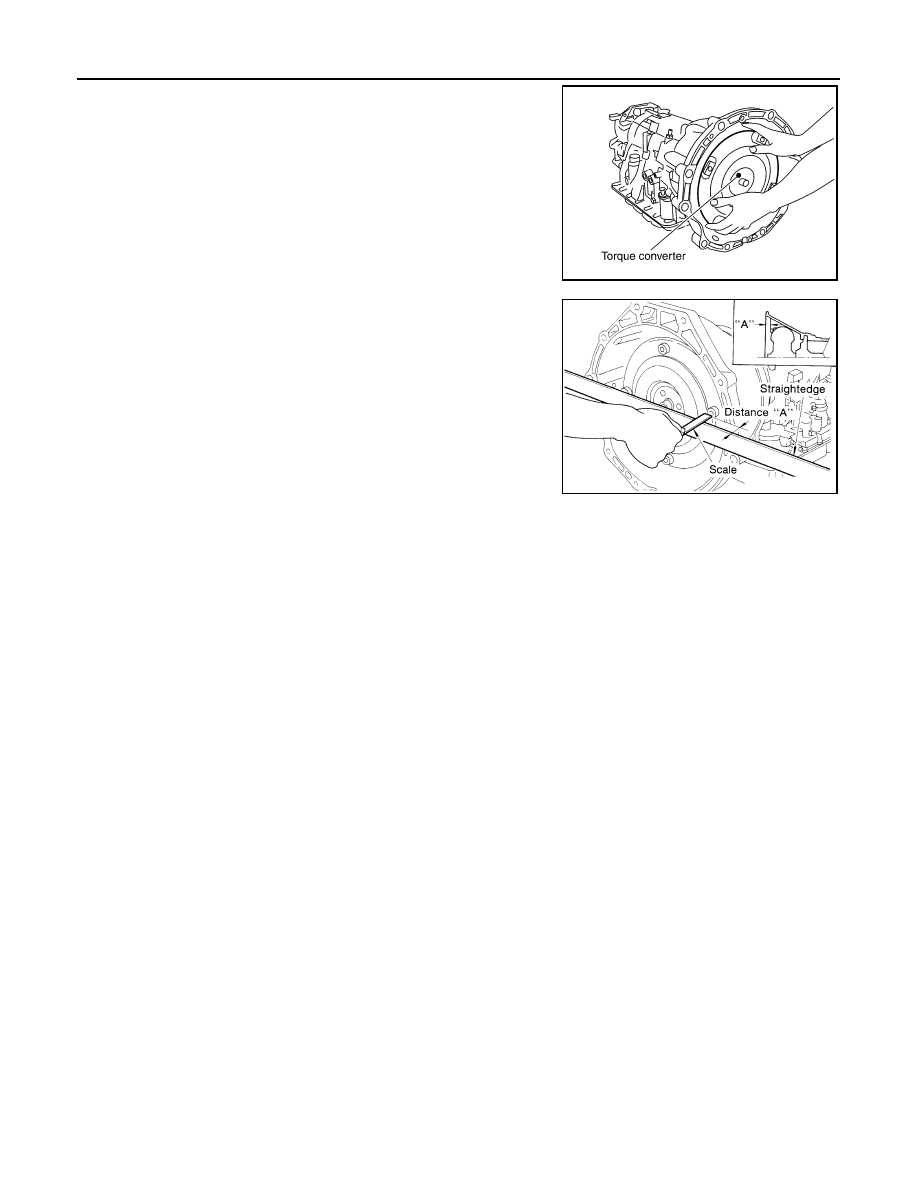

b. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

c.

Measure distance "A" to make sure that torque converter is in

proper position.

SCIA5010E

Distance "A" : 24.0 mm (0.94 in) or more

SCIA5694E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-283

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006159474

*1: Refer to

MA-21, "FOR NORTH AMERICA : Fluids and Lubricants"

 (United States and Canada)

MA-22, "FOR MEXICO : Fluids and

Lubricants"

 (Mexico).

*2: The fluid capacity is the reference value. Check the fluid level with A/T fluid level gauge.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000006159475

NORMAL MODE

• At half throttle, the accelerator opening is 1/2 of the full opening.

TOW MODE

Applied model

2WD

4WD

Automatic transmission model

RE5R05A

Transmission model code number

3DX2C, 3DX3A

3DX2D, 3DX3B

Stall torque ratio

2.0 : 1

Transmission gear ratio

1st

3.827

2nd

2.368

3rd

1.520

4th

1.000

5th

0.834

Reverse

2.613

Recommended fluid

Genuine NISSAN Matic S ATF

*1

Fluid capacity

10.6 liter (11-1/4 US qt, 9-3/8 Imp qt)

*2

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used. Using ATF other than Gen-

uine NISSAN Matic S ATF or  Matic J ATF will cause deterioration driveability and A/T durability, and may damage the A/T,
which is not covered by the NISSAN new vehicle limited warranty.

Final
gear
ratio

Throttle position

Vehicle speed km/h (MPH)

D

1



→D

2

D

2



→D

3

D

3



→D

4

D

4



→D

5

D

5



→D

4

D

4



→D

3

D

3



→D

2

D

2



→D

1

2.937

Full throttle

70 - 74

(44 - 46)

112 - 120

(70 - 75)

176 - 186

(110 - 116)

249 - 259

(155 - 161)

245 - 255

(152 - 159)

166 - 176

(103 - 110)

100 - 108

(62 - 67)

43 - 47

(27 - 30)

Half throttle

46 - 50

(28 - 31)

75 - 81

(47 - 50)

104 - 112

(65 - 70)

136 - 144

(85 - 89)

111 - 119

(69 - 74)

75 - 83

(47 - 51)

44 - 50

(27 - 31)

11 - 15

(7 - 10)

3.357

Full throttle

61 - 65

(38 - 41)

97 - 105

(61 - 66)

153 - 163

(95 - 102)

236 - 246

(147 - 153)

232 - 242

 (144 - 151)

143 - 153

(89 - 95)

87 - 95

(54 - 59)

43 - 47

(27 - 29)

Half throttle

41 - 45

(26 - 28)

67 - 73

(42 - 45)

90 - 98

(56 - 61)

119 - 127

 (74 - 79)

97 - 105

(60 - 65)

65 - 73

(40 - 45)

39 - 45

(24 - 28)

11 - 15

(7 - 10)

Final
gear
ratio

Throttle position

Vehicle speed km/h (MPH)

D

1



→D

2

D

2



→D

3

D

3



→D

4

D

4



→D

5

D

5



→D

4

D

4



→D

3

D

3



→D

2

D

2



→D

1

2.937

Full throttle

70 - 74

(44 - 46)

112 - 120

(70 - 75)

176 - 186

(110 - 116)

249 - 259

(155 - 161)

245 - 255

(152 - 159)

166 - 176

(103 - 110)

100 - 108

(62 - 67)

43 - 47

(27 - 30)

Half throttle

50 - 54

(31 - 34)

82 - 88

(51 - 55)

114 - 122

(71 - 76)

136 - 144

(85 - 89)

111 - 119

(69 - 74)

76 - 84

(47 - 52)

44 - 50

(27 - 31)

11 - 15

(7 - 10)
