TM-168

< PERIODIC MAINTENANCE >

A/T FLUID

PERIODIC MAINTENANCE

A/T FLUID

Checking the A/T Fluid (ATF)

INFOID:0000000006159436

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "FOR

NORTH AMERICA : Introduction of Periodic Maintenance"

 (United States and Canada)

MA-13, "FOR

MEXICO : Introduction of Periodic Maintenance"

 (Mexico).

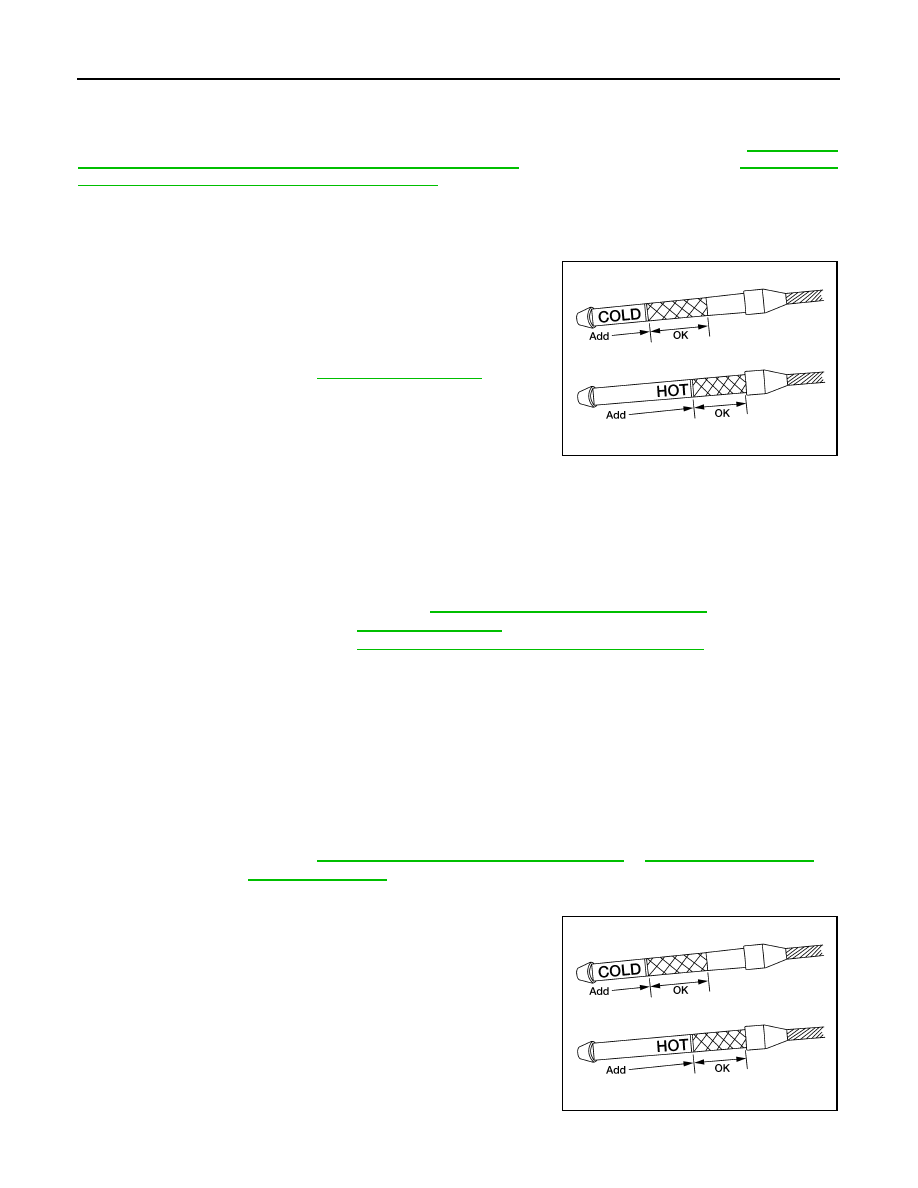

1. Before driving, the A/T fluid level can be checked at A/T fluid

temperatures of 30

° to 50° C (86° to 122° F) using the “COLD”

range on the A/T fluid level gauge as follows:

a. Park the vehicle on a level surface and set the parking brake.
b. Start the engine and move the selector lever through each gear

position. Shift the selector lever into the “P” position.

c.

Check the A/T fluid level with the engine idling.

d. Remove the A/T fluid level gauge and wipe it clean with a lint-

free paper.

CAUTION:

When wiping the A/T fluid from the A/T fluid level gauge,

always use a lint-free paper, not a cloth.

e. Re-insert the A/T fluid level gauge into the A/T fluid charging

pipe until the cap contacts the top of the A/T fluid charging pipe

as shown.

CAUTION:

To check A/T fluid level, insert the A/T fluid level gauge until

the cap contacts the top of the A/T fluid charging pipe, with

the gauge reversed from the normal inserted position.

f.

Remove the A/T fluid level gauge and note the A/T fluid level. If

the A/T fluid level is at low side of range, add A/T fluid to the

transmission through the A/T fluid charging pipe.

CAUTION:

Do not overfill the transmission with A/T fluid.

g. Install the A/T fluid level gauge and the A/T fluid level gauge bolt.

2. Warm up the engine and transmission.
3. Check for any A/T fluid leaks.
4. Drive the vehicle to increase the A/T fluid temperature to 80

° C (176° F).

LLIA0071E

A/T fluid level
gauge bolt

: Refer to

TM-206, "Removal and Installation (2WD)"

 or

TM-208, "Removal

and Installation (4WD)"

SCIA2899E

A/T FLUID

TM-169

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

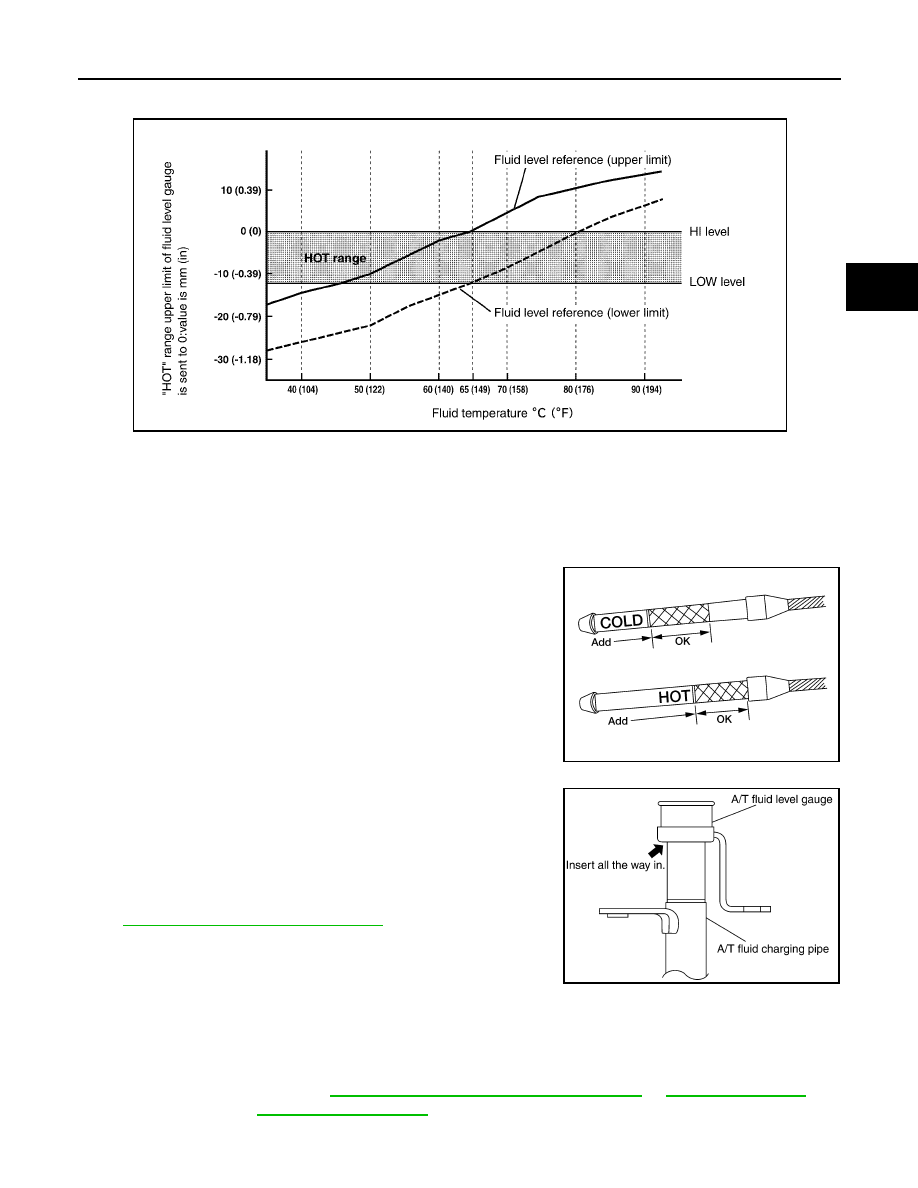

5. Allow the A/T fluid temperature to fall to approximately 65

°C (149°F). Use the CONSULT-III to monitor the

A/T fluid temperature as follows:

NOTE:

The A/T fluid level will be significantly affected by the A/T fluid temperature as shown. Therefore monitor

the A/T fluid temperature data using the CONSULT-III.

a. Connect CONSULT-III to data link connector.
b. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.
c. Read out the value of “ATF TEMP 1”.

6. Re-check the A/T fluid level at A/T fluid temperatures of approxi-

mately 65

°C (149°F) using the “HOT” range on the A/T fluid

level gauge as shown. The HOT range is between 50

° - 80° C

(122

° - 176° F).

CAUTION:

• When wiping the A/T fluid from the A/T fluid level gauge,

always use lint-free paper, not a cloth.

• To check the A/T fluid level, insert the A/T fluid level

gauge until the cap contacts the top of the A/T fluid charg-

ing pipe, with the gauge reversed from the normal

inserted position as shown.

7. Check the A/T fluid condition.

• If the A/T fluid is very dark or has some burned smell, there

may be an internal problem with the transmission. Refer to

TM-172, "A/T Fluid Cooler Cleaning"

. Flush the transmission

cooling system after repairing the transmission.

• If the A/T fluid contains frictional material (clutches, bands,

etc.), replace the radiator and flush the transmission cooler

lines using cleaning solvent and compressed air after repairing

the transmission.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe.
9. Tighten the A/T fluid level gauge bolt to specification.

SLIA0016E

LLIA0071E

A/T fluid level
gauge bolt

: Refer to

TM-206, "Removal and Installation (2WD)"

 or

TM-208, "Removal

and Installation (4WD)"

SCIA2899E

TM-170

< PERIODIC MAINTENANCE >

A/T FLUID

Changing the A/T Fluid (ATF)

INFOID:0000000006159437

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "FOR

NORTH AMERICA : Introduction of Periodic Maintenance"

 (United States and Canada)

MA-13, "FOR

MEXICO : Introduction of Periodic Maintenance"

 (Mexico).

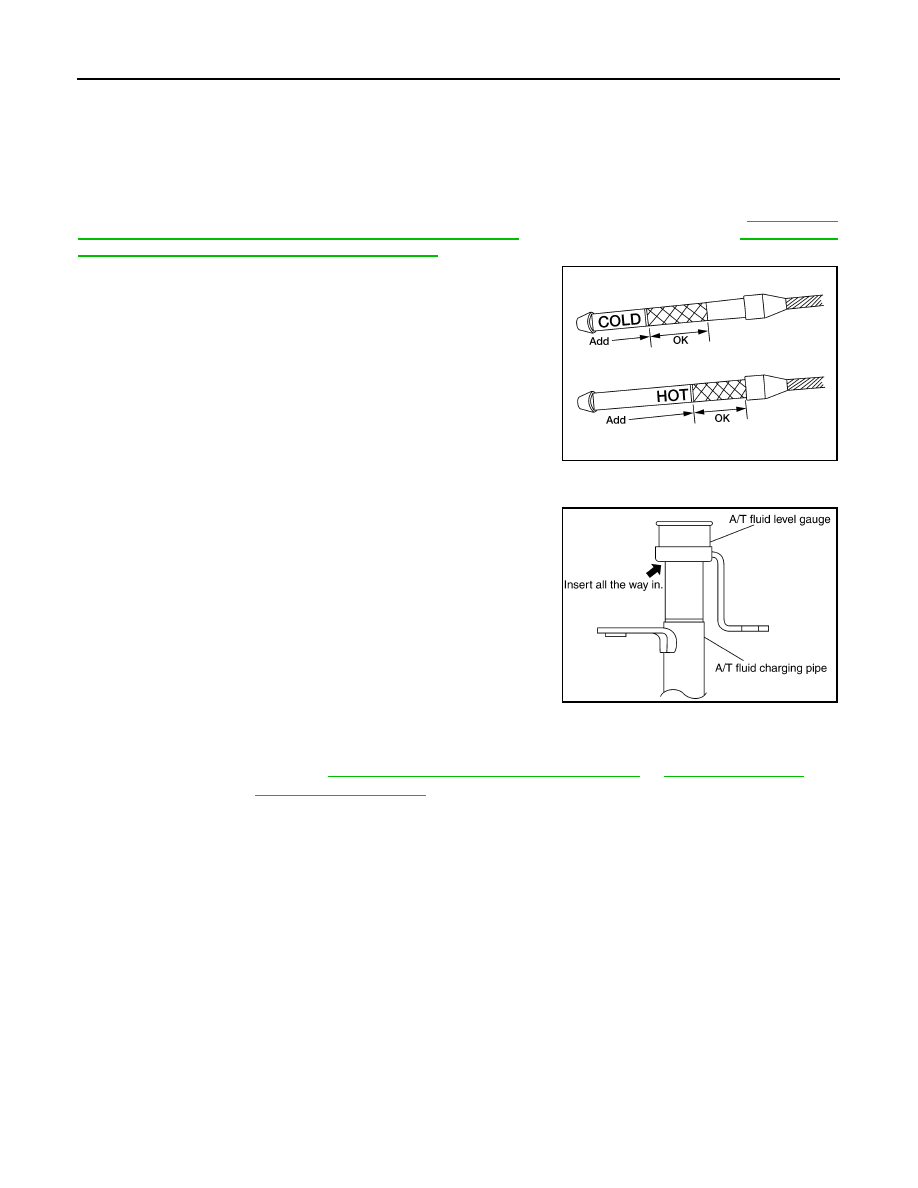

1. Drive the vehicle to warm up the A/T fluid to approximately 80

° C (176° F).

2. Stop the engine.
3. Remove the A/T fluid level gauge.
4. Drain the A/T fluid from the drain plug hole, then install the drain

plug with a new gasket. Refill the transmission with new A/T

fluid. Always refill with the same volume as the drained A/T fluid.

Use the A/T fluid level gauge to check the A/T fluid level as

shown. Add A/T fluid as necessary.

• To flush out the old A/T fluid from the transmission oil coolers, pour new A/T fluid into the A/T fluid charg-

ing pipe with the engine idling and at the same time drain the old A/T fluid from the auxiliary transmis-

sion oil cooler hose return line.

• When the color of the A/T fluid coming out of the auxiliary transmission oil cooler hose return line is

about the same as the color of the new A/T fluid, flushing out the old A/T fluid is complete. The amount

of new A/T fluid used for flushing should be 30% to 50% increase of the specified capacity.

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used.

• Using ATF fluid other than Genuine NISSAN Matic S ATF or Matic J ATF will cause deterioration

in driveability and A/T durability, and may damage the A/T, which is not covered by the warranty.

• When filling the transmission with A/T fluid, do not spill the A/T fluid on any heat generating

parts such as the exhaust parts.

• Do not reuse the drain plug gasket.

5. Install the A/T fluid level gauge and tighten the A/T fluid level gauge bolt to specification.

6. Drive the vehicle to warm up the A/T fluid to approximately 80

° C (176° F).

7. Check the fluid level and condition. If the A/T fluid is still dirty,

repeat steps 2 through 6.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe and install the A/T fluid level gauge bolt.

Drain plug

: Refer to

TM-212, "Component"

.

LLIA0071E

A/T fluid grade and capacity

: Refer to

MA-21, "FOR NORTH AMERICA : Flu-

ids and Lubricants"

 (United States and Canada)

MA-22, "FOR MEXICO : Fluids and Lubricants"



(Mexico).

A/T fluid level
gauge bolt

: Refer to

TM-206, "Removal and Installation (2WD)"

 or

TM-208, "Removal and

Installation (4WD)"

.

LLIA0071E

A/T FLUID

TM-171

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

9. Tighten the A/T fluid level gauge bolt to specification.

A/T fluid level
gauge bolt

: Refer to

TM-206, "Removal and Installation (2WD)"

 or

TM-208, "Removal and

Installation (4WD)"

.
