Nissan Titan A60. Manual - part 933

TM-120

< ECU DIAGNOSIS INFORMATION >

TCM

*1: These numbers are prescribed by SAE J2012.
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.

P0735

P0735

5GR INCORRECT RATIO

TM-69

P0740

P0740

TORQUE CONVERTER

TM-70

P0744 P0744

TORQUE

CONVERTER

TM-72

P0745

P0745

PC SOLENOID A

TM-74

—

P1705

TP SENSOR

TM-76

—

P1721

VEHICLE SPEED SIGNAL

TM-80

P1730

P1730

INTERLOCK

TM-82

—

P1731

1GR E/BRAKING

TM-84

P1752

P1752

INPUT CLUTCH SOL

TM-86

P1757

P1757

FR BRAKE SOLENOID

TM-88

P1762

P1762

DRCT CLUTCH SOL

TM-90

P1767

P1767

HLR CLUTCH SOLENOID

TM-92

P1772

P1772

L C BRAKE SOLENOID

TM-94

P1774 (2*)

P1774

L C BRAKE SOLENOID

TM-97

—

P1815

M-MODE SWITCH

TM-98

U1000

U1000

CAN COMM CIRCUIT

TM-45

DTC

Items

(CONSULT- III screen terms)

Reference page

OBD- II

Except OBD- II

“ENGINE” with CON-

SULT- III or GST (*1)

CONSULT- III          only

“TRANSMISSION”

A/T CONTROL SYSTEM

TM-121

< WIRING DIAGRAM >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

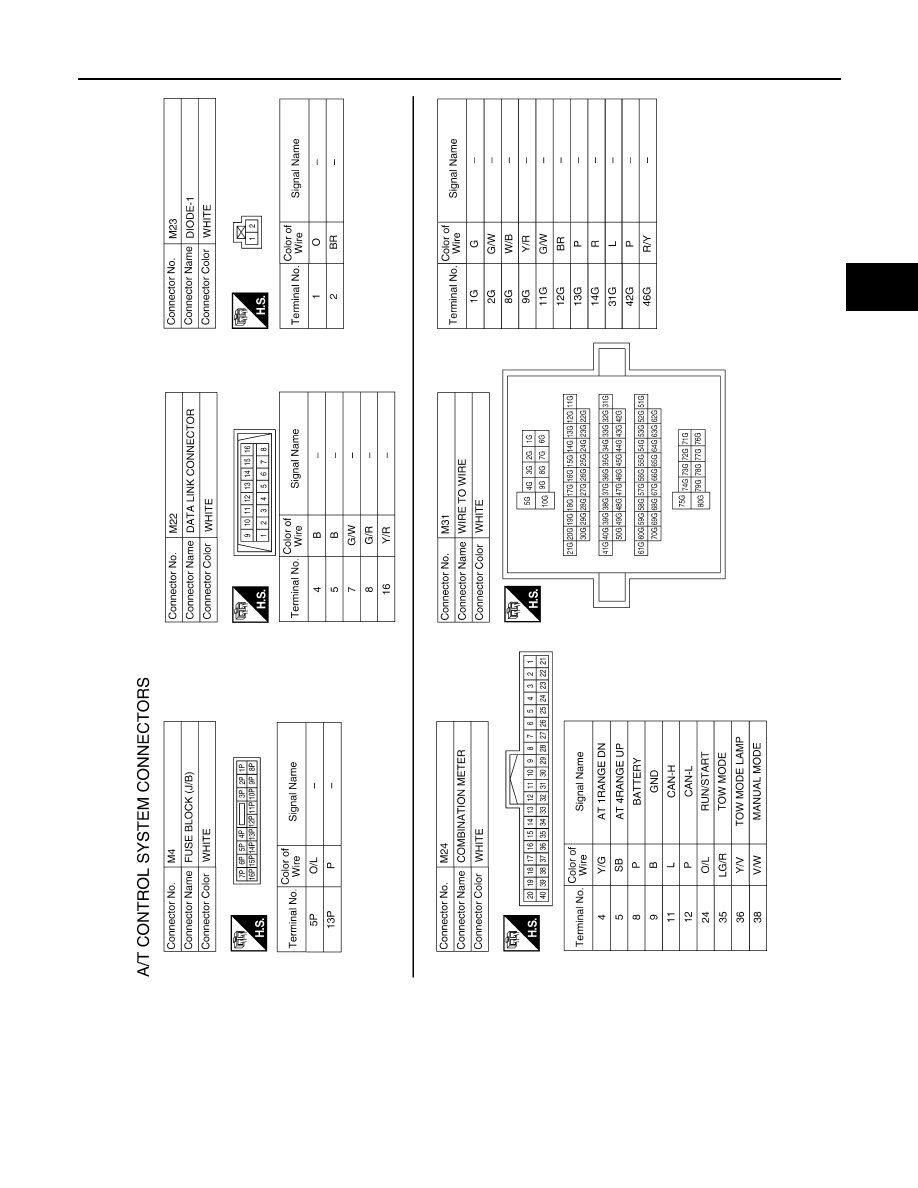

WIRING DIAGRAM

A/T CONTROL SYSTEM

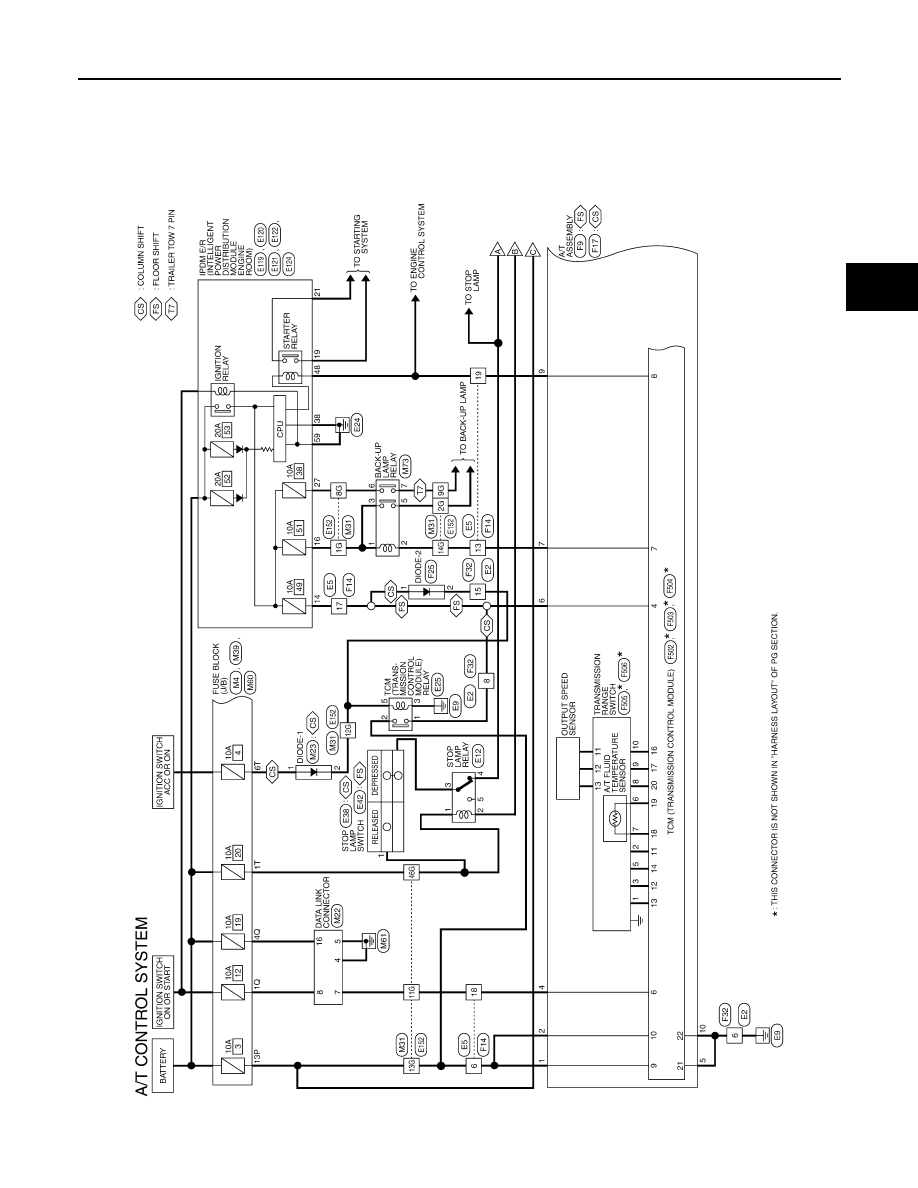

Wiring Diagram

INFOID:0000000006159425

ABDWA0452GB

TM-122

< WIRING DIAGRAM >

A/T CONTROL SYSTEM

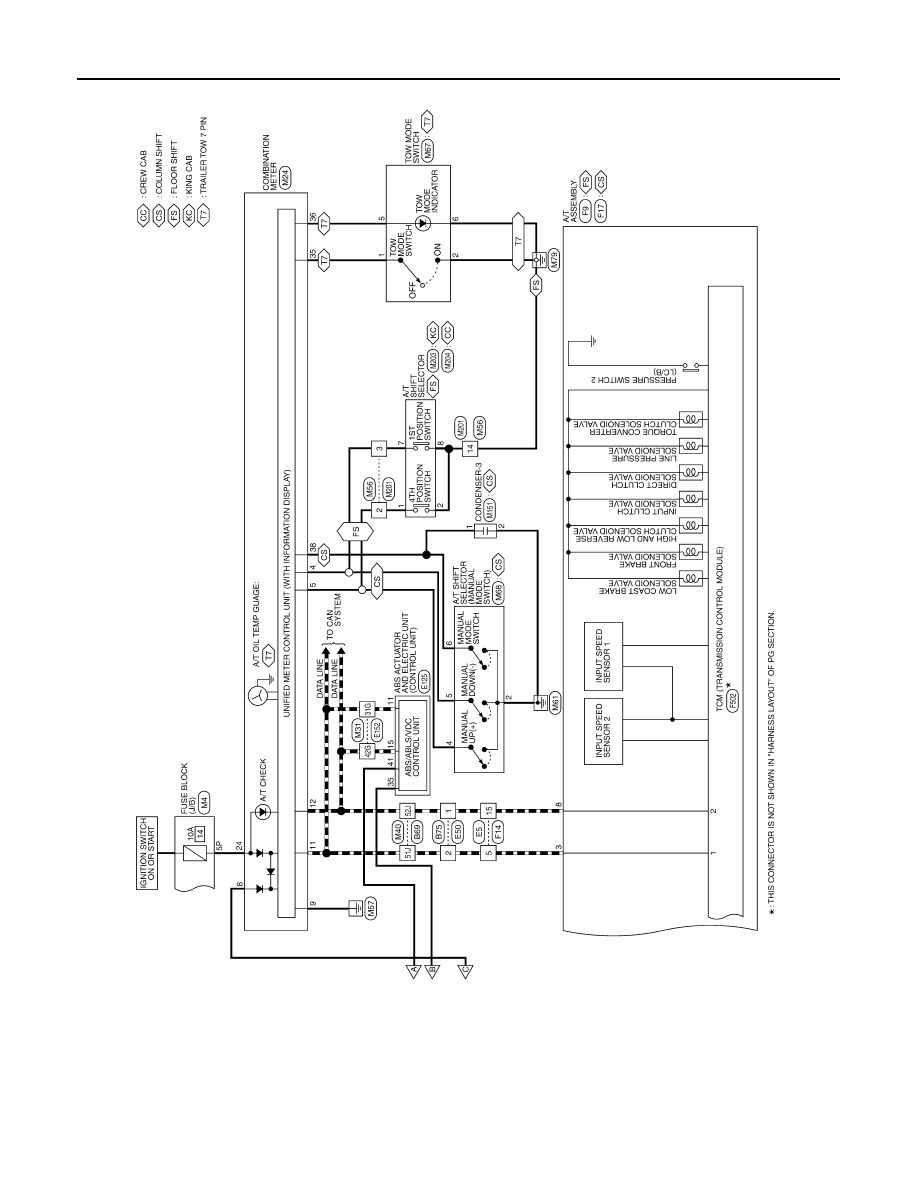

ABDWA0453GB

A/T CONTROL SYSTEM

TM-123

< WIRING DIAGRAM >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ABDIA0306GB
