TM-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006159225

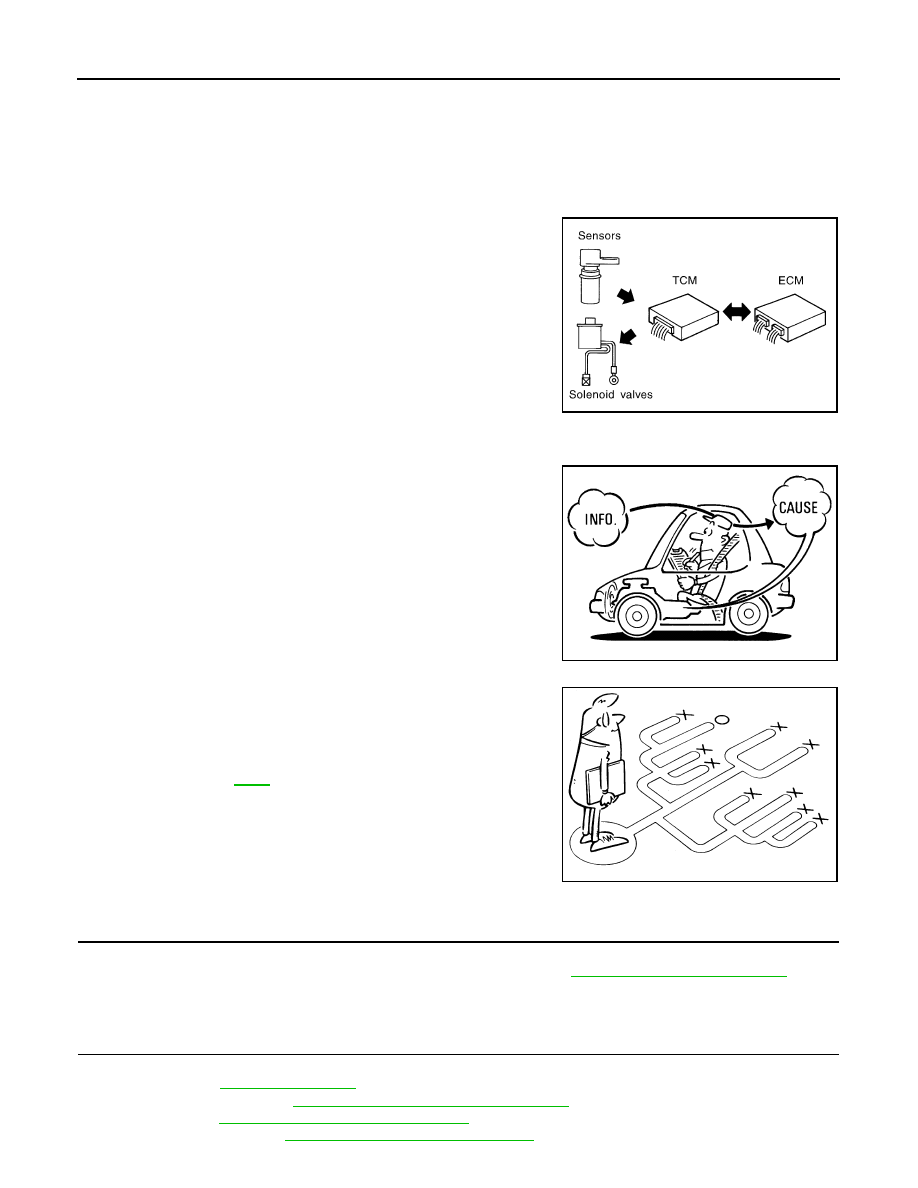

INTRODUCTION

The TCM receives a signal from the output speed sensor, accelera-

tor pedal position sensor (throttle position sensor) or transmission

range switch. Then provides shift control or lock-up control via A/T

solenoid valves.

The TCM also communicates with the ECM by means of a signal

sent from sensing elements used with the OBD-related parts of the

A/T system for malfunction-diagnostic purposes. The TCM is capa-

ble of diagnosing malfunctioning parts while the ECM can store mal-

functions in its memory.

Input and output signals must always be correct and stable in the

operation of the A/T system. The A/T system must be in good oper-

ating condition and be free of valve seizure, solenoid valve malfunc-

tion, etc.

It is much more difficult to diagnose an error that occurs intermit-

tently rather than continuously. Most intermittent errors are caused

by poor electric connections or improper wiring. In this case, careful

checking of suspected circuits may help prevent the replacement of

good parts.

A visual check only may not find the cause of the errors. A road test

with CONSULT-III (or GST) or a circuit tester connected should be

performed. Follow the “DETAILED FLOW”.

Before undertaking actual checks, take a few minutes to talk with a

customer who approaches with a driveability complaint. The cus-

tomer can supply good information about such errors, especially

intermittent ones. Find out what symptoms are present and under

what conditions they occur. A “Diagnostic work sheet” as shown on

the example (Refer to

TM-7

) should be used.

Start your diagnosis by looking for “conventional” errors first. This will

help troubleshoot driveability errors on an electronically controlled

engine vehicle.

Also check related Service bulletins.

DETAILED FLOW

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using diagnosis worksheet. Refer to

TM-7, "Diagnostic Work Sheet"

>> GO TO 2.

CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.

• Fail-safe. Refer to

TM-118, "Fail-Safe"

• A/T fluid inspection. Refer to

TM-168, "Checking the A/T Fluid (ATF)"

• Stall test. Refer to

TM-175, "Inspection and Judgment"

• Line pressure test. Refer to

TM-177, "Inspection and Judgment"

SAT631IB

SAT632I

SEF234G

DIAGNOSIS AND REPAIR WORKFLOW

TM-7

< BASIC INSPECTION >

>> GO TO 3.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is detected.

• Record DTC.

• Erase DTC. Refer to

TM-34, "OBD-II Diagnostic Trouble Code (DTC)"

Is any DTC detected?

YES

>> GO TO 4.

>> GO TO 6.

PERFORM DIAGNOSTIC PROCEDURE

Perform “Diagnosis Procedure” for the displayed DTC.

>> GO TO 5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform “DTC CONFIRMATION PROCEDURE”.
Is DTC detected?

YES

>> GO TO 4.

>> GO TO 6.

CHECK SYMPTOM 2

Try to confirm the symptom described by the customer.
Is any malfunction present?

YES

>> GO TO 7.

>> INSPECTION END

ROAD TEST

Perform “ROAD TEST”. Refer to

TM-179, "Description"

>> GO TO 8.

CHECK SYMPTOM 3

Try to confirm the symptom described by the customer.
Is any malfunction present?

YES

>> GO TO 2.

>> INSPECTION END

Diagnostic Work Sheet

INFOID:0000000006159226

INFORMATION FROM CUSTOMER

KEY POINTS

• WHAT..... Vehicle and A/T model

• WHEN..... Date, Frequencies

• WHERE..... Road conditions

• HOW..... Operating conditions, Symptoms

Customer name MR/MS

Model and Year

VIN

Trans. Model

Engine

Mileage

Malfunction Date

Manuf. Date

In Service Date

Frequency

Continuous Intermittent ( times a day)
