STARTING SYSTEM

STR-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA0867GB

STR-14

< WIRING DIAGRAM >

STARTING SYSTEM

ABBIA0868GB

STARTING SYSTEM

STR-15

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000006164577

Symptom

Reference

No normal cranking

Refer to

STR-4, "Work Flow"

.

Starter motor does not rotate

STR-16

< REMOVAL AND INSTALLATION >

STARTER MOTOR

REMOVAL AND INSTALLATION

STARTER MOTOR

Removal and Installation

INFOID:0000000006164578

REMOVAL

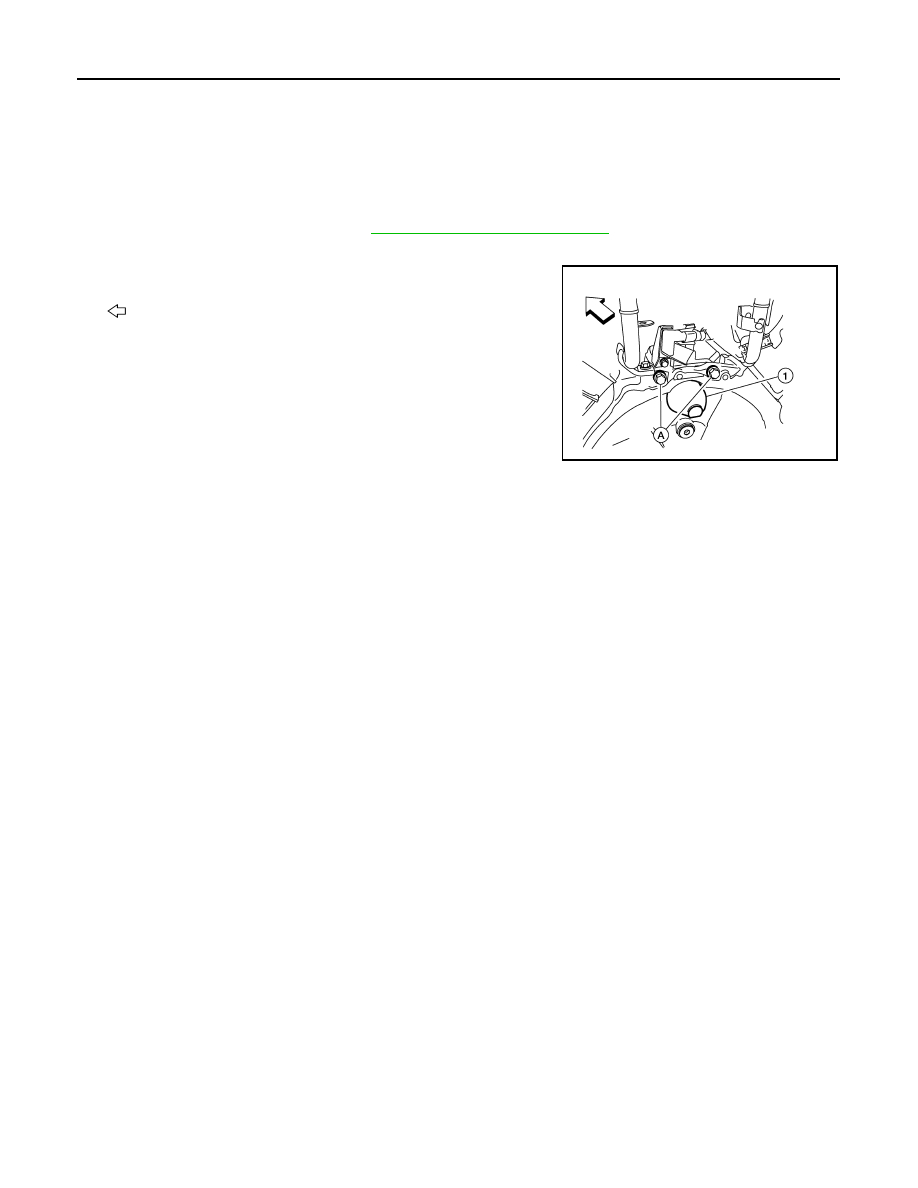

1. Remove the intake manifold. Refer to

EM-26, "Removal and Installation"

.

2. Remove the starter harness terminal nut and connector.
3. Remove the two starter bolts (A), using power tools.
4. Remove the starter (1).

: Vehicle front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten terminal nut carefully.

AWBIA0878GB

Starter bolt

: 45 N·m (4.6 kg-m, 33 ft-lb)

Terminal nut

: 9.6 N·m (0.98 kg-m, 85 in-lb)
