SN-16

< ECU DIAGNOSIS INFORMATION >

SONAR CONTROL UNIT FOR REAR SONAR SYSTEM

DTC Index

INFOID:0000000006159219

15 (Y)

Rear sonar sensor
ground

ON

—

0

16 (LG/B)

Rear sonar sensor
power

ON

Ignition switch ON

Battery voltage

Terminal

(wire color)

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation

Fault Code

Malfunction

Service Procedure

11

Rear sonar sensor LH outer

1.

Check harness for open or short.

2.

Replace sonar sensor.  Refer to

SN-27, "Removal and In-

stallation"

.

12

Rear sonar sensor LH inner

13

Rear sonar sensor RH inner

14

Rear sonar sensor RH outer

21

Rear sonar buzzer

1.

Refer to

SN-11, "Diagnosis Procedure"

.

2.

Check harness for open or short.

3.

Refer to

SN-24, "Symptom Table"

.

22

Sonar system OFF indicator

1.

Refer to

SN-13, "Diagnosis Procedure"

.

2.

Check harness for open or short.

3.

Refer to symptom table.

23

Sonar system OFF switch

24

Sonar control unit

Replace sonar control unit. Refer to

SN-28, "Removal and In-

stallation"

.

SN

SONAR SYSTEM

SN-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

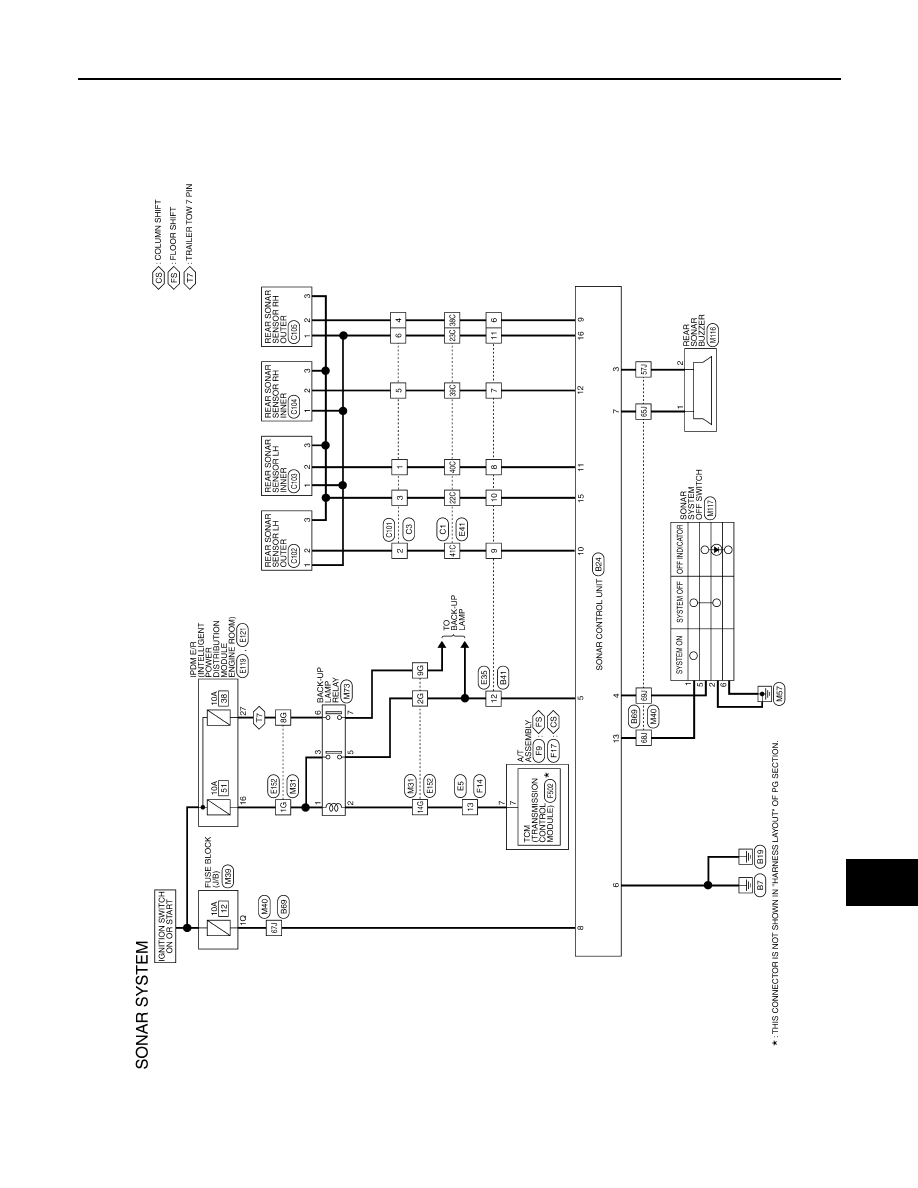

WIRING DIAGRAM

SONAR SYSTEM

Wiring Diagram

INFOID:0000000006467233

ABNWA1012GB

SN-18

< WIRING DIAGRAM >

SONAR SYSTEM

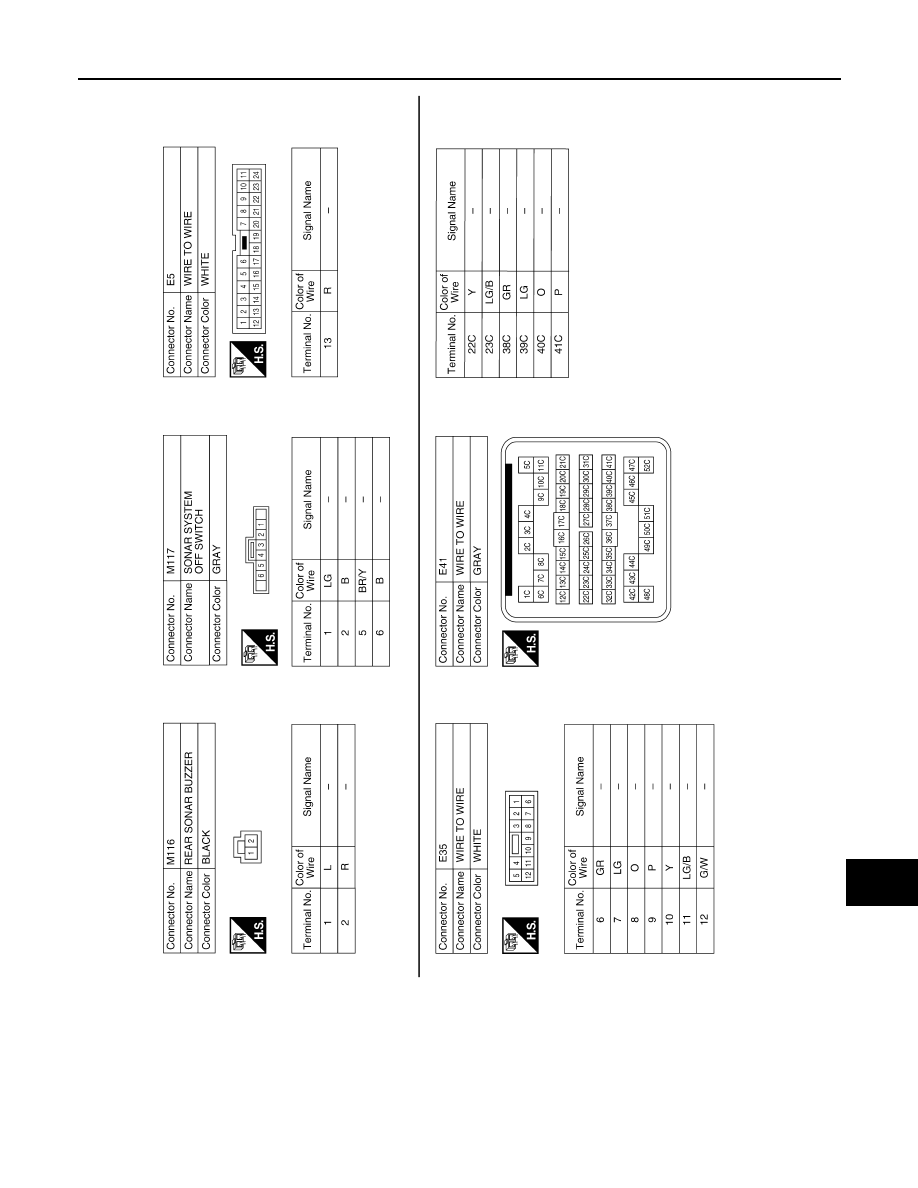

ABNIA2551GB

SN

SONAR SYSTEM

SN-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

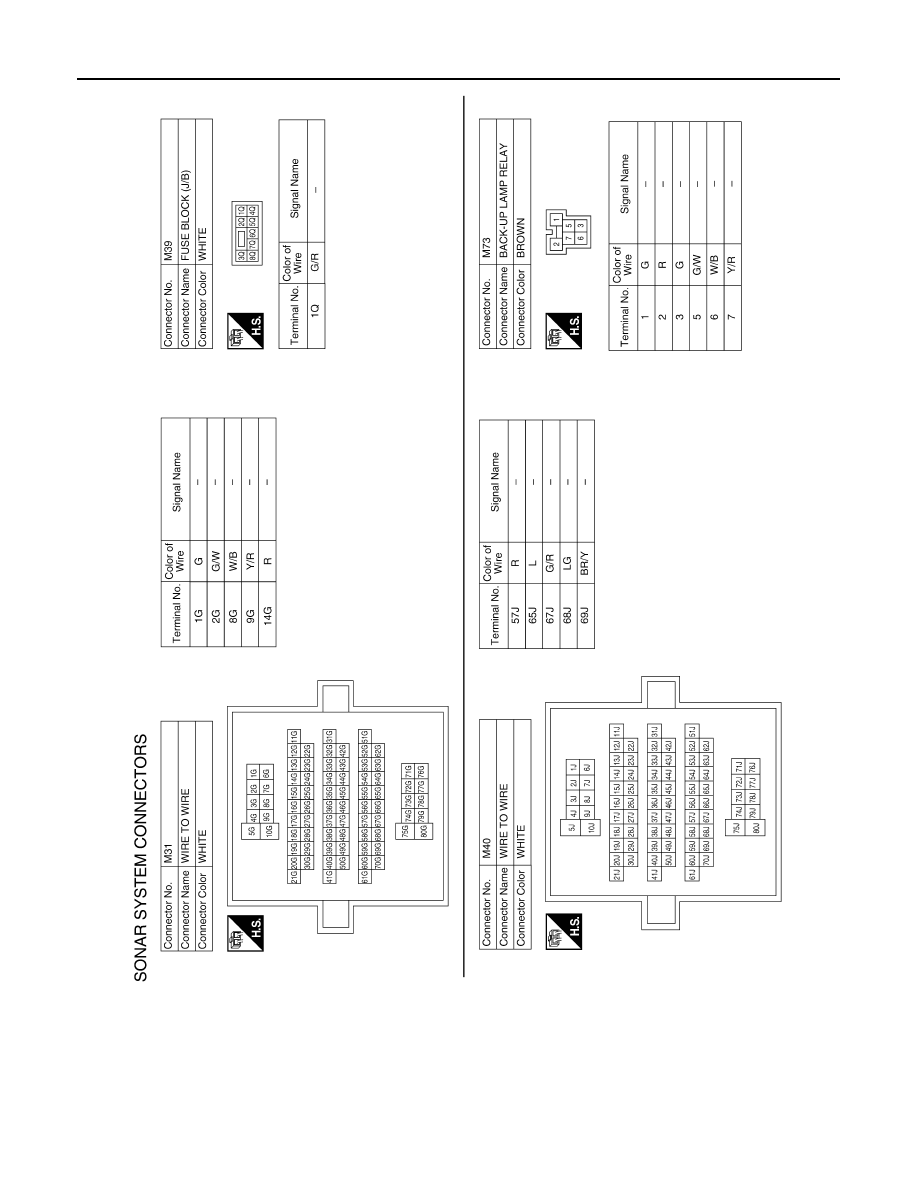

ABNIA1322GB
