SN-12

< DTC/CIRCUIT DIAGNOSIS >

SONAR BUZZER CIRCUIT INSPECTION

1. Disconnect the rear sonar buzzer connector.

2. Check resistance between rear sonar buzzer terminals 1 and 2.

1 - 2

: 50

Ω (+/- 10 Ω)

WKIA4417E

SN

SONAR SYSTEM OFF SWITCH CIRCUIT INSPECTION

SN-13

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

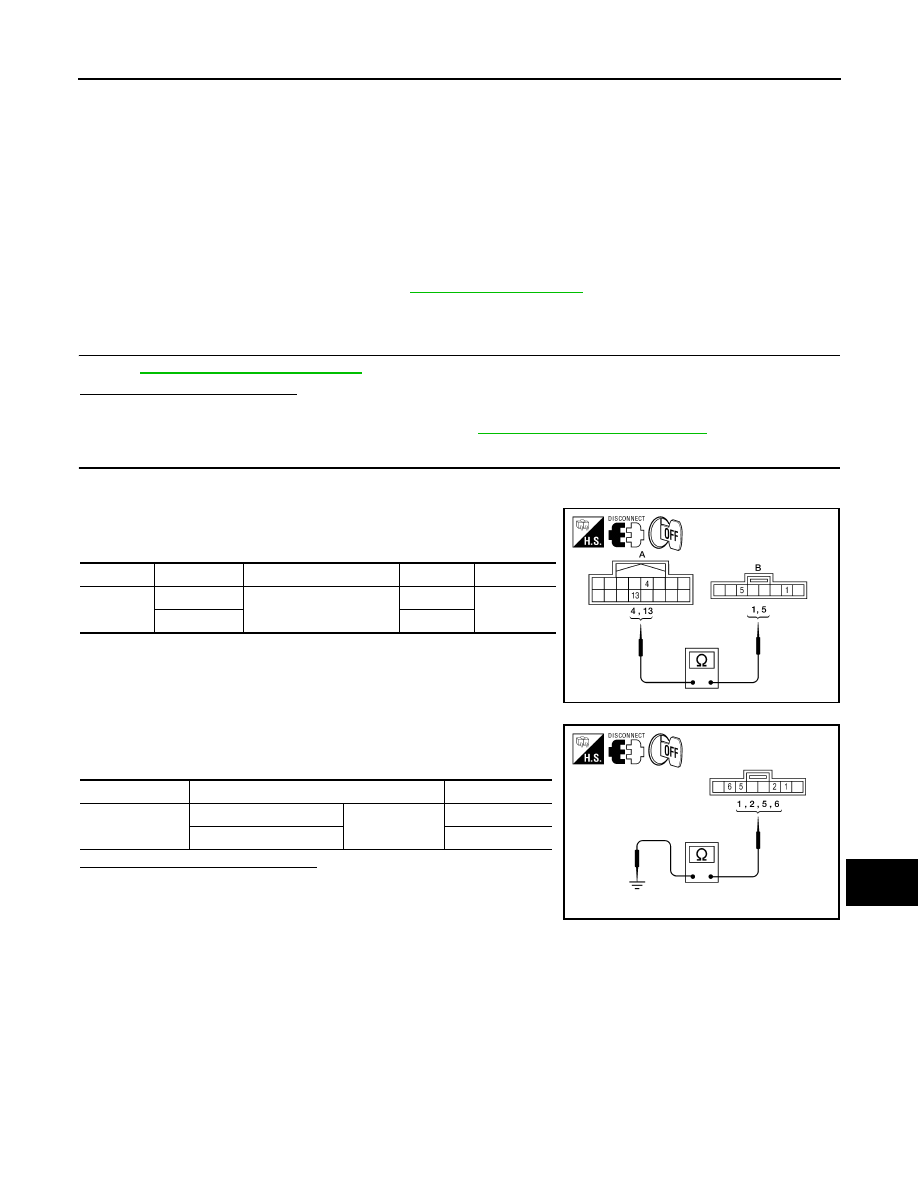

SONAR SYSTEM OFF SWITCH CIRCUIT INSPECTION

Description

INFOID:0000000006159214

The sonar system can be disabled by momentarily pressing the rear sonar system OFF switch. The sonar sys-

tem OFF indicator lamp will be illuminated when the sonar system is OFF.  Enabling the sonar system will

cause the sonar system OFF indicator to go out.  The indicator will flash if a malfunction exists in the system.

Diagnosis Procedure

INFOID:0000000006159215

Regarding Wiring Diagram information, refer to

SN-17, "Wiring Diagram"

.

1.

CHECK SONAR SYSTEM OFF SWITCH

Refer to

SN-13, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace sonar system OFF switch.  Refer to

IP-17, "Removal and Installation"

.

2.

CHECK SONAR SYSTEM OFF SWITCH CIRCUITS

1. Turn ignition switch OFF.

2. Disconnect sonar control unit connector and sonar system OFF switch connector.

3. Check continuity between sonar control unit harness connector

(A) and sonar system OFF switch harness connector (B).

4. Check continuity between sonar system OFF switch harness

connector and ground.

Are the inspection results normal?

YES

>> Inspection End.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000006159216

SONAR SYSTEM OFF SWITCH

1. Disconnect the sonar system OFF switch connector.

Connector

Terminal

Connector

Terminal

Continuity

B24 (A)

4

M117 (B)

5

Yes

13

1

AWNIA1577ZZ

Connector

Terminal

Continuity

M117

1, 5

Ground

No

2, 6

Yes

AWNIA1578ZZ

SN-14

< DTC/CIRCUIT DIAGNOSIS >

SONAR SYSTEM OFF SWITCH CIRCUIT INSPECTION

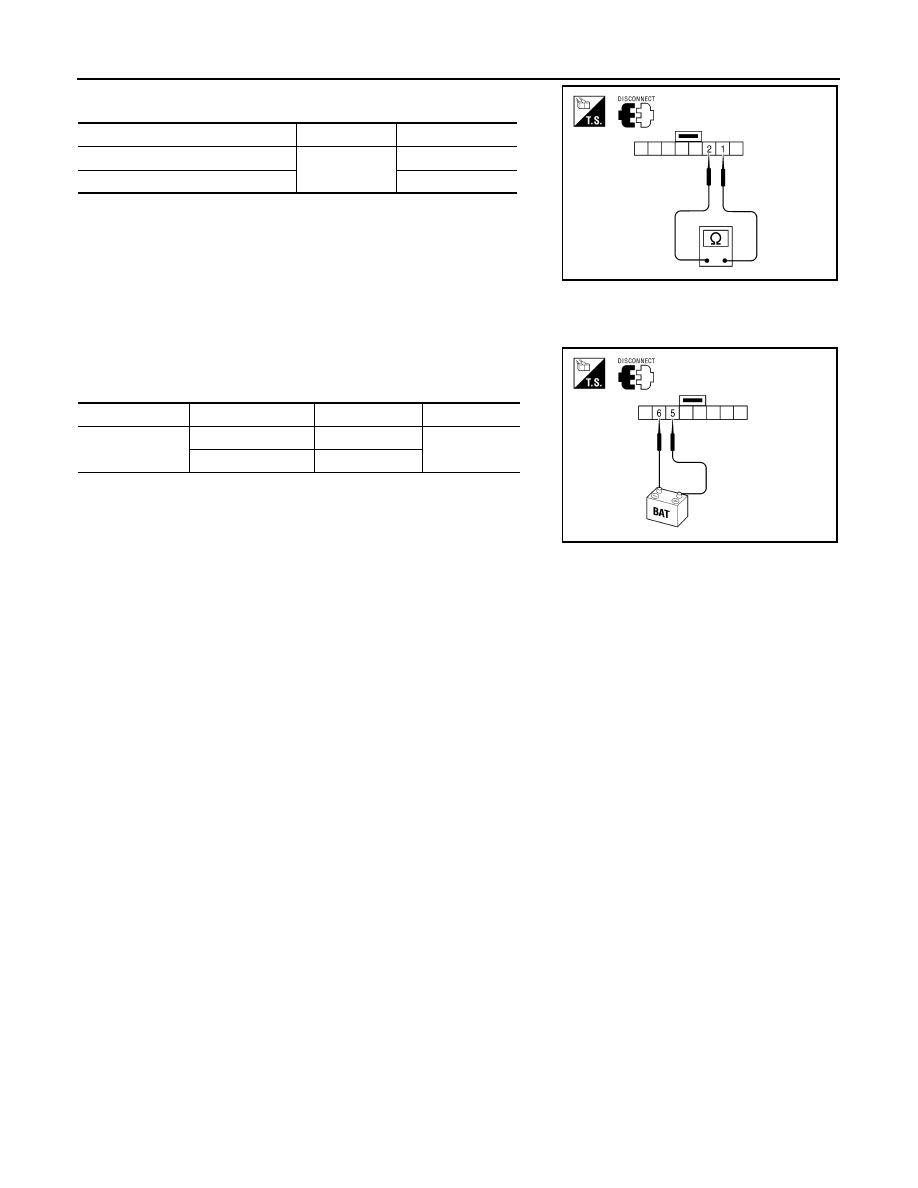

2. Check continuity between the following switch terminals.

SONAR SYSTEM OFF INDICATOR

1. Disconnect the sonar system OFF switch connector.

2. Apply battery voltage to switch terminal 5.

3. Check the sonar system OFF indicator operation when switch

terminal 6 is connected to battery ground.

Sonar system OFF switch

Terminals

Continuity

Depressed

1 - 2

Yes

Released

No

AWNIA0181ZZ

Terminals

Condition

Operation

Sonar system
OFF switch

5

Battery voltage

Indicator ON

6

Ground

AWNIA0182ZZ

SN

SONAR CONTROL UNIT FOR REAR SONAR SYSTEM

SN-15

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

SONAR CONTROL UNIT FOR REAR SONAR SYSTEM

Reference Value

INFOID:0000000006159217

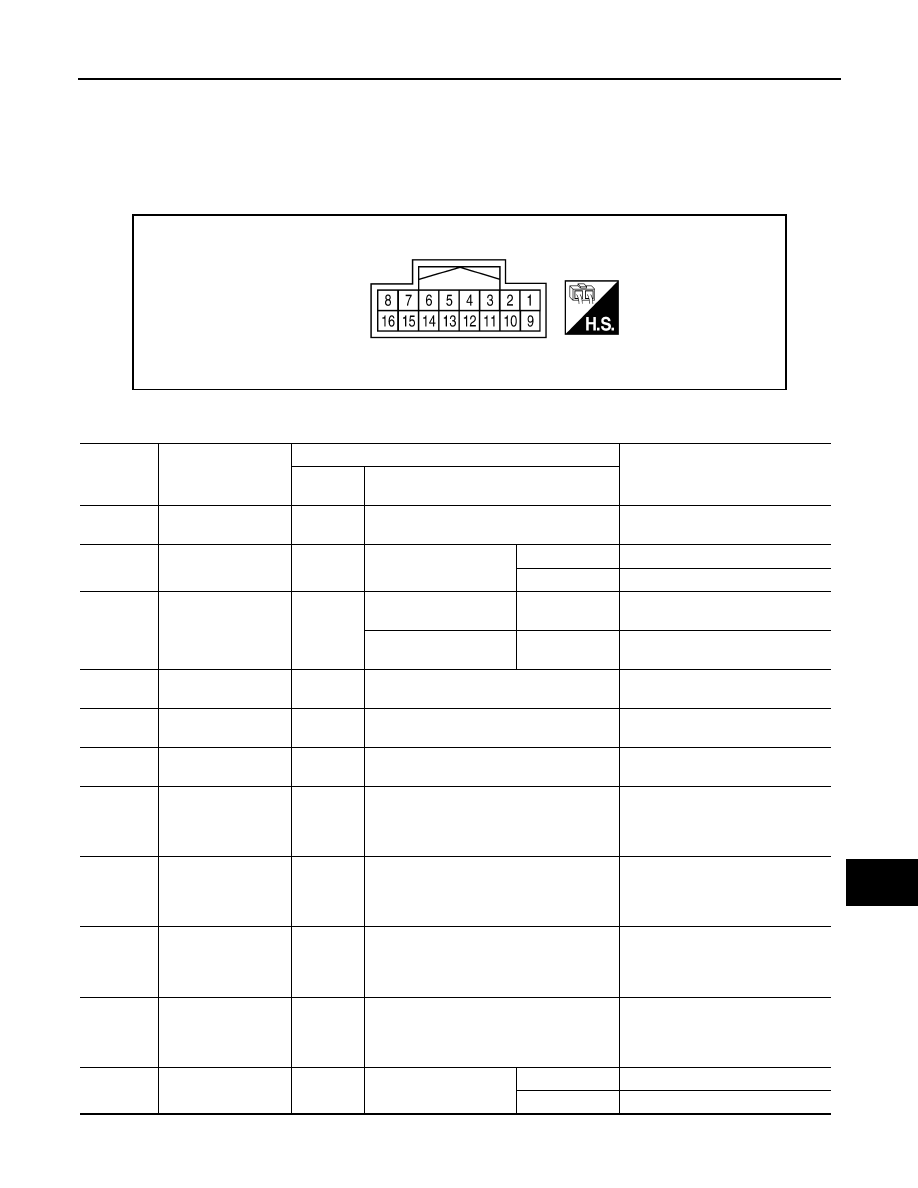

SONAR CONTROL UNIT TERMINAL LAYOUT

TERMINALS AND REFERENCE VALUES FOR SONAR CONTROL UNIT

WKIA5222E

Terminal

(wire color)

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation

3 (R)

Rear sonar buzzer
return

ON

—

0 - 12 (variable)

4 (BR/Y)

Sonar system OFF
indicator output

ON

Sonar system OFF

switch

ON

0

OFF

Battery voltage

5 (G/W)

Reverse signal

ON

Transmission gear se-
lector lever

R position

Battery voltage

Transmission gear se-
lector lever

Not R position

0

6 (B)

Sonar control unit
ground

—

—

0

7 (L)

Rear sonar buzzer
drive signal

ON

—

Battery voltage

8 (G/R)

Sonar control unit
power

ON

—

Battery voltage

9 (GR)

Rear sonar sensor
signal - RH outer

ON

• Sonar system OFF switch ON
• Transmission gear selector lever in R po-

sition

• No obstacles

Battery voltage

10 (P)

Rear sonar sensor
signal - LH outer

ON

• Sonar system OFF switch ON
• Transmission gear selector lever in R po-

sition

• No obstacles

Battery voltage

11 (O)

Rear sonar sensor
signal - LH inner

ON

• Sonar system OFF switch ON
• Transmission gear selector lever in R po-

sition

• Distance obstacles

Battery voltage

12 (LG)

Rear sonar sensor
signal - RH inner

ON

• Sonar system OFF switch ON
• Transmission gear selector lever in R po-

sition

• Distance obstacles

Battery voltage

13 (LG)

Sonar system OFF
switch signal

ON

Sonar system OFF
switch

ON

0

OFF

Battery voltage
