• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident. (i.e., torn webbing, bent retractor or guide, etc.)

• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

OCCUPANT CLASSIFICATION SYSTEM

• Replace occupant classification system control unit and passenger front seat cushion as an assembly.

Refer to

SE-30, "Removal and Installation For Front Seat"

.

SB-4

< REMOVAL AND INSTALLATION >

SEAT BELTS

REMOVAL AND INSTALLATION

SEAT BELTS

Removal and Installation of Front Seat Belt

INFOID:0000000006158503

CREW CAB

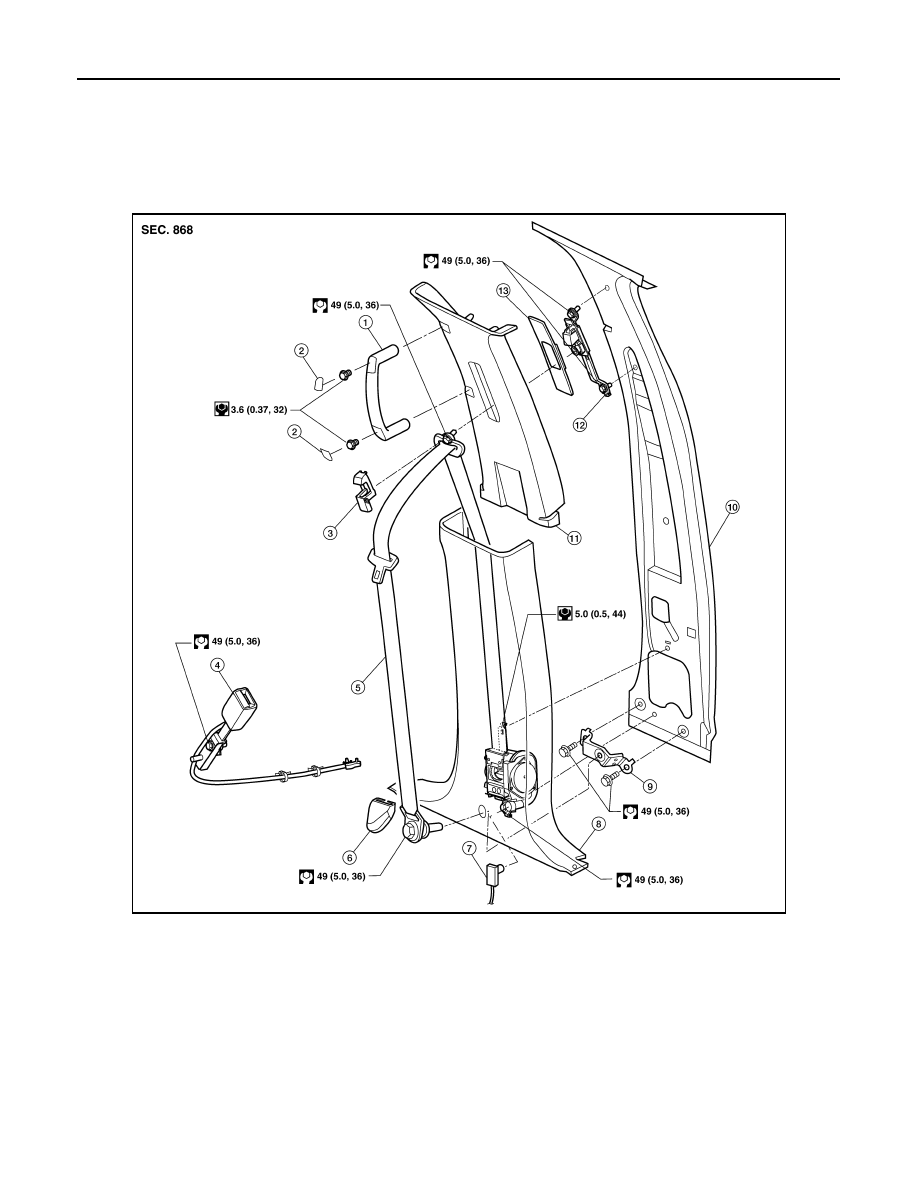

AWHIA0225GB

1.

Assist handle

2.

Assist handle screw covers

3.

 D-ring anchor bolt cover

4.

Seat belt buckle

5.

Seat belt retractor and belt assembly
LH

6.

Anchor cover

7.

Seat belt pre-tensioner connector

8.

Center pillar lower finisher

9.

Seat belt anchor bracket

10. Center pillar

11. Center pillar upper finisher

12. Seat belt height adjuster

13. Seat belt height adjuster finisher

SEAT BELTS

SB-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

KING CAB

REMOVAL AND INSTALLATION OF SEAT BELT RETRACTOR

CAUTION:

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

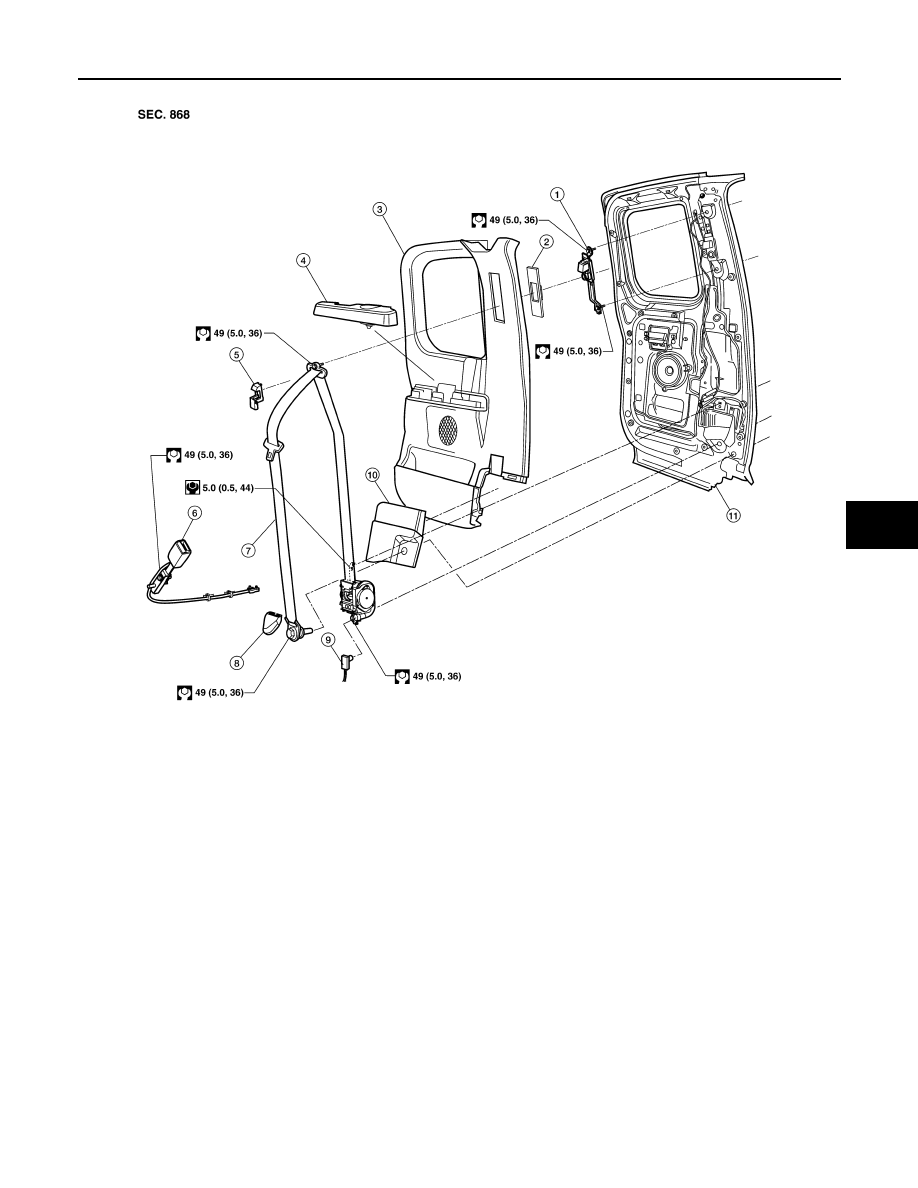

WIIA0991E

1.

Seat belt height adjuster

2.

Seat belt height adjuster finisher

3.

Door finisher

4.

Armrest

5.

D-ring anchor bolt cover

6.

Seat belt buckle

7.

Seat belt retractor and belt assembly
LH

8.

Anchor cover

9.

Seat belt pre-tensioner connector

10. Lower door finisher

11. Rear door LH

SB-6

< REMOVAL AND INSTALLATION >

SEAT BELTS

• For installing/removing seat belt pre-tensioner connector,

insert a thin screwdriver wrapped in tape into the notch, lift

the lock and remove the connector.

• Install the connector with the lock raised, and push the lock

into the connector.

Removal - Crew Cab

CAUTION:

Before servicing the SRS, turn the ignition switch off, disconnect the battery terminals nad wait at

least three minutes.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes.
2. Remove the center pillar lower finishers. Refer to

INT-14, "Removal and Installation"

.

3. Remove the seat belt retractor anchor bolts and assembly.

• On RH side, disconnect the seat belt tension sensor.

4. Disconnect the seat belt pre-tensioner electrical connector.

Installation - Crew Cab

 Installation is in the reverse order of removal.

• Install the seat belt retractor upper bolt first.

• Make sure seat belt height adjuster is locked in the lowest position during installation.

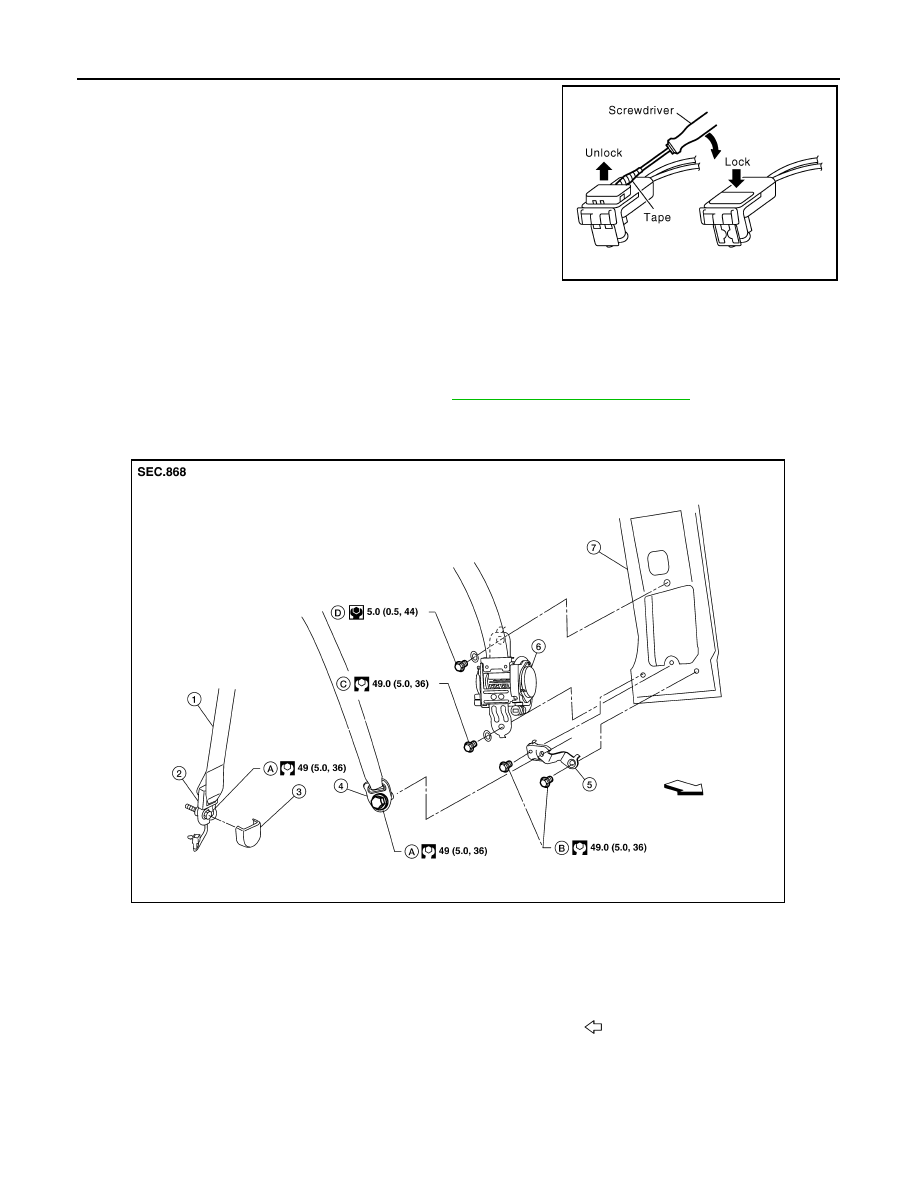

PHIA0341E

1.

Seat belt retractor and belt assembly
RH

2.

Seat belt lower anchor RH (seat belt
tension sensor)

3.

Anchor cover RH (LH similar)

4.

Seat belt lower anchor LH

5.

Seat belt anchor bracket

6.

Seat belt retractor and belt assembly
LH

7.

Center pillar

A.

Lower anchor bolt

B.

Anchor bracket bolt

C.

Retractor anchor bolt

D.

Retractor bolt upper

Vehicle front

WHIA0346E
