SUNROOF SYSTEM

RF-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

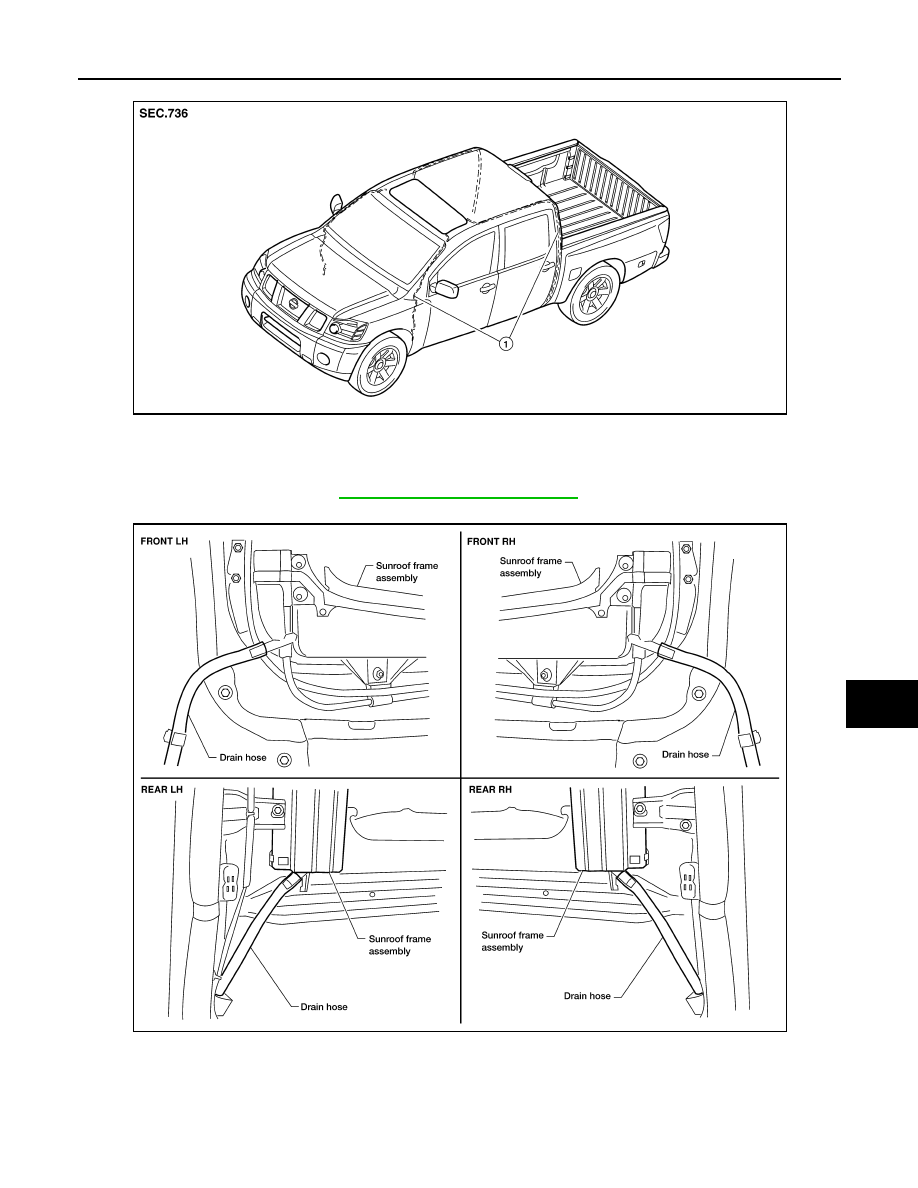

Removal

1. Remove the headlining. Refer to

INT-21, "Removal and Installation"

.

2. Visually check the drain hoses for proper connections, damage or deterioration.

3. Remove each drain hose and check visually for damage, cracks or deterioration.

• Pour water through the drain hose to check for damage.

If any damage is found, replace the drain hose.

Installation

Installation is in the reverse order of removal.

1.

Drain hoses

WIIA0985E

LIIA0272E

RF-48

< REMOVAL AND INSTALLATION >

SUNROOF SYSTEM

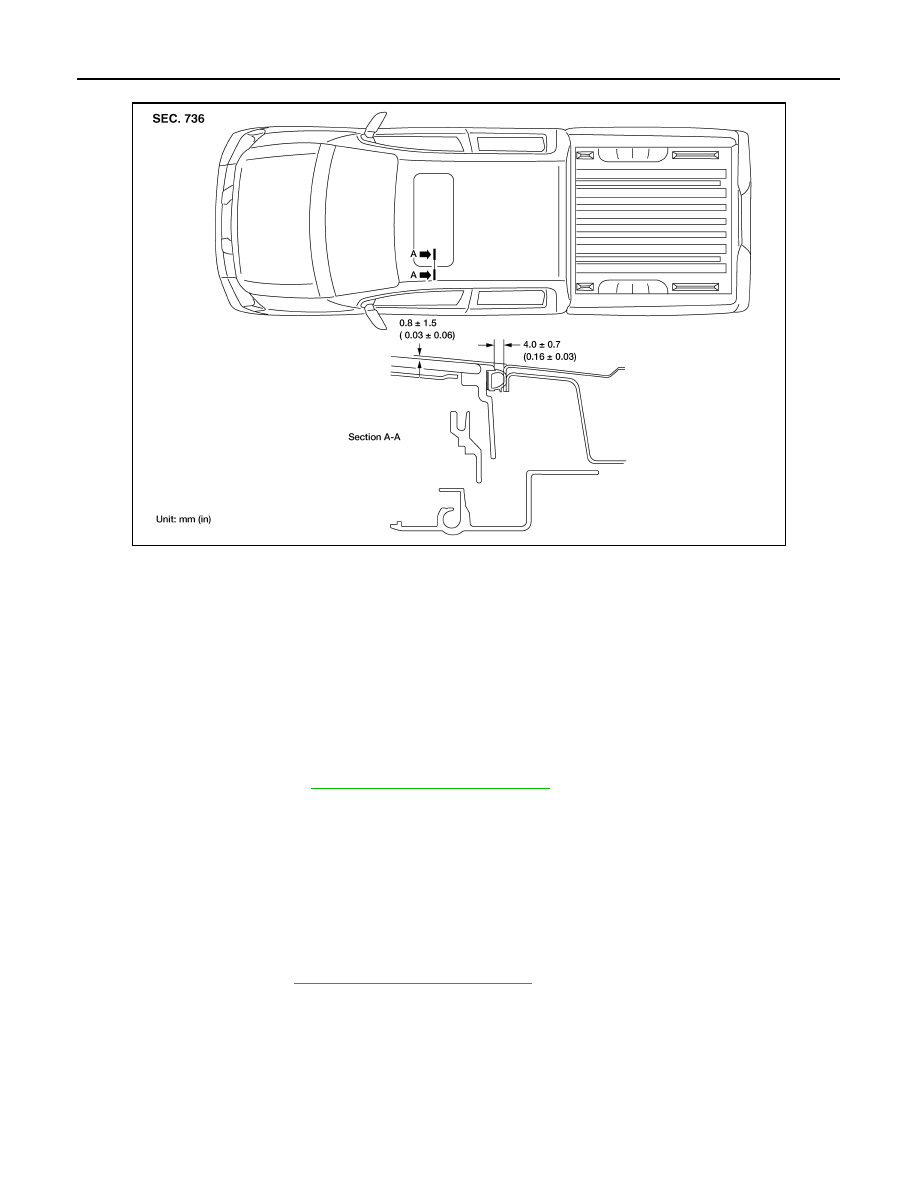

GAP ADJUSTMENT

NOTE:

If any gap or height difference between glass lid and roof panel is found, check glass lid fit and adjust as fol-

lows:
1. Open sunshade assembly.
2. Loosen glass lid securing screws (two each on left and right sides), then tilt glass lid down.
3. Manually adjust glass lid from outside of vehicle so it resembles "A - A" as shown.
4. After adjusting glass lid tilt glass lid up and tighten screws.
5. Tilt glass lid up and down several times to check that it moves smoothly.

HEIGHT DIFFERENCE ADJUSTMENT

If an excessive height difference between glass lid assembly and roof panel is found, adjust in the following

manner:
1. Remove headlining. Refer to

INT-21, "Removal and Installation"

.

2. Loosen sunroof frame assembly nuts and sunroof bracket bolts.
3. Add shims until gap is within specification "A-A".

NOTE:

Temporarily snug nuts and bolts to prevent movement between each adjustment.

4. Tilt glass lid assembly up and down several times to check that it moves and seals properly.
5. Tighten sunroof frame assembly nuts and sunroof bracket bolts.

NOTE:

First tighten left front then right rear sunroof frame assembly to prevent uneven torque while tightening

remaining sunroof bracket bolts.

6. Install headlining. Refer to

INT-21, "Removal and Installation"

.

WIIA0312E

SUNROOF SYSTEM

RF-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

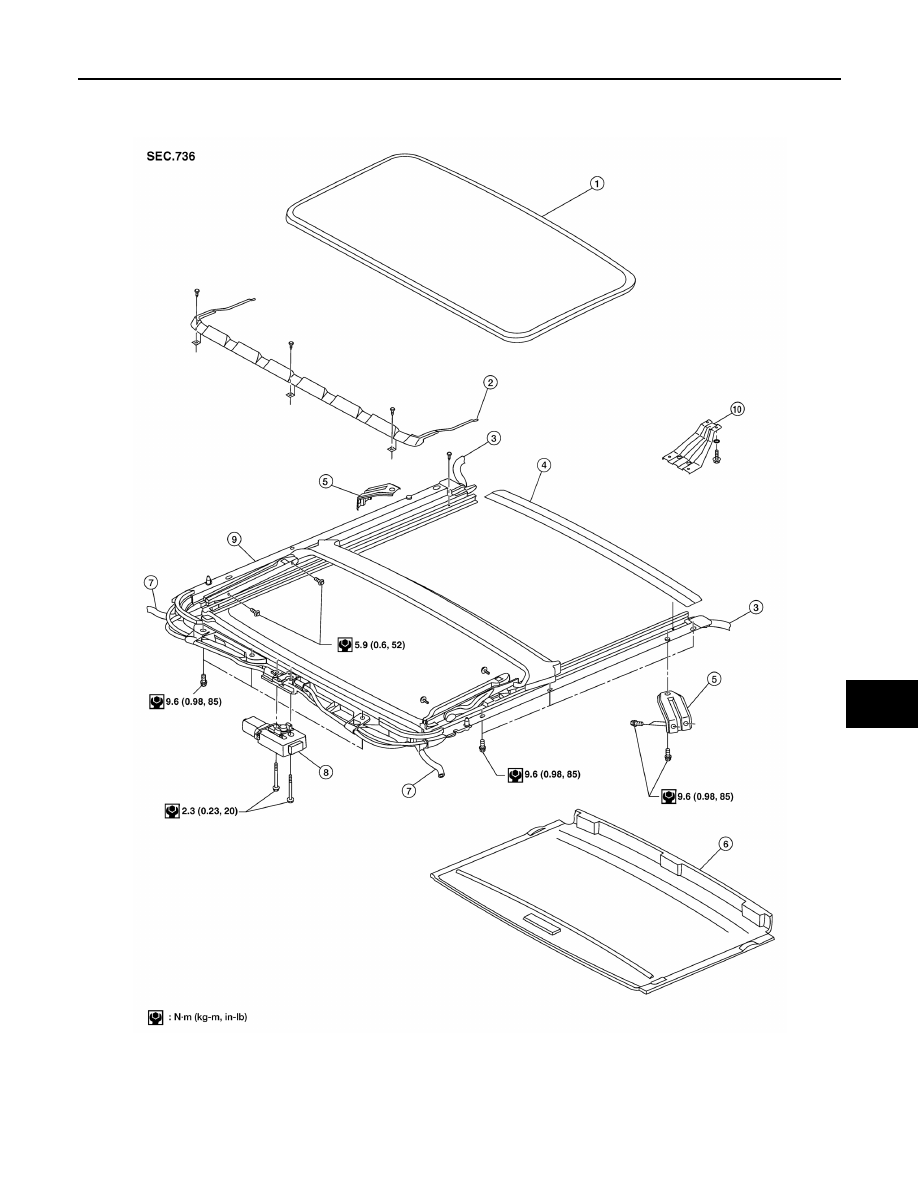

Exploded View

INFOID:0000000006709592

1. Glass lid assembly

2.

Wind deflector

3. Rear drain hoses

4. Rear drain frame assembly

5.

Sunroof bracket

6. Sunshade assembly

7. Front drain hoses

8.

Sunroof motor assembly

9. Sunroof frame assembly

10. Overhead console bracket

AWKIA1712GB

RF-50

< REMOVAL AND INSTALLATION >

SUNROOF SYSTEM

CAUTION:

• Always work with a helper.

• Before removal, fully close the glass lid assembly. Then, after removal, do not move the motor

assembly.

• After installing the sunroof and glass lid, check gap adjustment to ensure there is no malfunction.

NOTE:

• After any adjustment, check sunroof operation and glass lid alignment.

• Handle glass lid with care so not to cause damage.

• For easier installation, mark each point before removal.

Removal and Installation

INFOID:0000000006163259

SUNROOF UNIT

CAUTION:

• Always work with a helper.

• When taking sunroof unit out, use shop cloths to protect the seats and trim from damage.

• After installing the sunroof unit and glass lid, be sure to check gap adjustment to ensure there is no

malfunction.

Removal

1. Remove headlining. Refer to

INT-21, "Removal and Installation"

.

2. Remove the sunroof glass lid. Refer to GLASS LID REMOVAL & INSTALLATION procedure.
3. Remove overhead console bracket.
4. Disconnect the drain hoses.
5. Remove front sunroof bolts.
6. Remove rear sunroof bracket bolts.
7. Remove the side bolts and the sunroof unit.

Installation

1. Position the sunroof frame assembly and install the side bolts.
2. Install the rear brackets.
3. Install the front sunroof frame assembly bolts.
4. Connect drain hoses.
5. Install the overhead console bracket.
6. Install the sunroof glass lid. Refer to GLASS LID REMOVAL & INSTALLATION procedure.
7. Install headlining. Refer to

INT-21, "Removal and Installation"

.

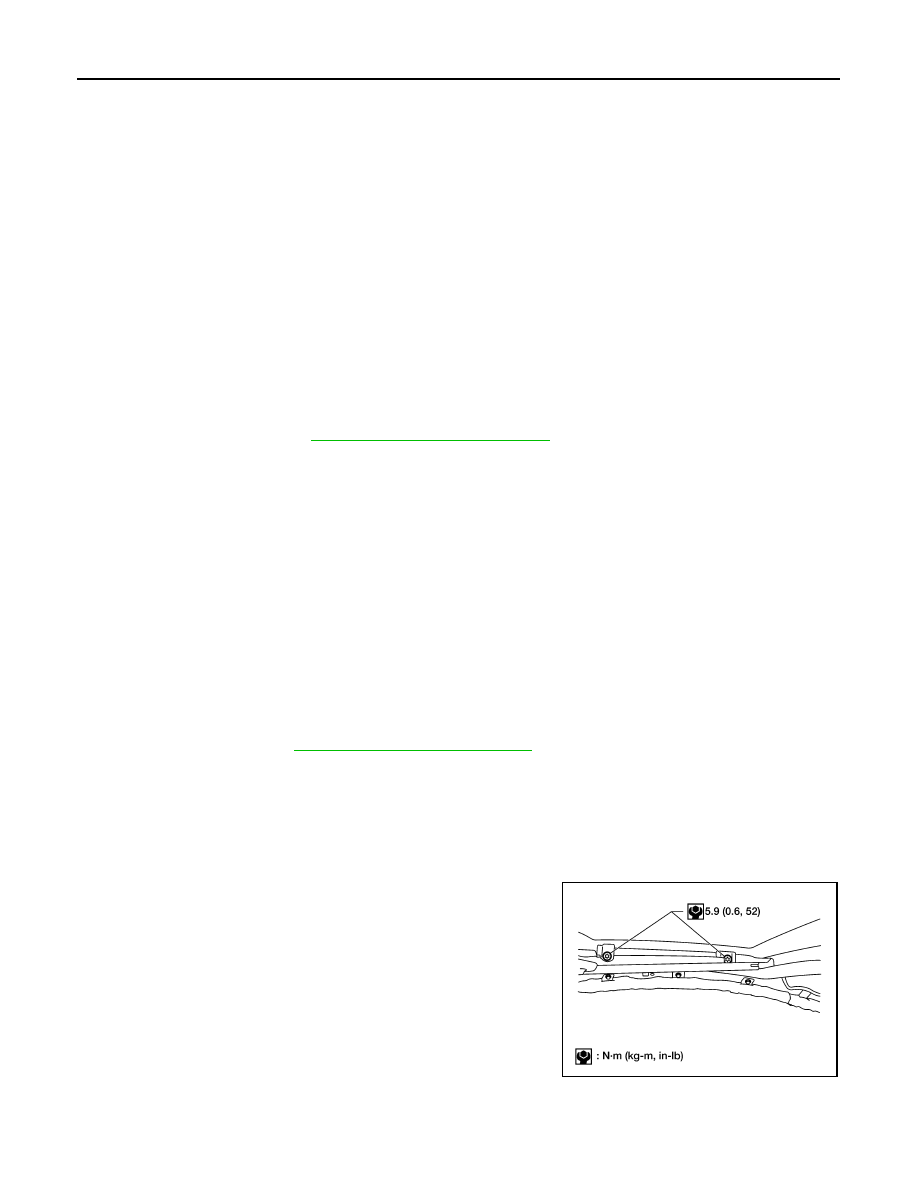

GLASS LID

Removal

1. Open sunshade.
2. Ensure glass lid is closed.
3. Remove side cover LH and RH.
4. Remove the screws securing glass lid to the sunroof frame

assembly.

5. Remove the glass lid assembly.
NOTE:

• After any adjustment, check sunroof operation and glass lid align-

ment.

• Handle glass lid with care so not to cause damage.

• For easier installation, mark each point before removal.

Installation

1. Position glass lid to sunroof assembly.

WIIA0252E
