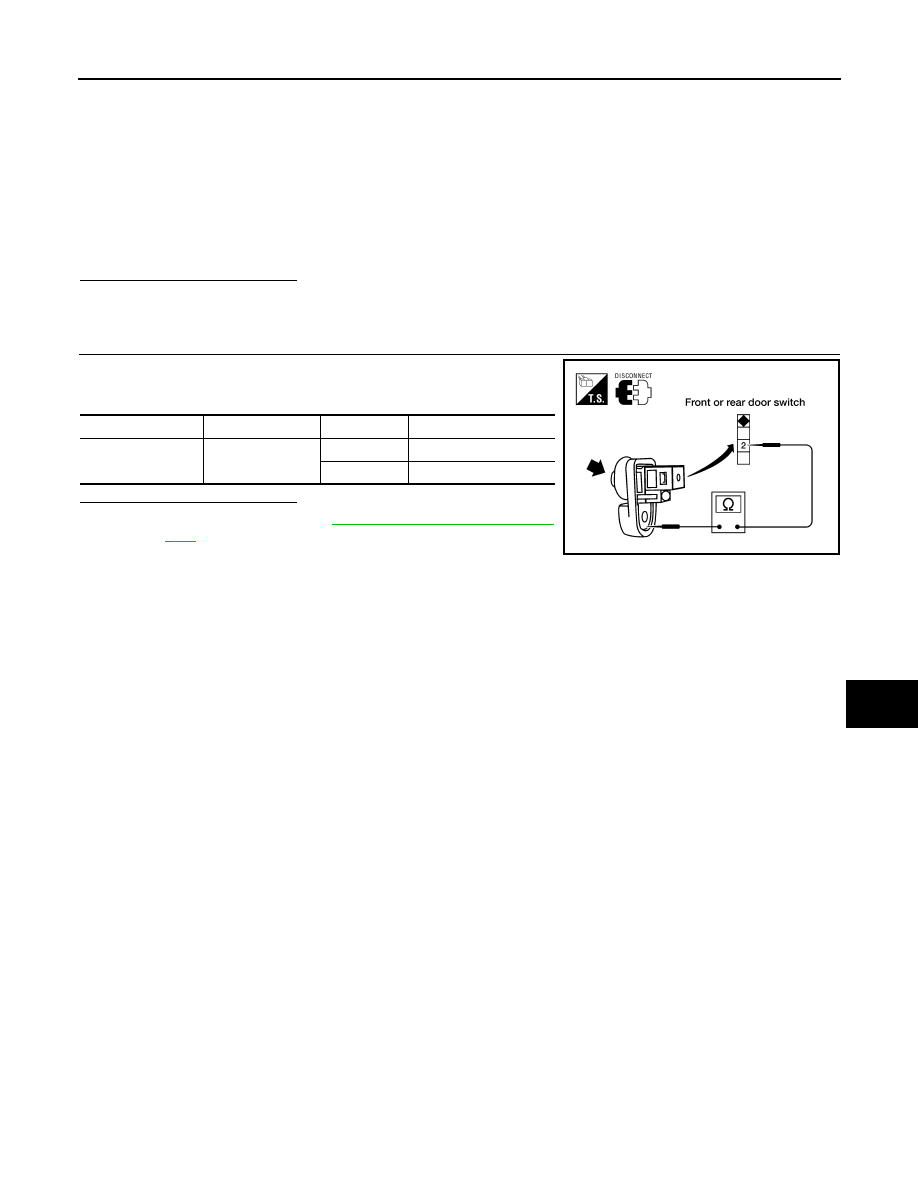

DOOR SWITCH RF-15 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I J L M A B RF N O P 2. Disconnect door switch and BCM. 3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH) terminal 2 and BCM connector M18, M19 terminals 12, 47. 4. Check continuity between door switch connector B8 (Front LH), B108 (Front RH) terminal 2 and ground. Is the inspection result normal? YES >> GO TO 3 NO >> Repair or replace harness. 3. CHECK DOOR SWITCHES Check continuity between door switch terminal 2 and exposed metal of switch while pressing and releasing switch. Is the inspection result normal? YES >> Replace BCM. Refer to BCS-53, "Removal and Installa- NO >> Replace front door switch. 2 - 47 :Continuity should exist 2 - 12 :Continuity should exist 2 - Ground :Continuity should not exist Terminals Condition Continuity Door switch (front) 2 – Ground Released Yes Pressed No WIIA0644E |
