Nissan Titan A60. Manual - part 764

PG

GROUND

PG-37

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

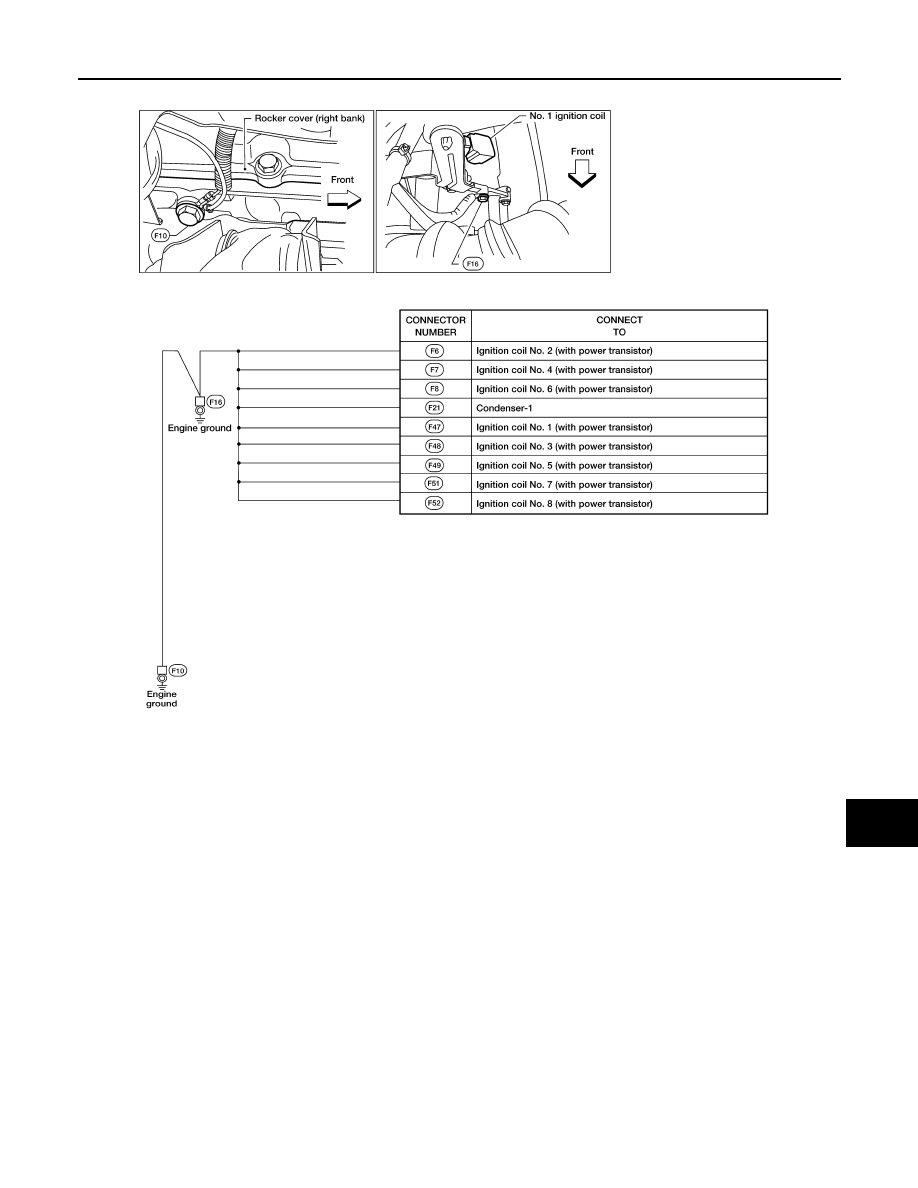

ENGINE CONTROL HARNESS

WKIA3853E

PG-38

< DTC/CIRCUIT DIAGNOSIS >

GROUND

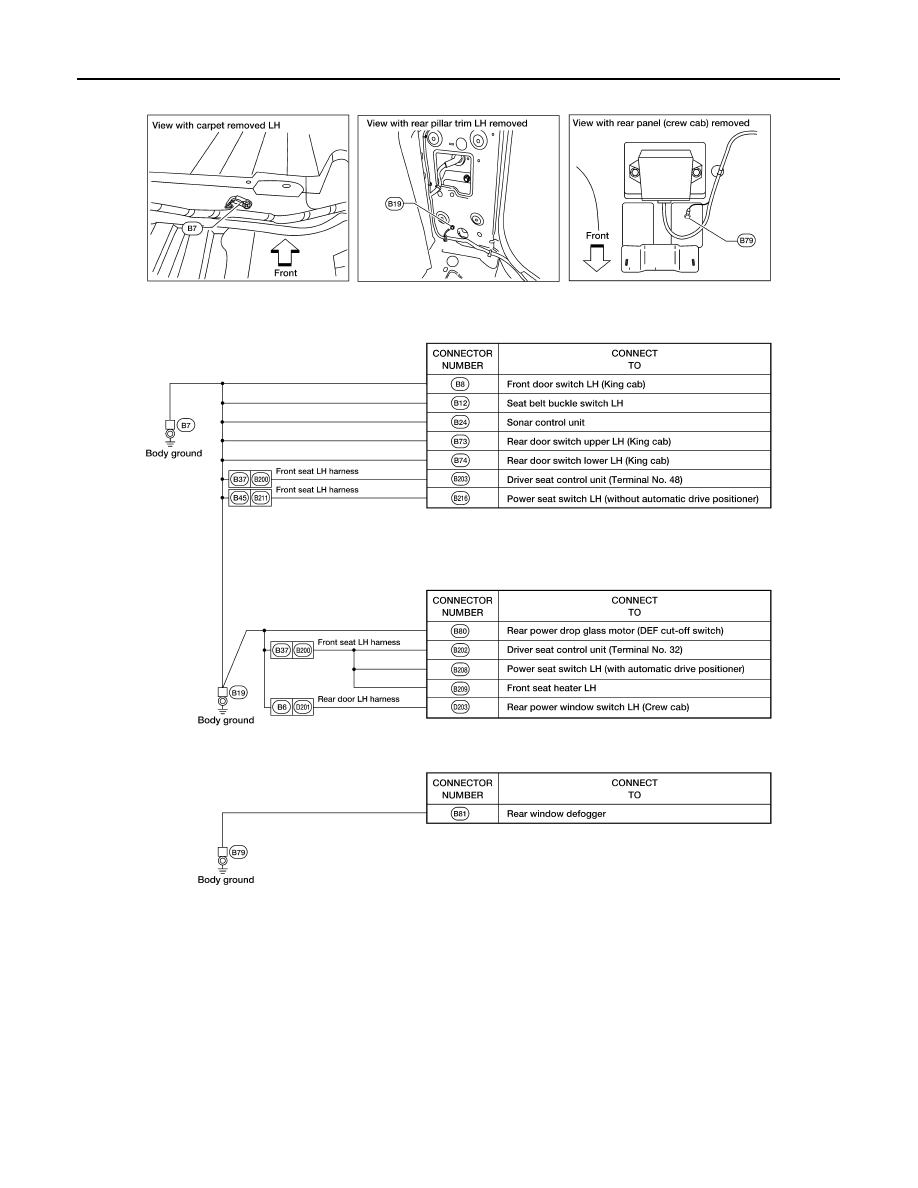

BODY HARNESS

AAMIA0518GB

PG

GROUND

PG-39

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

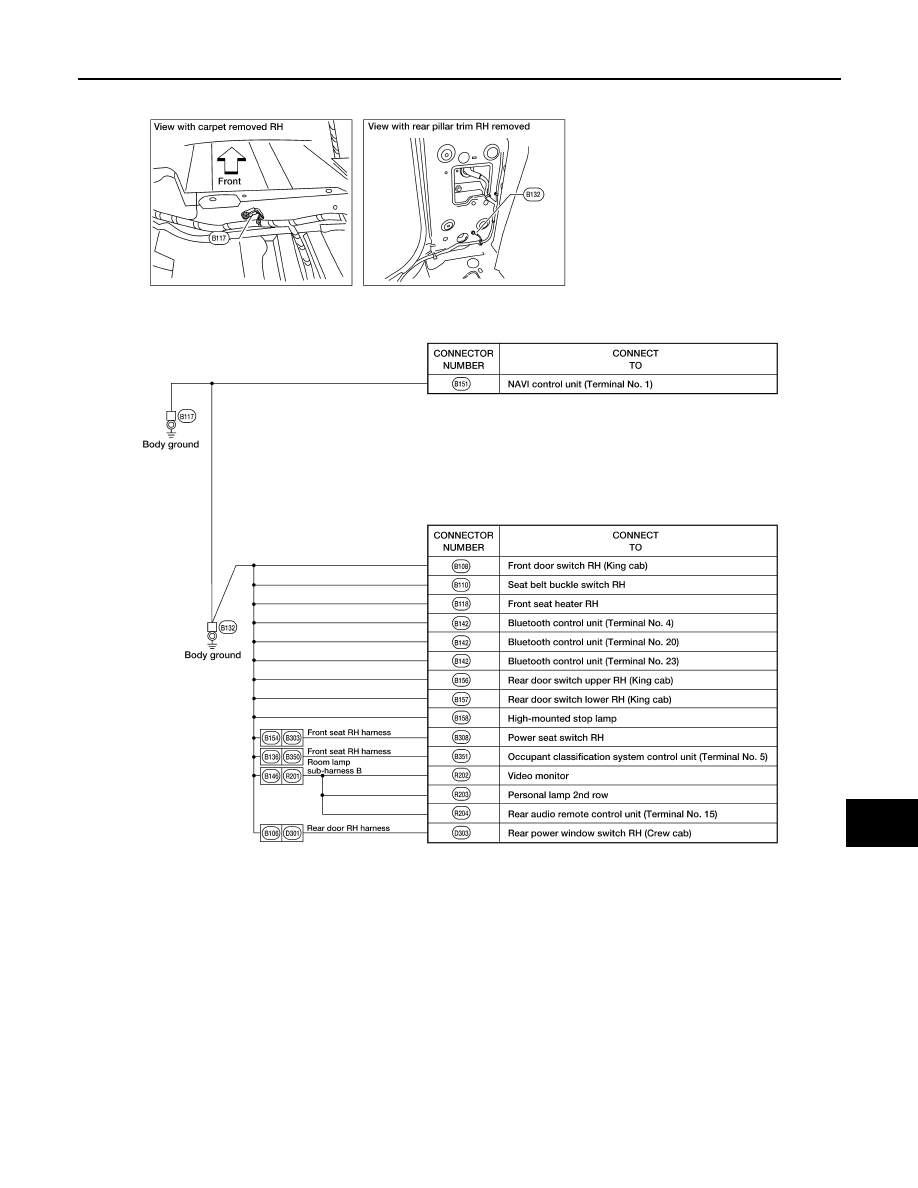

BODY NO. 2 HARNESS

ABMIA1622GB

PG-40

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

HARNESS

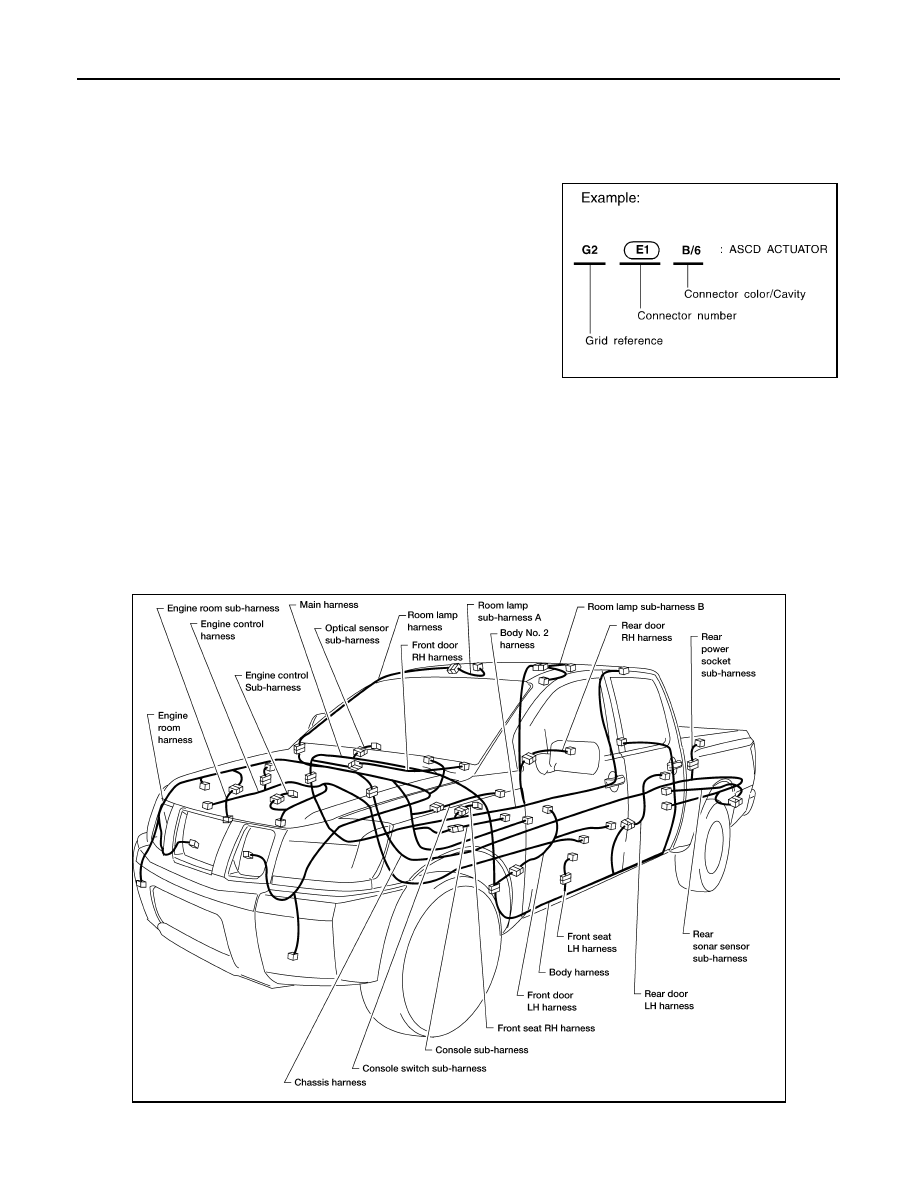

Harness Layout

INFOID:0000000006179648

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness, Console Sub-harness, Console Switch Sub-har-

ness and Optical Sensor Sub-harness

• Engine Room Harness and Engine Room Sub-harness

• Engine Room Harness (Passenger Compartment)

• Engine Control Harness and Knock Sensor Sub-harness

• Chassis Harness, Rear Sonar Sensor Sub-harness and Rear

Power Socket Sub-harness

• Body Harness (King Cab Models) and Front Seat LH Harness

• Body Harness (Crew Cab Models) and Front Seat LH Harness

• Body No. 2 Harness (King Cab Models) and Front Seat RH Har-

ness

• Body No. 2 Harness (Crew Cab Models) and Front Seat RH Harness

• Room Lamp Harness, Room Lamp Sub-harness A and Room Lamp Sub-harness B

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE (CREW CAB MODELS)

SEL252V

ABMIA1623GB
