Nissan Titan A60. Manual - part 746





PB-4

< PERIODIC MAINTENANCE >

PARKING BRAKE SYSTEM

PERIODIC MAINTENANCE

PARKING BRAKE SYSTEM

On-Vehicle Service

INFOID:0000000006158510

PEDAL STROKE

• When parking brake pedal is operated with the specified force, make sure the stroke is within the specified

number of notches. Check by listening and counting the ratchet clicks.

INSPECTION

• Make sure the components are attached properly, checking for looseness or backlash.

• Check parking brake pedal assembly for bends, damage and cracks, and replace if necessary.

• Check cable for wear and damage, and replace if necessary.

• Check parking brake warning lamp switch for malfunction, and replace if necessary. Refer to

MWI-41, "Com-

ponent Function Check"

.

ADJUSTMENT

1. Remove the lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

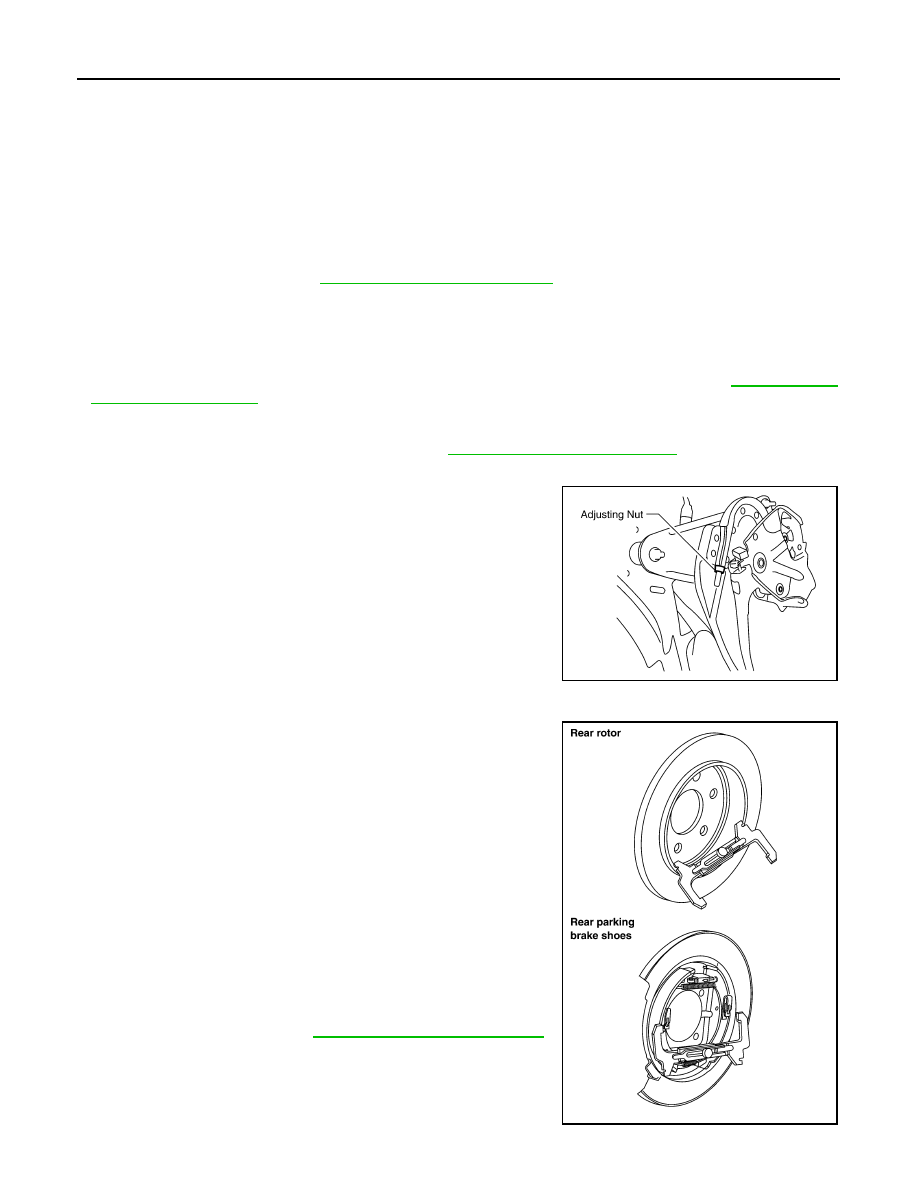

2. Partially engage parking brake pedal to access adjusting nut.
3. Insert a deep socket wrench to rotate adjusting nut and loosen

cable sufficiently. Then, disengage the parking brake pedal.

4. Remove the wheel and tire using power tool.
5. Remove the disc rotor and measure inner diameter at widest

point using suitable tool.

6. Transfer measurement less 0.6 mm (0.024 in) to the parking

brake shoes and adjust accordingly.

7. Using wheel nuts, secure the disc rotor to the hub to prevent it

from tilting.

8. Rotate the disc rotor to make sure there is no drag.
9. Adjust cable as follows:
a. Operate pedal 10 or more times with a force of 196 N (20 kg-f,

44 lb-f).

b. Rotate adjusting nut with deep socket to adjust pedal stroke to

specification.

c.

With parking brake pedal completely disengaged, make sure

there is no drag on the parking brake.

10. Install the disc rotor.
11. Install the wheel and tire using power tool.

Pedal stroke

: Refer to

PB-11, "Parking Brake Control"

.

WFIA0165E

Tool number

: — (J-21177-A)

Pedal stroke

: Refer to

PB-11, "Parking Brake Control"

.

WFIA0166E

PARKING BRAKE SYSTEM

PB-5

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

12. Install the lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

PB-6

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

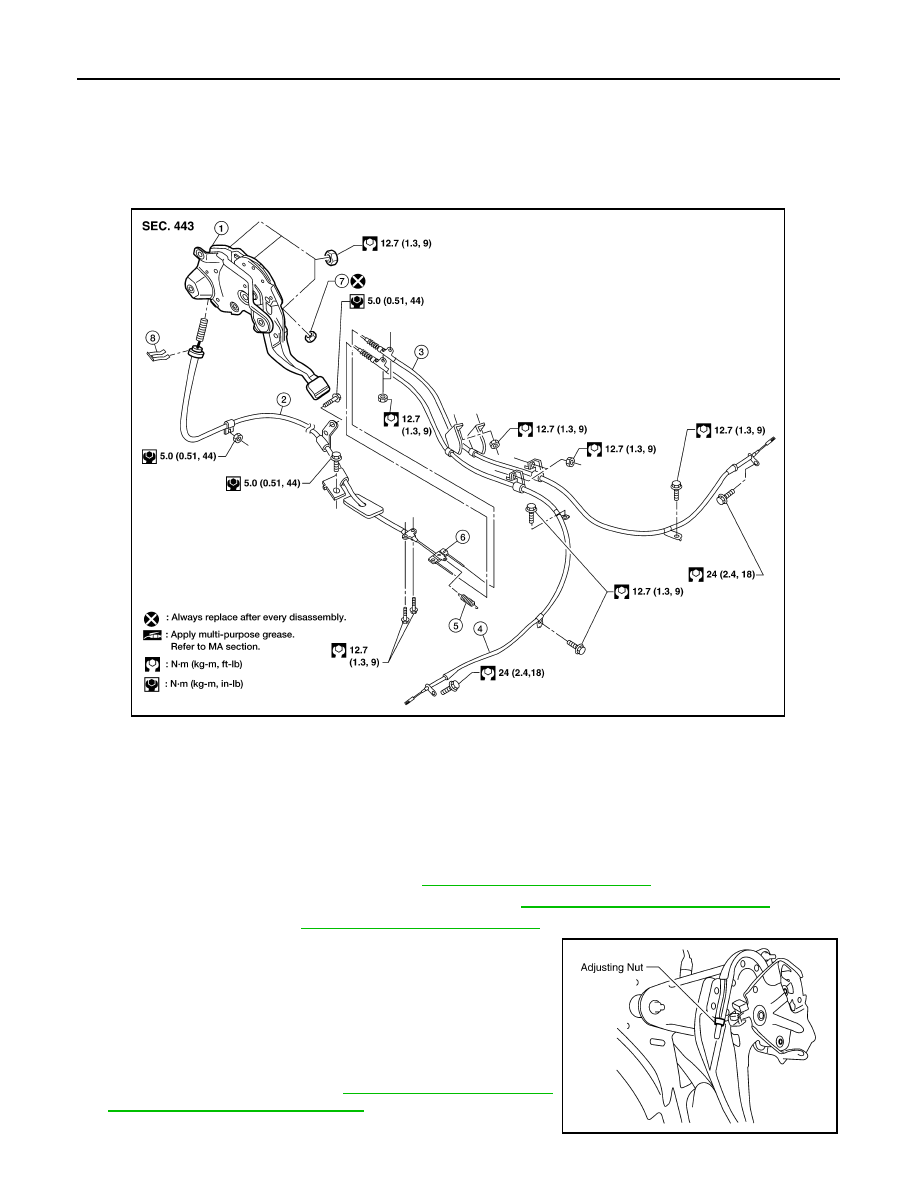

Component

INFOID:0000000006158511

Removal and Installation

INFOID:0000000006158512

REMOVAL

1. Remove lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

2. On models with floor shift, remove center console. Refer to

IP-23, "Disassembly and Assembly"

.

3. Remove floor trim. Refer to

INT-19, "Removal and Installation"

.

4. Remove adjusting nut and discard.

CAUTION:

Do not reuse adjusting nut after removing it.

5. Remove the lock plate from the front cable.
6. Remove front cable retaining bolts and nut.
7. Disconnect return spring from equalizer.
8. Disconnect right and left rear cables from equalizer.
9. Remove rear disc rotors. Refer to

BR-36, "Removal and Installa-

tion of Brake Caliper and Disc Rotor"

.

1.

Pedal assembly

2.

Front cable

3.

Right rear cable

4.

Left rear cable

5.

Return spring

6.

Equalizer

7.

Adjusting nut

8.

Lock plate

WFIA0218E

WFIA0165E

PARKING BRAKE CONTROL

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

10. Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-8, "Removal and

Installation"

.

11. Remove right and left rear cables retaining bolts and nuts, then remove right and left rear cables.

INSTALLATION

Installation is in the reverse order of removal.

• Adjust parking brake. Refer to

PB-4, "On-Vehicle Service"

.

CAUTION:

Do not reuse adjusting nut after removing it.
