< UNIT DISASSEMBLY AND ASSEMBLY >

COMBINATION METERS

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METERS

Removal and Installation

INFOID:0000000006164968

Disassembly and Assembly

Disassembly

1. Disconnect battery negative terminal.
2. Remove the cluster lid A. Refer to

IP-13, "Removal and Installation"

.

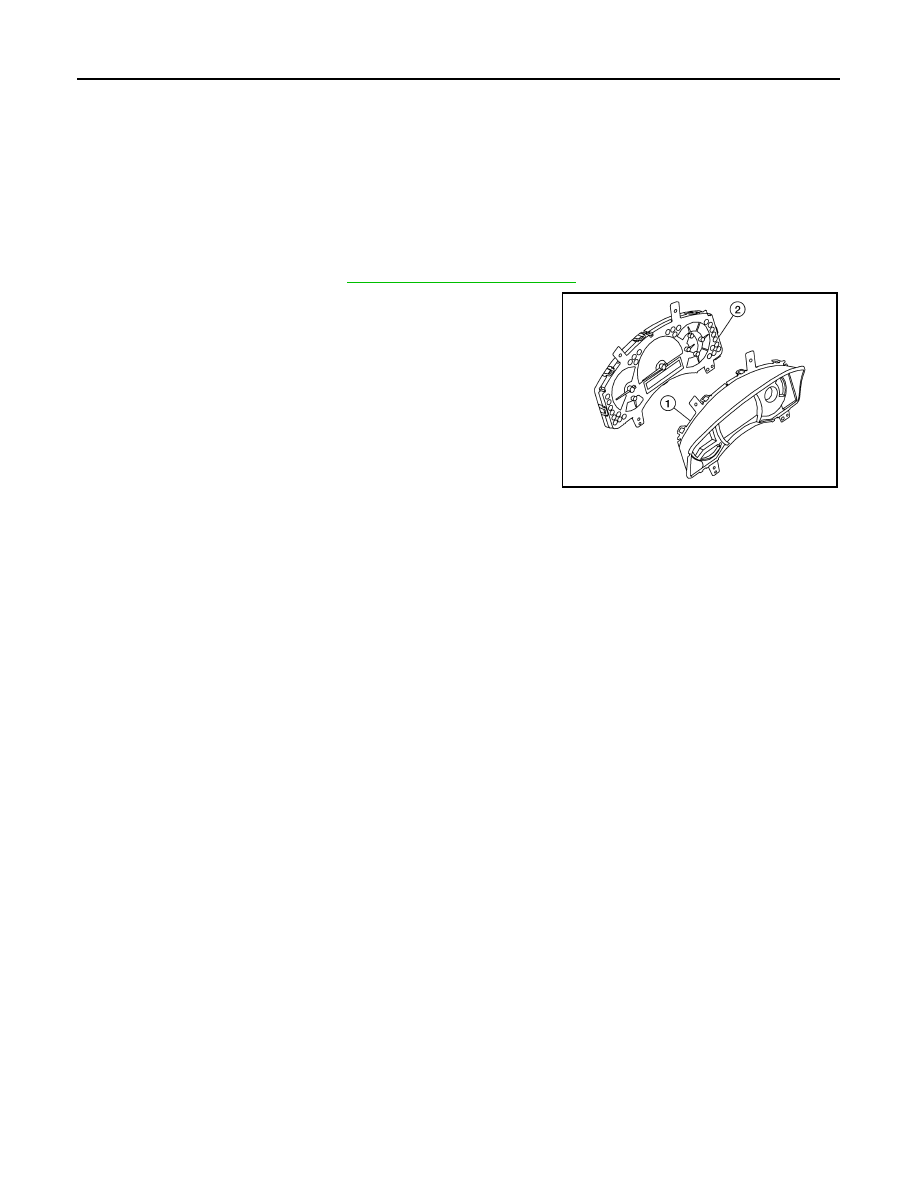

3. Disengage the tabs to separate front cover (1), from the unified

meter control unit assembly (2).

Assembly

Assembly is in the reverse order of disassembly.

ALNIA1104ZZ

PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

PERIODIC MAINTENANCE ..........................

4

PARKING BRAKE SYSTEM ...............................

4

On-Vehicle Service  ...................................................

4

REMOVAL AND INSTALLATION ................

6

PARKING BRAKE CONTROL ...........................

6

Component ...............................................................

6

Removal and Installation  ..........................................

6

PARKING BRAKE SHOE  ..................................

8

Removal and Installation  ..........................................

8

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

11

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

11

Parking Brake  ..........................................................

11

Parking Brake Control  .............................................

11

PB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006158508

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

PREPARATION

PB-3

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000006158509

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

(Kent-Moore No.)
Tool name

Description

(J-21177-A)
Brake drum clearance gauge

Measuring rear rotor drum to parking
brake shoe clearance

Power tool

Loosening bolts and nuts

WFIA0167E

PBIC0190E
