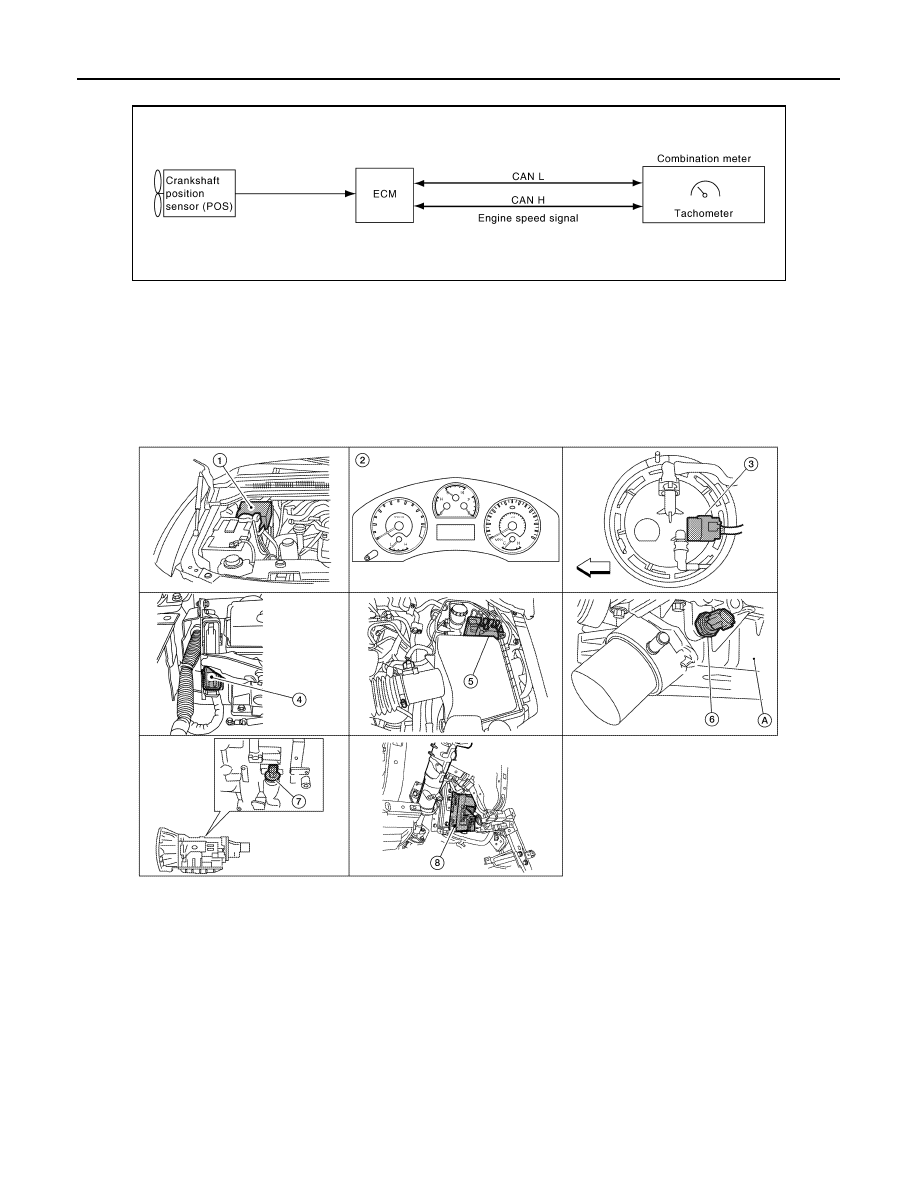

TACHOMETER : System Diagram

INFOID:0000000006164867

TACHOMETER : System Description

INFOID:0000000006164868

The tachometer indicates engine speed in revolutions per minute (rpm).

The ECM provides an engine speed signal to the combination meter via CAN communication lines.

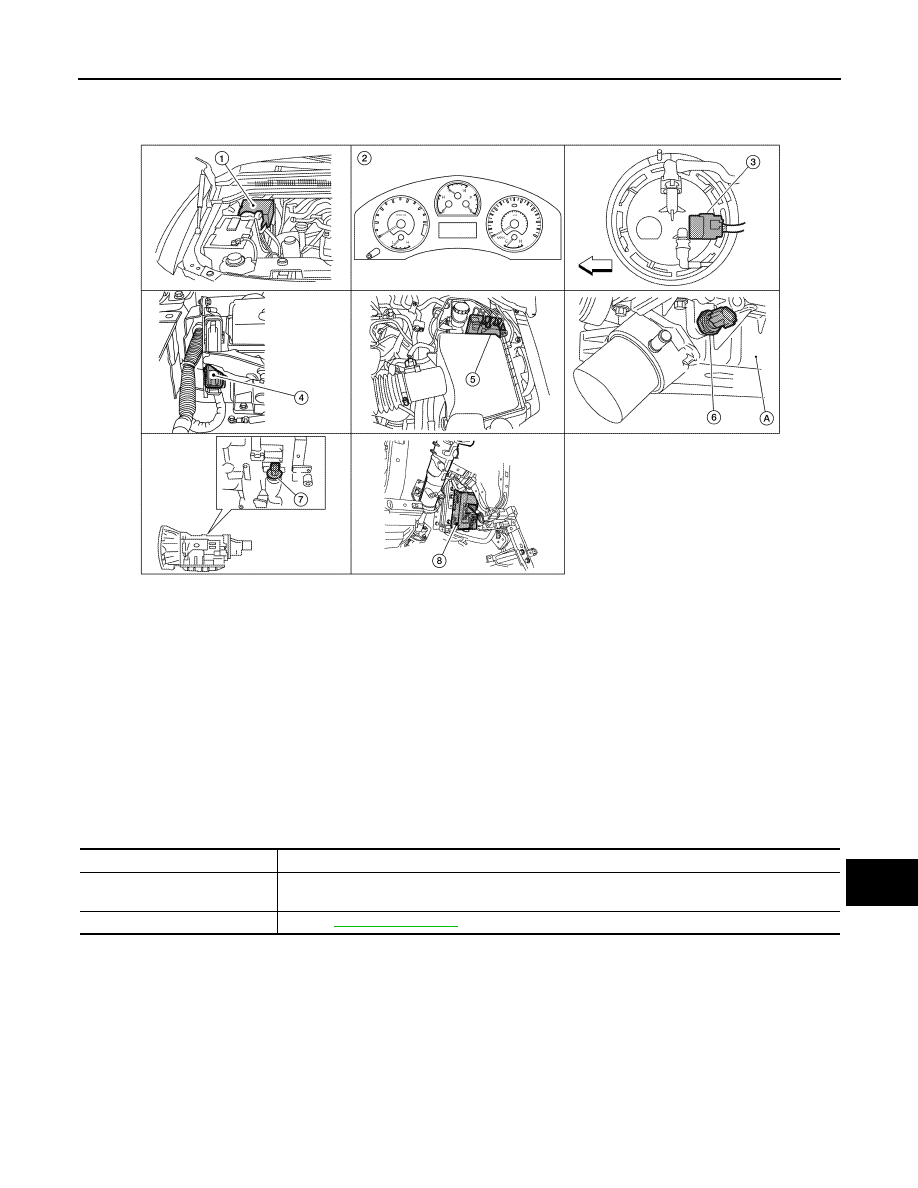

TACHOMETER : Component Parts Location

INFOID:0000000006164869

SKIB6904E

1.

IPDM E/R E122, E124

2.

Combination meter M24, M25

3.

Fuel level sensor unit and fuel pump
(view with fuel tank removed)
C7 (with Flexible Fuel)
C5 (without Flexible Fuel)
⇐: Front

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit)
E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly
F9 (with floor shift)
F17 (with column shift)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0190ZZ

MWI

METER SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TACHOMETER : Component Description

INFOID:0000000006164870

ENGINE COOLANT TEMPERATURE GAUGE

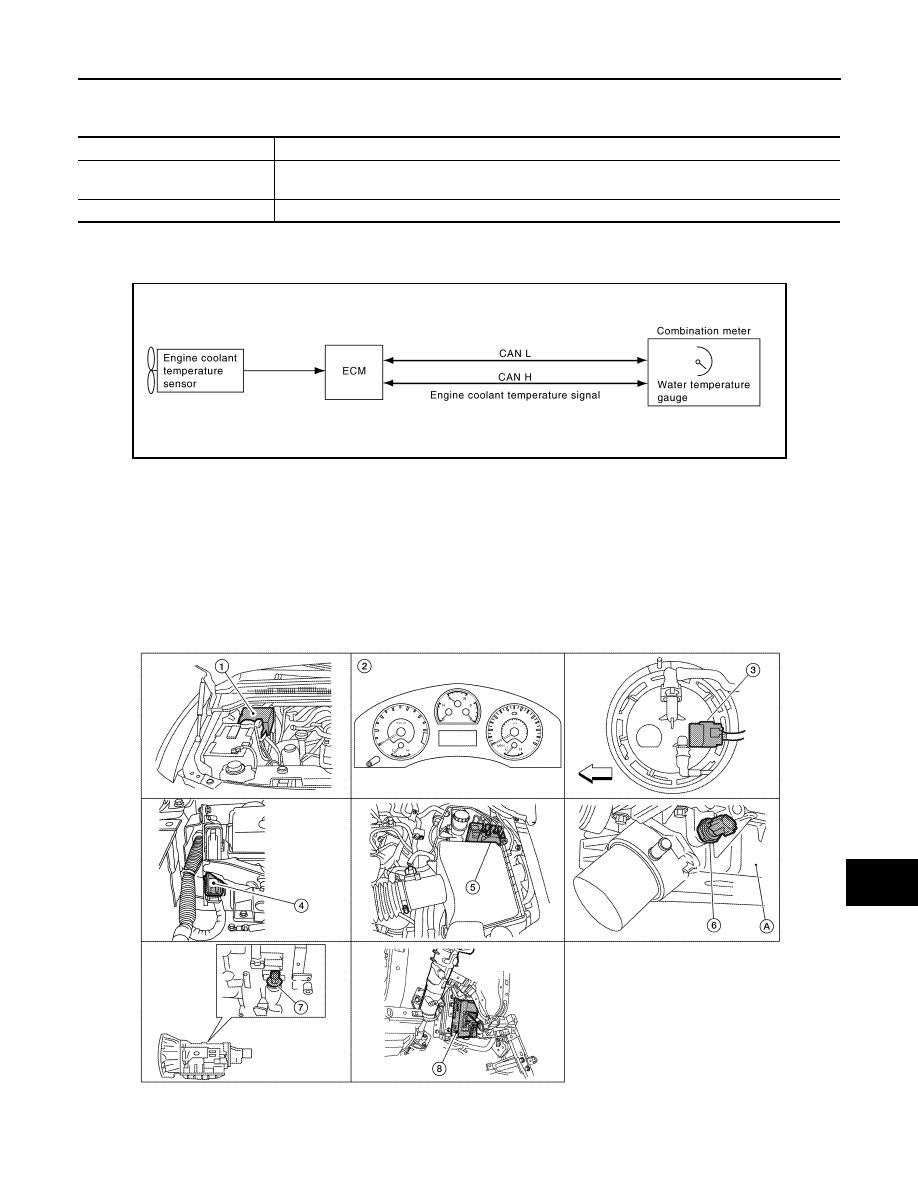

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000006164871

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000006164872

The engine coolant temperature gauge indicates the engine coolant temperature.

The ECM provides an engine coolant temperature signal to the combination meter via CAN communication

lines.

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000006164873

Unit

Description

Combination meter

Indicates the engine speed in RPM according to the engine speed signal received from ECM via
CAN communication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

SKIB6905E

AWNIA0190ZZ

MWI-12

< SYSTEM DESCRIPTION >

METER SYSTEM

ENGINE COOLANT TEMPERATURE GAUGE : Component Description

INFOID:0000000006164874

FUEL GAUGE
FUEL GAUGE : System Diagram

INFOID:0000000006164875

FUEL GAUGE : System Description

INFOID:0000000006164876

The fuel gauge indicates the approximate fuel level in the fuel tank.

The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied by the fuel

level sensor unit.

1.

IPDM E/R E122, E124

2.

Combination meter M24, M25

3.

Fuel level sensor unit and fuel pump
(view with fuel tank removed)
C7 (with Flexible Fuel)
C5 (without Flexible Fuel)
⇐: Front

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit)
E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly
F9 (with floor shift)
F17 (with column shift)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Indicates the engine coolant temperature according to the engine coolant temperature signal re-
ceived from ECM via CAN communication.

ECM

Transmits the engine coolant temperature signal to the combination meter via CAN communication.

AWNIA0004GB

MWI

METER SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUEL GAUGE : Component Parts Location

INFOID:0000000006164877

FUEL GAUGE : Component Description

INFOID:0000000006164878

ENGINE OIL PRESSURE GAUGE

1.

IPDM E/R E122, E124

2.

Combination meter M24, M25

3.

Fuel level sensor unit and fuel pump
(view with fuel tank removed)
C7 (with Flexible Fuel)
C5 (without Flexible Fuel)
⇐: Front

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit)
E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly
F9 (with floor shift)
F17 (with column shift)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0190ZZ

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-37, "Description"

.
