[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

NOTE:

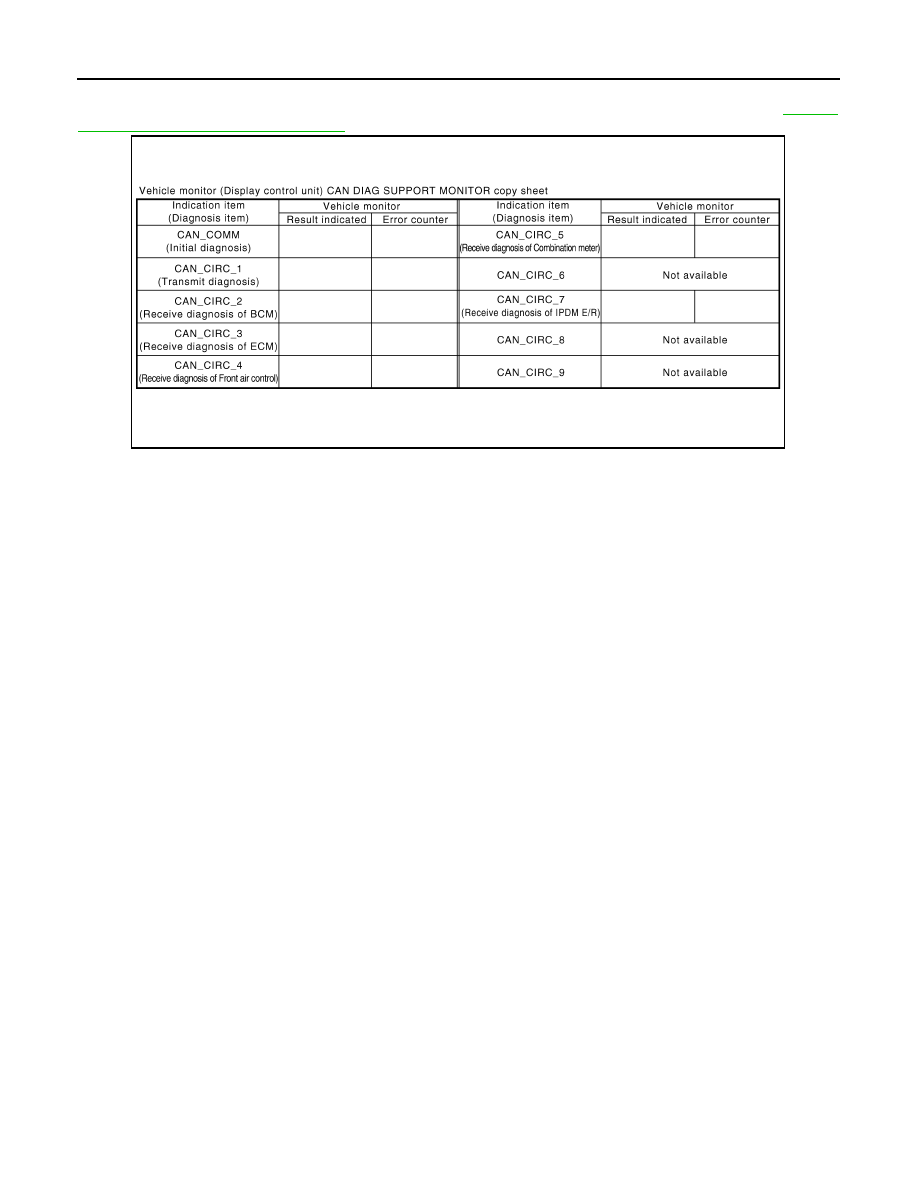

CAN diagnostic support monitor of the display control unit is indicated on the vehicle display. Refer to

AV-208,

"AUDIO UNIT : Diagnosis Description"

.

SKIB8771E

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-41

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

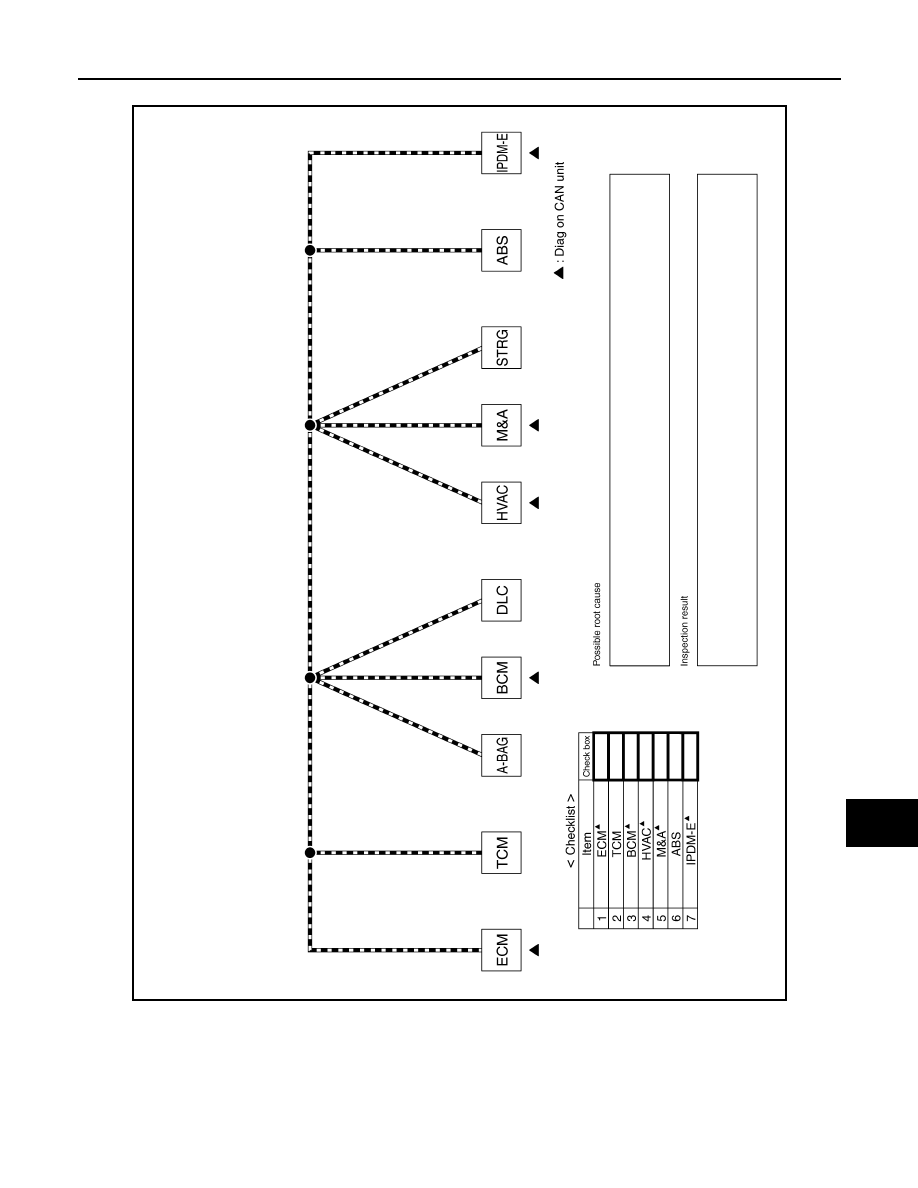

Diagnosis Sheet (CAN Type 1)

INFOID:0000000006179116

JPMIA0278GB

LAN-42

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

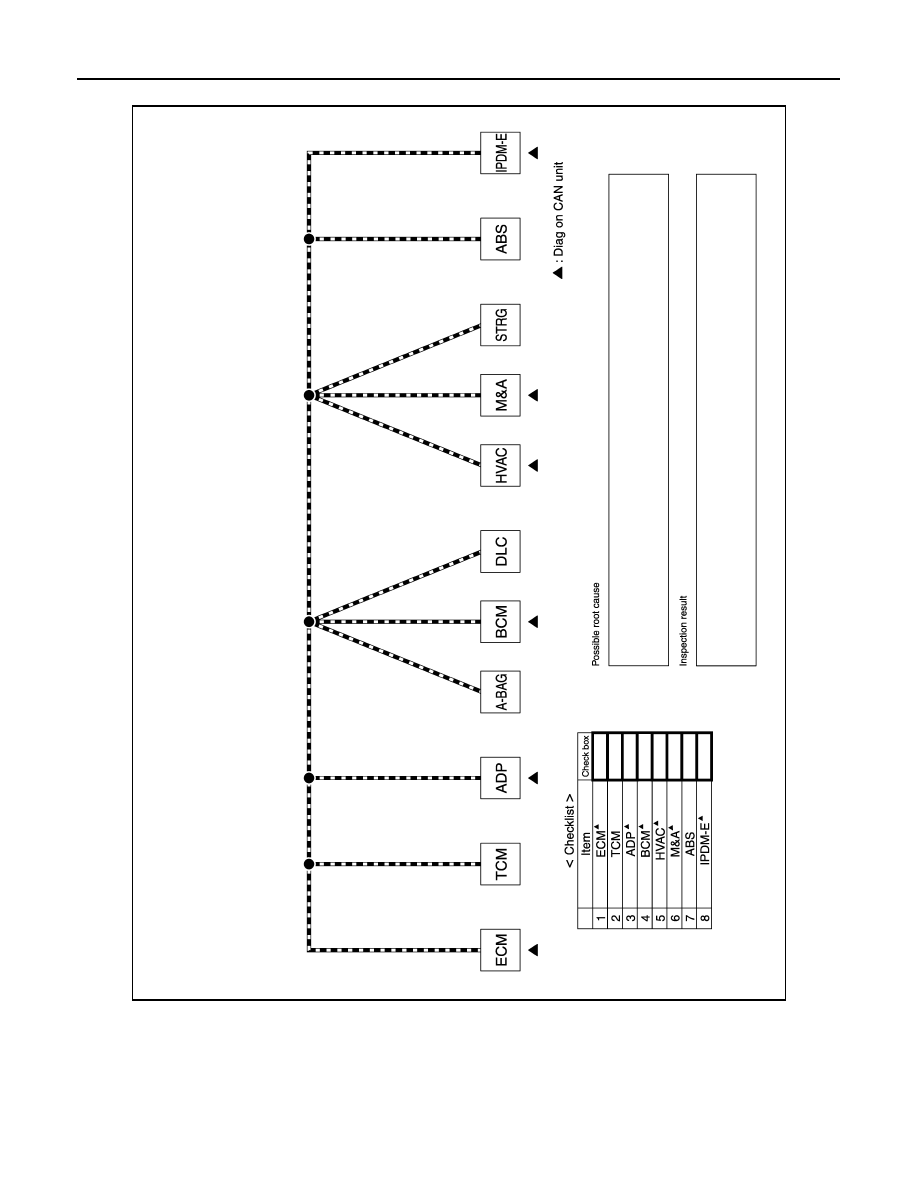

Diagnosis Sheet (CAN Type 2)

INFOID:0000000006179117

JSMIA0145GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-43

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

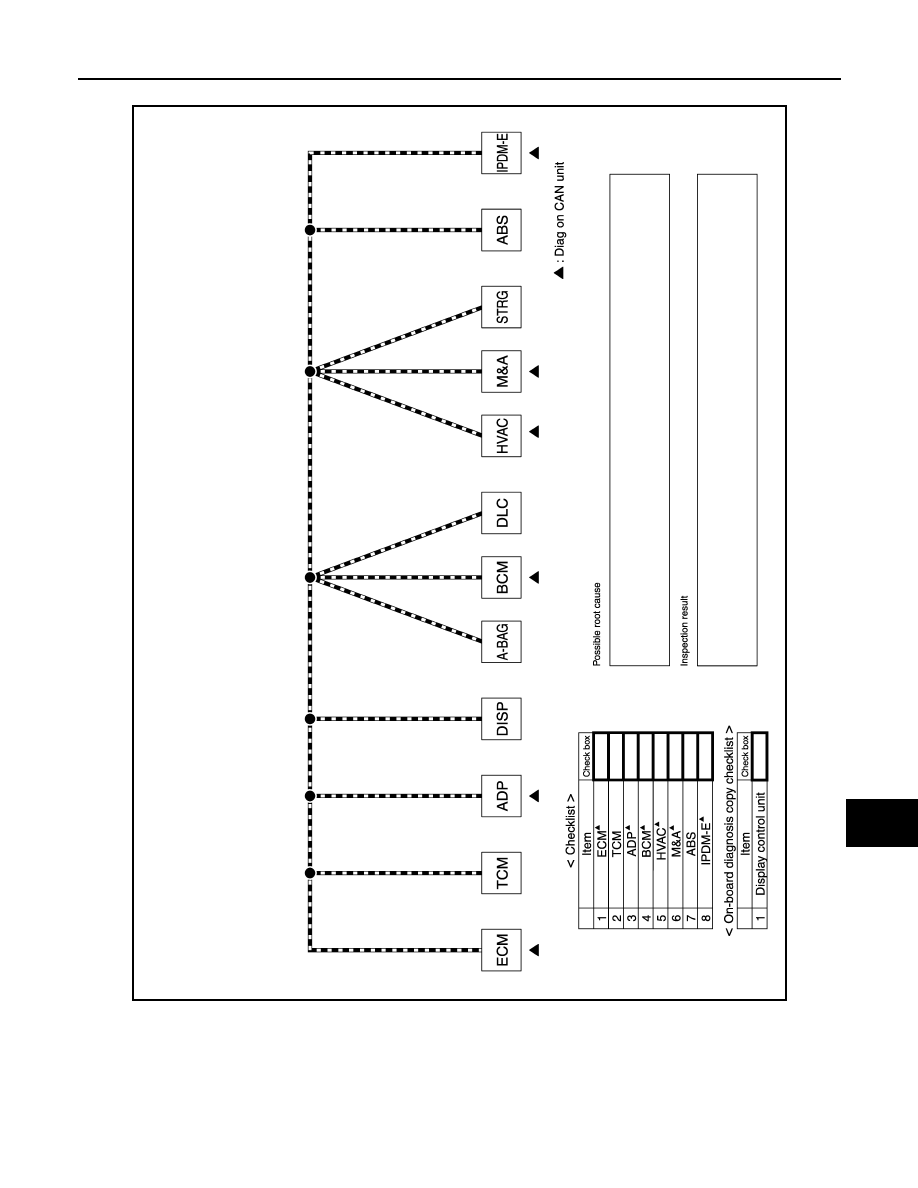

Diagnosis Sheet (CAN Type 3)

INFOID:0000000006179118

JSMIA0146GB
