LAN-36

< HOW TO USE THIS MANUAL >

[CAN]

HOW TO USE THIS SECTION

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Caution

INFOID:0000000006179109

• This section describes information peculiar to a vehicle, sheets for trouble diagnosis, and inspection proce-

dures.

• For trouble diagnosis procedure, refer to

LAN-14, "Trouble Diagnosis Procedure"

.

Abbreviation List

INFOID:0000000006179110

Abbreviations in CAN communication signal chart, and the diagnosis sheet are as per the following list.

Abbreviation

Unit name

SELECT SYSTEM

(CONSULT-III)

CAN DIAG SUPPORT MNTR

(CONSULT-III)

4WD

Transfer control unit

ALL MODE AWD/4WD

AWD/4WD

A-BAG

Air bag diagnosis sensor unit

AIR BAG

—

ABS

ABS actuator and electric unit (control unit)

ABS

VDC/TCS/ABS

ADP

Driver seat control unit

AUTO DRIVE POS.

—

BCM

BCM

BCM

BCM/SEC

DIFF

Differential lock control unit

DIFF LOCK

—

DISP

Display control unit

—

DISPLAY

DLC

Data link connector

—

—

ECM

ECM

ENGINE

ECM

HVAC

Front air control

HVAC

—

IPDM-E

IPDM E/R

IPDM E/R

IPDM E/R

M&A

Combination meter

METER/M&A

METER/M&A

STRG

Steering angle sensor

—

STRG

TCM

TCM

TRANSMISSION

TCM

LAN

PRECAUTIONS

LAN-37

< PRECAUTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006179111

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Trouble Diagnosis

INFOID:0000000006179112

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

Precautions for Harness Repair

INFOID:0000000006179113

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

SKIB8766E

LAN-38

< PRECAUTION >

[CAN]

PRECAUTIONS

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8767E

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-39

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

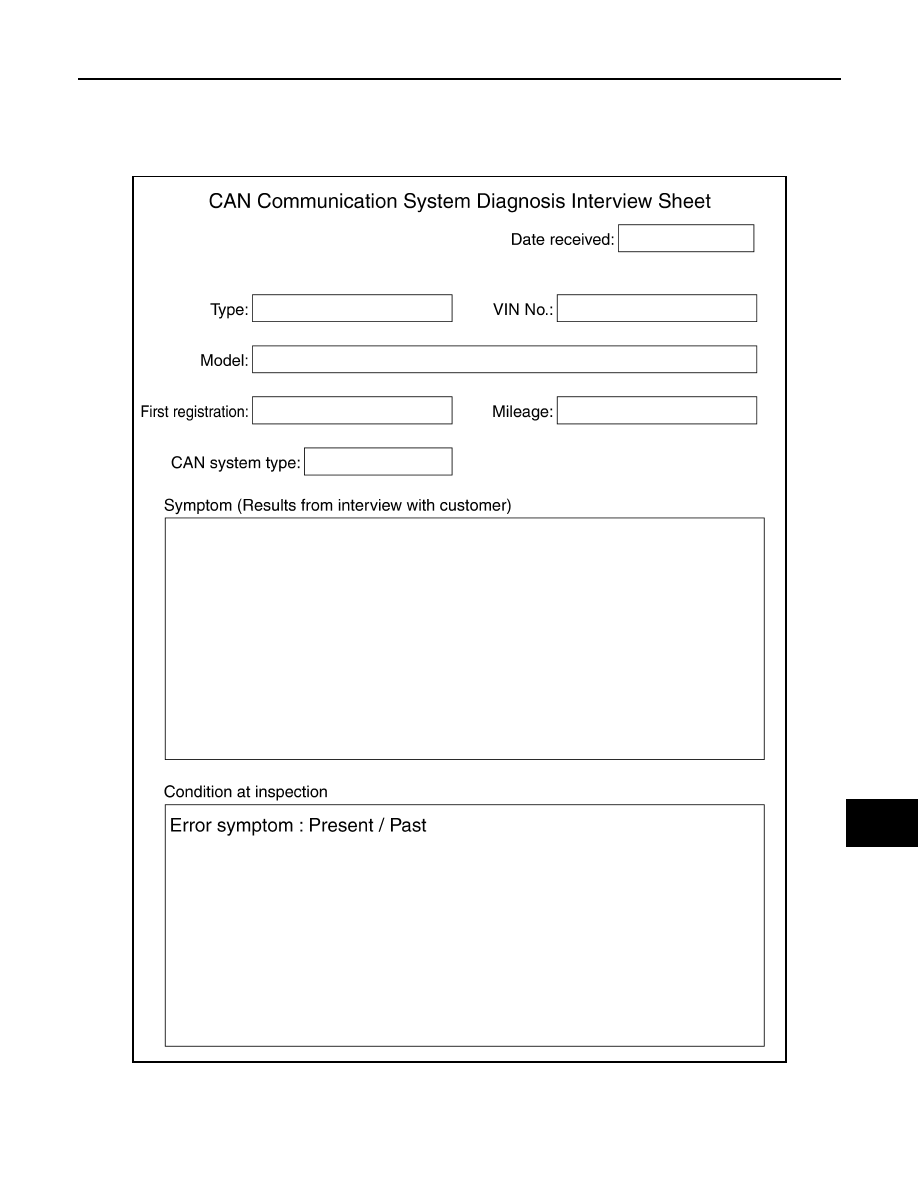

Interview Sheet

INFOID:0000000006179114

Data Sheet

INFOID:0000000006179115

ON-BOARD DIAGNOSIS COPY SHEET

SKIB8898E
