ILLUMINATION

Removal and Installation

INFOID:0000000006164489

ILLUMINATION CONTROL SWITCH

Removal

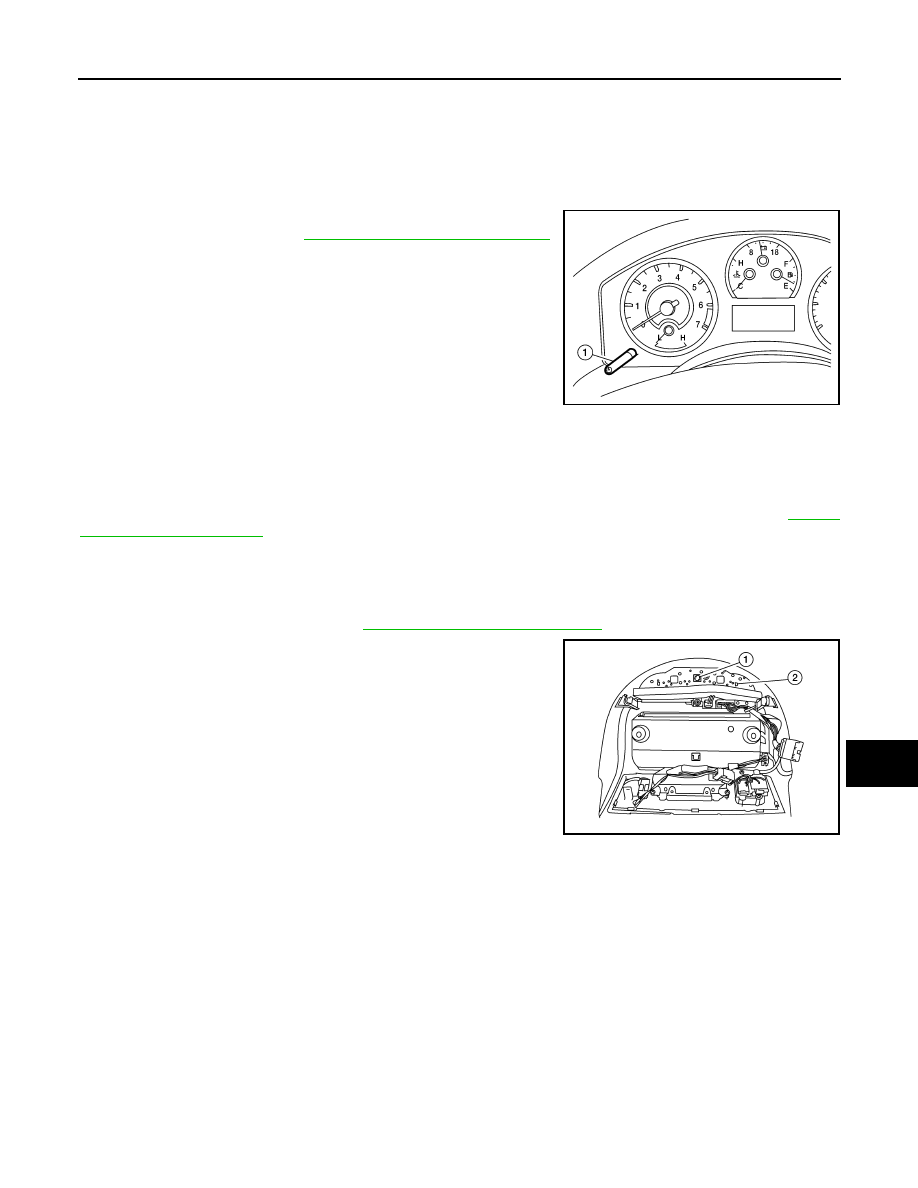

The illumination control switch (1) is replaced as a part of the combi-

nation meter assembly. Refer to

MWI-93, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

CONSOLE ILLUMINATION LAMP (If Equipped)

Removal

The console illumination lamp is replaced as part of the front roof console assembly. Refer to

INT-21,

"Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove front roof console. Refer to

INT-21, "Removal and Installation"

.

2. Rotate console illumination lamp bulb (1) counterclockwise, then

pull straight out away from room/map lamp assembly (2) to

remove.

ALLIA0329ZZ

ALLIA0327ZZ

INL-78

< SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Interior Lamp/Illumination

INFOID:0000000006164490

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Front room/map lamp (if equipped)

6

Room lamp (if equipped)

6

Vanity lamp (if equipped)

1.8

Step lamp (if equipped)

3.8

Personal lamp (if equipped)

8

Foot lamp (if equipped)

3.4

Console illumination lamp (if equipped)

*

INT-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

INT

A

B

INT

N

O

P

CONTENTS

INTERIOR

SYMPTOM DIAGNOSIS  ...............................

2

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

2

Work Flow  .................................................................

2

Generic Squeak and Rattle Troubleshooting  ............

4

Diagnostic Worksheet  ...............................................

6

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

8

Precaution for Work  ..................................................

8

PREPARATION ............................................

9

PREPARATION ..................................................

9

Special Service Tool .................................................

9

Commercial Service Tool  .........................................

9

REMOVAL AND INSTALLATION ...............

10

DOOR FINISHER  ..............................................

10

Removal and Installation  .........................................

10

BODY SIDE TRIM  .............................................

14

Removal and Installation  .........................................

14

FLOOR TRIM  ....................................................

19

Removal and Installation  .........................................

19

HEADLINING ....................................................

21

Removal and Installation  .........................................

21

INT-2

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Work Flow

INFOID:0000000006158490

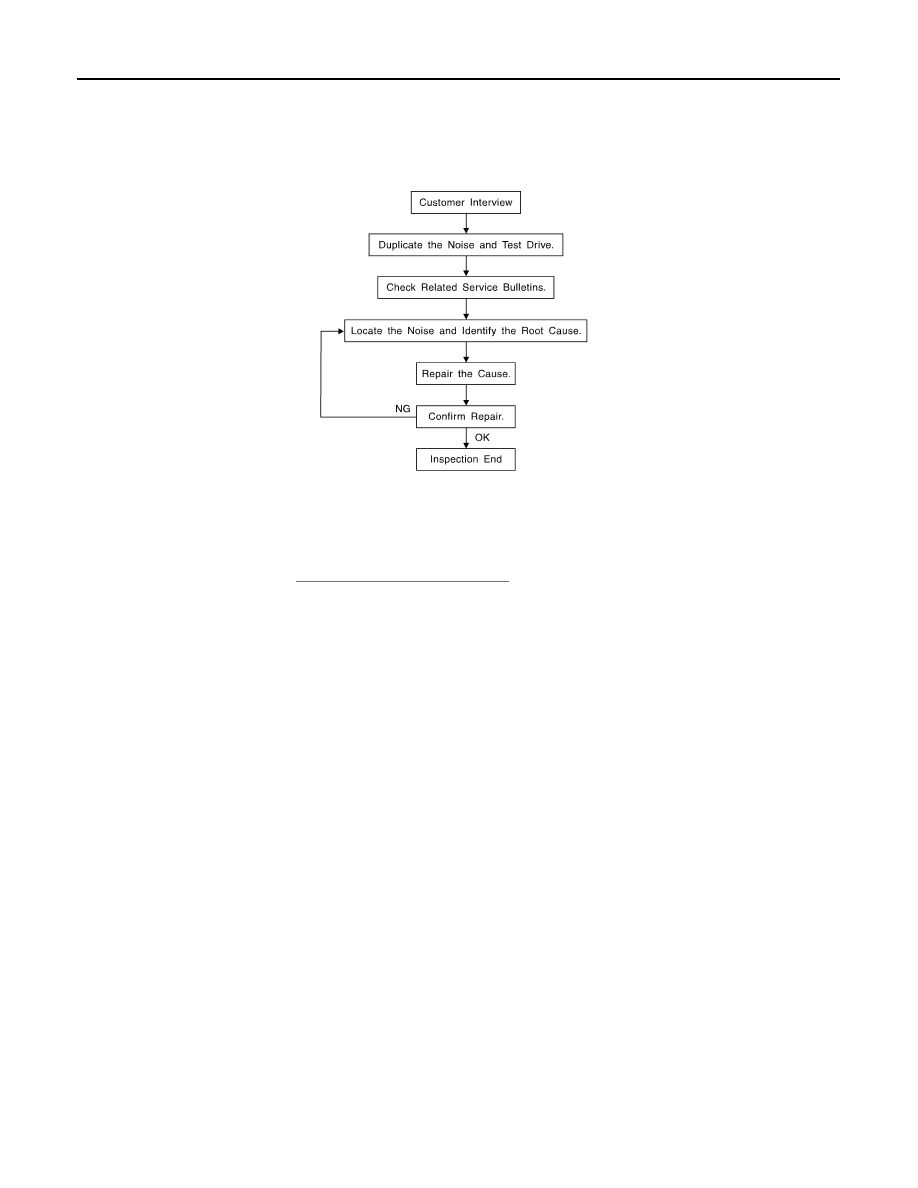

CUSTOMER INTERVIEW
