Nissan Titan A60. Manual - part 663

INTERIOR ROOM LAMP

INL-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

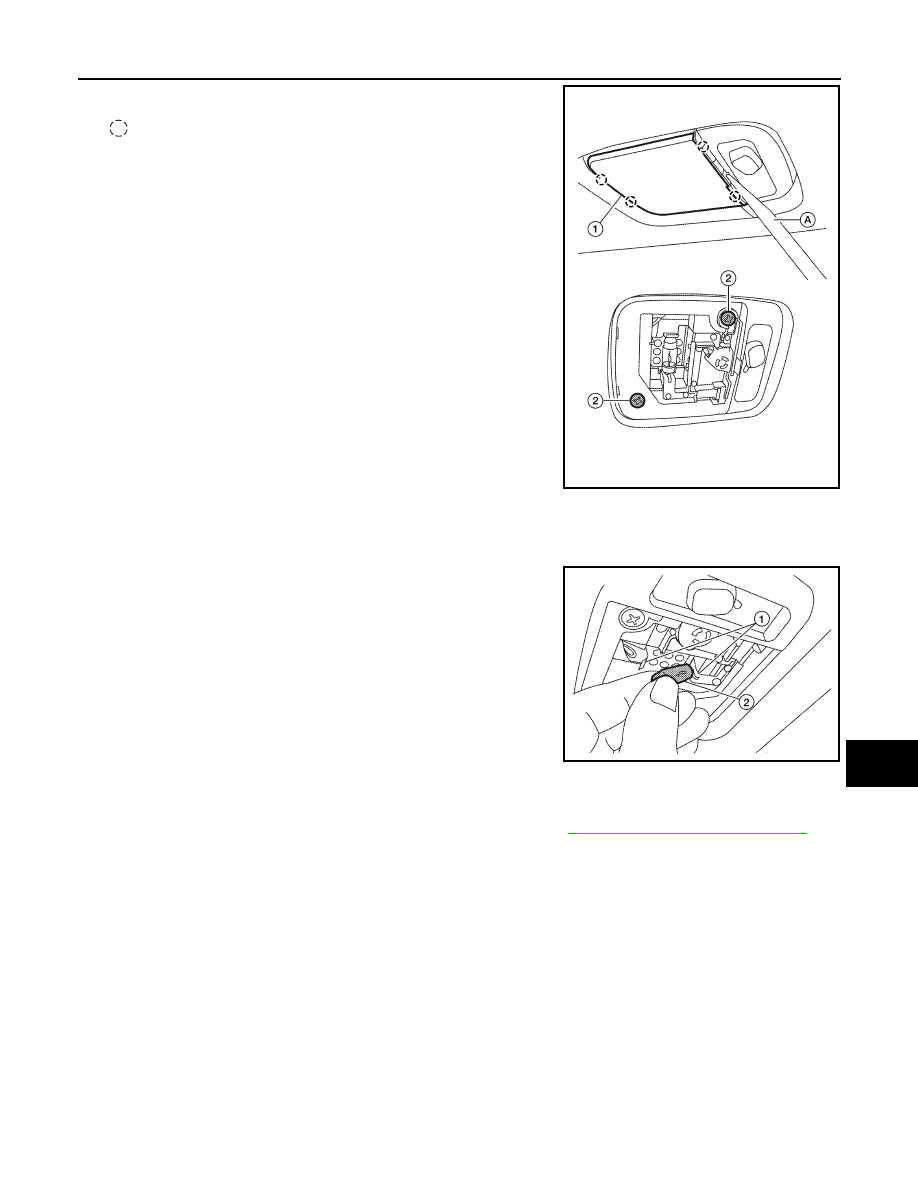

1. Using a suitable tool (A), release the pawls and remove the

room lamp lens (1).

: Pawl

2. Remove room lamp screws (2).
3. Disconnect the connector, then remove the room lamp.

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

1. Using a suitable tool, release the pawls and remove the room

lamp lens.

2. Release the room lamp bulb retainers (1), then pull bulb (2)

straight out to remove.

VANITY LAMP (If Equipped)

Removal

The vanity lamp is replaced as part of the sunvisor assembly. Refer to

INT-21, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

ALLIA0325ZZ

Room lamp bulb

: 12V - 6W

ALLIA0326ZZ

INL-74

< REMOVAL AND INSTALLATION >

INTERIOR ROOM LAMP

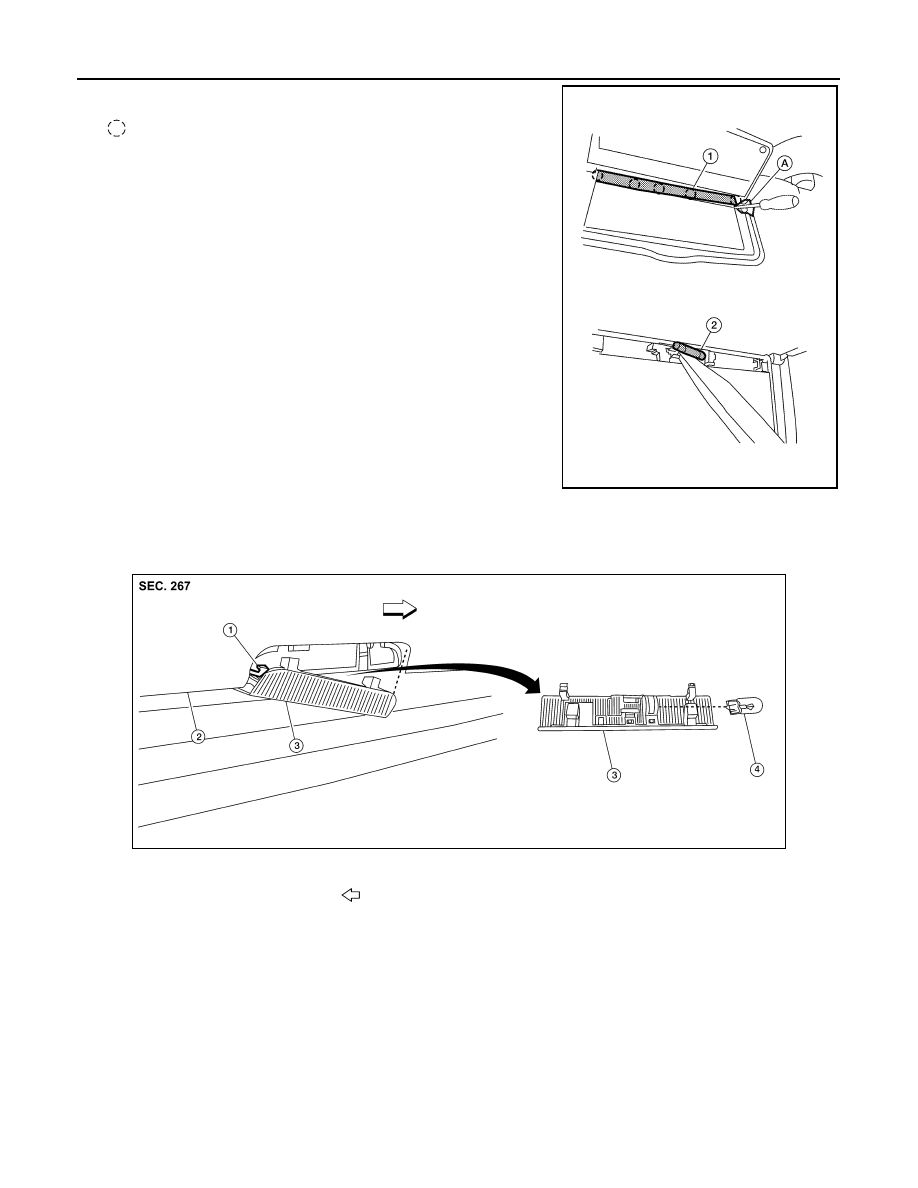

1. Using a suitable tool (A), release the tabs and remove the vanity

lamp lens (1).

: Pawl

CAUTION:

Wrap a cloth around suitable tool (A) to protect the housing

and lens.

2. Release one side of the bulb (2) from the tab, then pull straight

out to remove.

STEP LAMP (If Equipped)

Removal

1. Insert a suitable tool between door finisher and step lamp lens/socket to release the pawls.

CAUTION:

Wrap a cloth around the suitable tool to protect door finisher and lens.

2. Disconnect the step lamp connector, then remove step lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove the step lamp lens/socket.
2. Pull the bulb straight out to remove.

Vanity lamp bulb

: 12V - 1.8W

ALLIA0320ZZ

ALLIA0013ZZ

1.

Step lamp connector

2.

Door finisher

3.

Step lamp lens/socket

4.

Step lamp bulb

Vehicle front

INTERIOR ROOM LAMP

INL-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

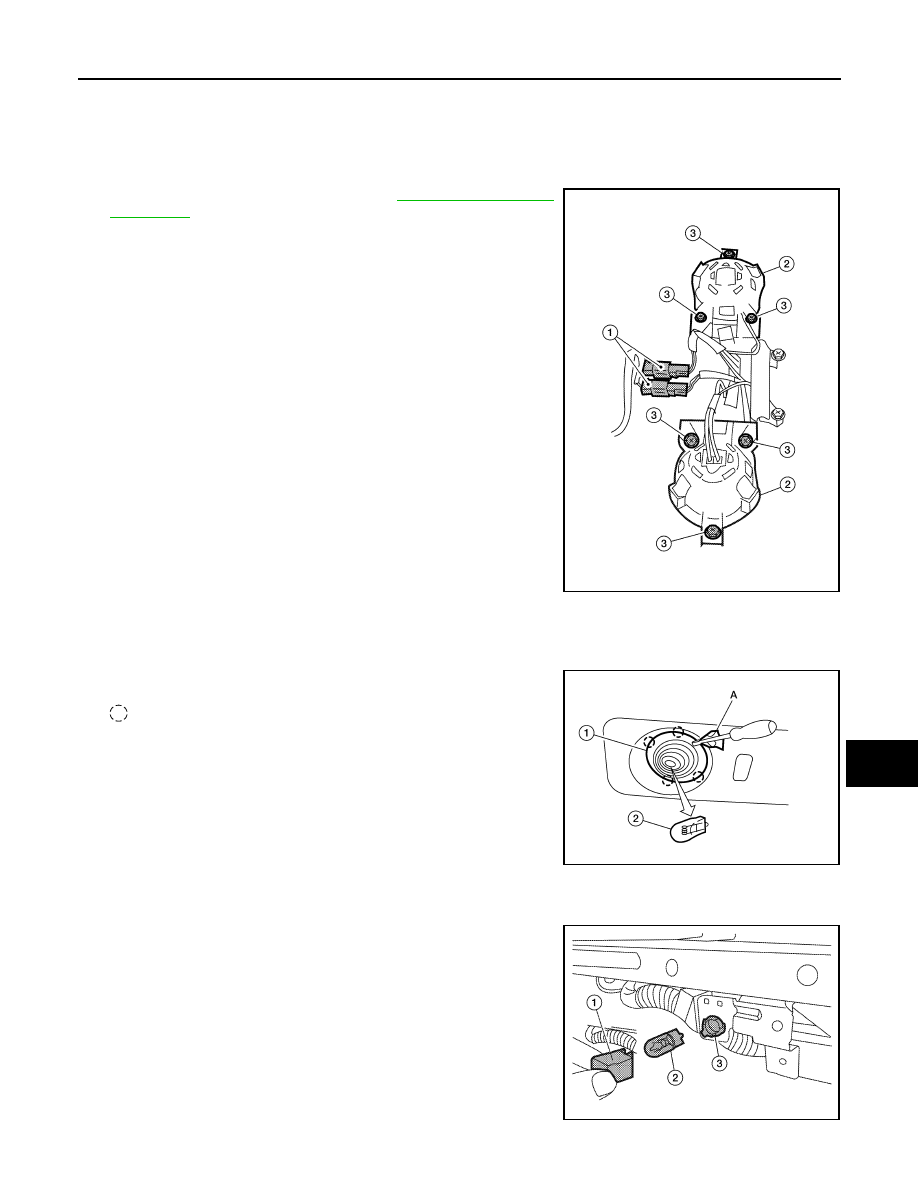

PERSONAL LAMP (If Equipped)

Removal

1. Remove the rear roof console. Refer to

INT-21, "Removal and

Installation"

.

2. Remove personal lamp screws (3).
3. Disconnect personal lamp electrical connectors (1), then

remove personal lamp (2) from the rear roof console.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Using a suitable tool (A), release the pawls and remove per-

sonal lamp lens (1).

: Pawl

CAUTION:

Wrap a cloth around suitable tool (A) to protect the housing

and lens (1).

2. Pull bulb (2) straight out to remove.

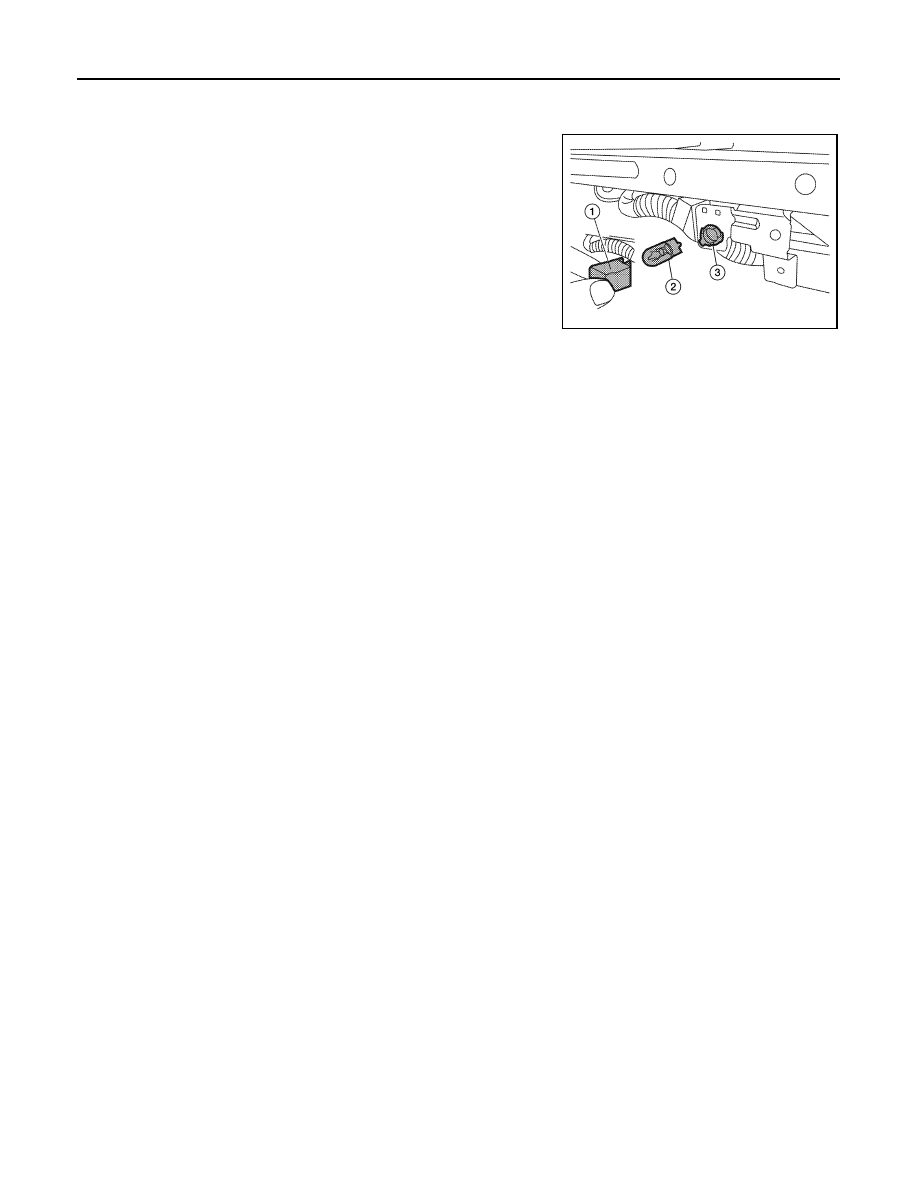

FOOT LAMP (If Equipped)

Removal

Rotate foot lamp socket (3) counterclockwise to remove from

bracket.

• Bulb shield (1)

• Bulb (2)

Installation

Step lamp bulb

: 12V - 3.8W

ALLIA0322ZZ

Personal lamp bulb

: 12V - 8W

ALLIA0323ZZ

ALLIA0324ZZ

INL-76

< REMOVAL AND INSTALLATION >

INTERIOR ROOM LAMP

Installation is in the reverse order of removal.

Bulb Replacement

1. Release the pawls and remove bulb shield (1) from bracket.
2. Pull bulb (2) straight out from foot lamp socket (3) to remove.

Foot lamp bulb

: 12V - 3.4W

ALLIA0324ZZ
