INTERIOR ROOM LAMP CONTROL SYSTEM

INL-9

< SYSTEM DESCRIPTION >

INL

Component Description

INFOID:0000000006164452

10. Room lamp (without front roof console)

R10
Personal lamp 2nd row (crew cab with
rear overhead console) R203

11. Front room/map lamp assembly (with

front roof console) R102

12. Vanity lamp LH R3

Vanity lamp RH R8

13. Puddle lamp LH D4 (Door mirror)

Puddle lamp RH D107 (Door mirror)

14. Foot lamp LH M99

Foot lamp RH M100

15. Front step lamp LH D11

Front step lamp LH D109

16. Cargo lamp relay M150 (view with low-

er instrument panel LH removed)

17. Cargo lamp switch (if equipped) M149

Part name

Description

BCM

Provides power and ground and controls timer functions for the
interior room lamps, foot lamps, puddle lamps, step lamps and
cargo lamp.

Key switch (column shift)

Provides key in ignition status to the BCM.

Key switch and key lock solenoid (key switch) (floor shift)

Door switches

Provides door OPEN/CLOSED status to the BCM.

Cargo lamp switch (if equipped)

Provides cargo lamp ON/OFF request to the BCM.

Power window and door lock/unlock switch RH

Provides door lock/unlock position switch RH status to the BCM.

Main power window and door lock/unlock switch [front door lock
assembly LH (key cylinder switch)].

Provides door lock/unlock position switch LH status to the BCM.

INL-10

< SYSTEM DESCRIPTION >

ILLUMINATION CONTROL SYSTEM

ILLUMINATION CONTROL SYSTEM

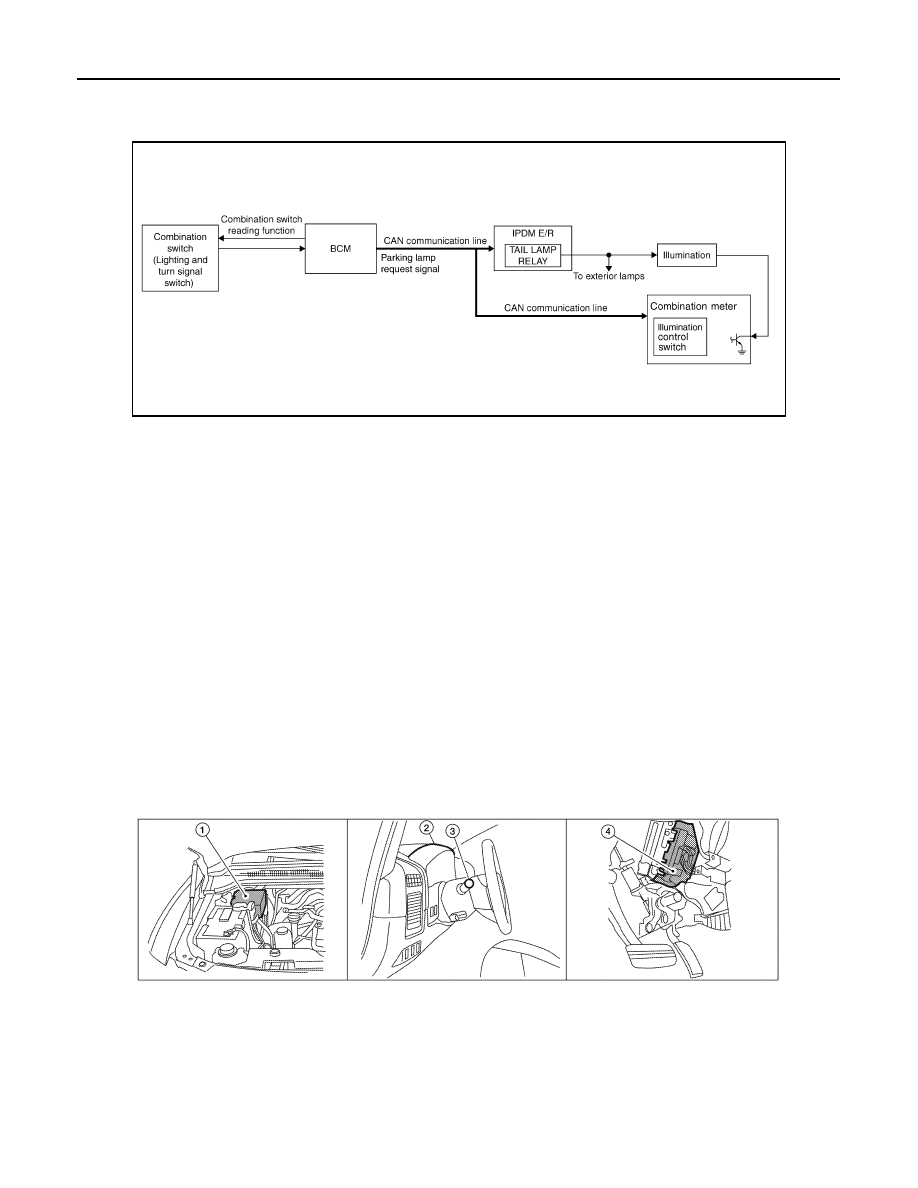

System Diagram

INFOID:0000000006164453

System Description

INFOID:0000000006164454

The illumination lamps operation is dependent upon the position of the combination switch (lighting and turn

signal switch). When the combination switch (lighting and turn signal switch) is placed in the 1ST or 2ND posi-

tion (or if the auto light system is activated) the BCM (body control module) receives input requesting the park-

ing lamps to illuminate. This input is communicated to the IPDM E/R (intelligent power distribution module

engine room) via the CAN communication lines. The CPU (central processing unit) of the IPDM E/R controls

the tail lamp relay coil. When energized, this relay directs power to the parking and illumination lamps, which

then illuminate.

BATTERY SAVER CONTROL

When the combination switch (lighting and turn signal switch) is in the 1ST or 2ND position and the ignition

switch is turned from ON or ACC to OFF, the battery saver control feature is activated. Under this condition,

the illumination lamps remain illuminated for 15 minutes unless the combination switch (lighting and turn signal

switch) position is changed. If the combination switch (lighting and turn signal switch) position is changed, then

the illumination lamps are turned off after a 30 second delay. When the combination switch (lighting and turn

signal switch) is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after illumination

lamps have been turned off by the battery saver control, the illumination lamps illuminate again.

Component Parts Location

INFOID:0000000006164455

ABLIA1921GB

IPDM E/R E122, E123, E124

Combination meter (illumination con-
trol switch) M24, M25

Combination switch (lighting and turn
signal switch) M28

BCM M18, M20 (view with instrument
panel removed)

ALLIA0426GB

ILLUMINATION CONTROL SYSTEM

INL-11

< SYSTEM DESCRIPTION >

INL

Component Description

INFOID:0000000006164456

Part name

Description

BCM

The BCM monitors the combination switch (lighting and turn sig-
nal switch) position with the combination switch reading function.
The BCM requests, via CAN communication, that the IPDM E/R
activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication network.

Combination meter (illumination control switch)

The illumination control switch is a part of the combination meter.
The combination meter controls illumination intensity by varying
ground to the illumination lamps based on the illumination control
switch position.

Combination switch (lighting and turn signal switch)

The combination switch (lighting and turn signal switch) provides
input to the BCM about the lighting switch position.

INL-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006626883

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

INT LAMP

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

tifi

tio

lf Di

ic Re

tor

cti

est

rk support

igu

rat

ion

N Diag

ort Mn

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEADLAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps FLASHER

Air conditioner

AIR CONDITIONER

Combination switch

COMB SW

BCM

Immobilizer

IMMU

Interior room lamp battery saver

BATTERY SAVER

Vehicle security system

THEFT ALM

RAP system

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

TPMS

AIR PRESSURE MONITOR

Panic alarm system

PANIC ALARM
