AIR CONDITIONER CONTROL

HAC-239

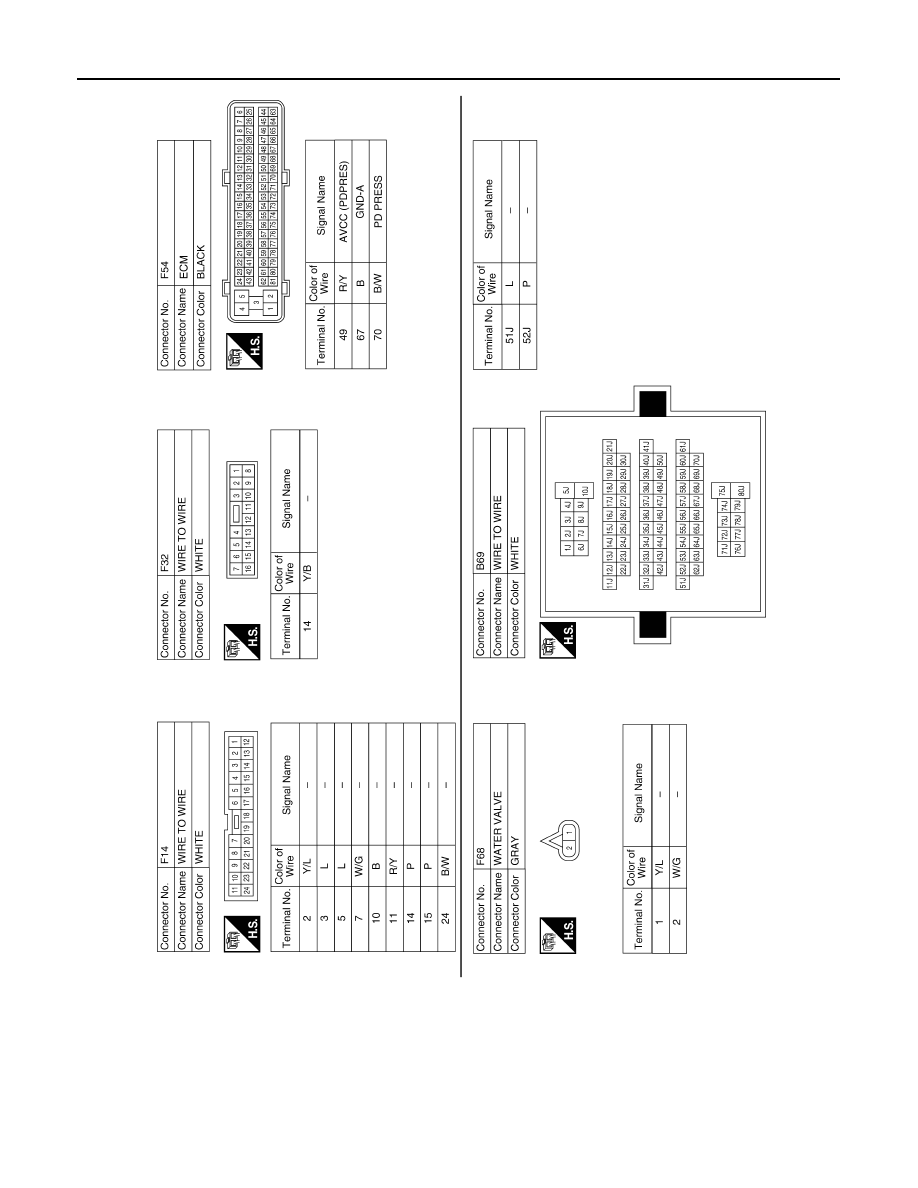

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0657GB

HAC-240

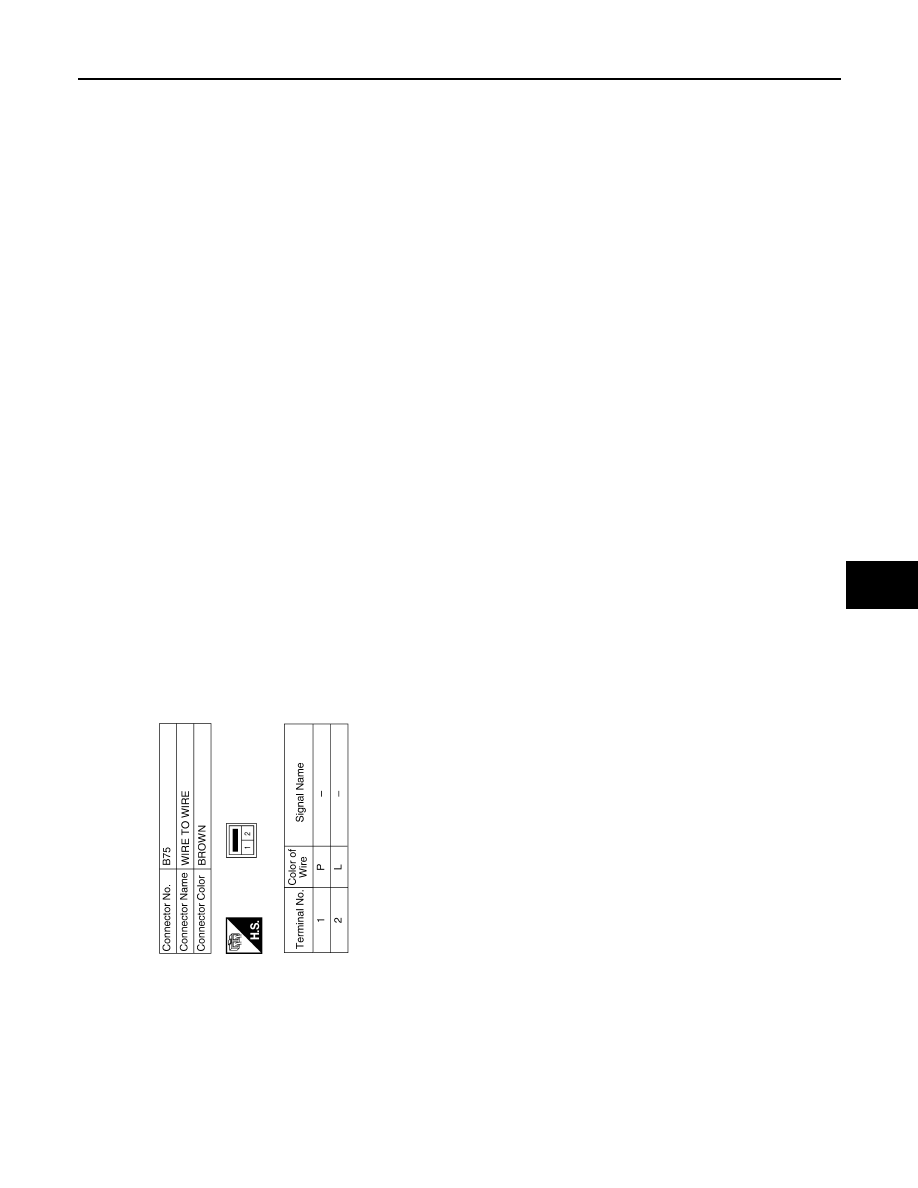

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 2)]

AIR CONDITIONER CONTROL

ABIIA0658GB

AIR CONDITIONER CONTROL

HAC-241

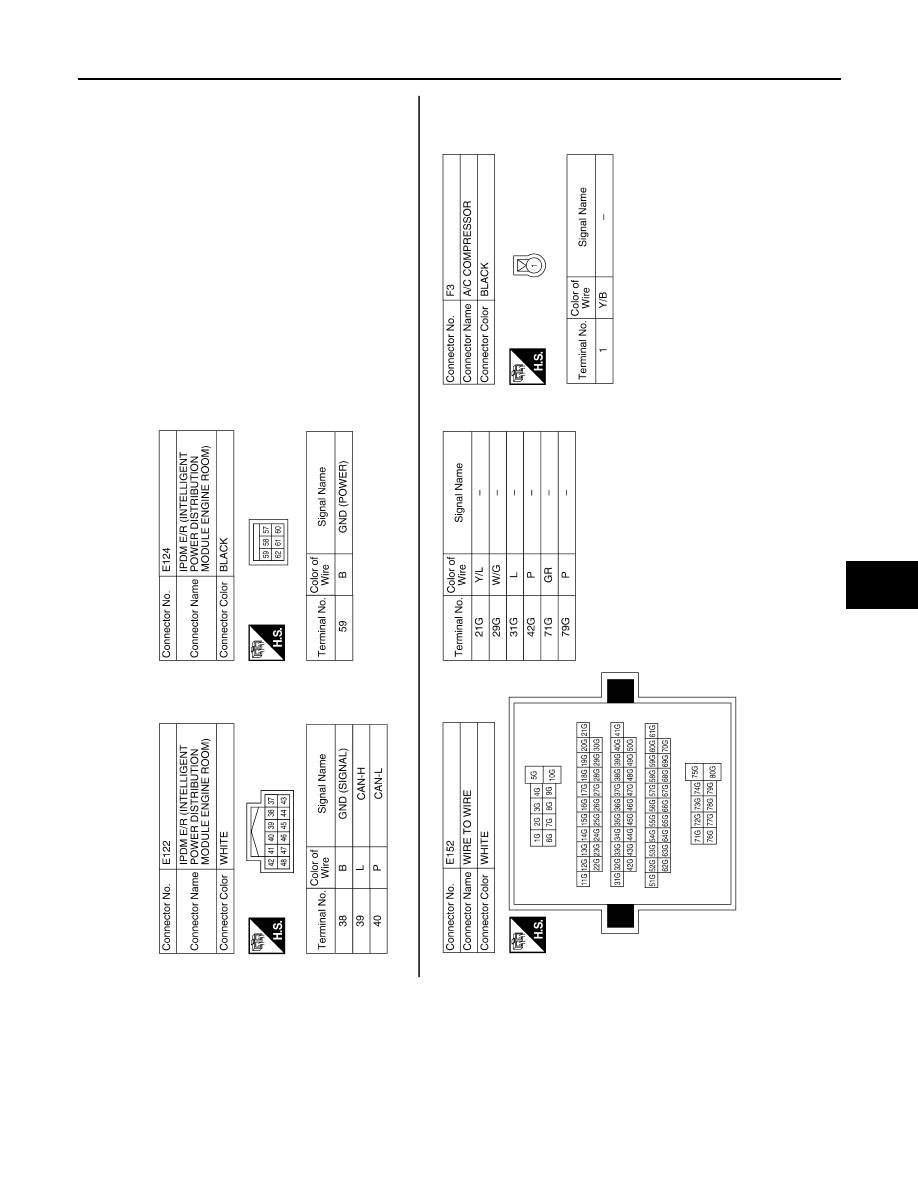

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0659GB

HAC-242

< SYMPTOM DIAGNOSIS >

[MANUAL A/C (TYPE 2)]

MANUAL A/C IDENTIFICATION TABLE

SYMPTOM DIAGNOSIS

MANUAL A/C IDENTIFICATION TABLE

Application Table

INFOID:0000000006164843

Manual A/C Type

Description

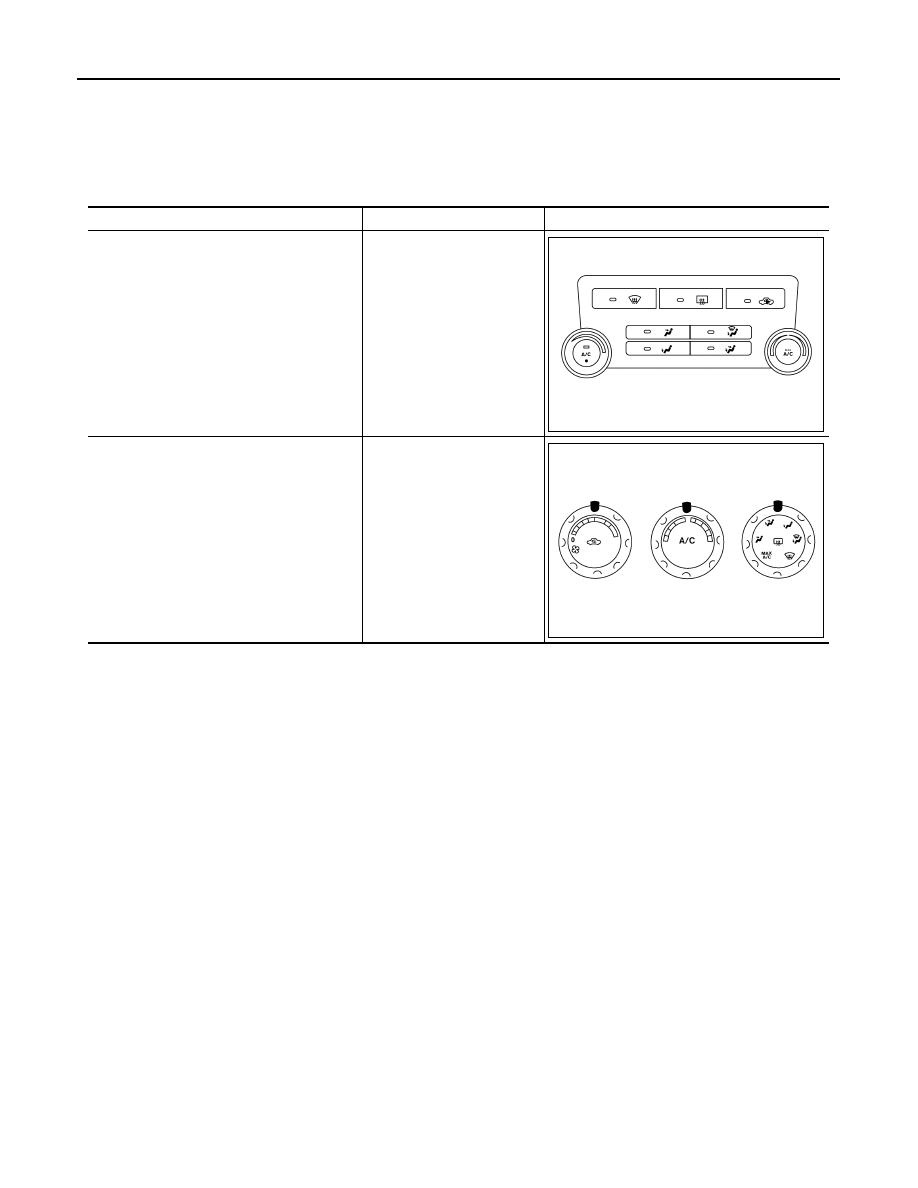

Visual Identification

Manual A/C (Type 1)

Two Control Dial System

Manual A/C (Type 2)

Three Control Dial System

[with variable blower control

(VBC)]

AWIIA0481ZZ

AWIIA0478ZZ
