FUNCTION INFORMATION

HAC-187

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Symptom Table

INFOID:0000000006164803

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

HAC-227

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

HAC-197

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

HAC-201

Air mix door motor is malfunctioning.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HAC-205

Intake door motor is malfunctioning.

Defroster door motor is malfunctioning.

Go to Trouble Diagnosis Procedure for Defroster Door Motor.

HAC-207

Front blower motor operation is malfunctioning.

Go to Trouble Diagnosis Procedure for Front Blower Motor.

HAC-211

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HAC-217

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HAC-244

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HAC-252

Noise

Go to Trouble Diagnosis Procedure for Noise.

HAC-254

HAC-188

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

REFRIGERATION SYSTEM

REFRIGERATION SYSTEM

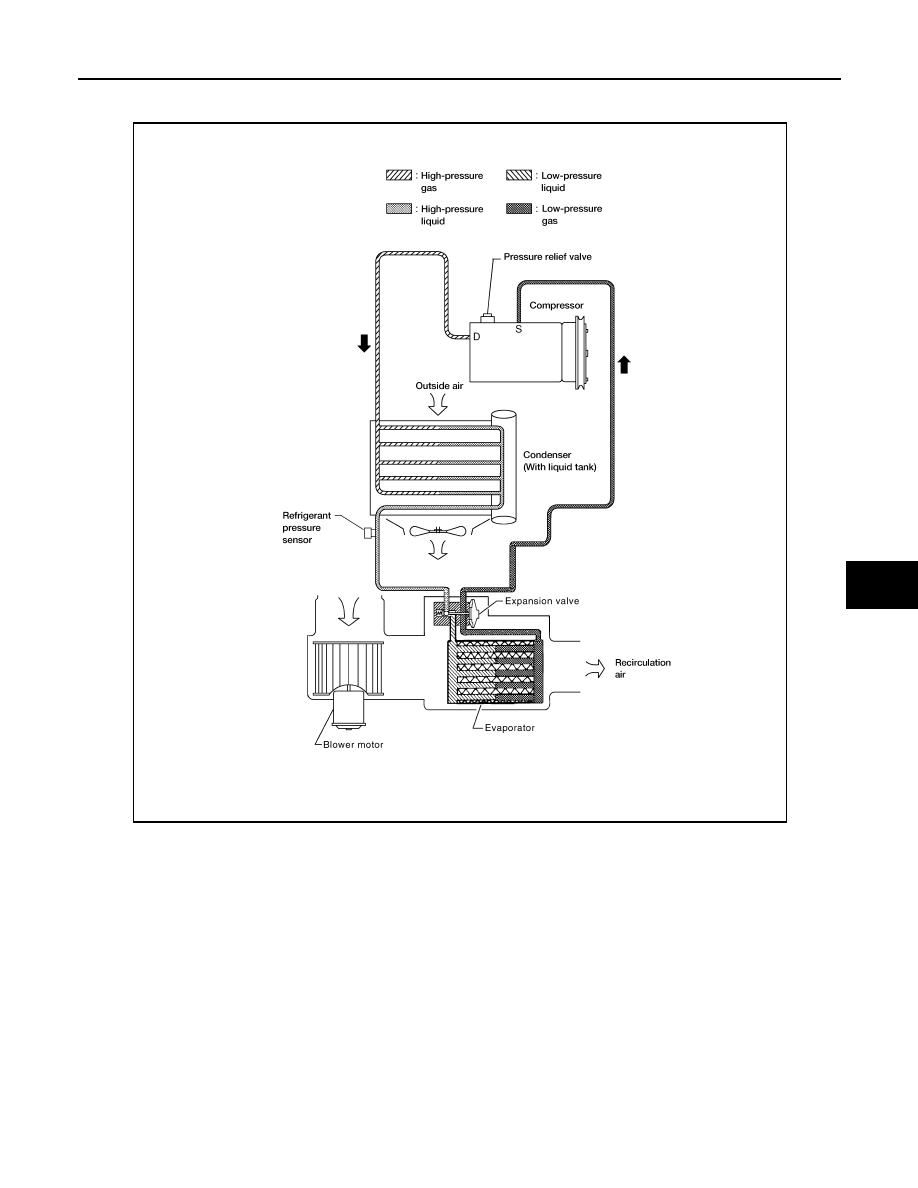

Refrigerant Cycle

INFOID:0000000006164804

REFRIGERANT FLOW

The refrigerant flows in the standard pattern, that is, through the compressor, the condenser with liquid tank,

through the evaporator, and back to the compressor. The refrigerant evaporation through the evaporator coils

are controlled by externally equalized expansion valve, located inside the evaporator case.

Refrigerant System Protection

INFOID:0000000006164805

REFRIGERANT PRESSURE SENSOR

The refrigerant system is protected against excessively high or low pressures by the refrigerant pressure sen-

sor, located on the condenser. If the system pressure rises above or falls below the specifications, the refriger-

ant pressure sensor detects the pressure inside the refrigerant line and sends a voltage signal to the ECM.

The ECM de-energizes the A/C relay to disengage the magnetic compressor clutch when pressure on the high
pressure side detected by refrigerant pressure sensor is over about 2,746 kPa (28 kg/cm

2

, 398 psi), or below

about 120 kPa (1.22 kg/cm

2

, 17.4 psi).

PRESSURE RELIEF VALVE

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.

When the pressure of refrigerant in the system increases to an abnormal level [more than 2,990 kPa (30.5 kg/

REFRIGERATION SYSTEM

HAC-189

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

cm

2

, 433.6 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant into

the atmosphere.

WJIA1347E

HAC-190

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

MANUAL AIR CONDITIONER SYSTEM

MANUAL AIR CONDITIONER SYSTEM

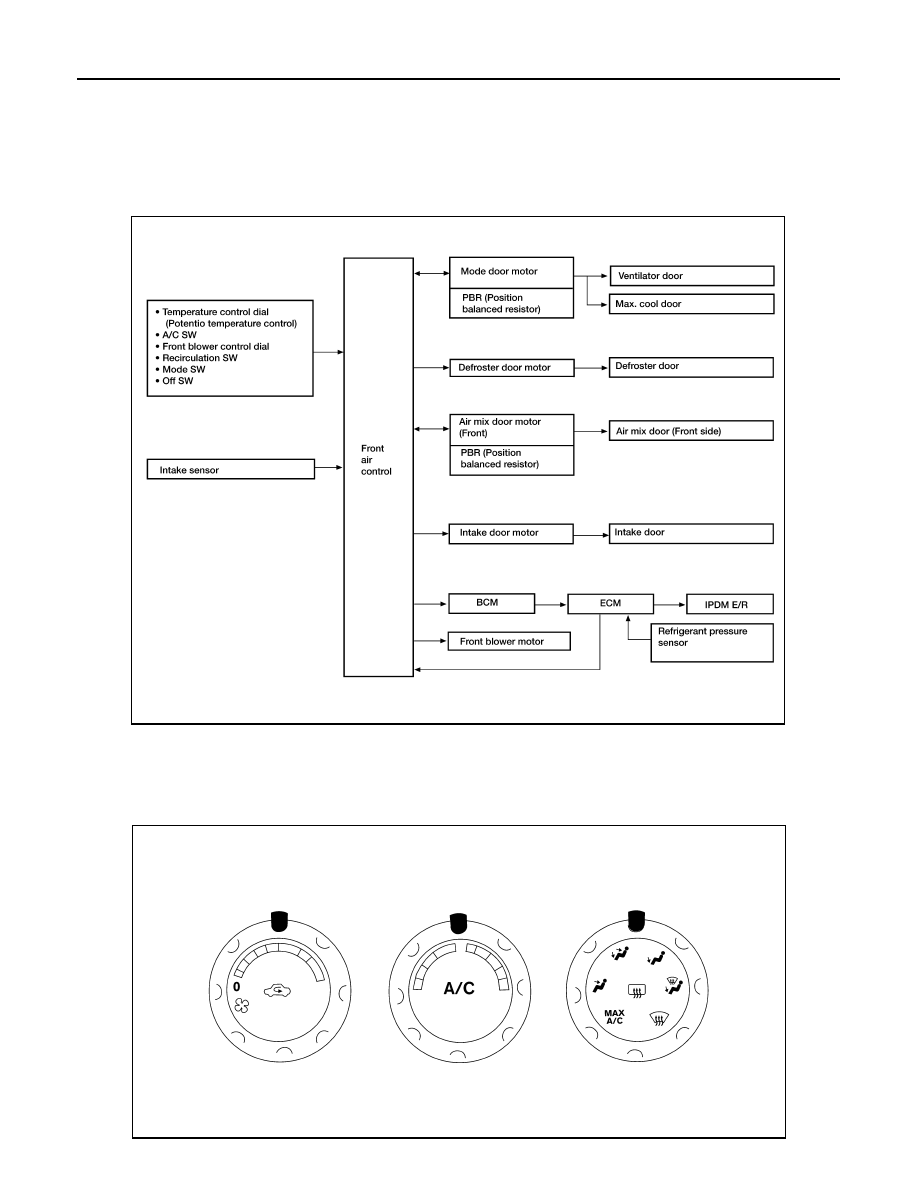

Control System Diagram

INFOID:0000000006164806

CONTROL SYSTEM

The control system consists of input sensors, switches, the front air control (microcomputer) and outputs.

The relationship of these components is shown in the figure below:

Control System Description

INFOID:0000000006164807

CONTROL OPERATION

Front air control

WJIA1448E

WJIA1405E
