If NG, go to trouble diagnosis procedure for

HAC-217, "Magnet Clutch Diagnosis Procedure"

.

If all operational checks are OK (symptom cannot be duplicated), go to

HAC-181, "How to Perform Trouble

Diagnosis For Quick And Accurate Repair"

 and perform tests as outlined. If symptom appears, refer to

HAC-

243, "Symptom Matrix Chart"

 and perform applicable trouble diagnosis procedures.

HAC-184

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

MANUAL A/C IDENTIFICATION TABLE

SYSTEM DESCRIPTION

MANUAL A/C IDENTIFICATION TABLE

Application Table

INFOID:0000000006164801

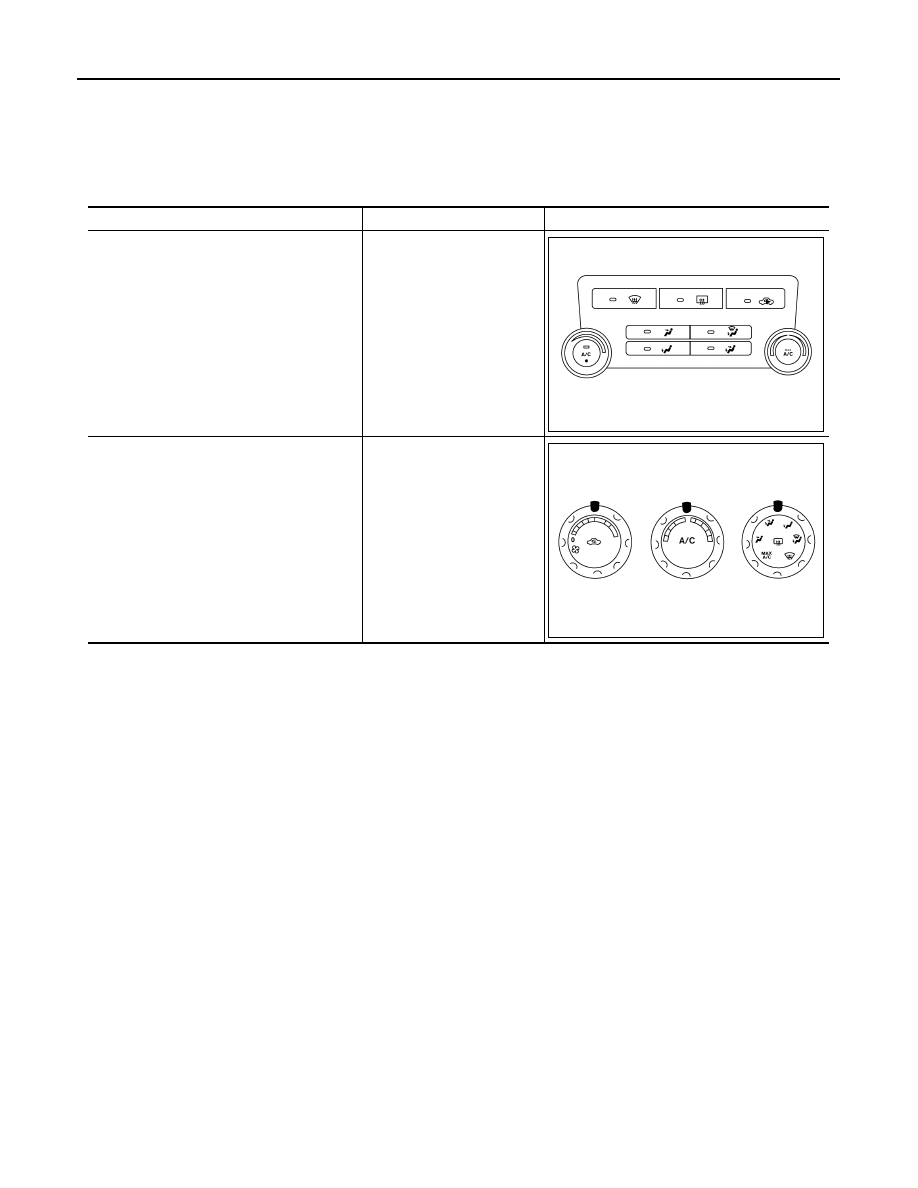

Manual A/C Type

Description

Visual Identification

Manual A/C (Type 1)

Two Control Dial System

Manual A/C (Type 2)

Three Control Dial System

[with variable blower control

(VBC)]

AWIIA0481ZZ

AWIIA0478ZZ

FUNCTION INFORMATION

HAC-185

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

FUNCTION INFORMATION

Component Part Location

INFOID:0000000006164802

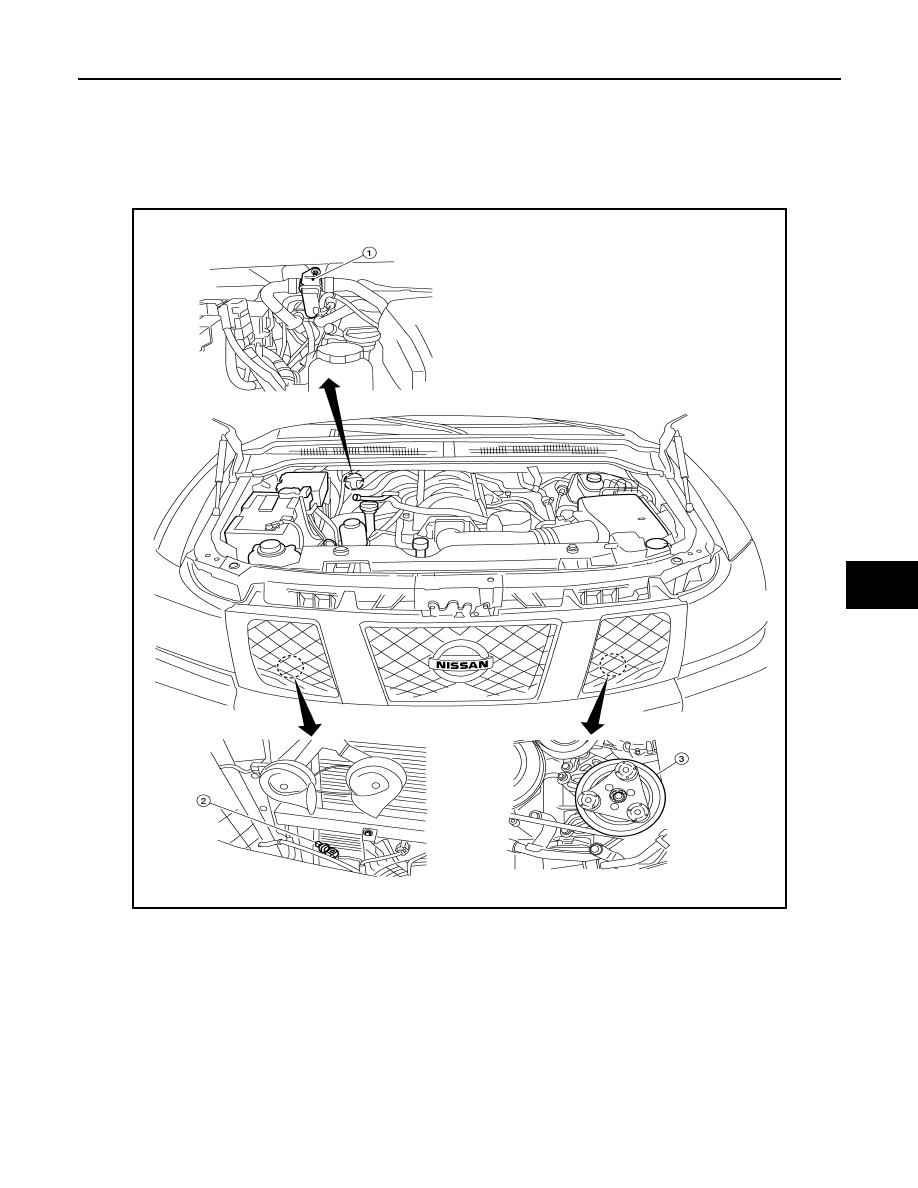

ENGINE COMPARTMENT

PASSENGER COMPARTMENT

WJIA1924E

1.

Water valve F68

2.

Refrigerant pressure sensor E48
(view with grille removed)

3.

A/C compressor F3

HAC-186

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

FUNCTION INFORMATION

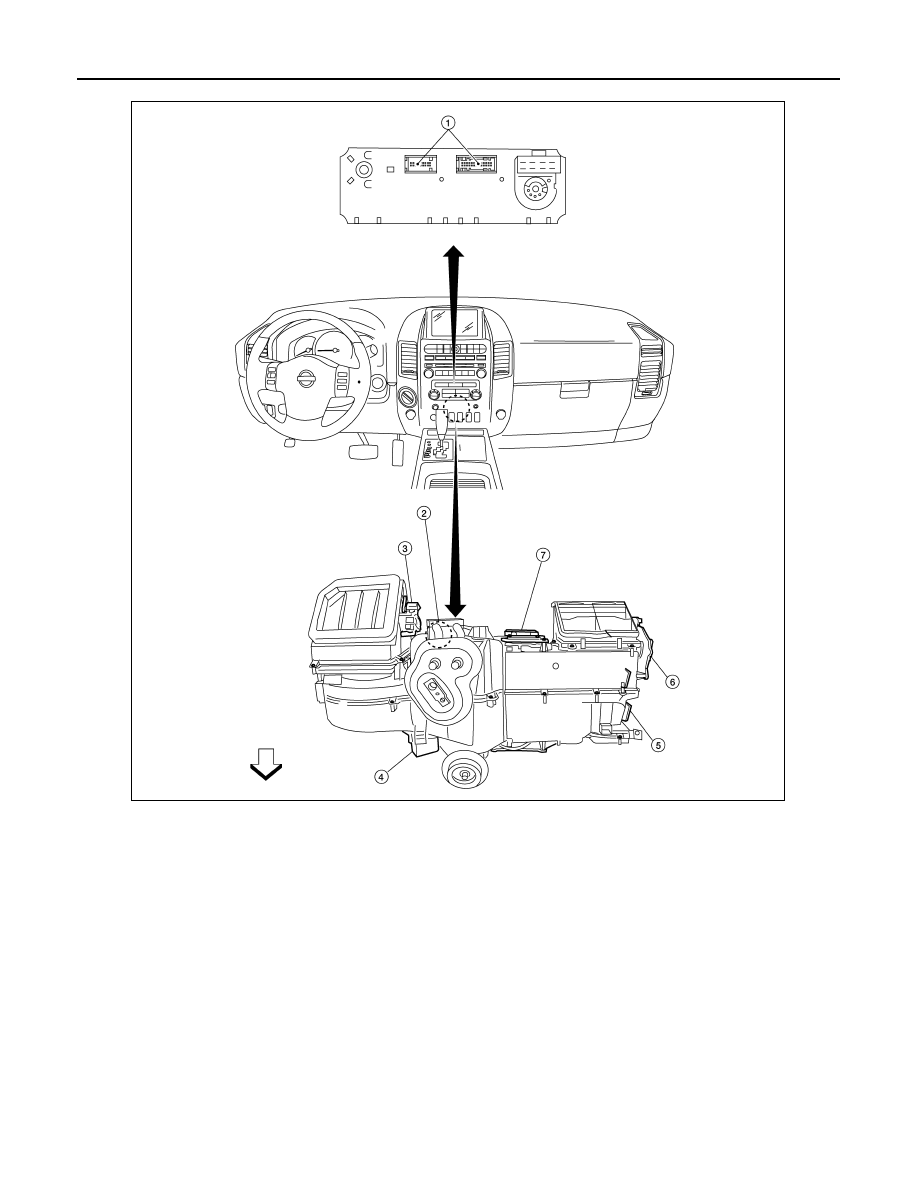

1.

Front air control M176, M177

2.

Intake sensor M146

3.

Intake door motor M58

4.

Variable blower control M121

5.

Mode door motor M142

6.

Defroster door motor M144

7.

Air mix door motor M147

AWIIA0487ZZ
