AIR CONDITIONER CONTROL

HAC-163

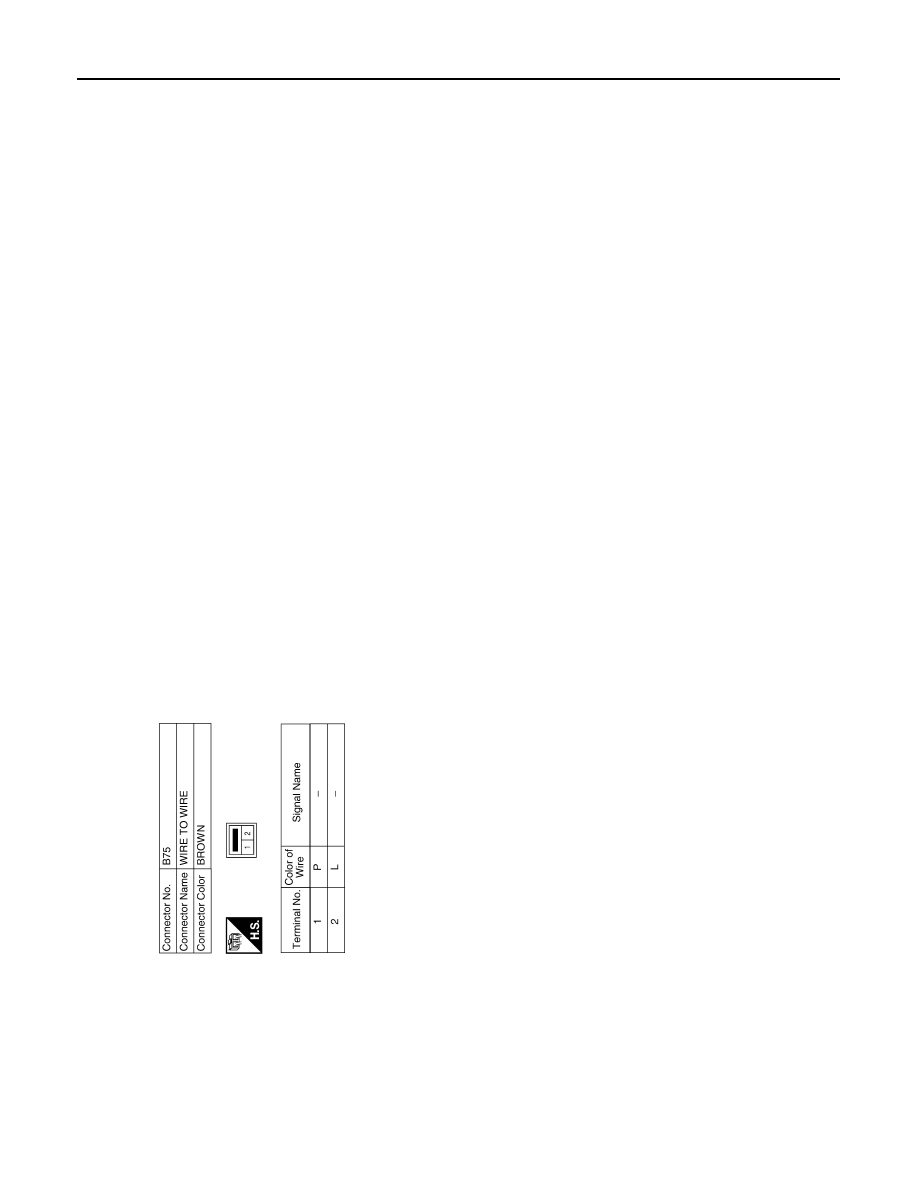

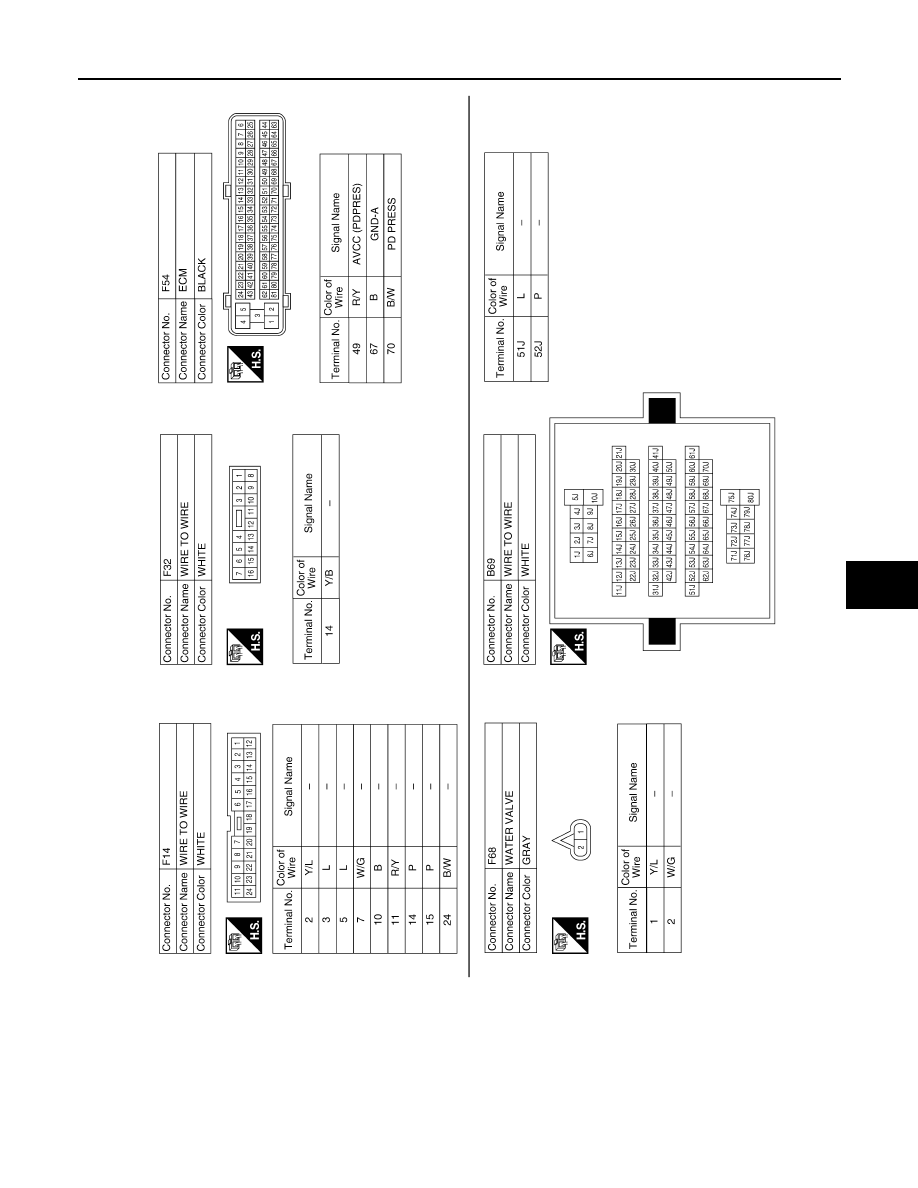

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 1)]

HAC

ABIIA0651GB

MANUAL A/C IDENTIFICATION TABLE

HAC-165

< SYMPTOM DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

HAC

SYMPTOM DIAGNOSIS

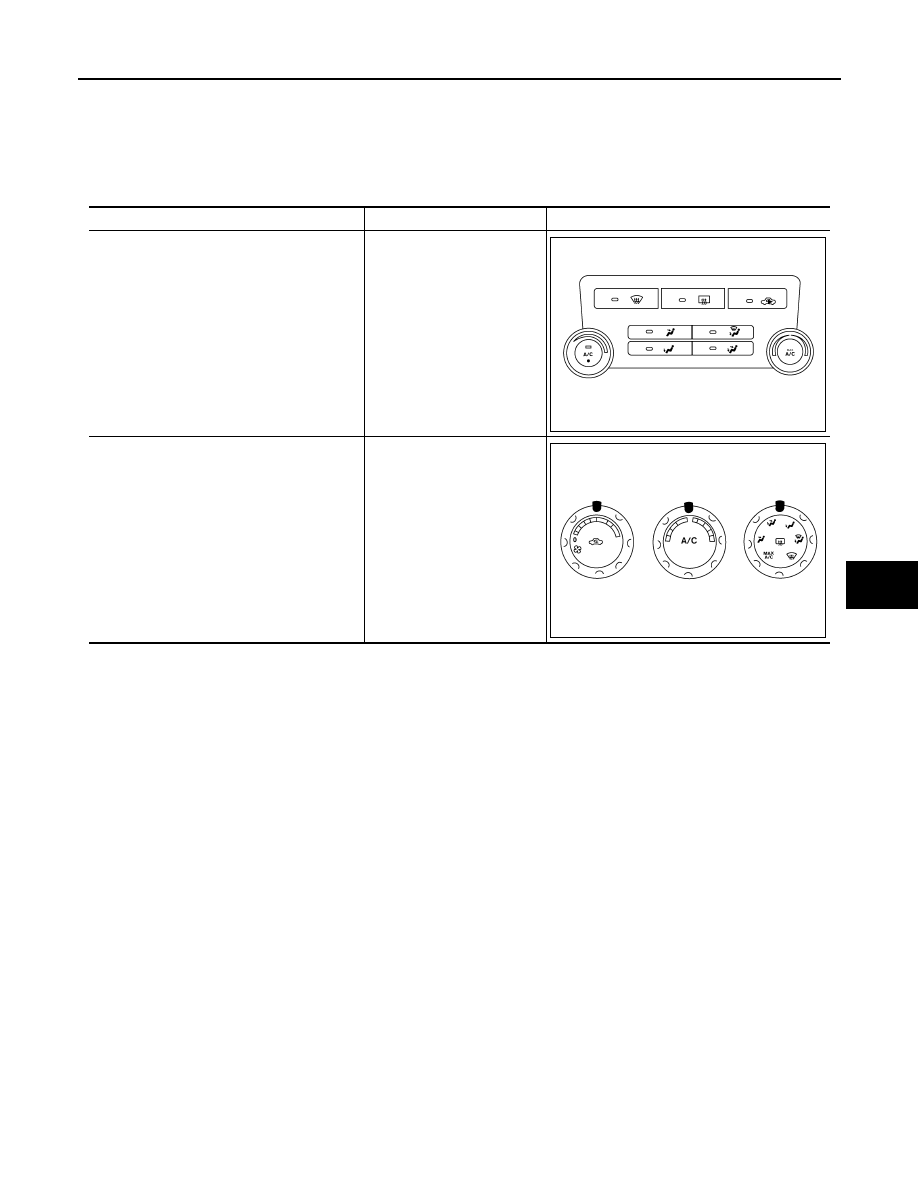

MANUAL A/C IDENTIFICATION TABLE

Application Table

INFOID:0000000006164787

Manual A/C Type

Description

Visual Identification

Manual A/C (Type 1)

Two Control Dial System

Manual A/C (Type 2)

Three Control Dial System

[with variable blower control

(VBC)]

AWIIA0481ZZ

AWIIA0478ZZ

HAC-166

< SYMPTOM DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

AIR CONDITIONER CONTROL

AIR CONDITIONER CONTROL

Symptom Matrix Chart

INFOID:0000000006164788

SYMPTOM TABLE

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

HAC-150

A/C system cannot be controlled.

Go to Self-diagnosis Function.

HAC-114

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

HAC-116

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

HAC-120

Air mix door motor is malfunctioning.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HAC-125

Intake door motor is malfunctioning.

Defroster door motor is malfunctioning.

Go to Trouble Diagnosis Procedure for Defroster Door Motor.

HAC-127

Front blower motor operation is malfunction-
ing.

Go to Trouble Diagnosis Procedure for Front Blower Motor.

HAC-131

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HAC-137

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HAC-167

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HAC-175

Noise

Go to Trouble Diagnosis Procedure for Noise.

HAC-177

Self-diagnosis cannot be performed.

Go to Trouble Diagnosis Procedure for Self-diagnosis.

HAC-67
