Nissan Titan A60. Manual - part 618

AIR CONDITIONER CONTROL

HAC-155

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

WIRING DIAGRAM

AIR CONDITIONER CONTROL

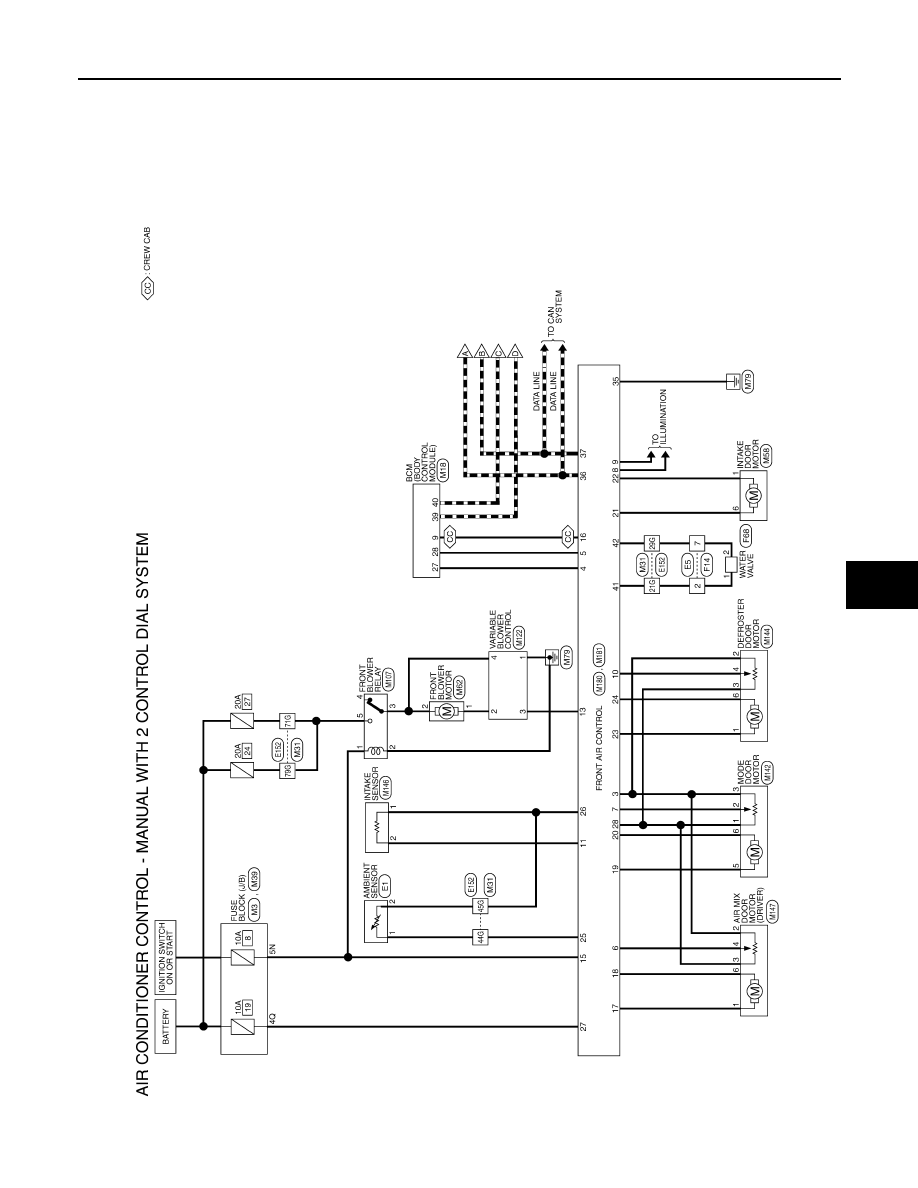

Wiring Diagram - Manual With 2 Control Dial System

INFOID:0000000006464309

ABIWA0162GB

HAC-156

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 1)]

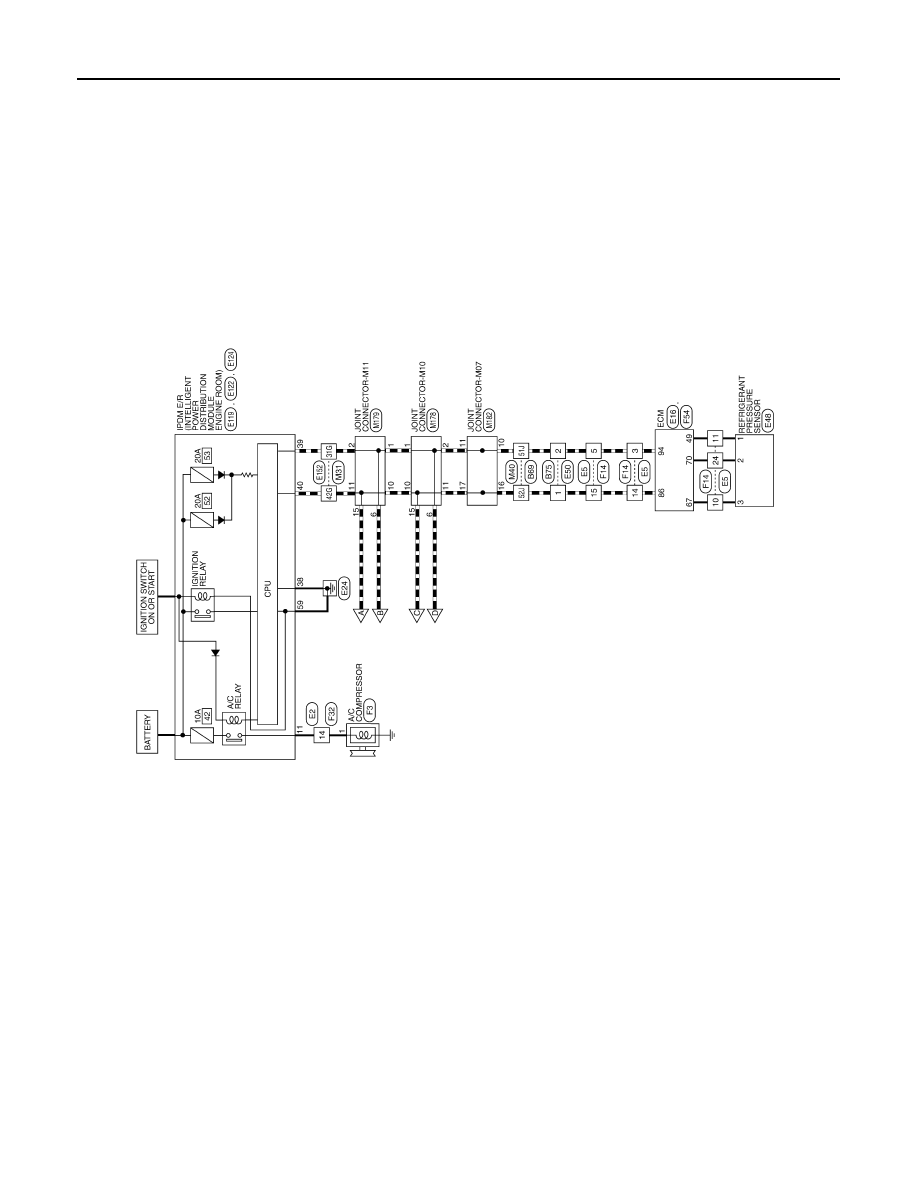

AIR CONDITIONER CONTROL

ABIWA0165GB

AIR CONDITIONER CONTROL

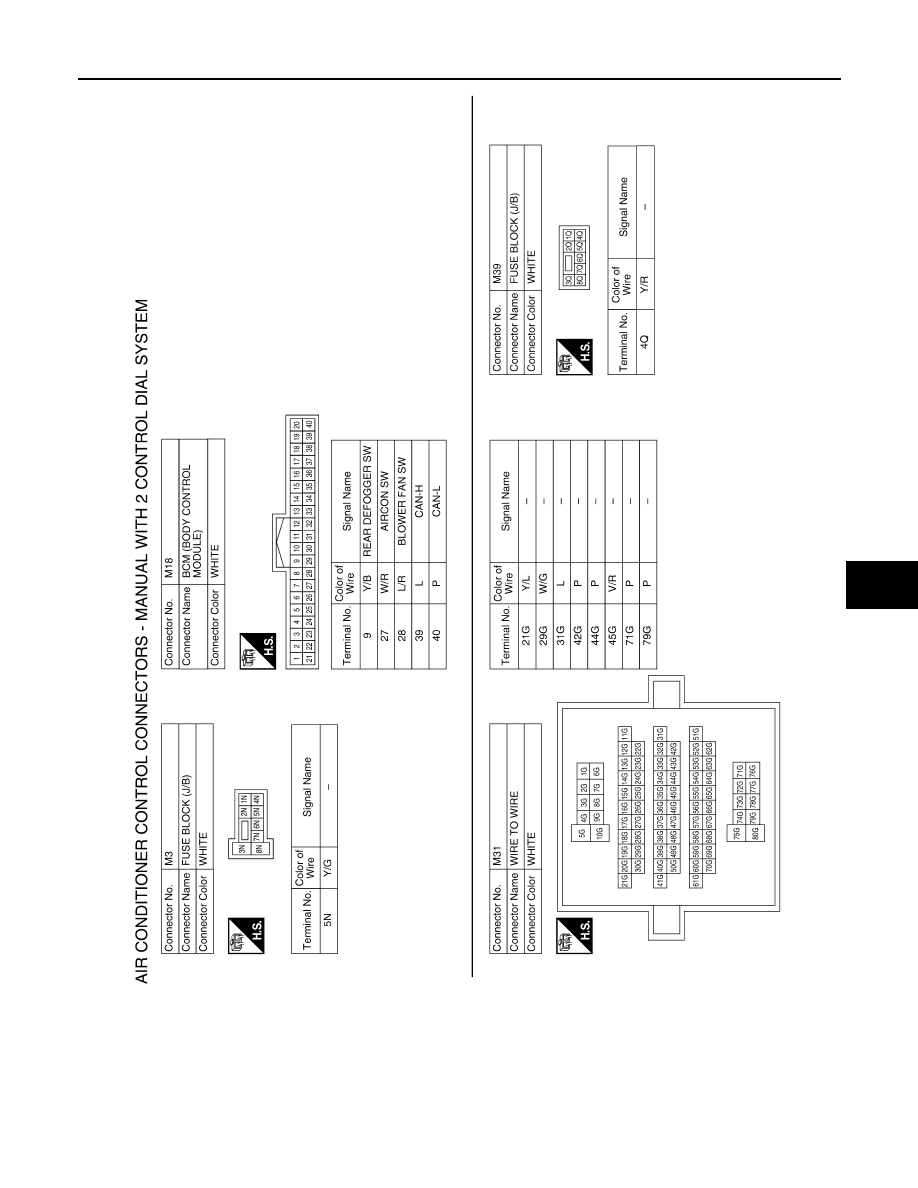

HAC-157

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0017GB

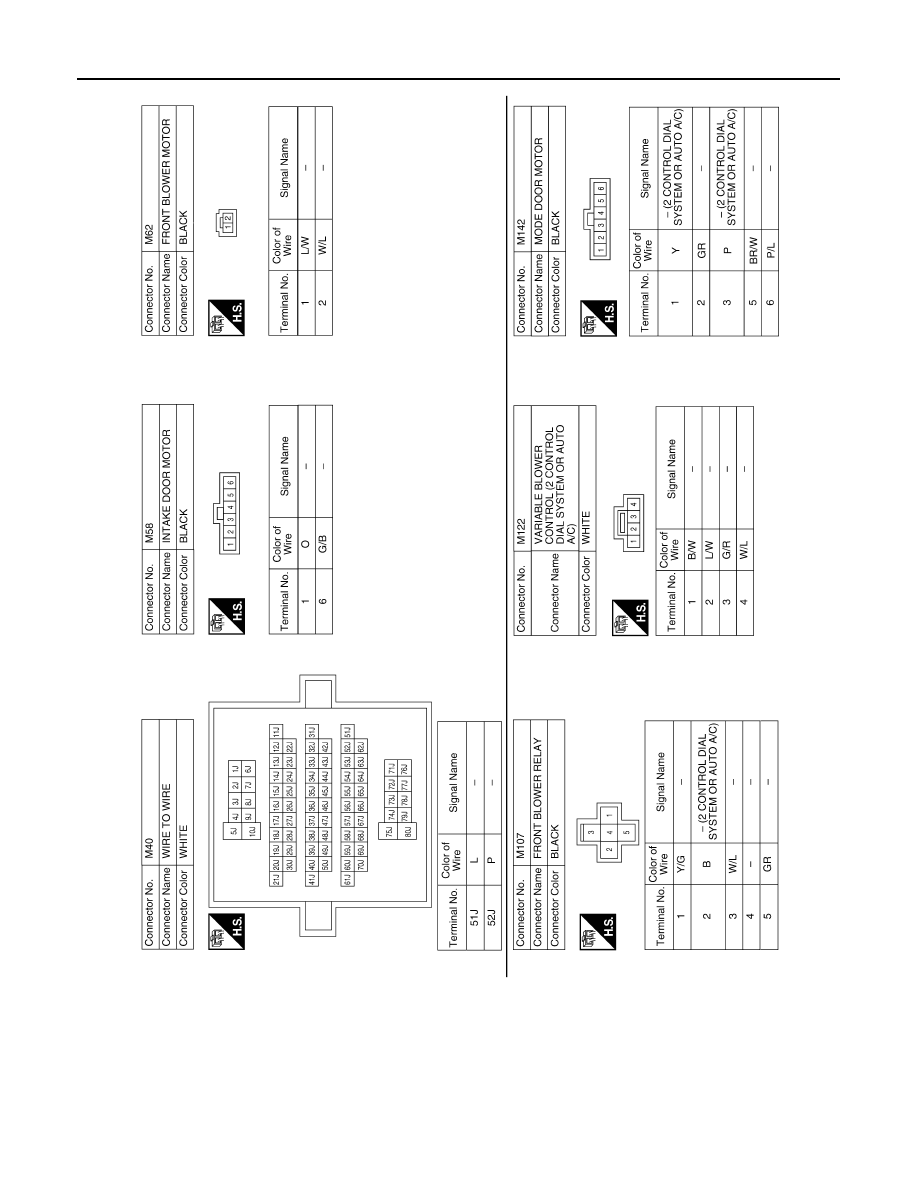

HAC-158

< WIRING DIAGRAM >

[MANUAL A/C (TYPE 1)]

AIR CONDITIONER CONTROL

ABIIA0646GB
