INTAKE SENSOR

System Description

INFOID:0000000006164778

COMPONENT DESCRIPTION

Intake Sensor

The intake sensor is located on the heater & cooling unit assembly. It

converts temperature of air after if passes through the evaporator

into a resistance value which is then input to the front air control.

Intake Sensor Diagnosis Procedure

INFOID:0000000006164779

Regarding Wiring Diagram information, refer to

HAC-155, "Wiring Diagram - Manual With 2 Control Dial Sys-

tem"

.

DIAGNOSTIC PROCEDURE FOR INTAKE SENSOR

SYMPTOM: Intake sensor circuit is open or shorted.

1.

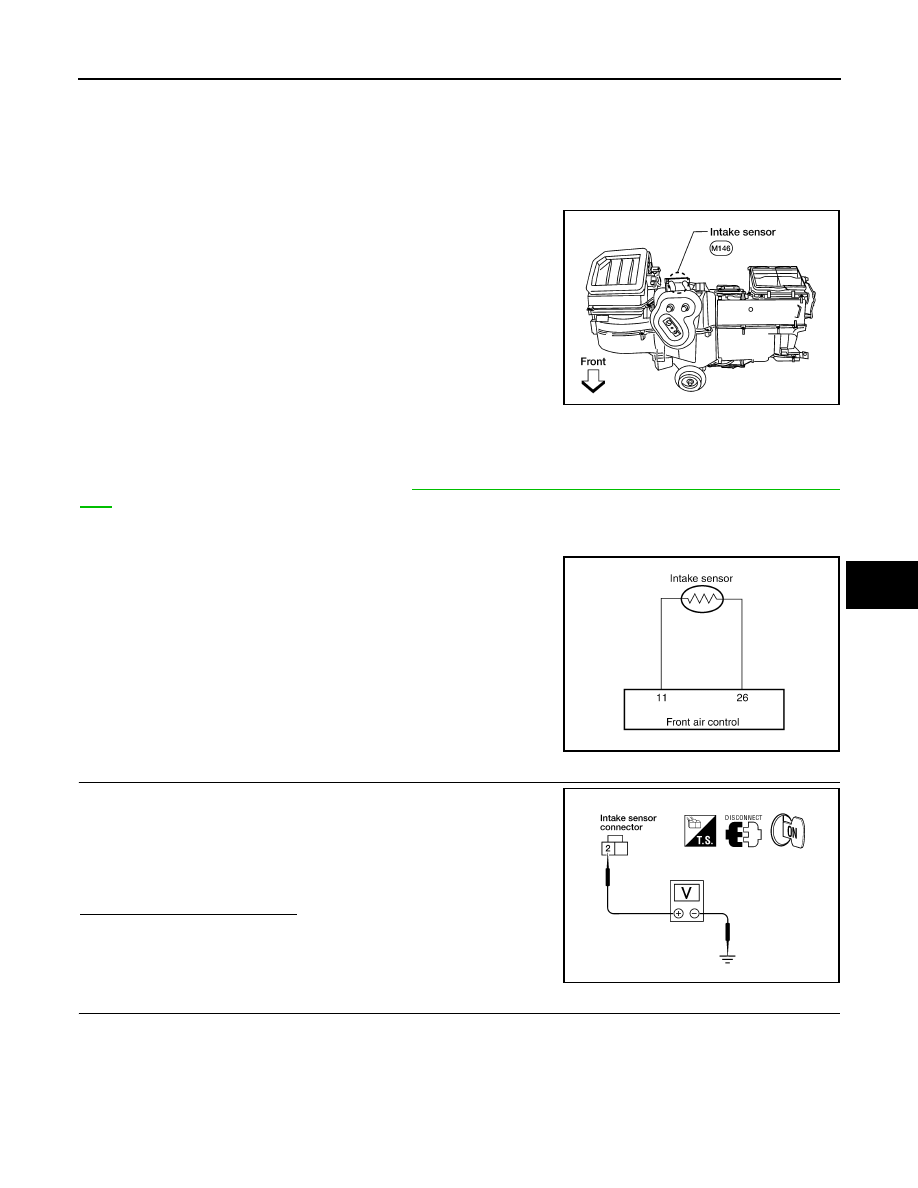

CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND

1. Disconnect intake sensor connector.

2. Turn ignition switch ON.

3. Check voltage between intake sensor harness connector M146

terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND FRONT AIR CONTROL

WJIA0571E

AWIIA0433GB

2 - Ground

: Approx. 5V

WJIA1375E

HAC-148

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

INTAKE SENSOR

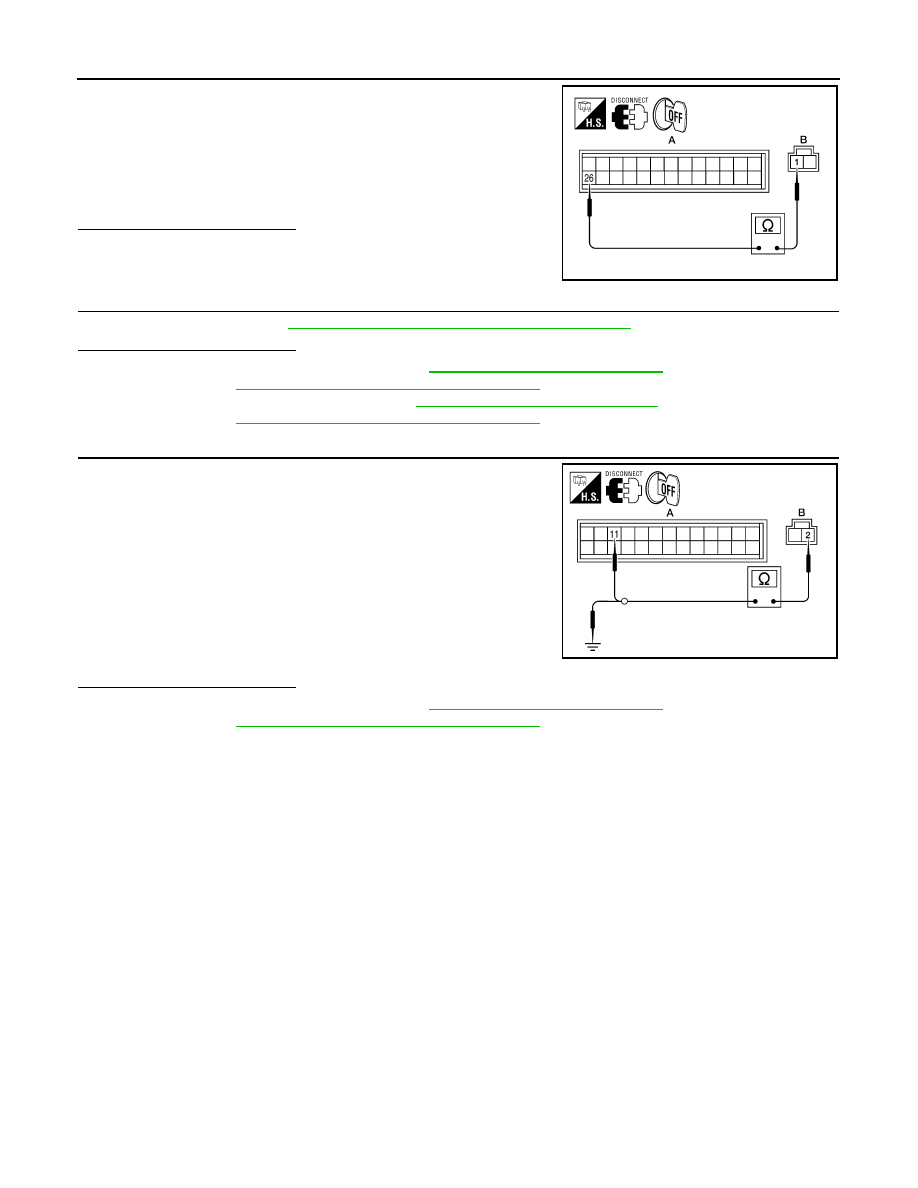

1. Turn ignition switch OFF.

2. Disconnect front air control connector.

3. Check continuity between intake sensor harness connector

M146 (B) terminal 1 and front air control harness connector

M180 (A) terminal 26.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK INTAKE SENSOR

Check intake sensor. Refer to

HAC-148, "Intake Sensor Component Inspection"

.

Is the inspection result normal?

YES

>> 1. Replace front air control. Refer to

VTL-8, "Removal and Installation"

.

2. Go to

HAC-114, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> 1. Replace intake sensor. Refer to

VTL-11, "Removal and Installation"

.

2. Go to

HAC-114, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

4.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND FRONT AIR CONTROL

1. Turn ignition switch OFF.

2. Disconnect front air control connector.

3. Check continuity between intake sensor harness connector

M146 (B) terminal 2 and front air control harness connector

M180 (A) terminal 11.

4. Check continuity between intake sensor harness connector

M146 (B) terminal 2 and ground.

Is the inspection result normal?

YES

>> 1. Replace front air control. Refer to

VTL-8, "Removal and Installation"

.

2. Go to

HAC-114, "Front Air Control Self-Diagnosis"

 and perform self-diagnosis.

NO

>> Repair harness or connector.

Intake Sensor Component Inspection

INFOID:0000000006164780

COMPONENT INSPECTION

Intake Sensor

1 - 26

: Continuity should exist.

AWIIA0434ZZ

2 - 11

: Continuity should exist.

2 - Ground

: Continuity should not exist.

AWIIA0435ZZ

INTAKE SENSOR

HAC-149

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

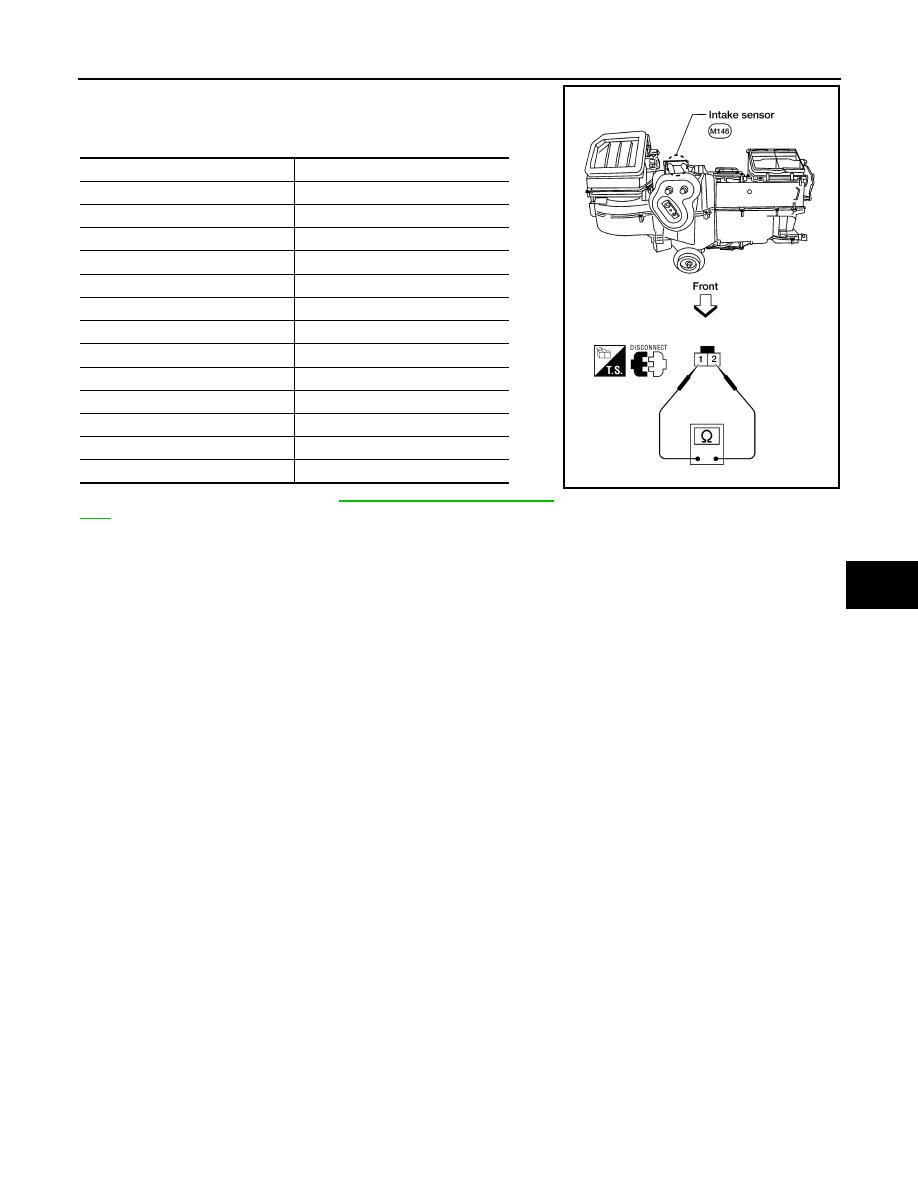

After disconnecting intake sensor connector, measure resistance

between terminals 1 and 2 at sensor harness side, using the table

below.

If NG, replace intake sensor. Refer to

VTL-11, "Removal and Installa-

tion"

.

Temperature

°C (°F)

Resistance k

Ω

−15 (5)

209.0

−10 (14)

160.0

−5 (23)

123.0

0 (32)

95.8

5 (41)

74.9

10 (50)

58.9

15 (59)

46.7

20 (68)

37.3

25 (77)

30.0

30 (86)

24.2

35 (95)

19.7

40 (104)

16.1

45 (113)

13.2

WJIA1378E

HAC-150

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER

POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER

Component Description

INFOID:0000000006164781

COMPONENT DESCRIPTION

Front Air Control

The front air control has a built-in microcomputer which processes

information sent from various sensors needed for air conditioner

operation. The air mix door motor, mode door motor, intake door

motor, defroster door motor, blower motor and A/C compressor are

then controlled.

The front air control is unitized with control mechanisms. When the

various switches and temperature dials are operated, data is input to

the front air control.

Potentio Temperature Control (PTC)

The PTC is built into the front air control. It can be set from cold to

hot or any intermediate position by rotating the temperature control

dial.

Front Air Control Component Function Check

INFOID:0000000006164782

SYMPTOM: A/C system does not come on.

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - AUTO MODE

1. Turn the blower control dial clockwise to low speed.

2. Press the A/C Turn the blower control dial clockwise to low speed.

3. Confirm that the compressor clutch engages (sound or visual inspection). (Discharge air and blower

speed will depend on ambient, in-vehicle and set temperatures.)

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Go to diagnosis procedure. Refer to

HAC-150, "Front Air Control Power and Ground Diagnosis

Procedure"

.

Front Air Control Power and Ground Diagnosis Procedure

INFOID:0000000006164783

Regarding Wiring Diagram information, refer to

HAC-155, "Wiring Diagram - Manual With 2 Control Dial Sys-

tem"

.

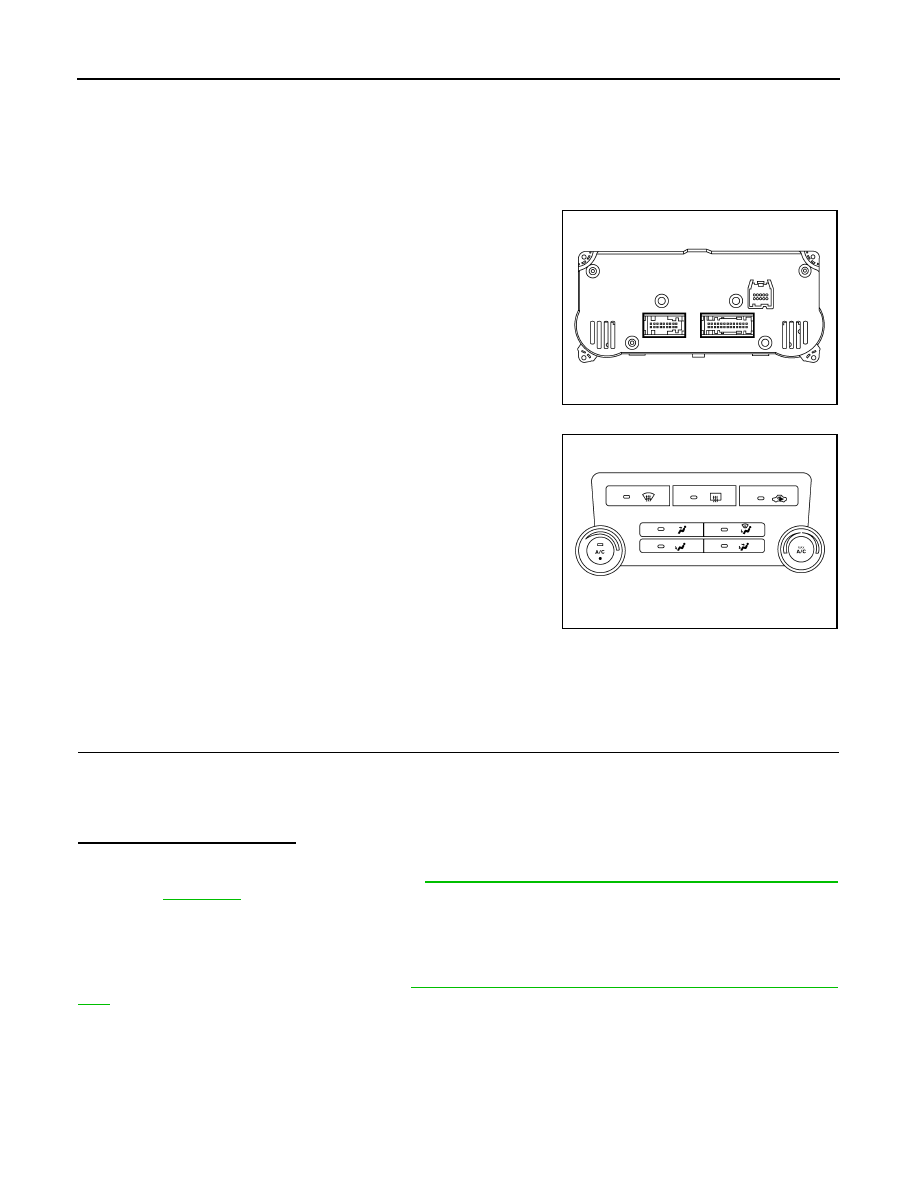

DIAGNOSTIC PROCEDURE FOR A/C SYSTEM

AWIIA0551ZZ
