AIR MIX DOOR MOTOR

HAC-123

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

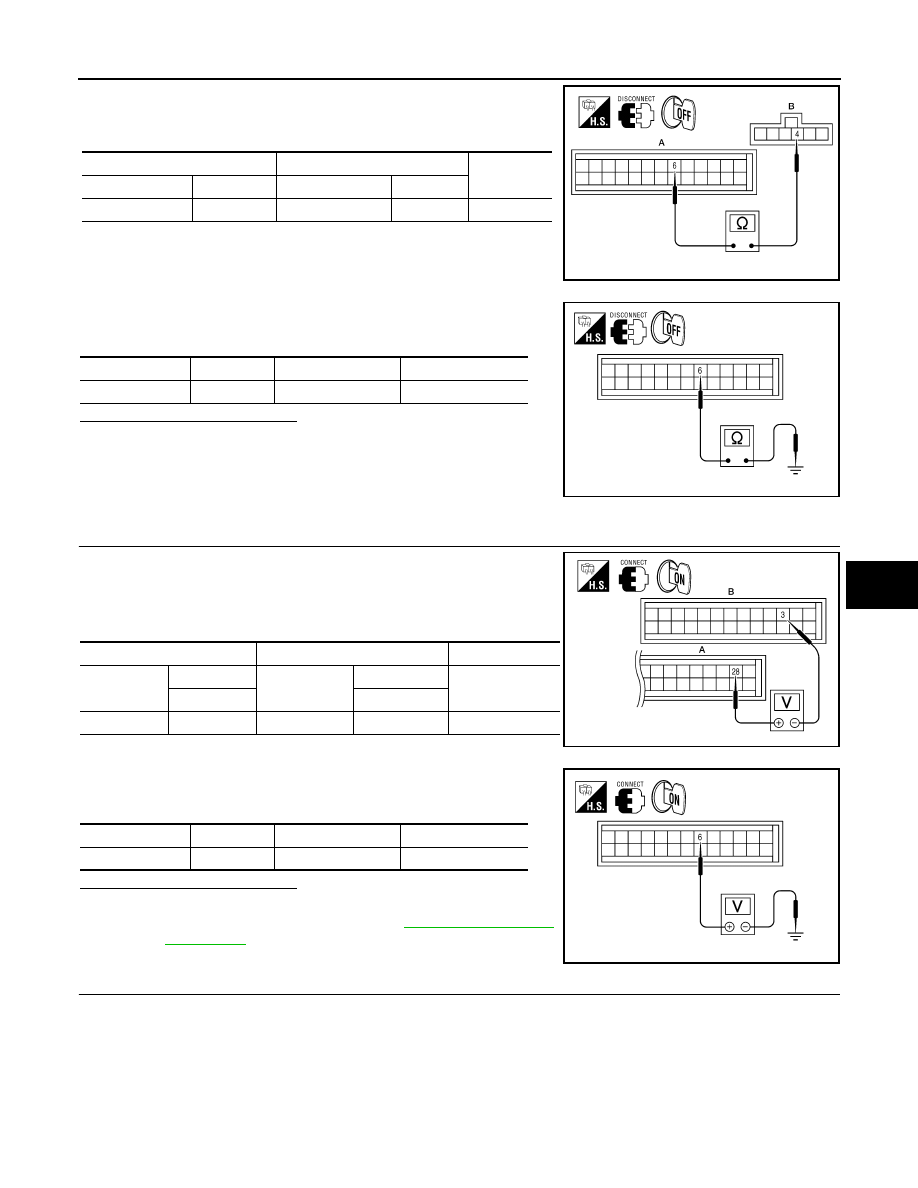

1. Check continuity between front air control harness connector

M180 (A) terminal 6 and air mix door motor harness connector

M147 (B) terminal 4.

2. Check continuity between front air control harness connector

M180 terminal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness as necessary.

6.

CHECK FRONT AIR CONTROL FOR 5 VOLT REFERENCE (VREF), VREF RETURN, AND FEEDBACK

SIGNAL

1. Reconnect front air control harness connectors.

2. Turn ignition switch ON.

3. Check voltage between front air control harness connector

M180   (B) terminal 3, and M181 (A) terminal 28.

4. Check voltage between front air control harness connector

M180 terminal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace front air control. Refer to

VTL-8, "Removal and

Installation"

.

7.

CHECK FRONT AIR CONTROL FOR FEEDBACK SIGNAL

A

B

Continuity

Connector

Terminal

Connector

Terminal

M180

6

M147

4

Yes

AWIIA0384ZZ

Connector

Terminal

Continuity

M180

6

Ground

No

AWIIA0383ZZ

A

B

Connector

Terminals

Connector

Terminals

Voltage (Approx.)

(+)

(-)

M181

28

M180

3

5 Volts

AWIIA0813ZZ

Connector

Terminal

Voltage (Approx.)

M180

6

Ground

0 Volts

AWIIA0382ZZ

HAC-124

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

AIR MIX DOOR MOTOR

1. Reconnect the air mix door motor harness connector M147.

2. Check voltage between front air control harness connector

M180 terminal 6 and ground.

Is the inspection result normal?

YES

>> Inspect air mix door for binding or mechanical failure. If

air mix door moves freely, replace front air control. Refer

to

VTL-8, "Removal and Installation"

.

NO

>> Replace air mix door motor. Refer to

VTL-20, "Removal

and Installation"

.

Connector

Terminal

Voltage (Approx.)

M180

6

Ground

0.2 to 4.8 Volts

AWIIA0382ZZ

INTAKE DOOR MOTOR

HAC-125

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE DOOR MOTOR

System Description

INFOID:0000000006164760

SYSTEM DESCRIPTION

SYMPTOM:

• Intake door motor does not operate normally.

• Intake door does not change.

SYSTEM DESCRIPTION

Component Parts

Intake door control system components are:

• Front air control

• Intake door motor (PRB built into the intake door motor)

• Ambient sensor

• Intake sensor

System Operation

The intake door control determines the intake door position based on the position of the recirculation switch.

When the recirculation switch is depressed the intake door motor rotates closing off the fresh air inlet and

recirculating the cabin air. If the recirculation switch is depressed again, the intake door motor rotates in the

opposite direction, again allowing fresh air into the cabin.

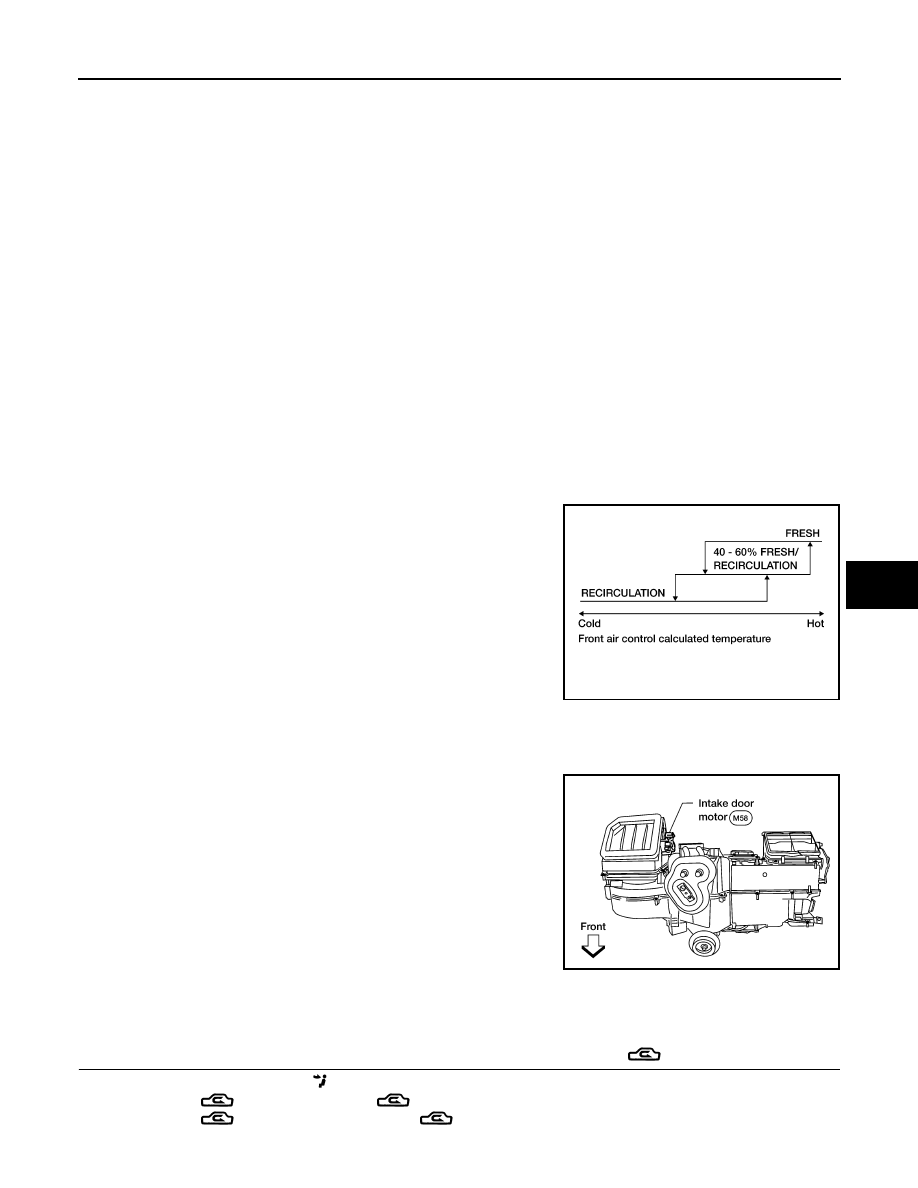

Intake Door Control Specification

COMPONENT DESCRIPTION

Intake door motor

The intake door motor is attached to the intake unit. It rotates so that

air is drawn from inlets set by the front air control. Motor rotation is

conveyed to a lever which activates the intake door.

Intake Door Motor Component Function Check

INFOID:0000000006164761

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - REC (

)

1. Press the vent mode switch (

).

2. Press REC (

) switch. The REC (

)indicator should illuminate.

3. Press REC (

) switch again. The REC (

) indicator should go out.

4. Listen for intake door position change (you should hear blower sound change slightly).

WJIA0436E

WJIA0552E

HAC-126

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

INTAKE DOOR MOTOR

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Go to diagnosis procedure. Refer to

HAC-126, "Intake Door Motor Diagnosis Procedure"

.

Intake Door Motor Diagnosis Procedure

INFOID:0000000006164762

Regarding Wiring Diagram information, refer to

HAC-155, "Wiring Diagram - Manual With 2 Control Dial Sys-

tem"

.

DIAGNOSTIC PROCEDURE FOR INTAKE DOOR MOTOR

SYMPTOM:

• Intake door does not change.

• Intake door motor does not operate normally.

1.

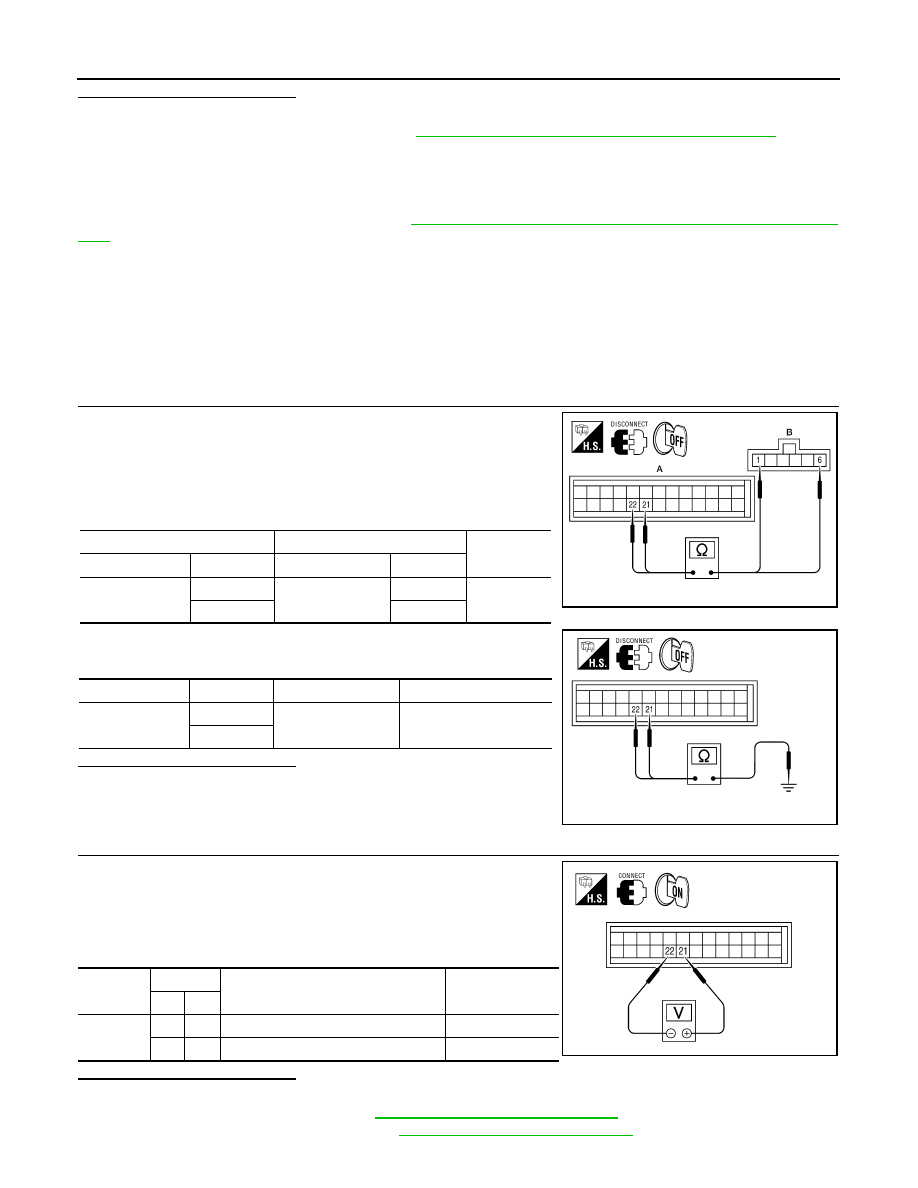

CHECK INTAKE DOOR MOTOR CIRCUITS FOR OPEN AND SHORT TO GROUND

1. Turn ignition switch OFF.

2. Disconnect the front air control harness connector M180 (A) and

the intake door motor harness connector M58 (B).

3. Check continuity between front air control harness connector

M180 (A) terminals 21, 22 and the intake door motor harness

connector M58 (B) terminals 1, 6.

4. Check continuity between front air control harness connector

M180 terminals 21, 22 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness as necessary.

2.

CHECK FRONT AIR CONTROL FOR INTAKE AIR DOOR MOTOR POWER AND GROUND

1. Reconnect front air control harness connector.

2. Turn ignition switch ON.

3. Check voltage between front air control harness connector

M180 terminal 21 and terminal 22 while placing the HVAC sys-

tem into self-diagnostic mode.

Is the inspection result normal?

YES

>> Inspect intake air door for binding or mechanical failure. If intake air door moves freely, replace the

intake air door motor. Refer to

VTL-18, "Removal and Installation"

.

NO

>> Replace front air control. Refer to

VTL-8, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M180

21

M58

6

Yes

22

1

Connector

Terminal

Continuity

M180

21

Ground

No

22

AWIIA0401ZZ

AWIIA0398ZZ

Connector

Terminals

Condition Voltage

(Approx.)

(+) (-)

M180

21

22

Self-diagnostic mode (opening)

Battery voltage

22

21

Self-diagnostic mode (closing)

Battery voltage

AWIIA0397ZZ
