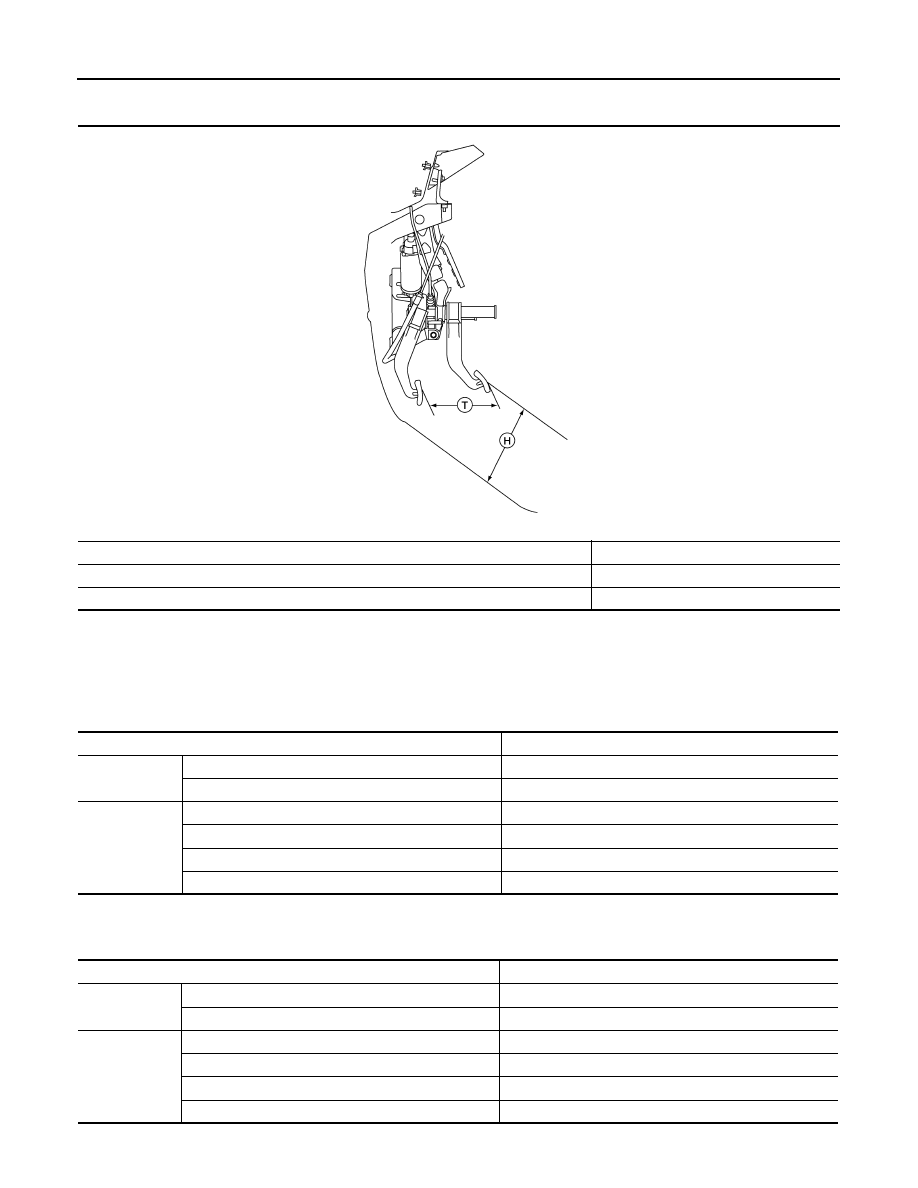

QUICK REFERENCE CHART: TITAN
ADJUSTABLE PEDAL
Unit: mm (in)
CAUTION:
When equipped with adjustable pedal, the pedal must be in the forward most position (closest to the floor) for pedal height
adjustment.
Front Disc Brake
INFOID:0000000006812175
Unit: mm (in)
Rear Disc Brake
INFOID:0000000006812176
Unit: mm (in)
Pedal free height (H) with pedal in forward most position
182.3 - 192.3 (7.18 - 7.57)
Pedal full stroke (T)
153.3 (6.04)
Stop lamp switch and ASCD cancel switch threaded end to brake pedal bracket gap
0.74 - 1.96 (0.029 - 0.077)
ALFIA0149ZZ
Brake model
AD41VA
Brake pad
Standard thickness (new)
12.0 (0.472)
Repair limit thickness
1.0 (0.039)
Disc rotor
Standard thickness (new)
30.0 (1.181)
Wear limit
28.5 (1.122)
Maximum uneven wear (measured at 8 positions)
0.015 (0.0006)
Runout limit (with it attached to the vehicle)
0.03 (0.001)
Brake model
AD14VE
Brake pad
Standard thickness (new)
12.0 (0.472)
Repair limit thickness
1.0 (0.039)
Disc rotor
Standard thickness (new)
14.0 (0.551)
Wear limit
12.5 (0.492)
Maximum uneven wear (measured at 8 positions)
0.015 (0.0006)
Runout limit (with it attached to the vehicle)
0.05 (0.002)
