Nissan Titan A60. Manual - part 537

FL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000006164619

The actual shapes of the Kent-Moore tools may differ from those of the special tools illustrated here.

Commercial Service Tool

INFOID:0000000006164620

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46536)
Fuel tank lock ring tool

Removing and installing fuel tank lock ring

LBIA0398E

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FUEL SYSTEM

FL-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

BASIC INSPECTION

FUEL SYSTEM

Checking Fuel Line

INFOID:0000000006164621

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-

ment, leaks, cracks, damage, loose connections, chafing or deterio-

ration.

If necessary, repair or replace damaged parts.

SMA803A

FL-6

< UNIT REMOVAL AND INSTALLATION >

FUEL TANK

UNIT REMOVAL AND INSTALLATION

FUEL TANK

Removal and Installation

INFOID:0000000006164622

REMOVAL

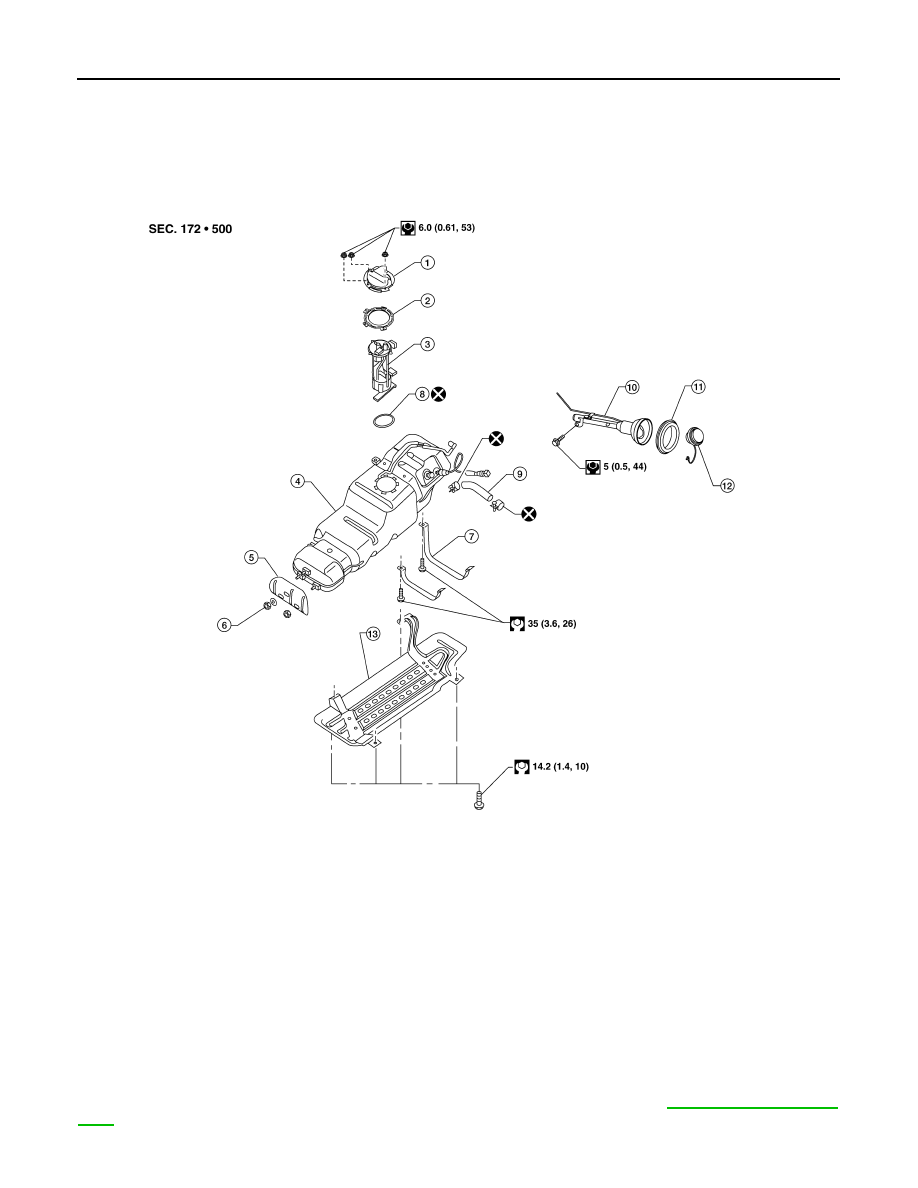

WARNING:

Follow the “General Precautions” before working on the fuel system. Refer to

FL-3, "General Precau-

tion"

.

1.

Fuel line pump protector

2.

Lock ring

3.

Fuel level sensor, fuel filter, and fuel
pump assembly

4.

Fuel tank

5.

Fuel tank protector

6.

Fuel tank protector clips

7.

Fuel tank straps

8.

O-ring

9.

Fuel filler hose

10. Fuel filler pipe

11.

Fuel filler hose grommet

12. Fuel filler cap

13. Fuel tank shield

AWBIA0882GB

FUEL TANK

FL-7

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

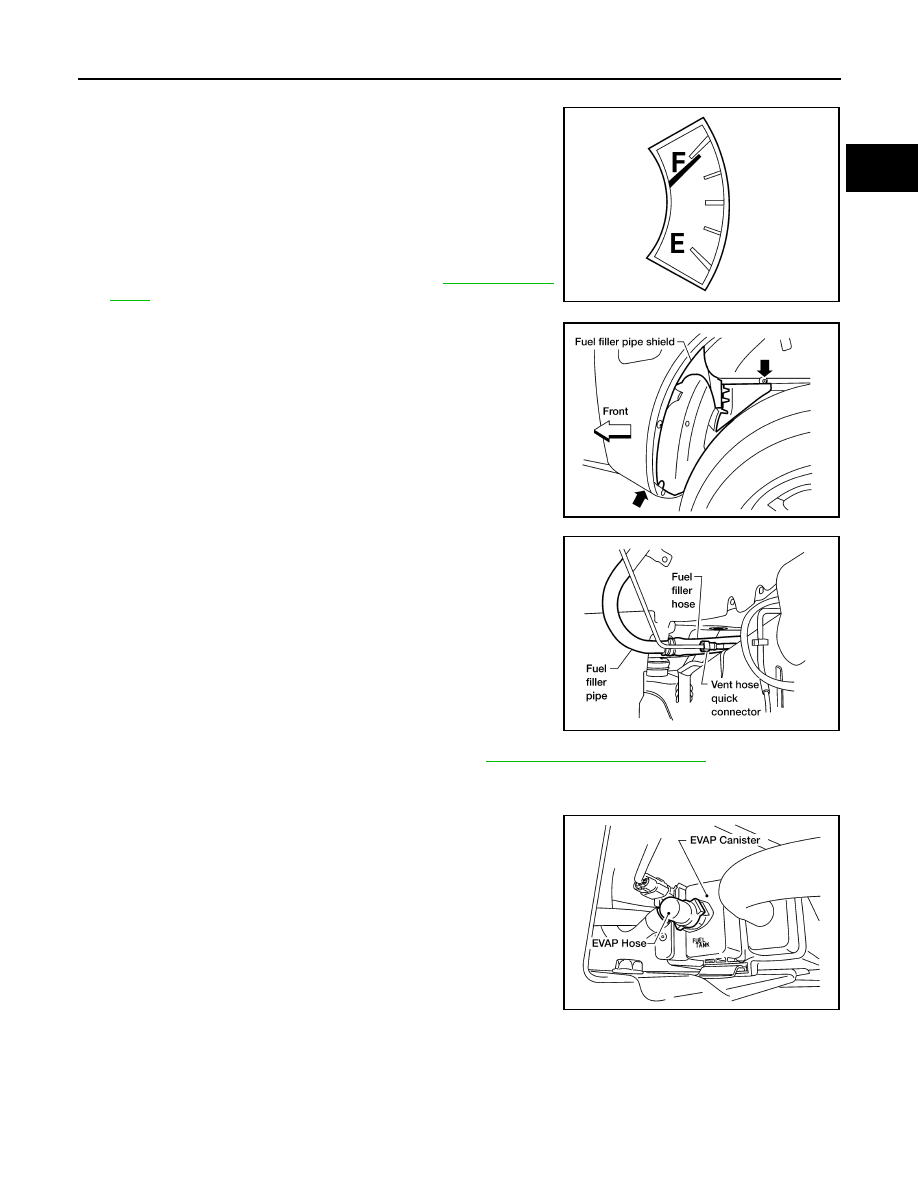

1. Remove the fuel filler cap to release the pressure from inside the fuel tank.
2. Check the fuel level on level gauge. If the fuel gauge indicates

more than the level as shown (full or almost full), drain the fuel

from the fuel tank until the fuel gauge indicates the level as

shown, or less.

• If the fuel pump does not operate, use the following procedure

to drain the fuel to the specified level.

a. Insert a suitable hose of less than 15 mm (0.59 in) diameter into

the fuel filler pipe through the fuel filler opening to drain the fuel

from fuel filler pipe.

b. Remove the LH rear wheel and tire. Refer to

WT-46, "Adjust-

ment"

.

c. Remove the fuel filler pipe shield.

d. Disconnect the fuel filler hose from the fuel filler pipe and dis-

connect the vent hose quick connector.

e. Insert a suitable hose into the fuel tank through the fuel filler

hose to drain the fuel from the fuel tank.

3. Release the fuel pressure from the fuel lines. Refer to

EC-473, "Fuel Pressure Check"

.

4. Disconnect the battery negative terminal.
5. Remove the three nuts and remove fuel line pump protector.
6. Disconnect the EVAP hose at the EVAP canister.

WBIA0390E

LBIA0437E

LBIA0386E

LBIA0405E
