EXT-14

< PERIODIC MAINTENANCE >

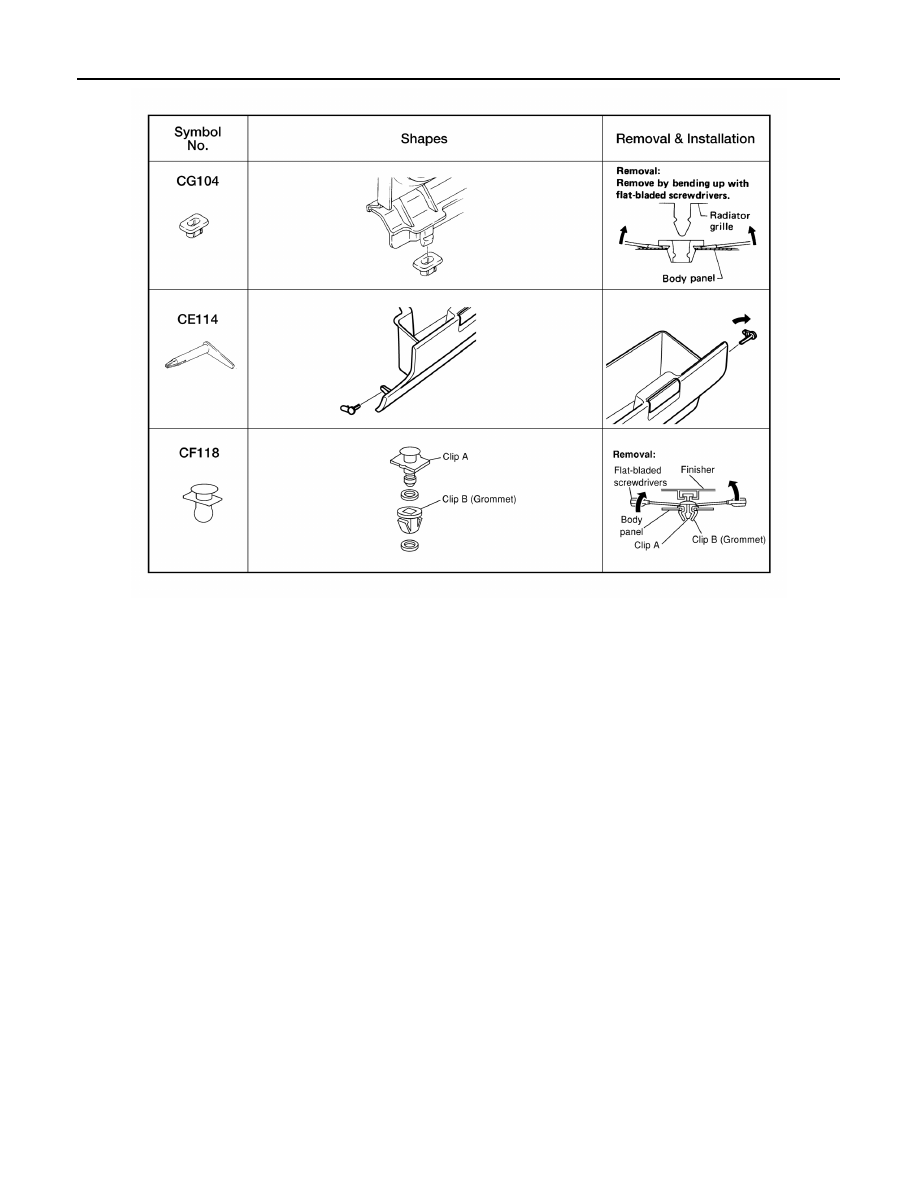

CLIP AND FASTENER

ALJIA0564GB

FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL AND INSTALLATION

FRONT BUMPER

Removal and Installation

INFOID:0000000006163335

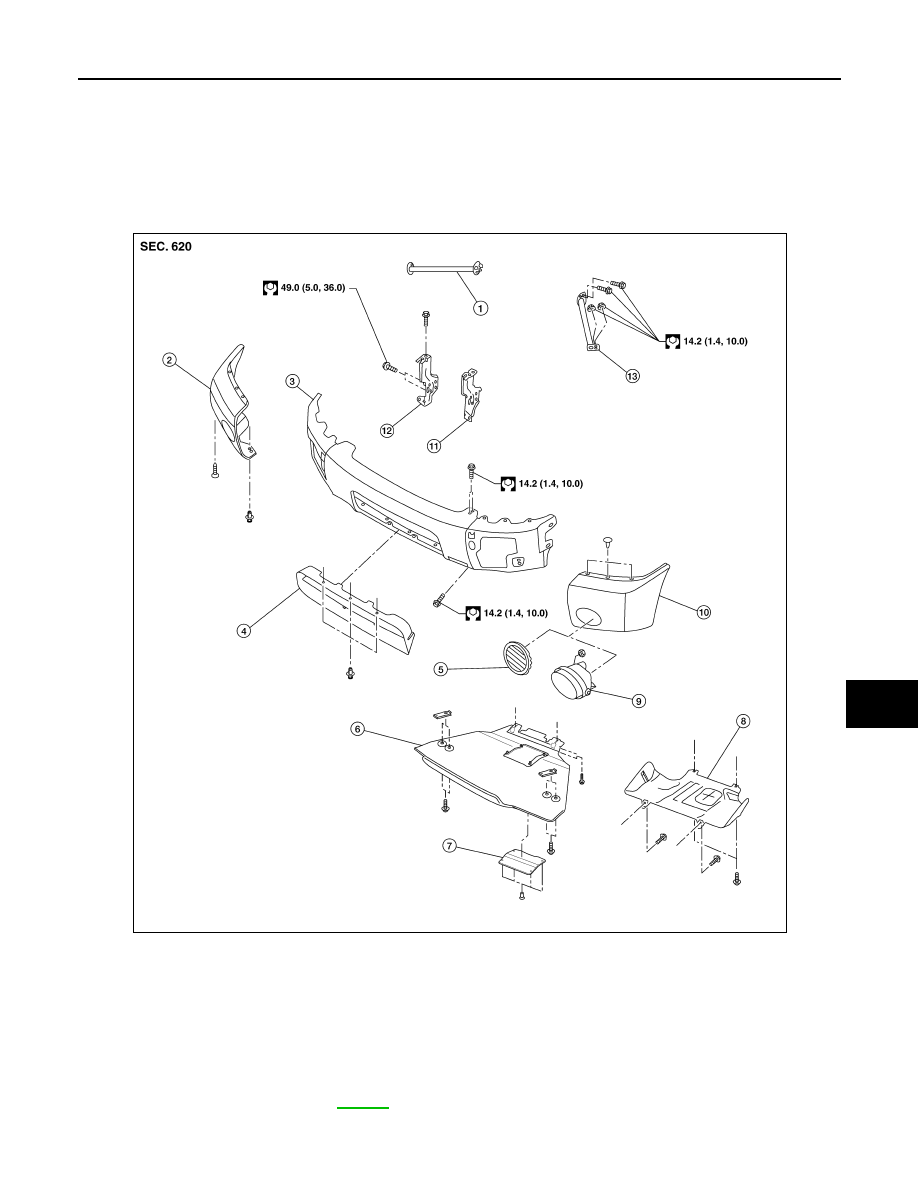

STEEL BUMPER

Removal

1. Remove the front grille. Refer to

EXT-19

.

2. Remove the engine under cover or skid plate.

1.

Front bumper bracket RH

2.

Front fascia finisher RH

3.

Front bumper assembly

4.

Front bumper opening finisher

5.

Fog lamp opening finisher (if equipped)

6.

Skid plate (with off-road package)

7.

Access cover

8.

Engine under cover (without off-road package) 9.

Fog lamp assembly (if equipped)

10. Front fascia finisher LH

11. Front bumper bracket stay LH

12. Front bumper bracket stay RH

13. Front bumper bracket LH

AWKIA1095GB

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

3. Remove the fog lamp (if equipped). Refer to

EXL-143, "Removal and Installation"

.

4. Remove the front bumper side bracket nuts.
5. Remove the front bumper assembly.
6. Remove the front bumper opening finisher clips C103 and remove the front bumper opening finisher.
7. Remove the front bumper RH and LH side finishers.
8. Remove the front bumper brackets LH and RH.
9. Remove the front bumper stays LH and RH.

Installation

Installation is in the reverse order of removal.

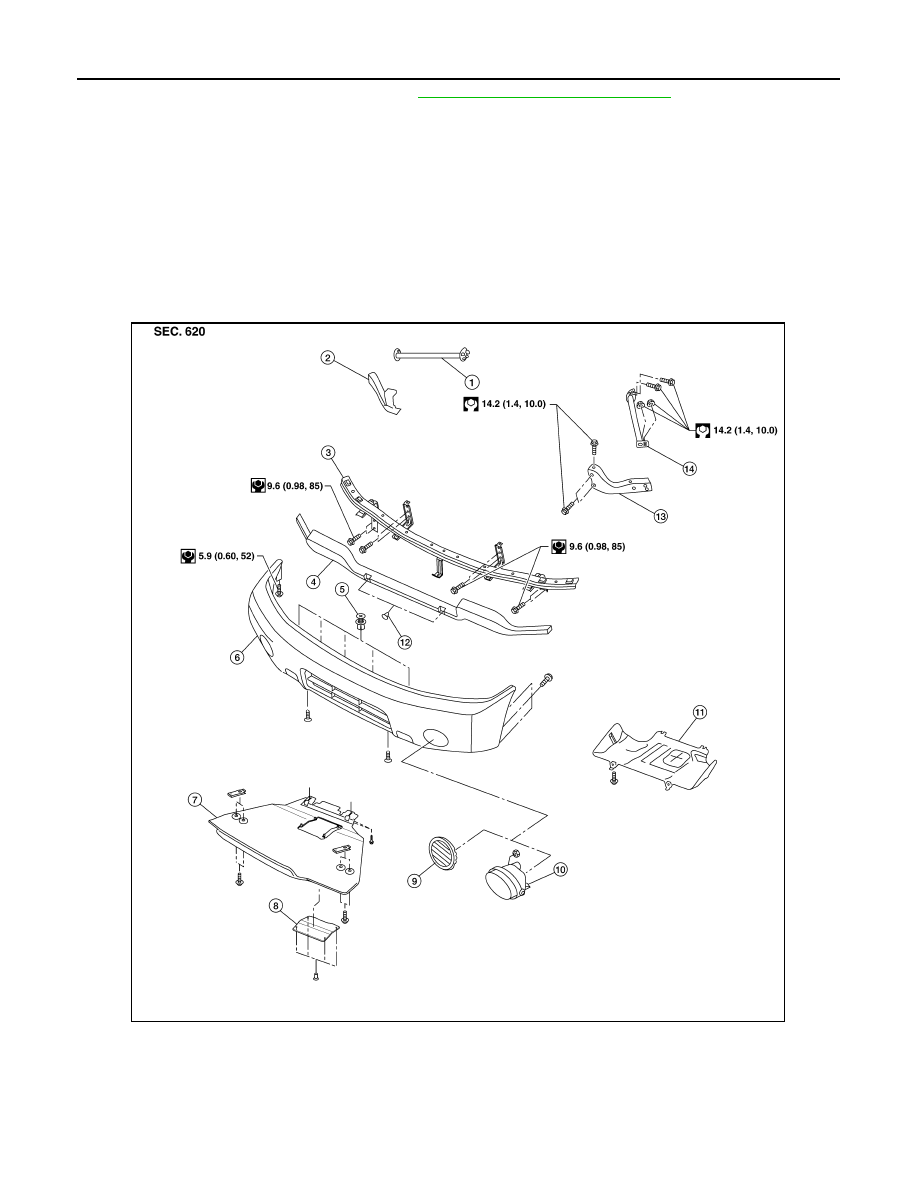

PLASTIC BUMPER

1.

Front bumper bracket RH

2.

Front bumper stay RH

3.

Retainer bracket

4.

Energy absorber

5.

Fastener CS101

6.

Plastic fascia assembly

7.

Skid plate (with off-road package)

8.

Access cover

9.

Fog lamp opening finisher (if
equipped)

AWKIA1327ZZ

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal

1. Remove the front grille. Refer to

EXT-19

.

2. Remove the skid plate or front under cover.
3. Remove the fog lamp, if equipped. Refer to

EXL-143, "Removal and Installation"

.

4. Partially remove the LH and RH front fender protectors. Refer to

EXT-23, "Removal and Installation"

.

5. Remove the screws and fasteners and remove the plastic fascia assembly.

• Remove the fog lamp opening finisher, if equipped, from the plastic fascia assembly.

6. Remove the clips and energy absorber from the retainer bracket.
7. Remove the retainer bracket.
8. Remove the front bumper brackets LH and RH.
9. Remove the front bumper stays LH and RH.

Installation

Installation is in the reverse order of removal.

10. Fog lamp assembly (if equipped)

11. Front under cover (without off-road

package)

12. Plastic clip

13. Front bumper stay LH

14. Front bumper bracket LH
