HEADLAMP

EXL-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Installation

Installation is in the reverse order of removal.

HEADLAMP (INNER SIDE), FOR HIGH BEAM

Removal

1. Remove the combination lamp assembly. Refer to

EXL-139, "Removal and Installation"

.

2. Turn the bulb socket counterclockwise and remove bulb.

Installation

Installation is in the reverse order of removal.

TURN SIGNAL/PARKING LAMP (FRONT)

Removal

1. Remove the combination lamp assembly. Refer to

EXL-139, "Removal and Installation"

.

2. Turn the bulb socket counterclockwise to unlock.
3. Pull the bulb to remove from the socket.

Installation

Installation is in the reverse order of removal.

SIDE MARKER LAMP (FRONT)

Removal

1. Remove the combination lamp assembly. Refer to

EXL-139, "Removal and Installation"

.

2. Turn the side marker lamp (front) bulb socket counterclockwise and remove side marker lamp (front) bulb

socket.

3. Pull to remove side marker lamp (front) from the side marker lamp (front) bulb socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000006179079

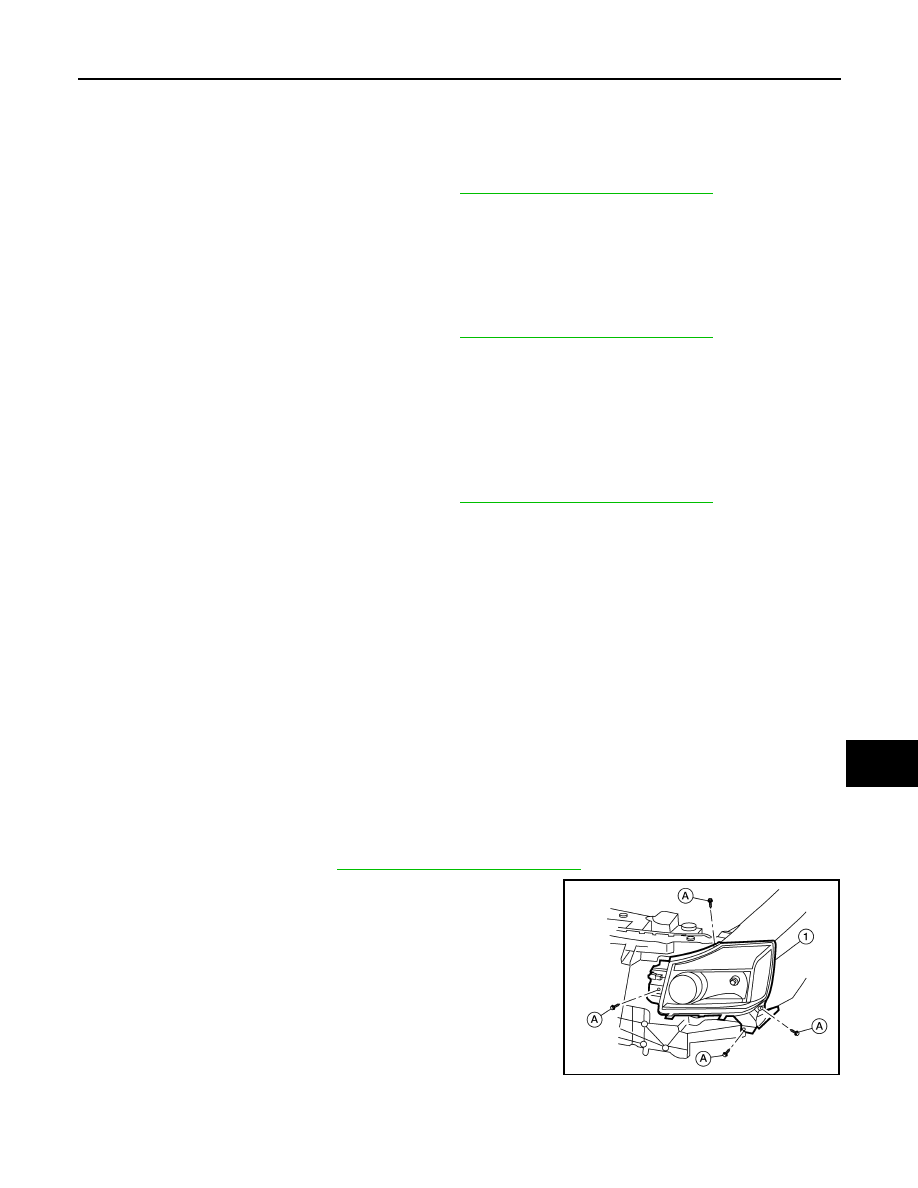

COMBINATION LAMP ASSEMBLY (FRONT)

WARNING:

• Do not touch bulb by hand right after being turned off. Burning may result.

CAUTION:

• Turn headlamp switch OFF before disconnecting headlamp harness connector.

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it.

• Do not leave bulb out of combination lamp assembly (front) for a long time because dust, moisture,

smoke, etc. may affect the performance of the lamp. When replacing bulb, be sure to replace it with a

new one.

Removal

1. Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2. Remove the bolts (A), disconnect the electrical connectors, and

remove the front combination lamp assembly (1).

Installation

Installation is in the reverse order of removal.

ALLIA0330ZZ

EXL-140

< REMOVAL AND INSTALLATION >

HEADLAMP

Disassembly and Assembly

INFOID:0000000006179080

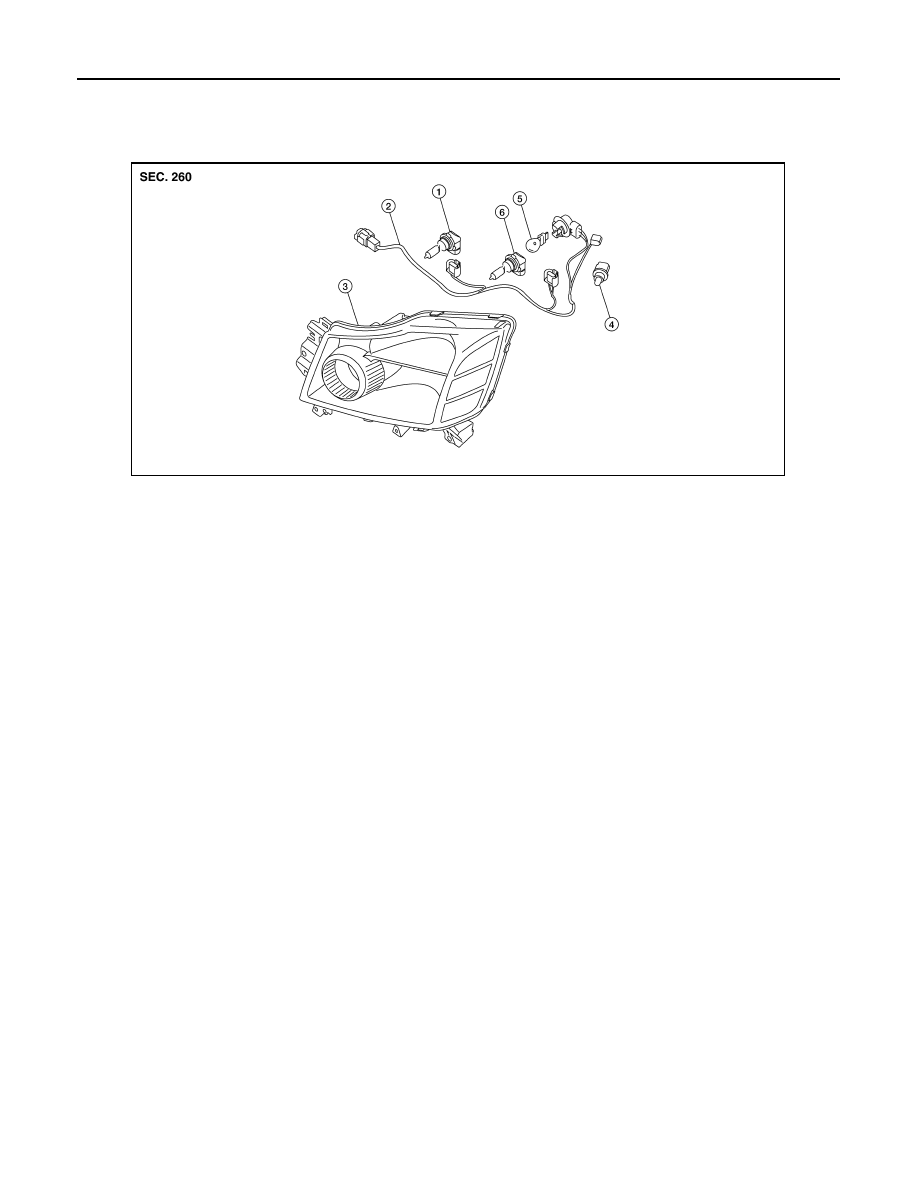

FRONT COMBINATION LAMP ASSEMBLY

Disassembly

1. Turn high beam bulb counterclockwise to unlock and remove high beam bulb.
2. Turn low beam bulb counterclockwise to unlock and remove low beam bulb.
3. Turn turn signal/parking lamp (front) bulb socket counterclockwise to unlock and remove turn signal/park-

ing lamp (front) bulb.

4. Turn side marker lamp (front) bulb socket counterclockwise to unlock and remove side marker lamp (front)

bulb.

Assembly

Assembly is in the reverse order of disassembly.

1. Headlamp bulb (high beam)

2. Wiring harness assembly (inner)

3. Combination lamp assembly

4. Side marker lamp (front) bulb

5. Turn signal/parking lamp (front) bulb

6. Headlamp bulb (low beam)

AWKIA1324ZZ

AUTO LIGHT SYSTEM

EXL-141

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AUTO LIGHT SYSTEM

Removal and Installation

INFOID:0000000006179081

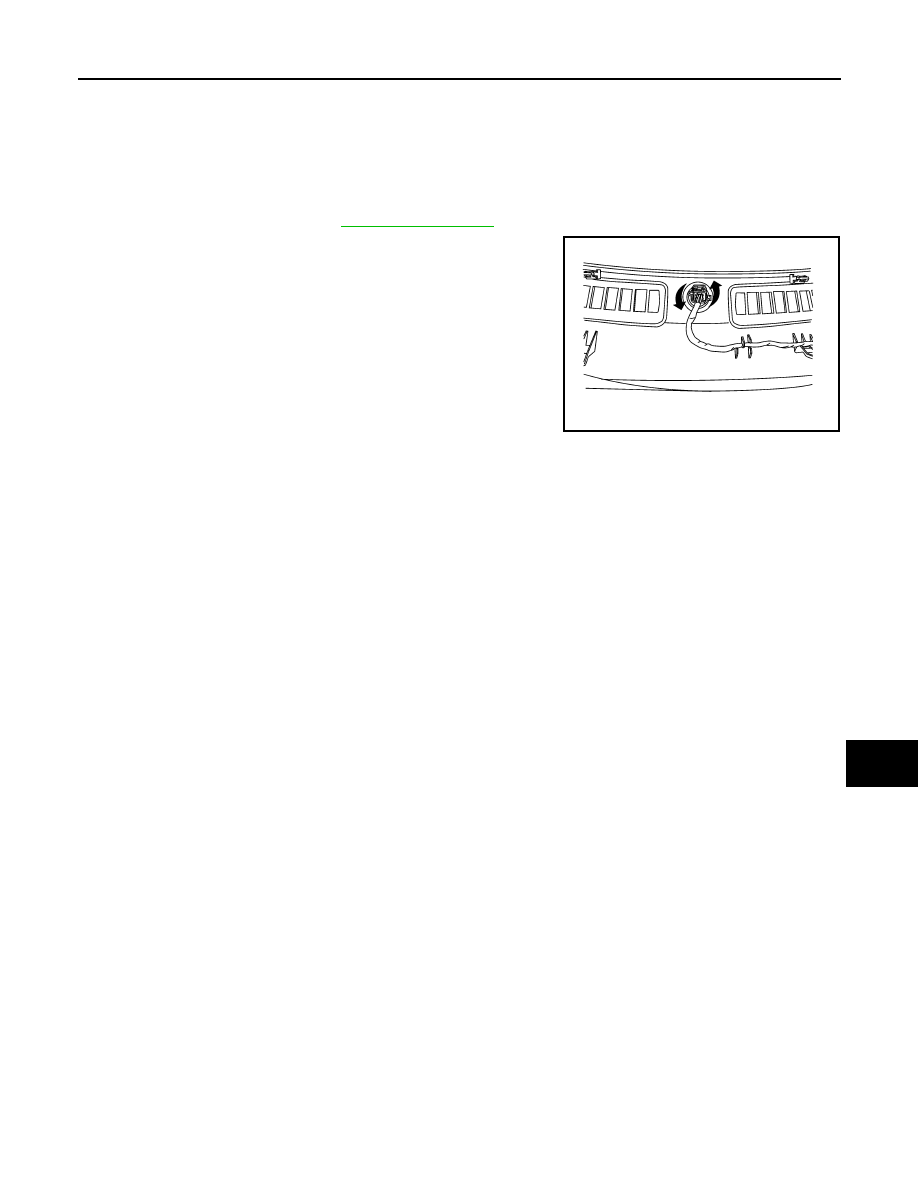

OPTICAL SENSOR

Removal

1. Remove defroster grille. Refer to

VTL-24, "Component"

.

2. Disconnect the optical sensor connector.
3. Turn the optical sensor counterclockwise to remove it from

defroster grille.

Installation

Installation is in the reverse order of removal.

WKIA1061E

EXL-142

< REMOVAL AND INSTALLATION >

FRONT FOG LAMP

FRONT FOG LAMP

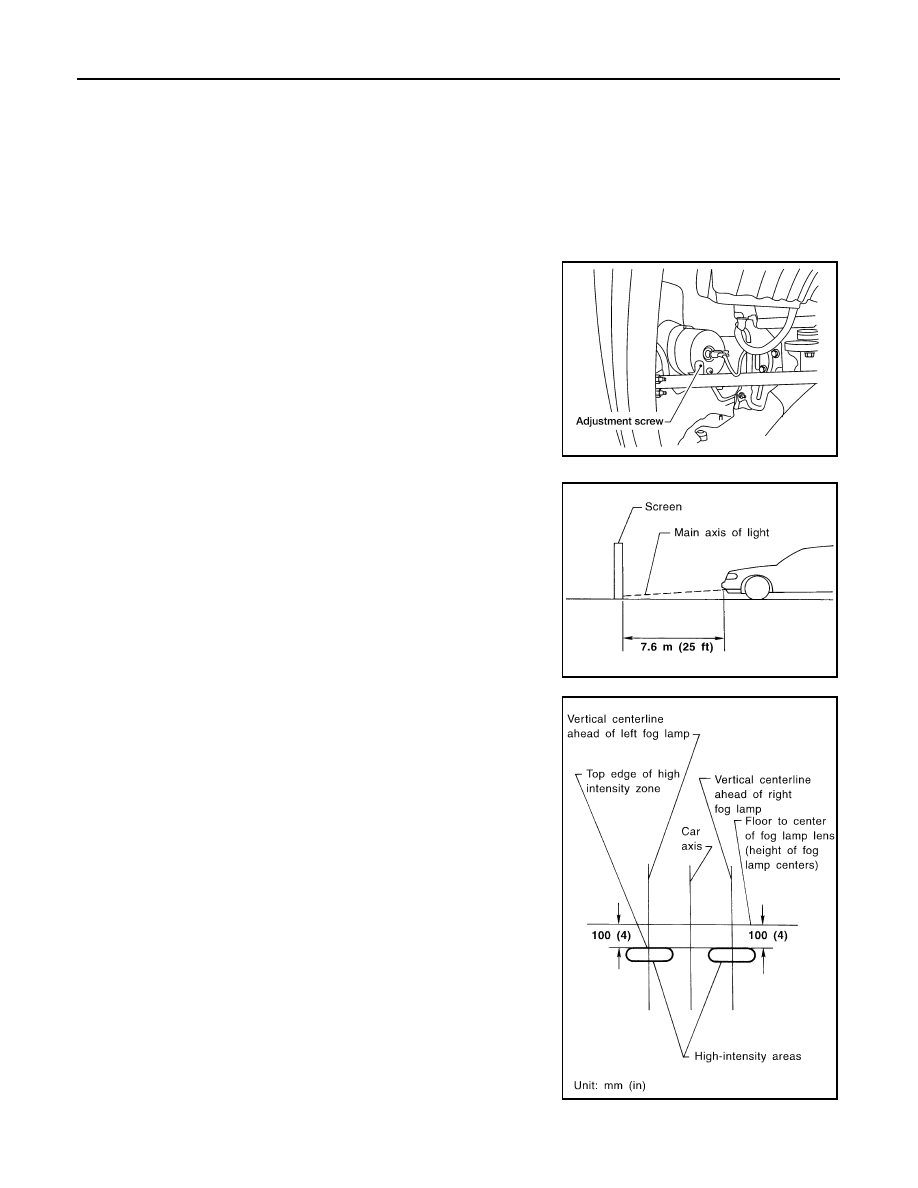

Aiming Adjustment

INFOID:0000000006179082

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming

adjustment, make sure of the following.

• Keep all tires inflated to correct pressure.

• Place vehicle on level ground.

• See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and

tools). Have the driver or equivalent weight placed in driver seat.

Adjust aiming in the vertical direction by turning the adjustment

screw.

NOTE:

Access adjustment screw from underneath front bumper. Use a T-3

(3 mm) Torx® bit or a 3 mm allen wrench to adjust. Turn screw clock-

wise to raise pattern and counterclockwise to lower pattern.

1. Set the distance between the screen and the center of the fog

lamp lens as shown.

2. Turn front fog lamps ON.

3. Adjust front fog lamps using adjusting screw so that the top edge

of the high intensity zone is 100 mm (4 in) below the height of

the fog lamp centers as shown.

• When performing adjustment, if necessary, cover the head-

lamps and opposite fog lamp.

WKIA1396E

MEL327G
