Nissan Titan A60. Manual - part 520





BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

EXL-135

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000006179074

The front fog lamps do not turn ON in any combination switch (lighting and turn signal switch) setting.

Diagnosis Procedure

INFOID:0000000006179075

1.

COMBINATION SWITCH (LIGHTING AND TURN SIGNAL SWITCH) INSPECTION

Check the combination switch (lighting and turn signal switch). Refer to

BCS-33, "Description"

.

Is the combination switch (lighting and turn signal switch) normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR FOG REQ" of IPDM E/R DATA MONITOR item.

2. With operating the combination switch (lighting and turn signal switch), check the monitor status.

Is the item status normal?

YES

>> GO TO 3.

NO

>> Replace BCM. Refer to

BCS-53, "Removal and Installation"

.

3.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-45, "Description"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

 Condition

Monitor status

FR FOG REQ

Combination switch (lighting
and turn signal switch)
(2ND)

ON

ON

OFF

OFF

EXL-136

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006179076

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Work

INFOID:0000000006689823

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

HEADLAMP

EXL-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

HEADLAMP

Aiming Adjustment

INFOID:0000000006179077

NOTE:

• For details, refer to the regulations in your area.

• If vehicle front body has been repaired and /or the headlamp assembly has been replaced, check headlamp

aiming.

• Place vehicle and screen on level surface.

- Before performing aiming adjustment, check the following:

- Ensure all tires are inflated to correct pressure.

- Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

Coolant and engine oil filled to correct level, and fuel tank full.

- Confirm spare tire, jack and tools are properly stowed.

- Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

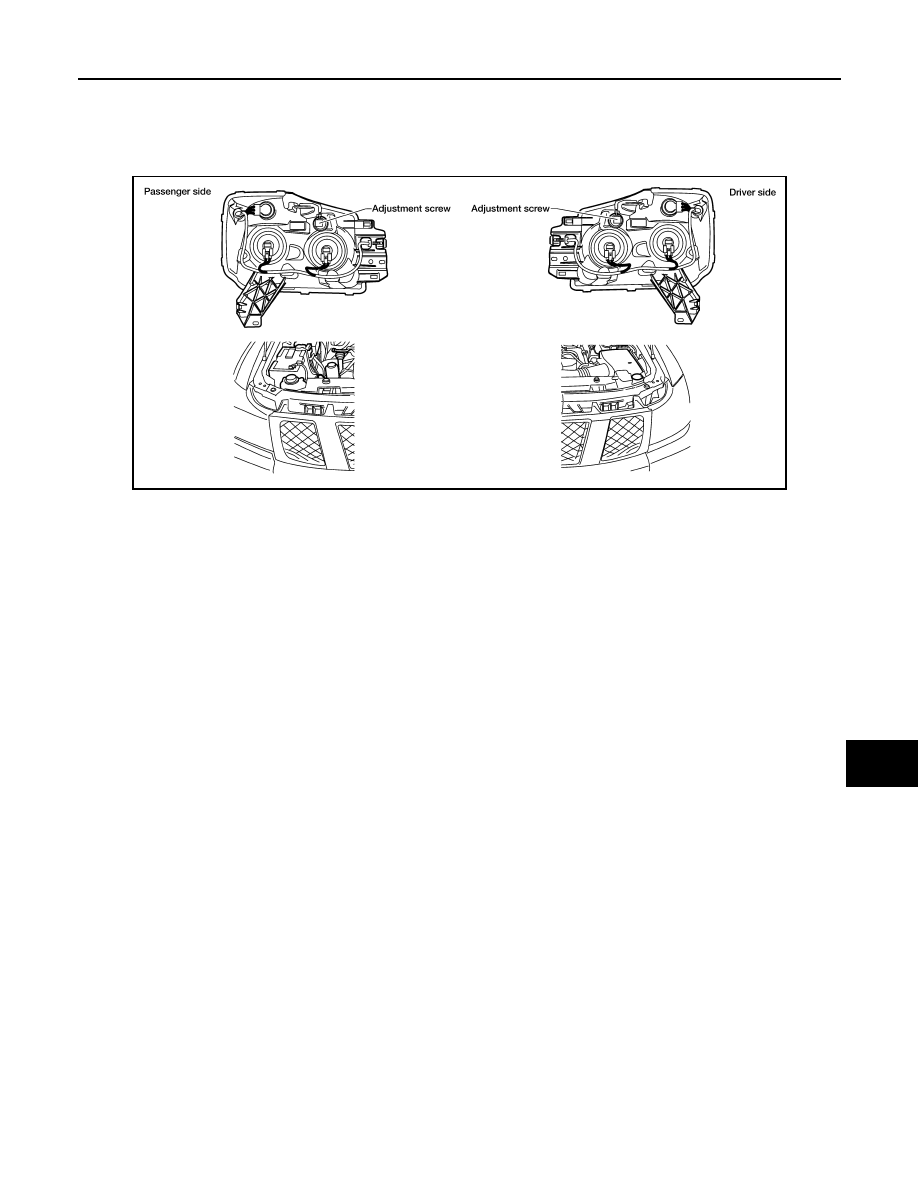

- Use adjustment screw to perform headlamp aiming.

HEADLAMP AIMING

WKIA1398E

EXL-138

< REMOVAL AND INSTALLATION >

HEADLAMP

NOTE:

Basic illuminating area for adjustment should be within the range shown on the aiming chart. Adjust head-

lamps accordingly.

LOW BEAM AND HIGH BEAM

1. Turn headlamp low beam on.
2. Use adjusting screw to perform aiming adjustment.

Bulb Replacement

INFOID:0000000006179078

WARNING:

Do not touch bulb by hand right after being turned off. Burning may result.

CAUTION:

• Turn headlamp switch OFF before disconnecting headlamp harness connector.

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it.

• Do not leave bulb out of front combination lamp assembly for a long time because dust, moisture,

smoke, etc. may affect the performance of the lamp. When replacing headlamp bulb, be sure to

replace it with a new one.

HEADLAMP (OUTER SIDE), FOR LOW BEAM

Removal

1. Remove the combination lamp assembly. Refer to

EXL-139, "Removal and Installation"

.

2. Turn the bulb socket counterclockwise and remove bulb.

A.

Right

B.

Left

C.

Center of headlamp bulb (H-V point)

D.

Cutoff line

E.

Screen

F.

Aim evaluation segment

G.

Step

H.

Horizontal center line of headlamp

J.

103 mm (4.06 in.)

K.

37 mm (1.46 in.)

L.

7.62 m (25 ft.)

M.

399 mm (15.71 in.)

N.

133 mm (5.24 in.)

P.

53.2 mm (2.09 in.)

Q.

466 mm (18.35 in.)

R.

200 mm (7.87 in.)

S.

RH headlamp aiming screen

T.

LH headlamp aiming screen

V.

Vertical center line of headlamp

LKIA0809E
