HOW TO SELECT PISTON AND BEARING

EM-113

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Use Undersize Bearing Usage Guide

• Use undersize (US) bearing when the oil clearance with standard size main bearing is not within specifica-

tion.

• When using undersize (US) bearing, measure the inside diameter of the bearing installed and grind the jour-

nal until the oil clearance falls within specification.

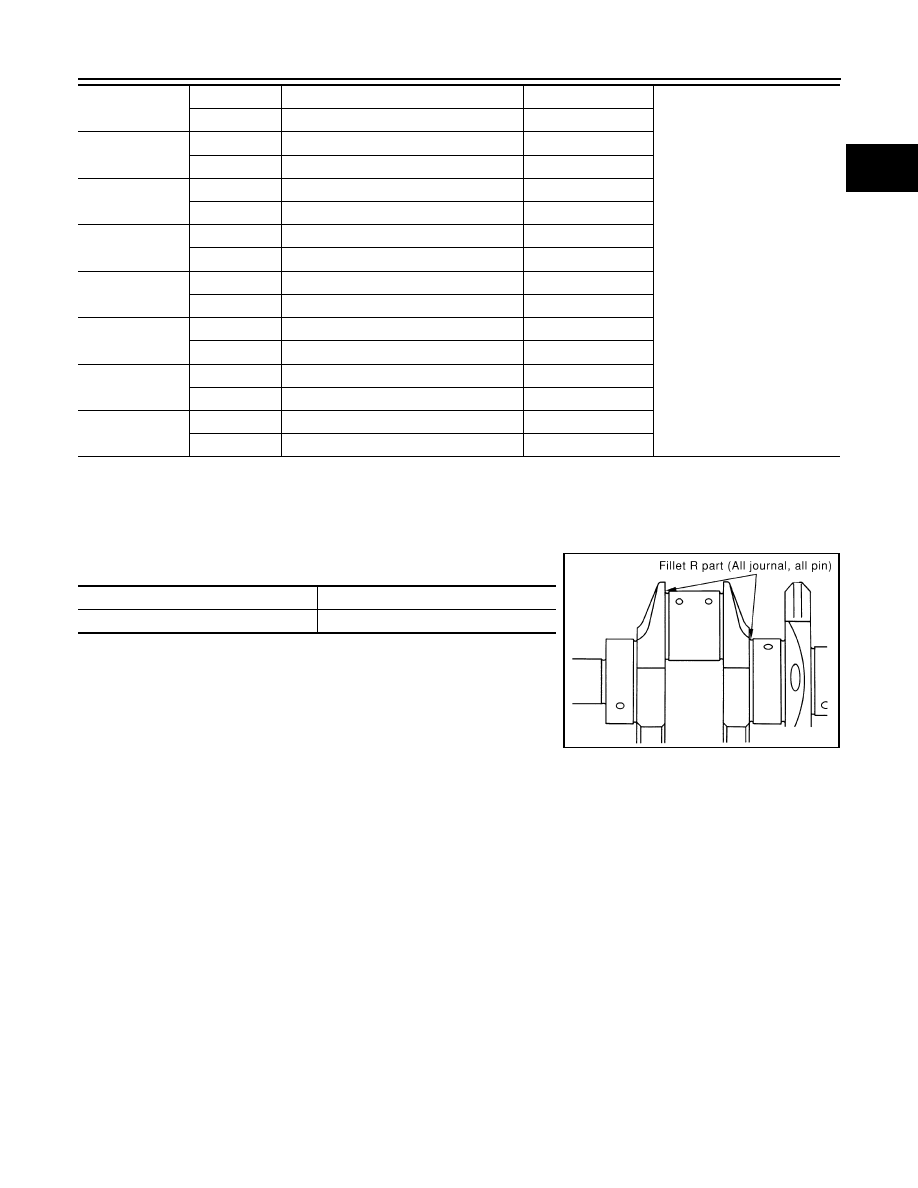

Bearing undersize table

Unit: mm (in)

CAUTION:

Do not damage fillet R when grinding crankshaft journal in

order to use undersized bearing (All journals).

01

UPR

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade and color are different
for upper and lower bearings.

LWR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

12

UPR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

LWR

2.489 - 2.492 (0.0980 - 0.0981)

Green

23

UPR

2.489 - 2.492 (0.0980 - 0.0981)

Green

LWR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

34

UPR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

LWR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

45

UPR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

LWR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

56

UPR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

LWR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

67

UPR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

LWR

2.504 - 2.507 (0.0986 - 0.0987)

White

78

UPR

2.504 - 2.507 (0.0986 - 0.0987)

White

LWR

2.507 - 2.510 (0.0987 - 0.0988)

Red

Undersize

Thickness

0.25 (0.0098)

2.618 - 2.626 (0.1031 - 0.1034)

Fillet R

: 1.5 - 1.7 mm (0.059 - 0.067 in)

PBIC0111E

EM-114

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000006179422

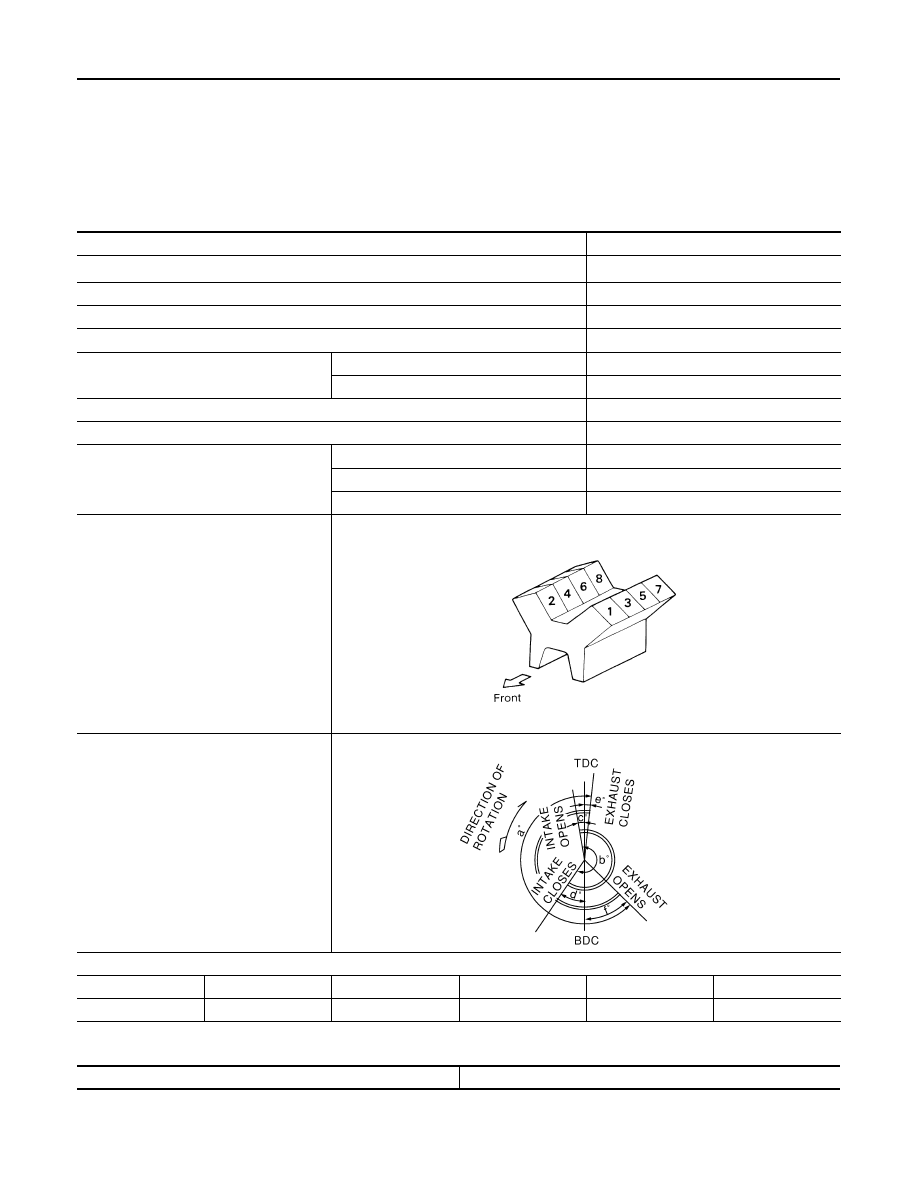

GENERAL SPECIFICATIONS

DRIVE BELTS

EXHAUST MANIFOLD

Cylinder arrangement

V-8

Displacement cm

3

(in

3

)

5,552 (338.80)

Bore and stroke mm (in)

98 x 92 (3.86 x 3.62)

Valve arrangement

DOHC

Firing order

1-8-7-3-6-5-4-2

Number of piston rings

Compression

2

Oil

1

Number of main bearings

5

Compression ratio

9.8:1

Compression pressure
kPa (kg/cm

2

, psi)/rpm

Standard

1,520 (15.5, 220)/200

Minimum

1,324 (13.5, 192)/200

Differential limit between cylinders

98 (1.0, 14)/200

Cylinder number

Valve timing

Unit: degree

a

b

c

d

e

f

244

°

232

°

-8

°

60

°

10

°

54

°

SEM957C

PBIC0187E

Tension of drive belts

Auto adjustment by auto tensioner

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-115

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

SPARK PLUG

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information

CAMSHAFT AND CAMSHAFT BEARING

Unit: mm (in)

*: Total indicator reading

Valve Seal

Unit: mm (in)

Valve Lifter

Unit: mm (in)

Valve Clearance

Items

Limit

Surface distortion

Exhaust manifold

0.3 (0.012)

Make

NGK

Model

Standard model

FFV model

Standard type*

DILFR5A-11

DILFR5A-11D

Gap (Nominal)

1.1 (0.043)

1.1 (0.043)

Items

Standard

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

Camshaft cam height “A”

Intake

44.865 - 45.055 (1.7663 - 1.7738)

Exhaust

45.075 - 45.265 (1.7746 - 1.7821)

Cam wear limit

0.02 (0.0008)

Outside diameter of camshaft journal

25.950 - 25.970 (1.0217 - 1.0224)

Camshaft bracket inside diameter

26.000 - 26.021 (1.0236 - 1.0244)

Camshaft journal clearance

0.030 - 0.071 (0.0012 - 0.0028)

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

Camshaft dimension "A" for #1 journal

30.500 - 30.548 (1.2008 - 1.2027)

Cylinder head dimension "B" for #1 journal

30.360 - 30.385 (1.1953 - 1.1963)

Camshaft sprocket runout [TIR*]

Less than 0.15 (0.0059)

SEM671

Items

Standard

Height "H" (without valve spring installed)

14.300 - 14.900 (0.5630 - 0.5870)

Items

Standard

Valve lifter diameter

33.977 - 33.987 (1.3377 - 1.3381)

Valve lifter hole diameter

34.000 - 34.016 (1.3386 - 1.3392)

Clearance between lifter and lifter guide

0.013 - 0.039 (0.0005 - 0.0015)

EM-116

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Approximately 80

°C (176°F)

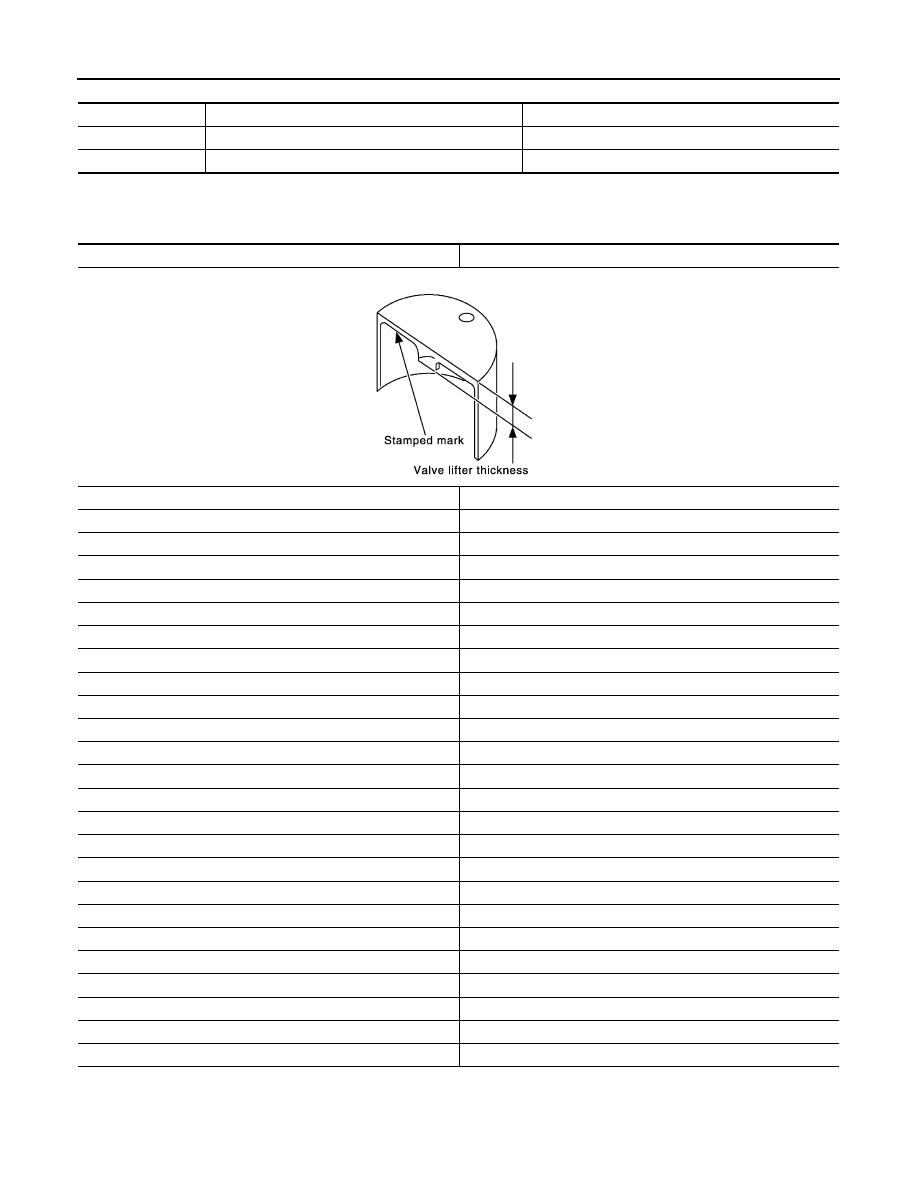

Available Valve Lifter

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information

CYLINDER HEAD

Items

Hot*

Cold

Intake

0.304 - 0.416 (0.012 - 0.016)

0.26 - 0.34 (0.010 - 0.013)

Exhaust

0.308 - 0.432 (0.012 - 0.017)

0.29 - 0.37 (0.011 - 0.015)

Identification (stamped) Mark*

Thickness

N788

7.88 (0.3102)

N790

7.90 (0.3110)

N792

7.92 (0.3118)

N794

 7.94 (0.3126)

N796

7.96 (0.3134)

N798

7.98 (0.3142)

N800

8.00 (0.3150)

N802

8.02 (03.157)

N804

8.04 (0.3165)

N806

8.06 (0.3173)

N808

8.08 (0.3181)

N810

8.10 (0.3189)

N812

8.12 (0.3197)

N814

8.14 (0.3205)

 N816

8.16 (0.3213)

N818

8.18 (0.3220)

N820

8.20 (0.3228)

N822

8.22 (0.3236)

N824

8.24 (0.3244)

N826

8.26 (0.3252)

N828

8.28 (0.3260)

N830

8.30 (0.3268)

N832 8.32

(0.3276)

N834

8.34 (0.3283)

N836

8.36 (0.3291)
