EC-366

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P1225 TP SENSOR

P1225 TP SENSOR

Component Description

INFOID:0000000006158824

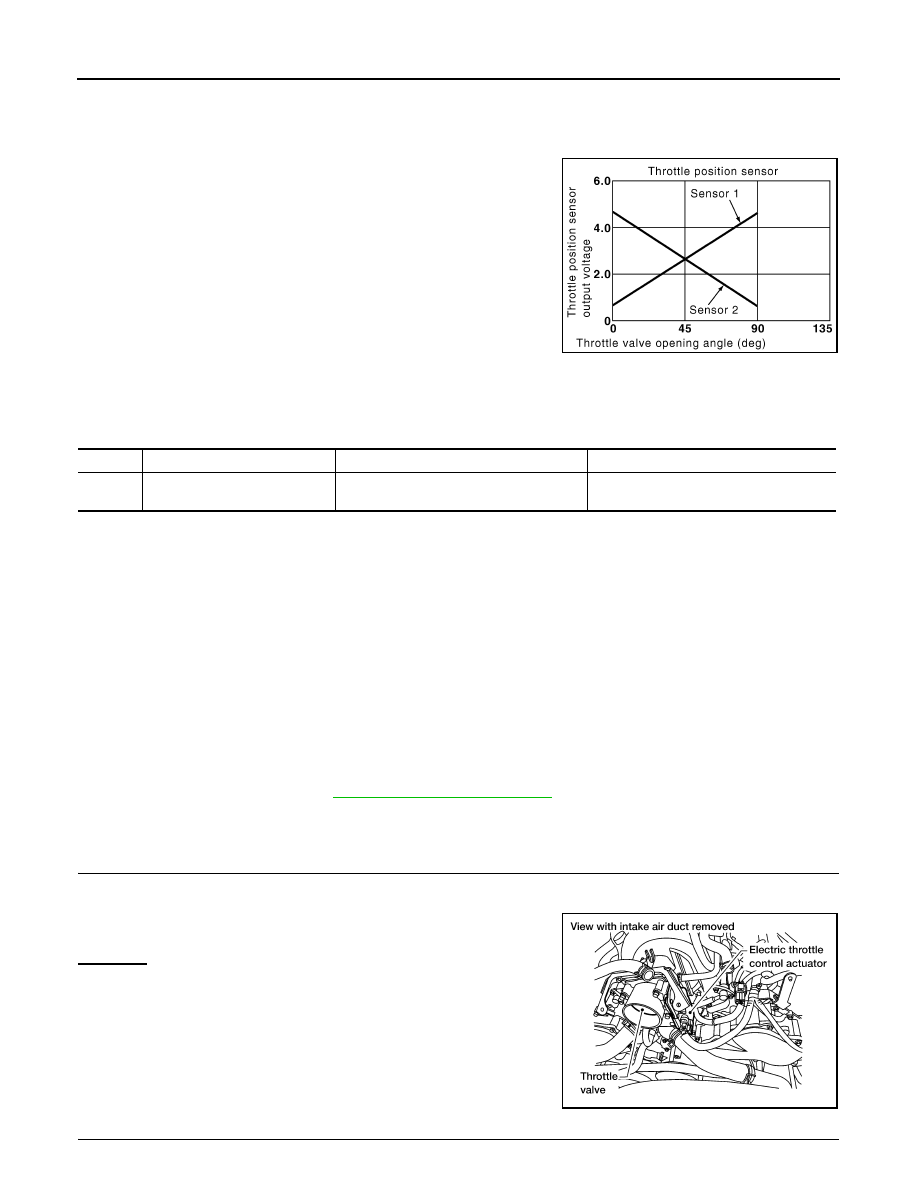

Electric throttle control actuator consists of throttle control motor,

throttle position sensor, etc. The throttle position sensor responds to

the throttle valve movement.

The throttle position sensor has the two sensors. These sensors are

a kind of potentiometers which transform the throttle valve position

into output voltage, and emit the voltage signal to the ECM. In addi-

tion, these sensors detect the opening and closing speed of the

throttle valve and feed the voltage signals to the ECM. The ECM

judges the current opening angle of the throttle valve from these sig-

nals and the ECM controls the throttle control motor to make the

throttle valve opening angle properly in response to driving condi-

tion.

On Board Diagnosis Logic

INFOID:0000000006158825

The MIL will not light up for this self-diagnosis.

DTC Confirmation Procedure

INFOID:0000000006158826

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

1. Turn ignition switch ON.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Check 1st trip DTC.

5. If 1st trip DTC is detected, go to

EC-366, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006158827

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1. Turn ignition switch OFF.

2. Remove the intake air duct.

3. Check if foreign matter is caught between the throttle valve and

the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1225
1225

Closed throttle position learning
performance

Closed throttle position learning value is
excessively low.

• Electric throttle control actuator

(TP sensor 1 and 2)

BBIA0364E

P1225 TP SENSOR

EC-367

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Replace the electric throttle control actuator.

2. Perform

EC-119, "Throttle Valve Closed Position Learning"

.

3. Perform

EC-120, "Idle Air Volume Learning"

.

>> INSPECTION END

EC-368

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P1226 TP SENSOR

P1226 TP SENSOR

Component Description

INFOID:0000000006158828

Electric throttle control actuator consists of throttle control motor,

throttle position sensor, etc. The throttle position sensor responds to

the throttle valve movement.

The throttle position sensor has the two sensors. These sensors are

a kind of potentiometers which transform the throttle valve position

into output voltage, and emit the voltage signal to the ECM. In addi-

tion, these sensors detect the opening and closing speed of the

throttle valve and feed the voltage signals to the ECM. The ECM

judges the current opening angle of the throttle valve from these sig-

nals and the ECM controls the throttle control motor to make the

throttle valve opening angle properly in response to driving condi-

tion.

On Board Diagnosis Logic

INFOID:0000000006158829

The MIL will not light up for this self-diagnosis.

DTC Confirmation Procedure

INFOID:0000000006158830

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

1. Turn ignition switch ON.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Repeat steps 2 and 3 for 32 times.

5. Check 1st trip DTC.

6. If 1st trip DTC is detected, go to

EC-368, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006158831

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1. Turn ignition switch OFF.

2. Remove the intake air duct.

3. Check if foreign matter is caught between the throttle valve and

the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1226
1226

Closed throttle position learning
performance

Closed throttle position learning is not performed
successfully, repeatedly.

• Electric throttle control actuator

(TP sensor 1 and 2)

BBIA0364E

P1226 TP SENSOR

EC-369

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace the electric throttle control actuator.

2. Perform

EC-119, "Throttle Valve Closed Position Learning"

.

3. Perform

EC-120, "Idle Air Volume Learning"

.

>> INSPECTION END
