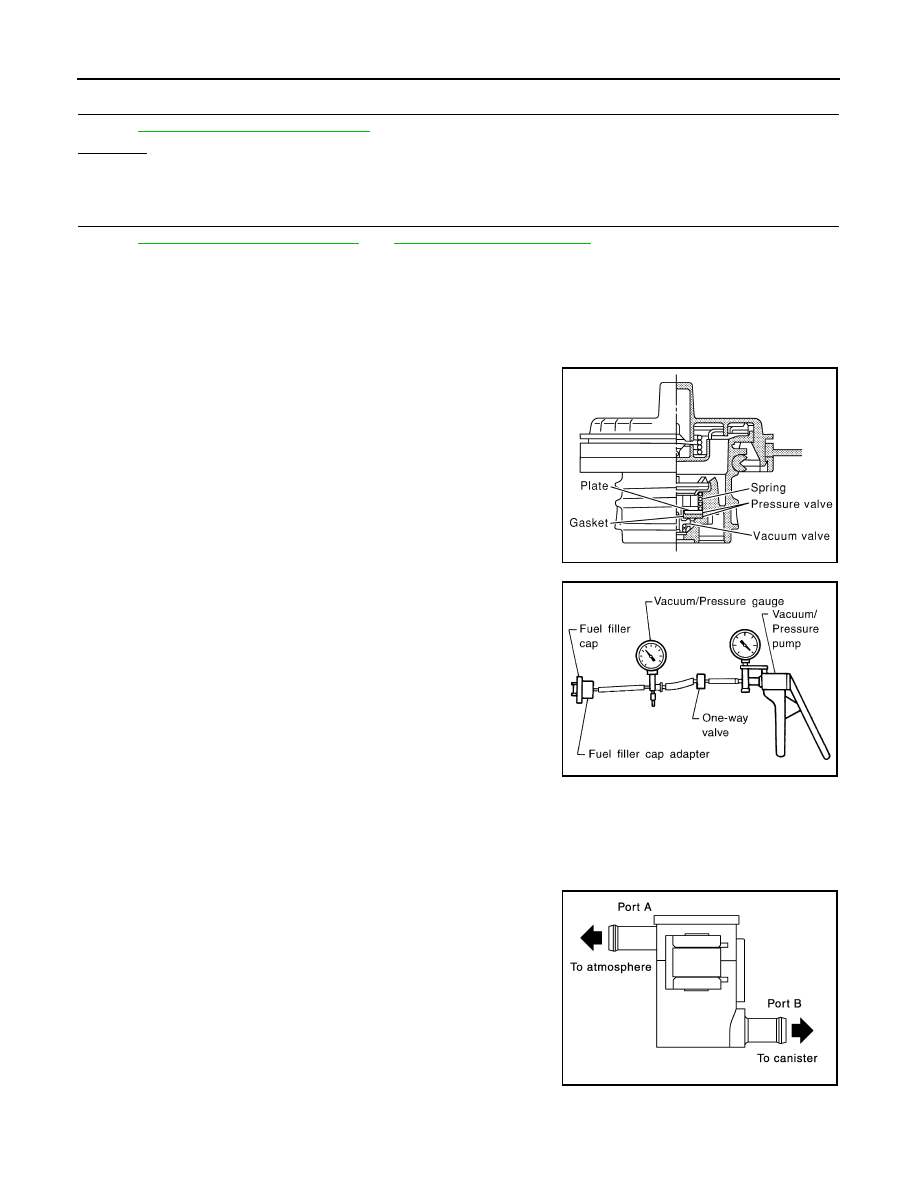

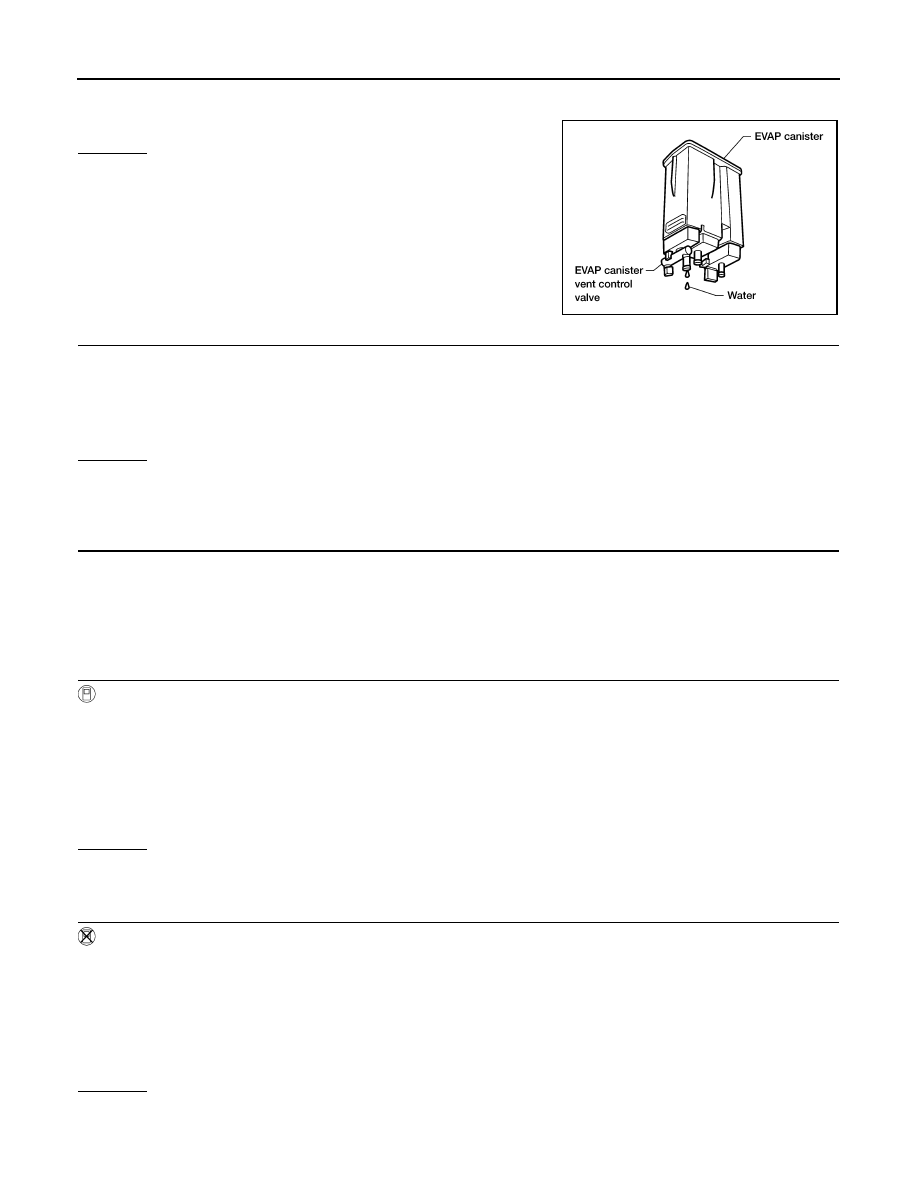

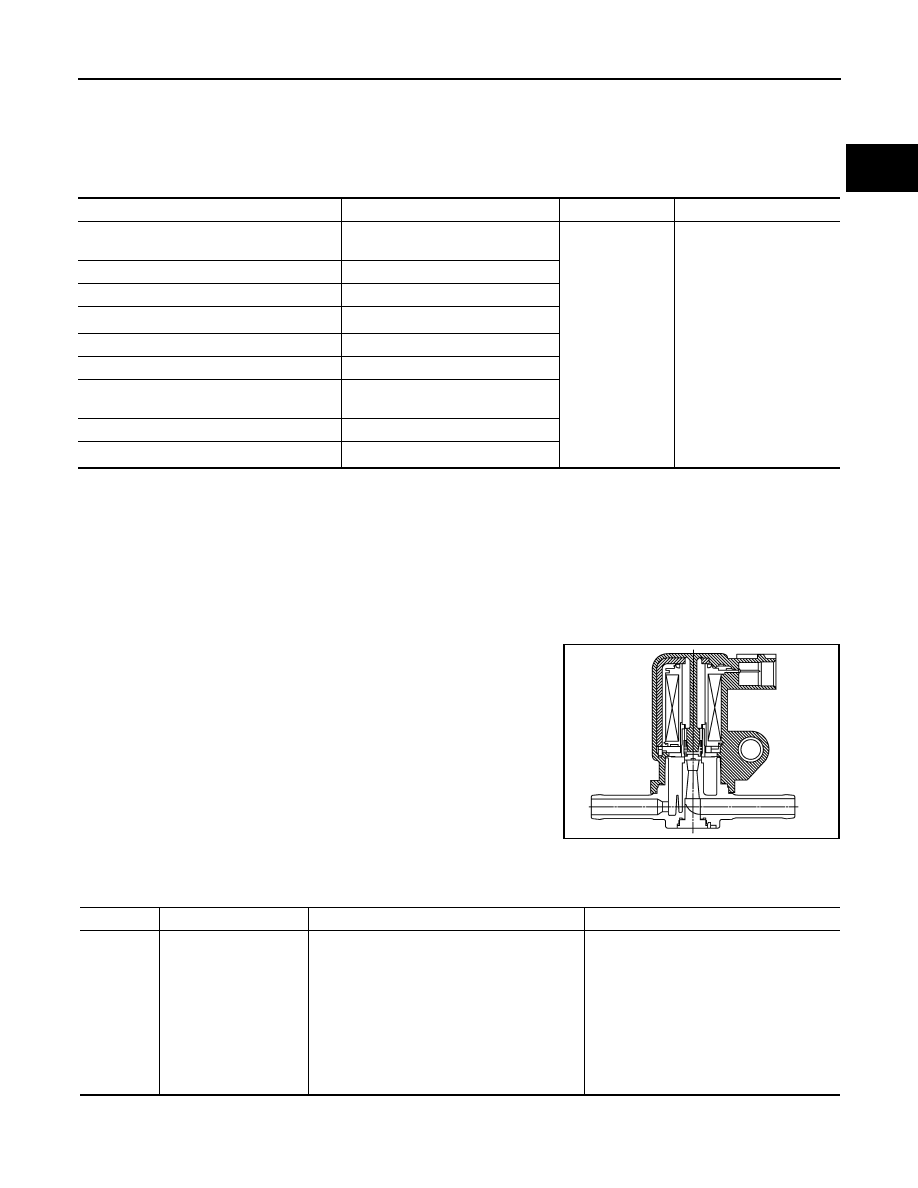

EC-278 < DTC/CIRCUIT DIAGNOSIS > [VK56DE] P0442 EVAP CONTROL SYSTEM 1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached. 2. Does water drain from the EVAP canister? Yes >> GO TO 11. No (With CONSULT-III)>>GO TO 13. No (Without CONSULT-III)>>GO TO 14. 11. CHECK EVAP CANISTER Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached. OK or NG OK (With CONSULT-III)>>GO TO 13. OK (Without CONSULT-III)>>GO TO 14. NG >> GO TO 12. 12. DETECT MALFUNCTIONING PART Check the following. • EVAP canister for damage • EVAP hose between EVAP canister and drain filter for clogging or poor connection >> Repair hose or replace EVAP canister. 13. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION With CONSULT-III 1. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port. 2. Start engine. 3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode. 4. Touch “Qu” on CONSULT-III screen to increase “PURG VOL CONT/V” opening to 100%. 5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm. OK or NG OK >> GO TO 16. NG >> GO TO 15. 14. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION Without CONSULT-III 1. Start engine and warm it up to normal operating temperature. 2. Stop engine. 3. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port. 4. Start engine and let it idle for at least 80 seconds. 5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm. OK or NG OK >> GO TO 17. NG >> GO TO 15. BBIA0351E Short wheel base: The weight should be less than 2.5 kg (5.5 lb). Long wheel base: The weight should be less than 3.2 kg (7.1 lb). Vacuum should exist. Vacuum should exist. |
