REAR FINAL DRIVE ASSEMBLY

DLN-207

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

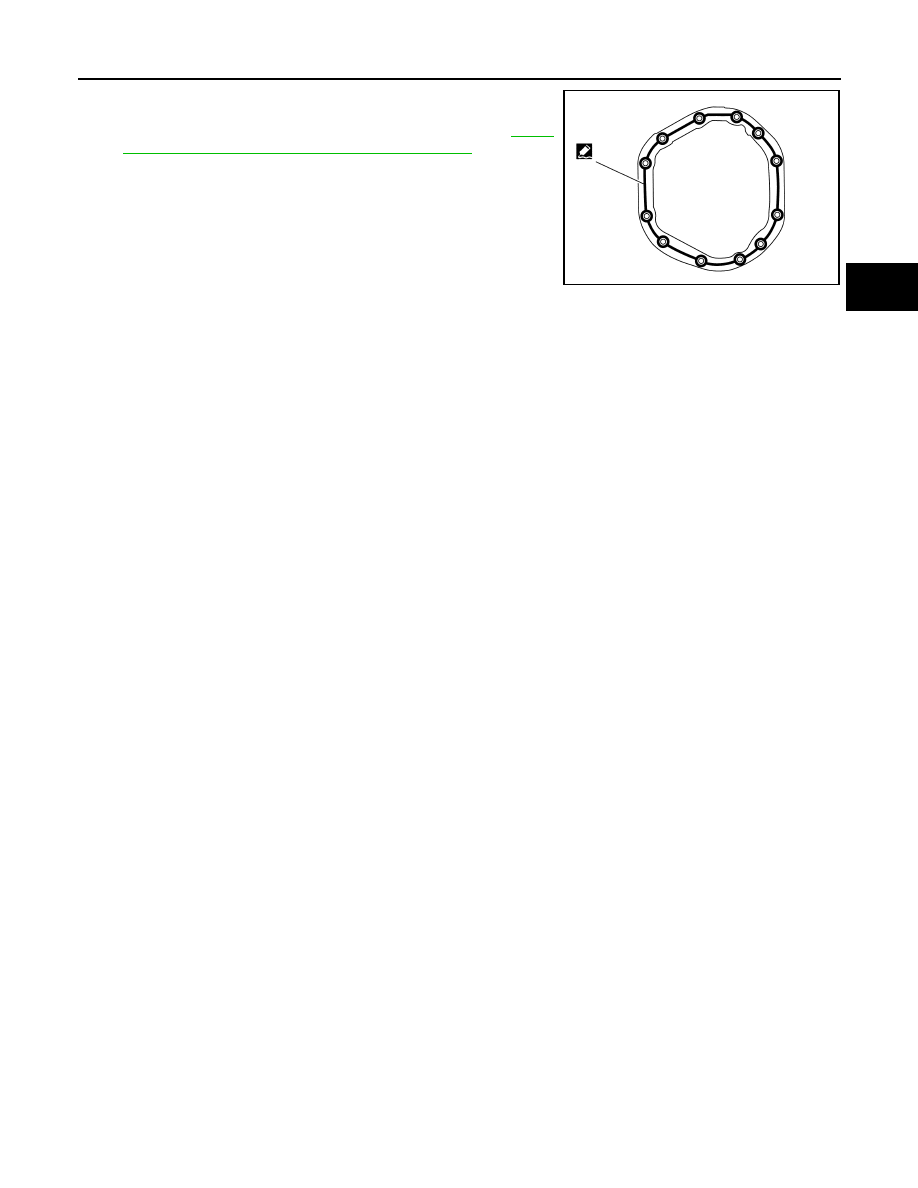

4. Apply a bead of sealant to the mating surface of the carrier

cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

5. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque.

PDIA1061E

DLN-208

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 ]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006179564

Inspection and Adjustment

INFOID:0000000006179565

DIFFERENTIAL SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

(Gear ratio 2.937 type)

Unit: N·m (kg-m, in-lb)

PRELOAD TORQUE

(Gear ratio 3.357 type)

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

Applied model

2WD, 4WD

VK56DE

A/T

Vehicle grade

S, SL, SV

OR (PRO-4X)

Final drive model

M226

Gear ratio

2.937

3.357

Number of pinion gears

2

Number of teeth (Drive gear / drive pinion)

47/16

47/14

Oil capacity (Approx.)

2.01   (4-1/4 US pt, 3-1/2 lmp pt)

Drive pinion adjustment spacer type

Collapsible

Item

Standard

Side gear back clearance
(Clearance between side gear and differential case
for adjusting side gear backlash)

0.305 (0.0120) or less.

(Each gear should rotate smoothly without excessive resistance during differ-

ential motion.)

Item

Standard

Drive pinion bearing preload torque

1.7 - 3.1 (0.18 - 0.31, 15 - 27)

Total preload
(Total preload torque = drive pinion bearing preload
torque + Side bearing preload torque)

2.49 - 4.57 (0.26 - 0.46, 22 - 40)

Item

Standard

Drive pinion bearing preload torque

1.7 - 3.1 (0.18 - 0.31, 15 - 27)

Total preload
(Total preload torque = drive pinion bearing preload
torque + Side bearing preload torque)

2.38 - 4.46 (0.25 - 0.45, 21 - 39)

Item

Standard

Drive gear to drive pinion gear

0.12 - 0.20 (0.0050 - 0.0078)

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-209

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Item

Limit

Companion flange face

 0.13 (0.0051)

Companion flange inner side

DLN-210

< BASIC INSPECTION >

[REAR FINAL DRIVE: M226 (ELD) ]

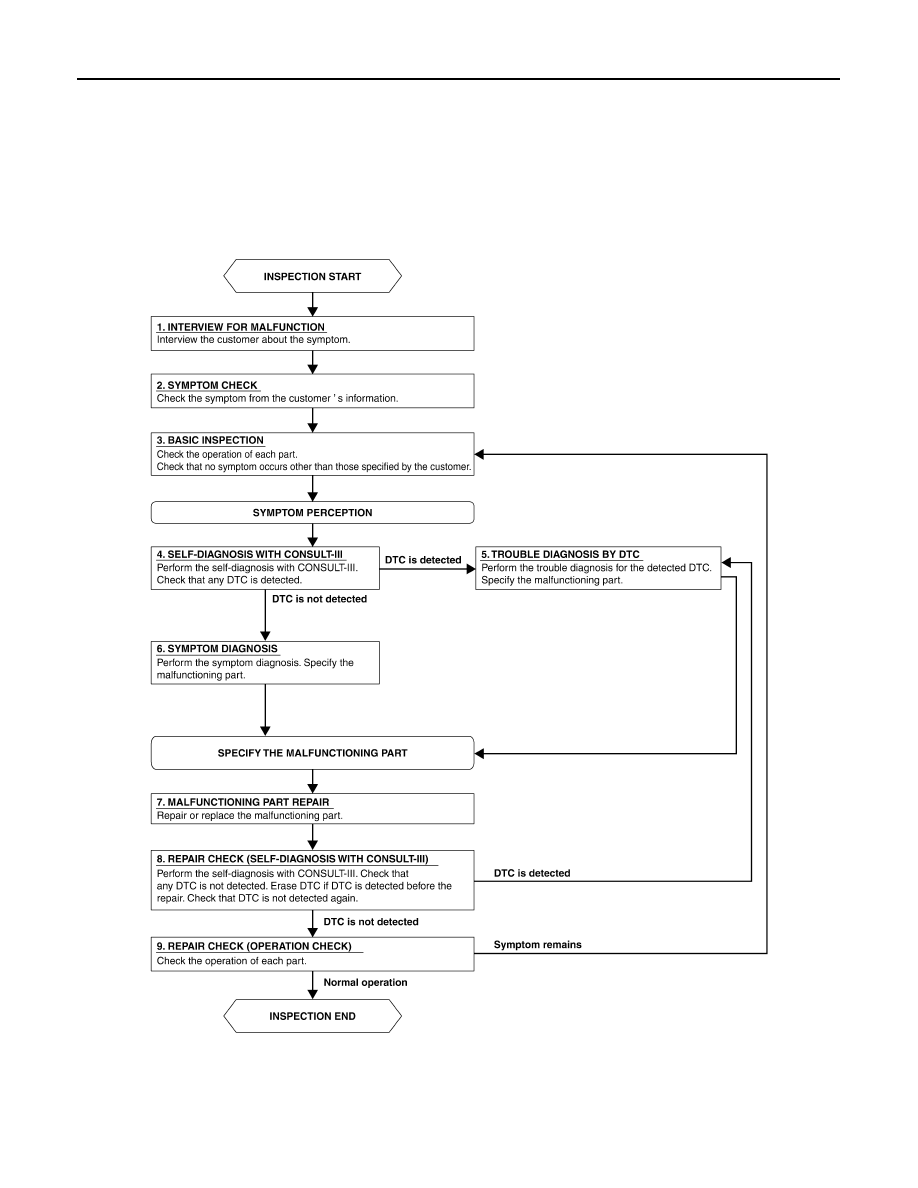

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006179566

OVERALL SEQUENCE

DETAILED FLOW

ALEIA0041GB
