Nissan Titan A60. Manual - part 303





REAR PROPELLER SHAFT

DLN-151

< UNIT REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 3S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

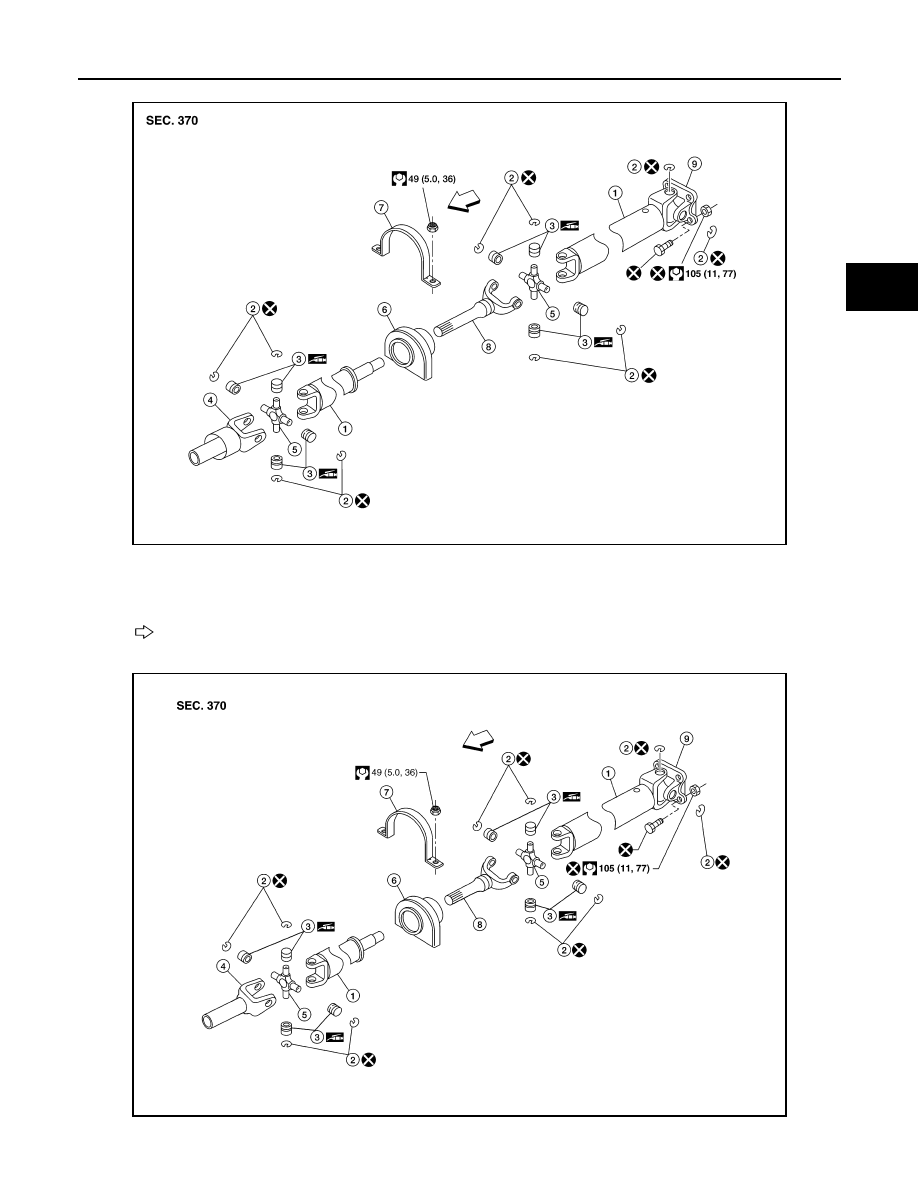

2WD Models (long wheel base)

4WD Models (long wheel base)

AWDIA0787GB

1.

Propeller shaft tube

2.

Snap ring

3.

Journal bearing

4.

Sleeve yoke

5.

Journal

6.

Center support bearing

7.

Center support bearing bracket

8.

Slip yoke

9.

Flange yoke

: Front

AWDIA0788GB

DLN-152

< UNIT REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 3S1410]

REAR PROPELLER SHAFT

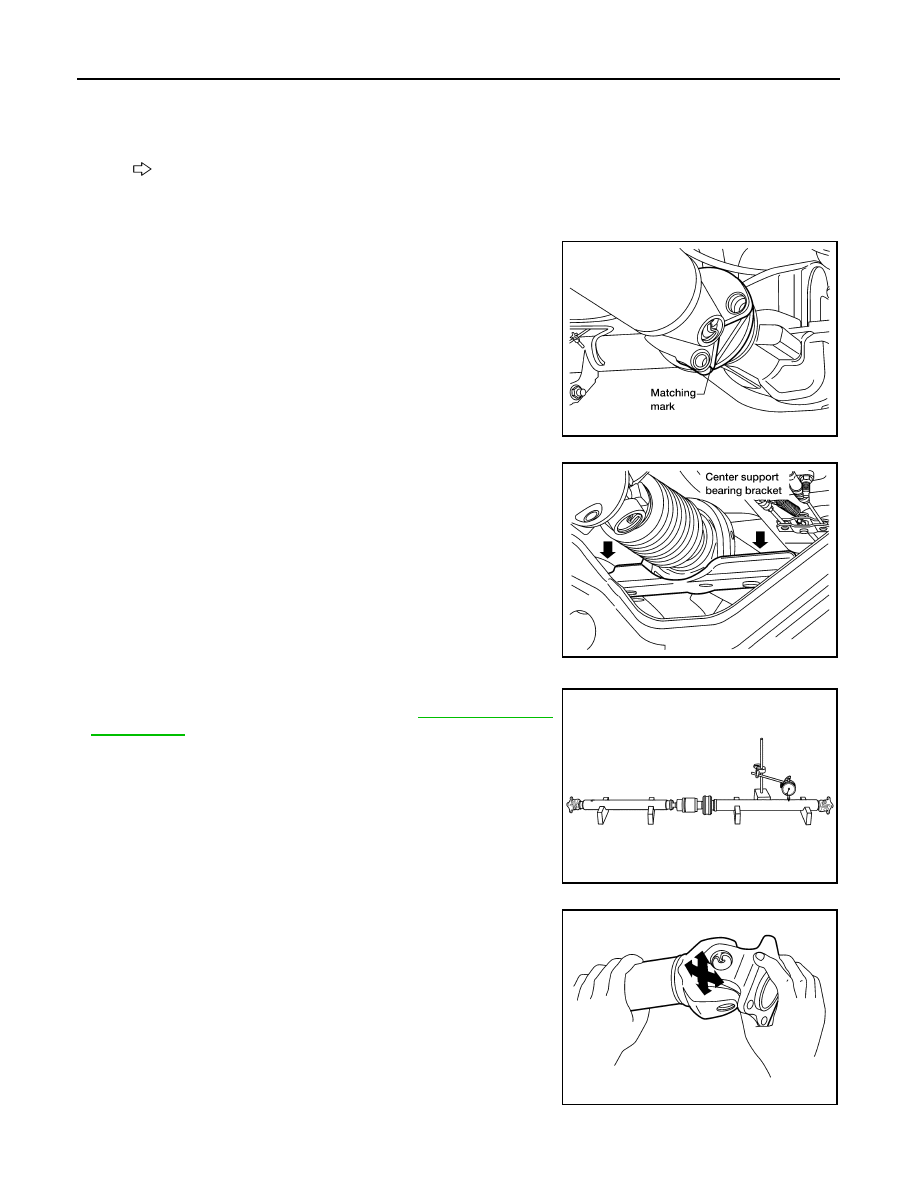

REMOVAL

1. Move the A/T select lever to the N position and release the parking brake.
2. Put matching marks on the rear propeller shaft flange yoke and

the companion flange of the rear final drive as shown.

CAUTION:

For matching marks, use paint. Never damage the rear pro-

peller shaft flange yoke or the companion flange.

3. Remove the center support bearing bracket nuts, and remove

the propeller shaft from the rear final drive.

INSPECTION AFTER REMOVAL

• Inspect the propeller shaft runout. If runout exceeds the limit,

replace the propeller shaft assembly. Refer to

DLN-157, "General

Specification"

.

• While holding the flange yoke on one side, check axial play of the

joint as shown. If the journal axial play exceeds the specification,

repair or replace the journal parts.

• Check the propeller shaft tube for bend and damage. If damage is

detected, replace the propeller shaft assembly.

INSTALLATION

1.

Propeller shaft tube

2.

Snap ring

3.

Journal bearing

4.

Sleeve yoke

5.

Journal

6.

Center support bearing

7.

Center support bearing bracket

8.

Slip yoke

9.

Flange yoke

: Front

WDIA0065E

WDIA0066E

PDIA0420E

Journal axial play  : 0.02 mm (0.0008 in) or less

LDIA0117E

REAR PROPELLER SHAFT

DLN-153

< UNIT REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 3S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Installation is in the reverse order of removal.

• After installation, check for vibration by driving the vehicle. Refer to

DLN-148, "NVH Troubleshooting Chart"

.

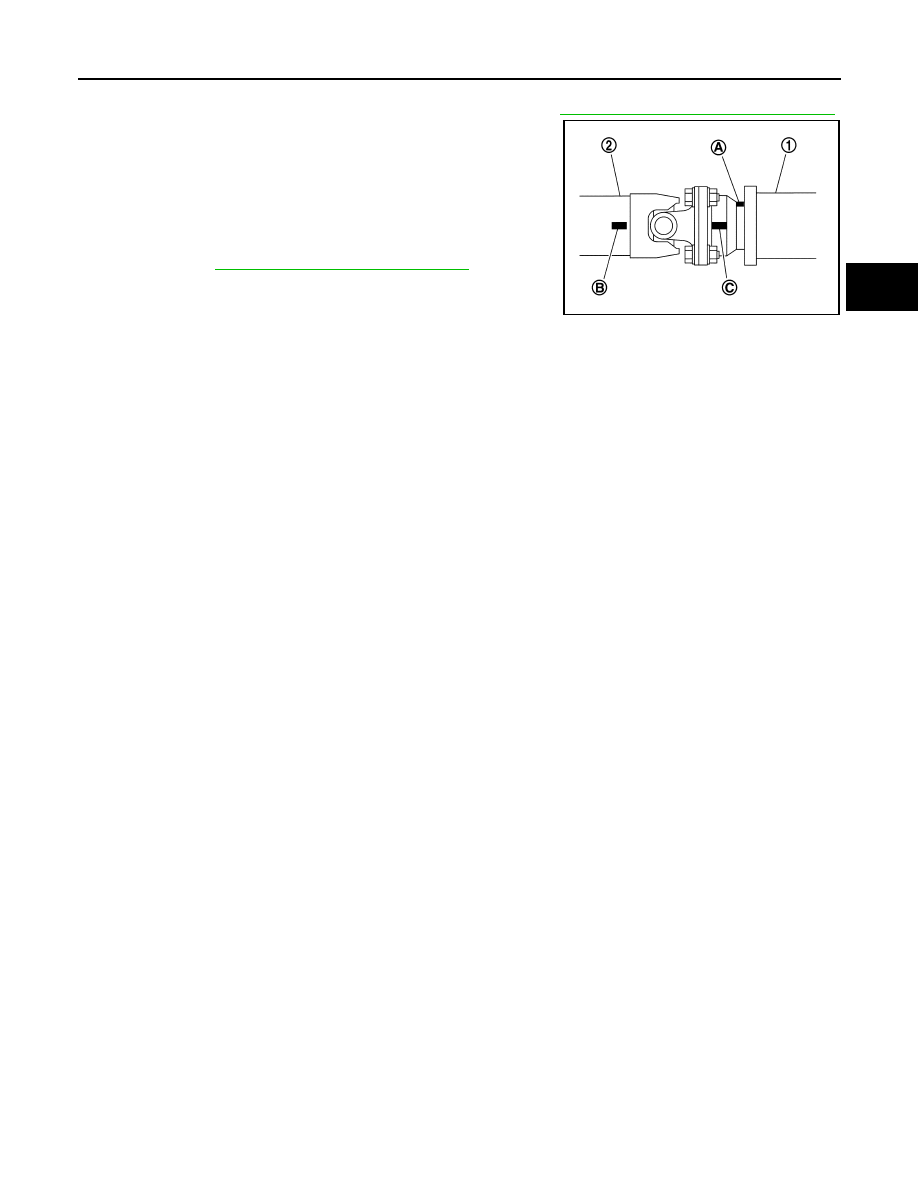

• If propeller shaft assembly of final drive assembly has been

replaced, connect them as follows:

- Face companion flange mark (A) of the final drive (1) upward. With

the mark (A) faced upward, couple the propeller shaft and the final

drive so that the matching mark (B) of the propeller shaft (2) can be

positioned as close as possible with the matching mark (C) of the

final drive companion flange.

- Tighten propeller shaft and final drive bolts and nuts of the to spec-

ification. Refer to

DLN-150, "Removal and Installation"

.

CAUTION:

Do not reuse the bolts and nuts. Always install new ones.

PDIA0892J

DLN-154

< UNIT DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1410]

REAR PROPELLER SHAFT

UNIT DISASSEMBLY AND ASSEMBLY

REAR PROPELLER SHAFT

Disassembly and Assembly

INFOID:0000000006179535

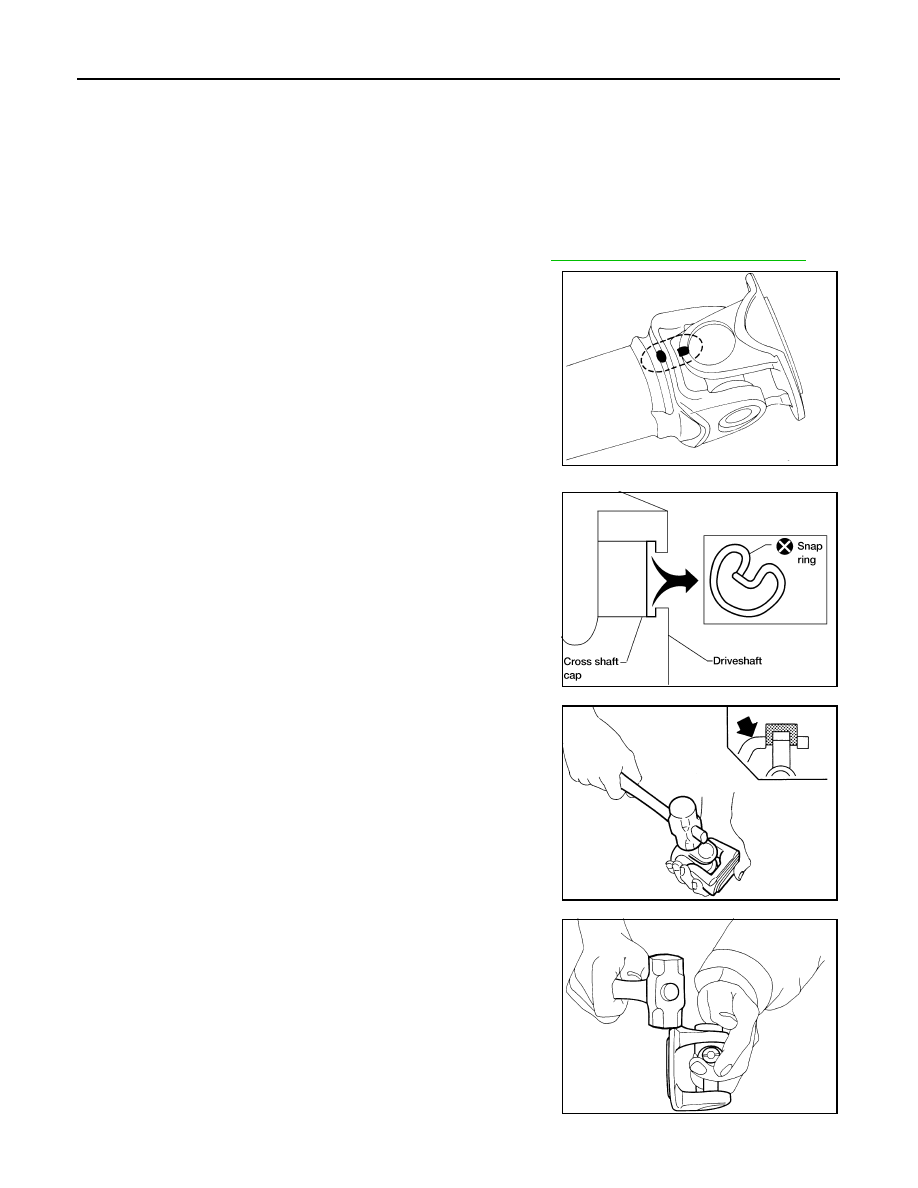

DISASSEMBLY

Journal

1. Remove the propeller shaft assembly from the vehicle. Refer to

DLN-150, "Removal and Installation"

.

2. Put matching marks on the rear propeller shaft tube and flange

yoke as shown.

CAUTION:

For matching marks use paint. Never damage the rear pro-

peller shaft or flange yoke.

3. Remove the snap rings.

4. Push out and remove the journal bearing by lightly tapping the

yoke with a hammer, taking care not to damage the journal or

yoke hole.

5. Remove the bearing at the opposite side of above operation.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

SPD128

APD011

SPD732

SPD131
