TRANSFER CONTROL DEVICE

DLN-99

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

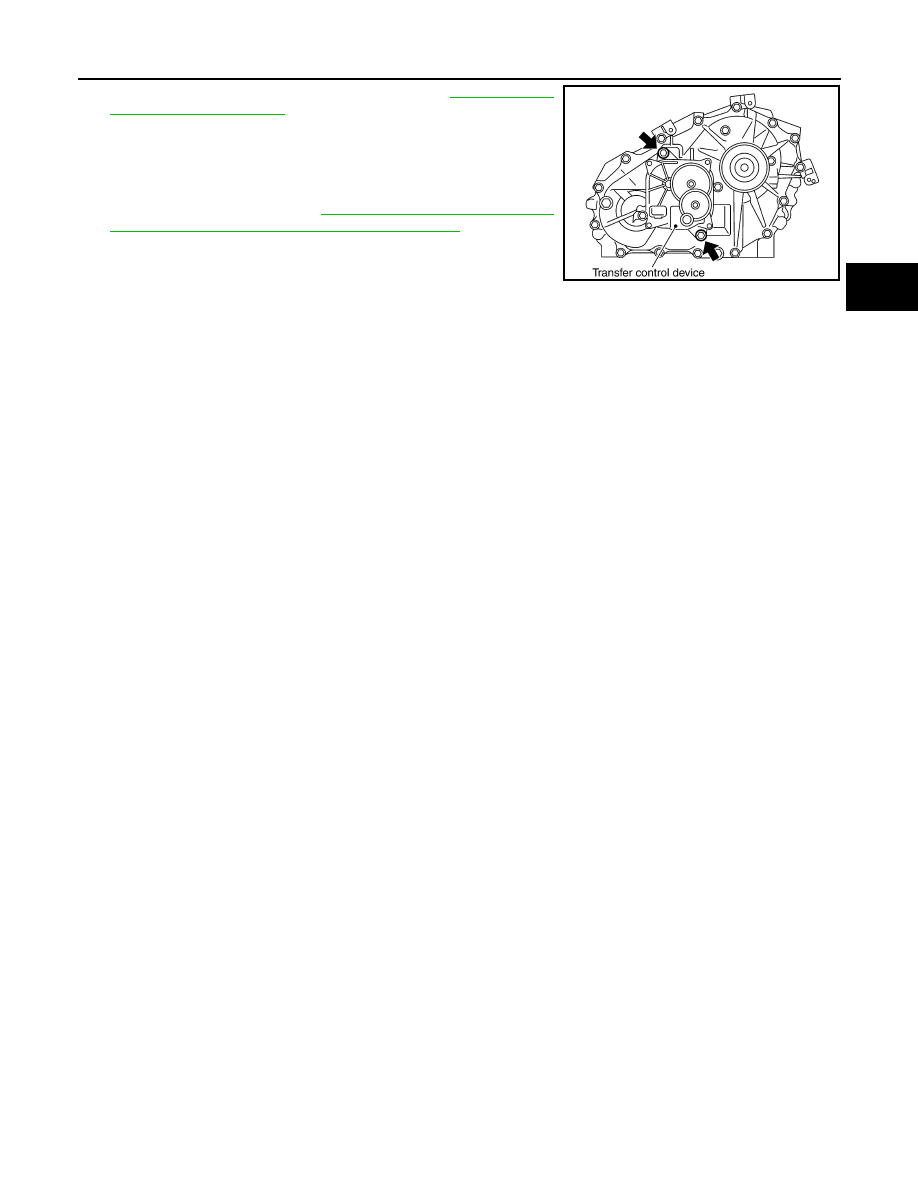

c. Tighten the bolts to the specified torque. Refer to

DLN-103, "Dis-

assembly and Assembly"

.

3. Install the breather hose to the transfer control device.
4. Connect the transfer control device connector.
5. After the installation, check the 4WD shift indicator pattern. If

NG, adjust the position between the transfer assembly and

transfer control unit. Refer to

DLN-84, "Precaution for Transfer

Assembly and Transfer Control Unit Replacement"

.

SDIA2212E

DLN-100

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

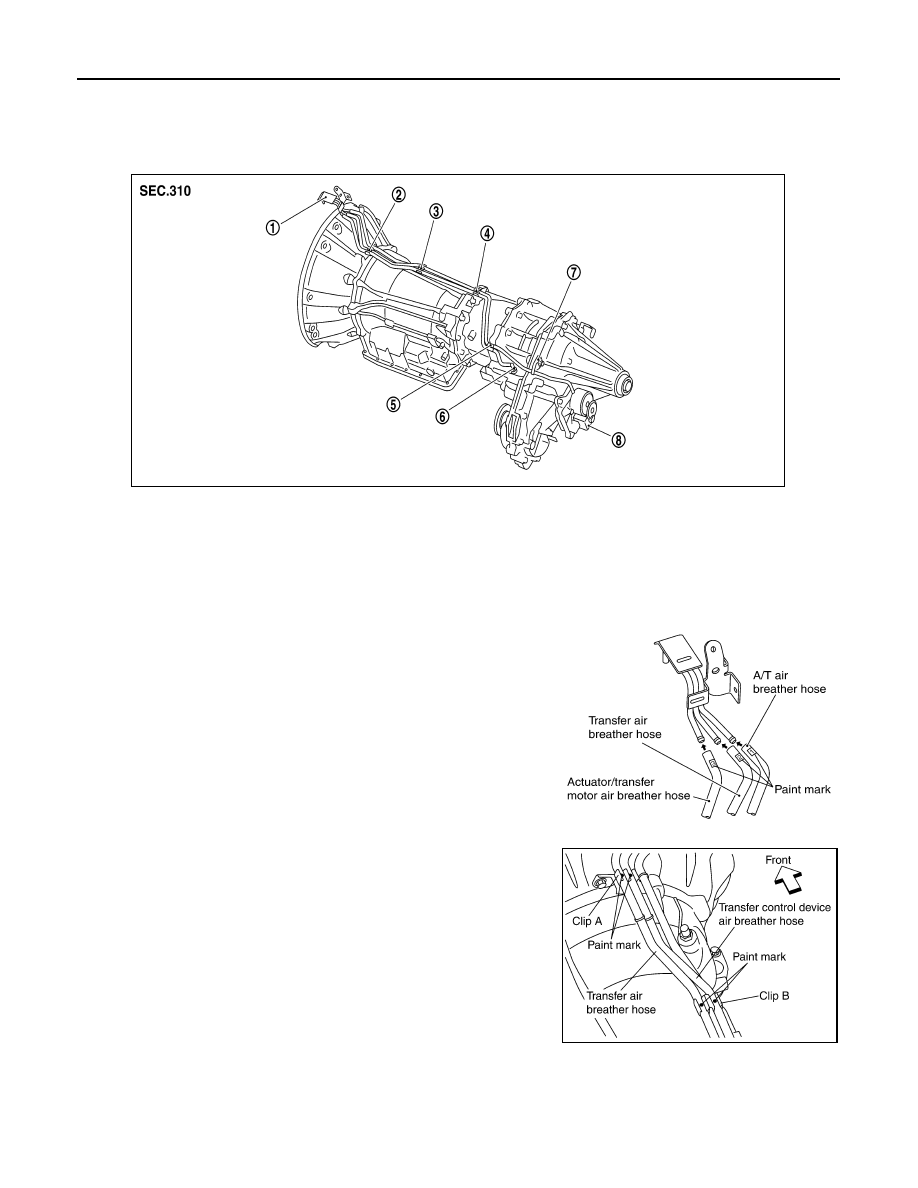

AIR BREATHER HOSE

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000006179506

CAUTION:

• Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.

• Install each air breather hose into the breather tube (metal

connector) until the hose end reaches the end of the curved

section. Set each air breather hose with paint mark facing

upward.

• Install transfer control device air breather hose and transfer

air breather hose on clip A and clip B with the paint mark fac-

ing upward.

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Breather tube (transfer)

7.

Air breather hose clamp

8.

Transfer control device

SDIA3351E

SDIA3340E

SDIA3353E

AIR BREATHER HOSE

DLN-101

< REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

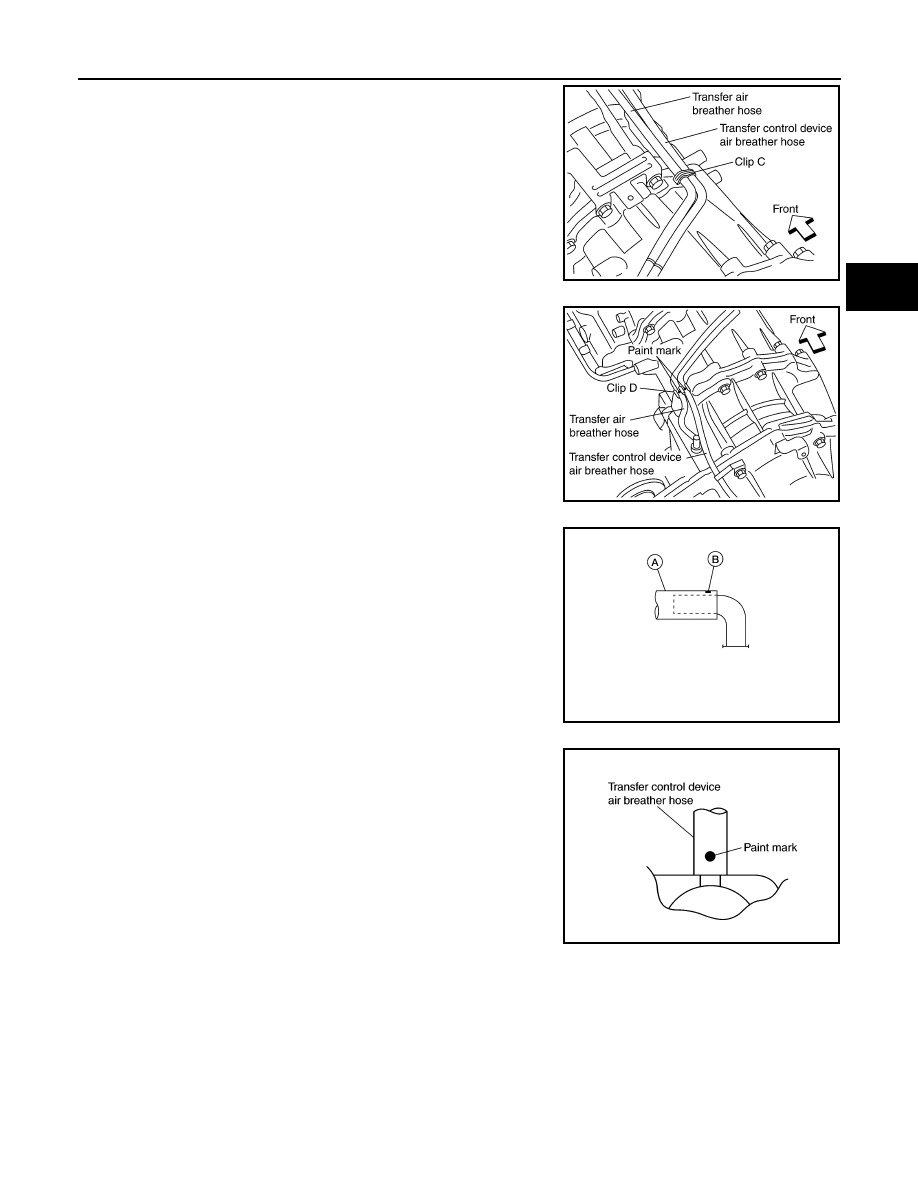

• Install clip C on transfer control device air breather hose and

transfer air breather hose with the paint mark matched.

• Install transfer control device air breather hose and transfer

air breather hose on clip D with the paint mark facing upward.

• Install transfer air breather hose (A) into the breather tube

(transfer, metal connector) until the hose end reaches the

base of the tube. Set transfer air breather hose with paint

mark (B) facing upward.

• Install transfer control device air breather hose into transfer

control device (case connector) until the hose end reaches

the base of the tube. Set transfer control device air breather

hose with paint mark facing forward.

SDIA3354E

SDIA3355E

AWDIA0784ZZ

SDIA3300E

DLN-102

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TX15B]

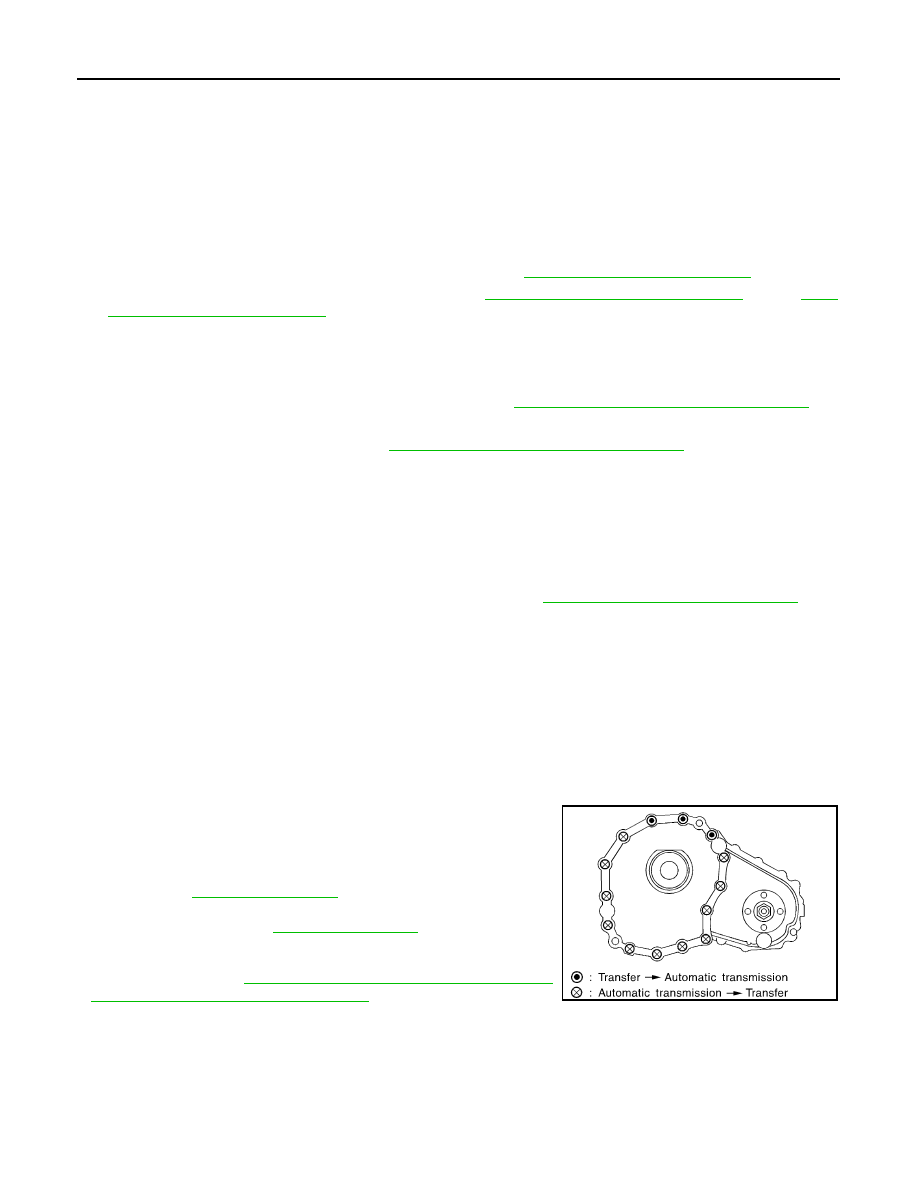

TRANSFER ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

Removal and Installation

INFOID:0000000006179507

REMOVAL

1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.
2. Remove the undercovers using power tool.
3. Remove the center exhaust tube and main muffler. Refer to

EX-5, "Removal and Installation"

.

4. Remove the front and rear propeller shafts. Refer to

DLN-132, "Removal and Installation"

 (front),

DLN-

141, "Removal and Installation"

 (rear).

CAUTION:

Do not damage spline, sleeve yoke and rear oil seal when removing rear propeller shaft.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

5. Remove the A/T nuts from the A/T crossmember. Refer to

TM-208, "Removal and Installation (4WD)"

.

6. Position two suitable jacks under the A/T and transfer assembly.
7. Remove the A/T crossmember. Refer to

TM-208, "Removal and Installation (4WD)"

.

WARNING:

Support A/T and transfer assembly using two suitable jacks while removing A/T crossmember.

8. Disconnect the electrical connectors from the following:

• ATP  switch

• 4LO switch

• Wait detection switch

• Transfer control device

9. Disconnect each air breather hose from the following. Refer to

DLN-100, "Removal and Installation"

.

• Transfer control device

• Breather tube (transfer)

10. Remove the transfer to A/T and A/T to transfer bolts.
11. Remove the transfer assembly.

WARNING:

support transfer assembly with suitable jack while removing it.

CAUTION:

Do not damage rear oil seal (A/T).

INSTALLATION

Installation is in the reverse order of removal.

• Tighten the bolts to specification.

• Fill the transfer with new fluid and check for fluid leakage and fluid

level. Refer to

DLN-91, "Inspection"

.

• Start the engine for one minute. Then stop the engine and recheck

the transfer fluid. Refer to

DLN-91, "Inspection"

.

• After the installation, check the 4WD shift indicator pattern. If NG,

adjust the position between the transfer assembly and transfer

control unit. Refer to

DLN-84, "Precaution for Transfer Assembly

and Transfer Control Unit Replacement"

.

Tightening torque

: 36 N·m (3.7kg-m, 27 ft-lb)
