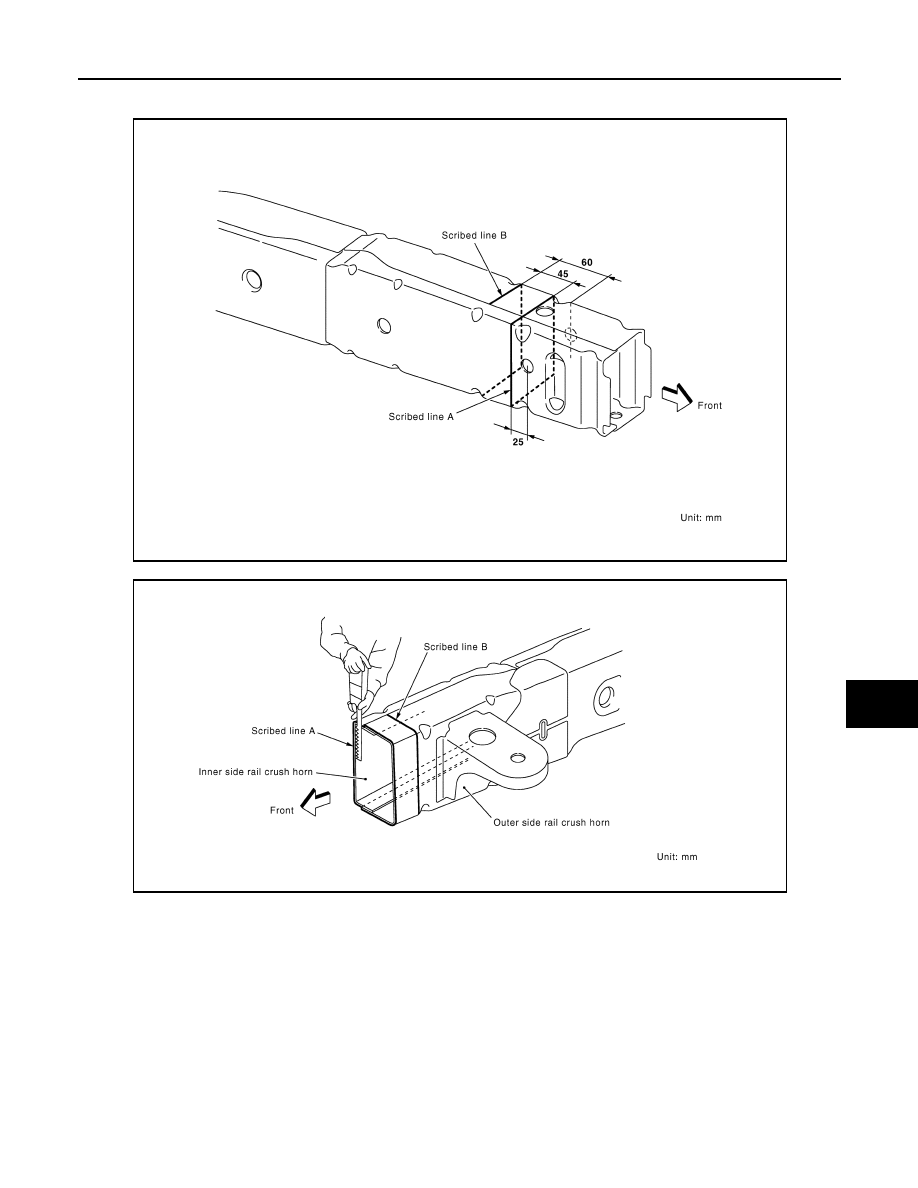

• Scribe a straight line on the outer side rail crush horn and inner side rail crush horn along the hole center as

shown in the figure.

• Cut off outer side rail crush horn and inner side rail crush horn along scribed line A. Do not cut on the hole.

• Cut inner side rail crush horn at 45 mm backward cut position of cut line A. (along line B)

LIIA1084E

LIIA1085E

BRM-88

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

• After removing outer panel, dress area on the inner panel surface with a sander or equivalent.

Installation Notes

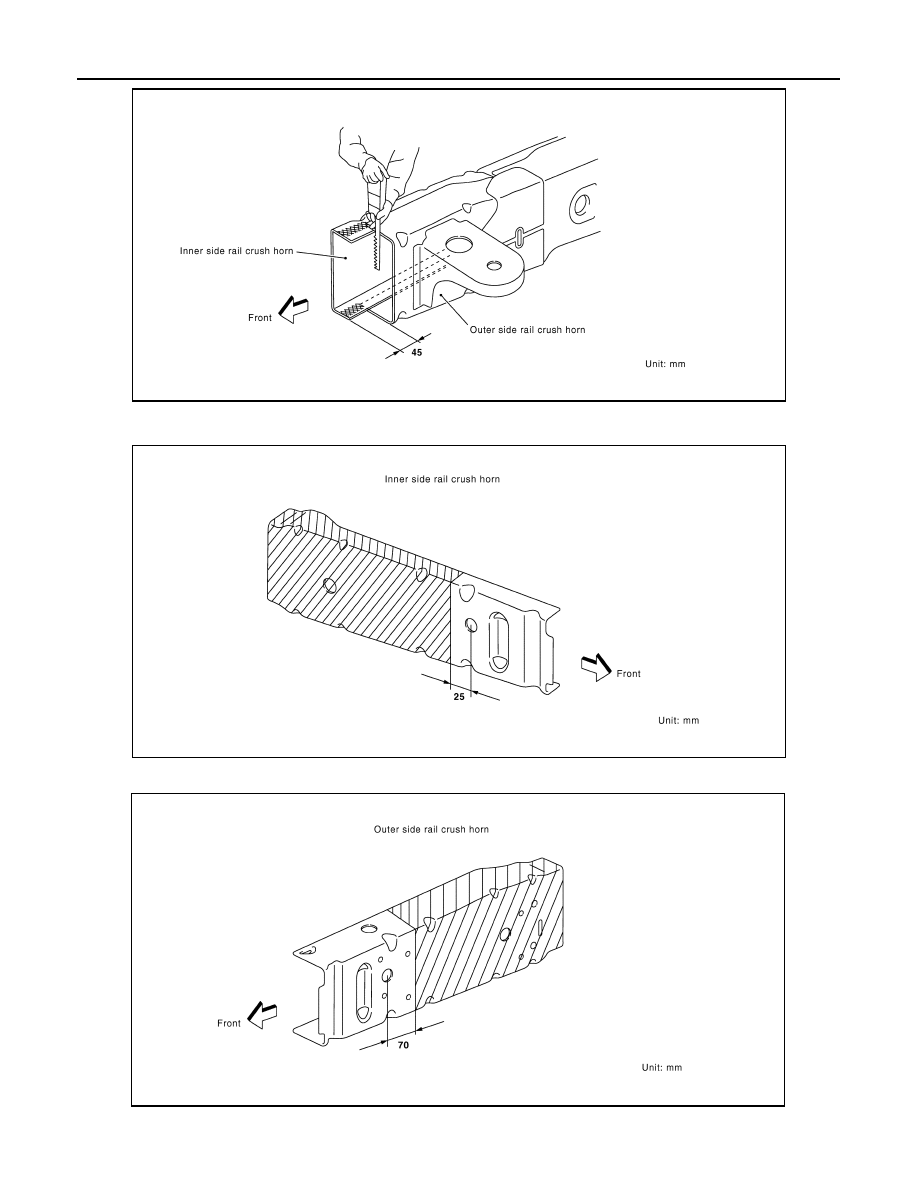

• Scribe a straight line on the inner side rail crush horn along the hole center as shown in the figure. Cut off

inner side rail crush horn along scribed line.

• Scribe a straight line on the outer side rail crush horn along the hole center as shown in the figure. Cut off

outer side rail crush horn along scribed line.

LIIA1086E

LIIA1087E

LIIA1088E

REPLACEMENT OPERATIONS

BRM-89

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

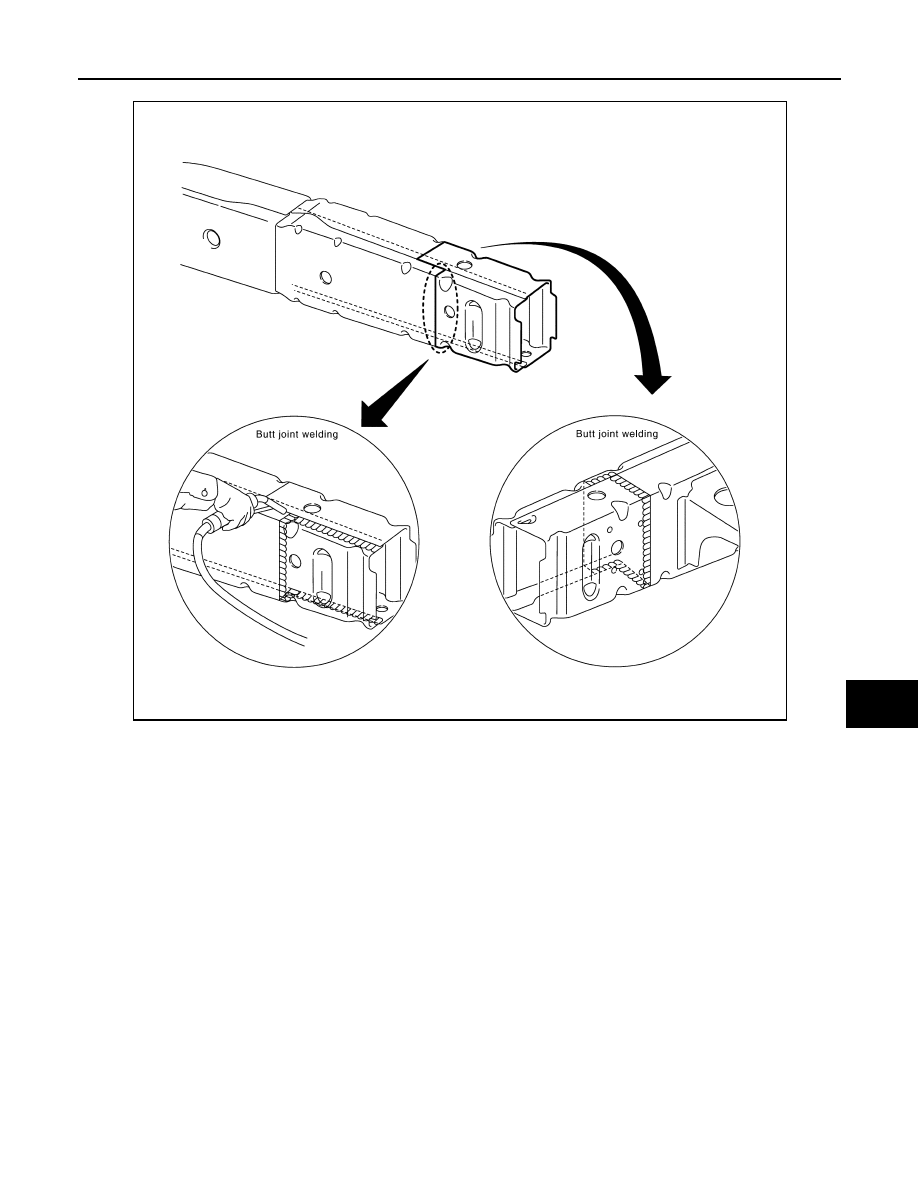

• Weld part to be butt-welded and seam-welded corner to corner as shown in the figure.

LIIA1089E
