Long Bed

Rear Strut

Work with bed side outer removed.

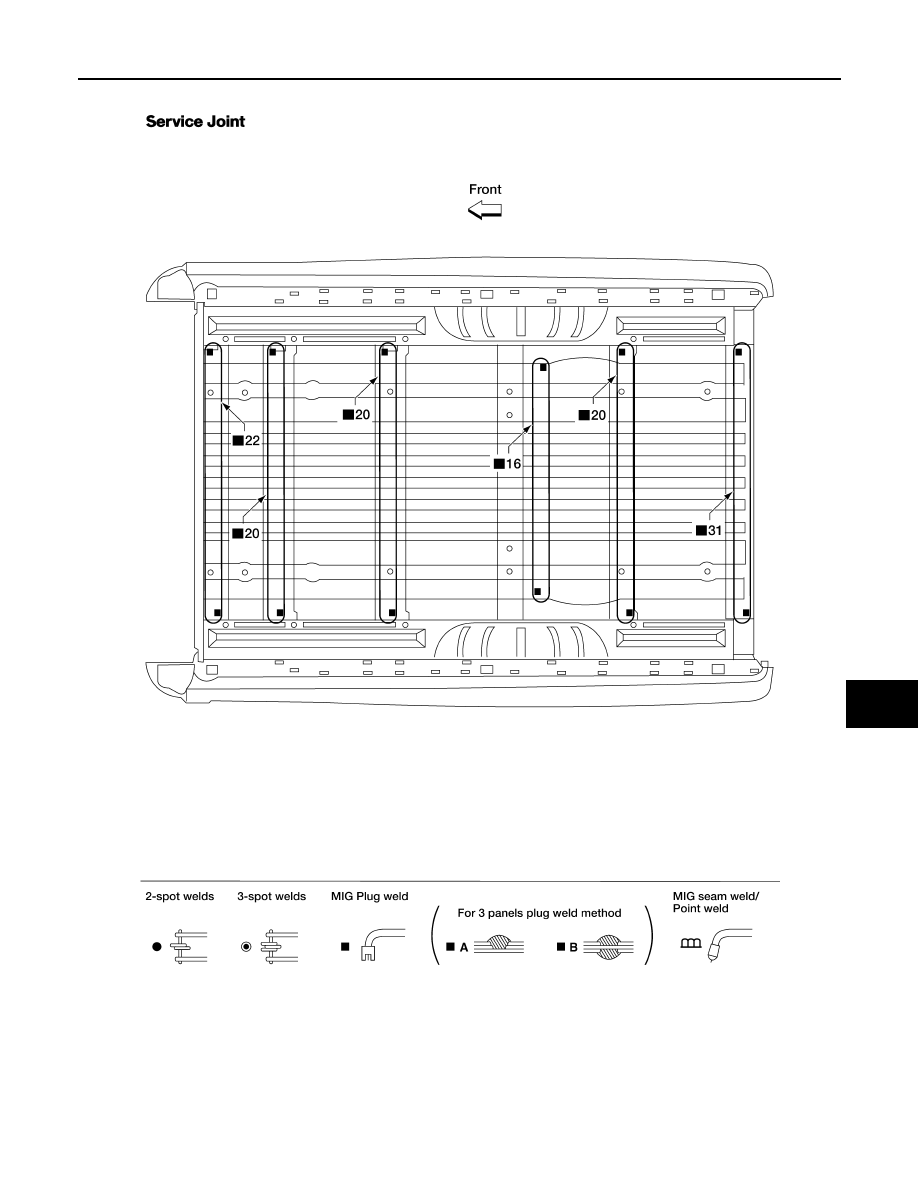

ALKIA0530GB

Change parts

z

Rear body floor assembly

BRM-84

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Change parts:

z

Inner rear strut assembly

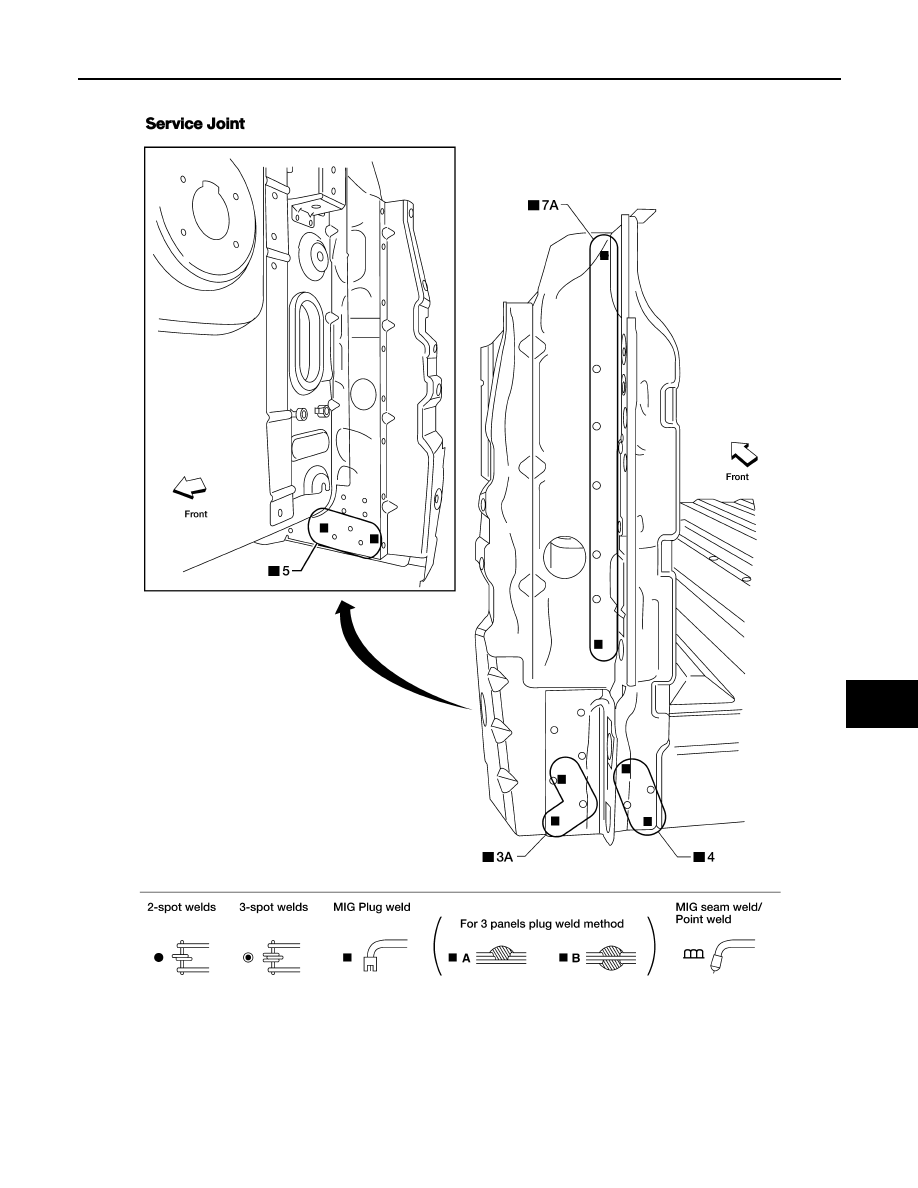

AWKIA1105ZZ

REPLACEMENT OPERATIONS

BRM-85

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CRUSH HORN

Change parts:

z

Rear strut assembly

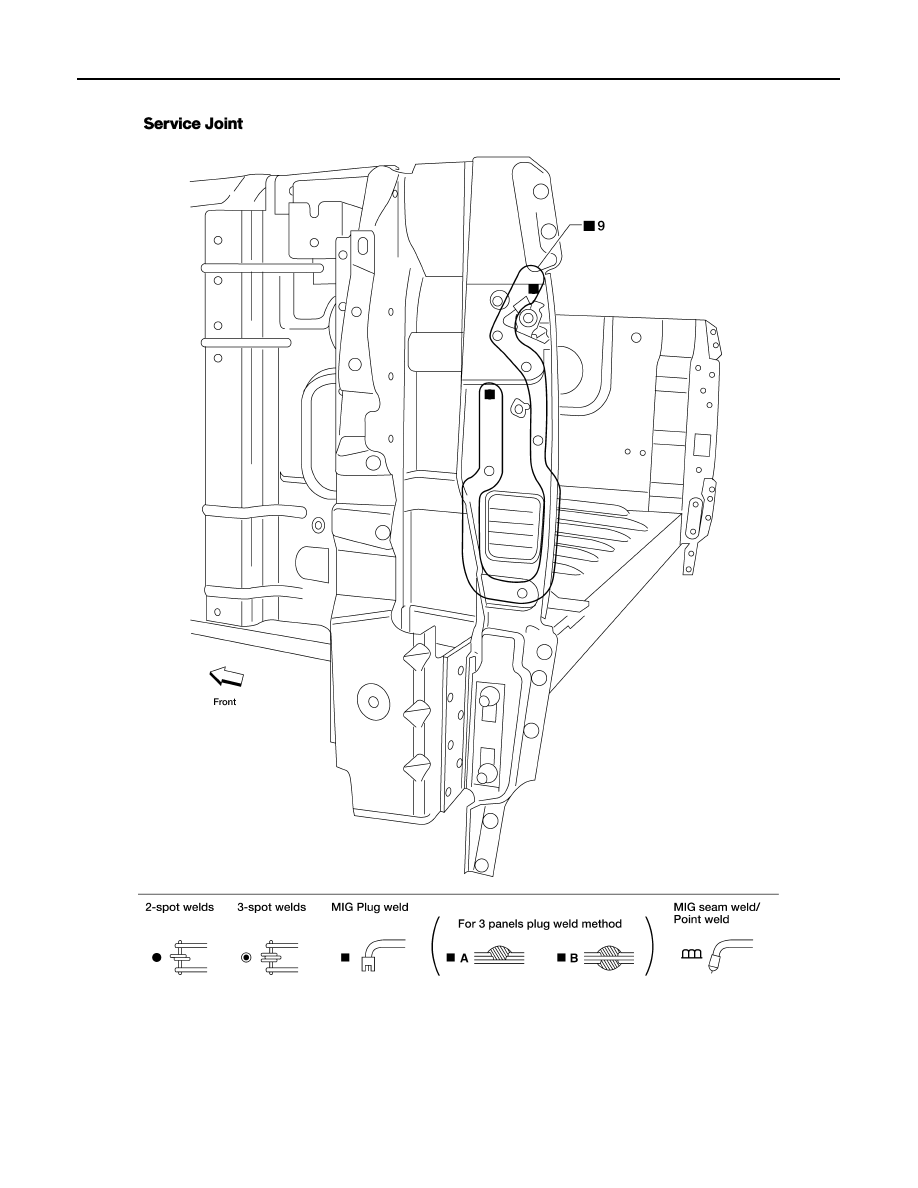

LIIA1221E

BRM-86

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

• Work after 1st crossmember has been removed.

Portions to be welded:

A. Inner side rail crush horn, inner side rail crush horn and outer side rail crush horn.

B. Outer side rail crush horn, outer side rail crush horn and inner side rail crush horn.

Removal Notes

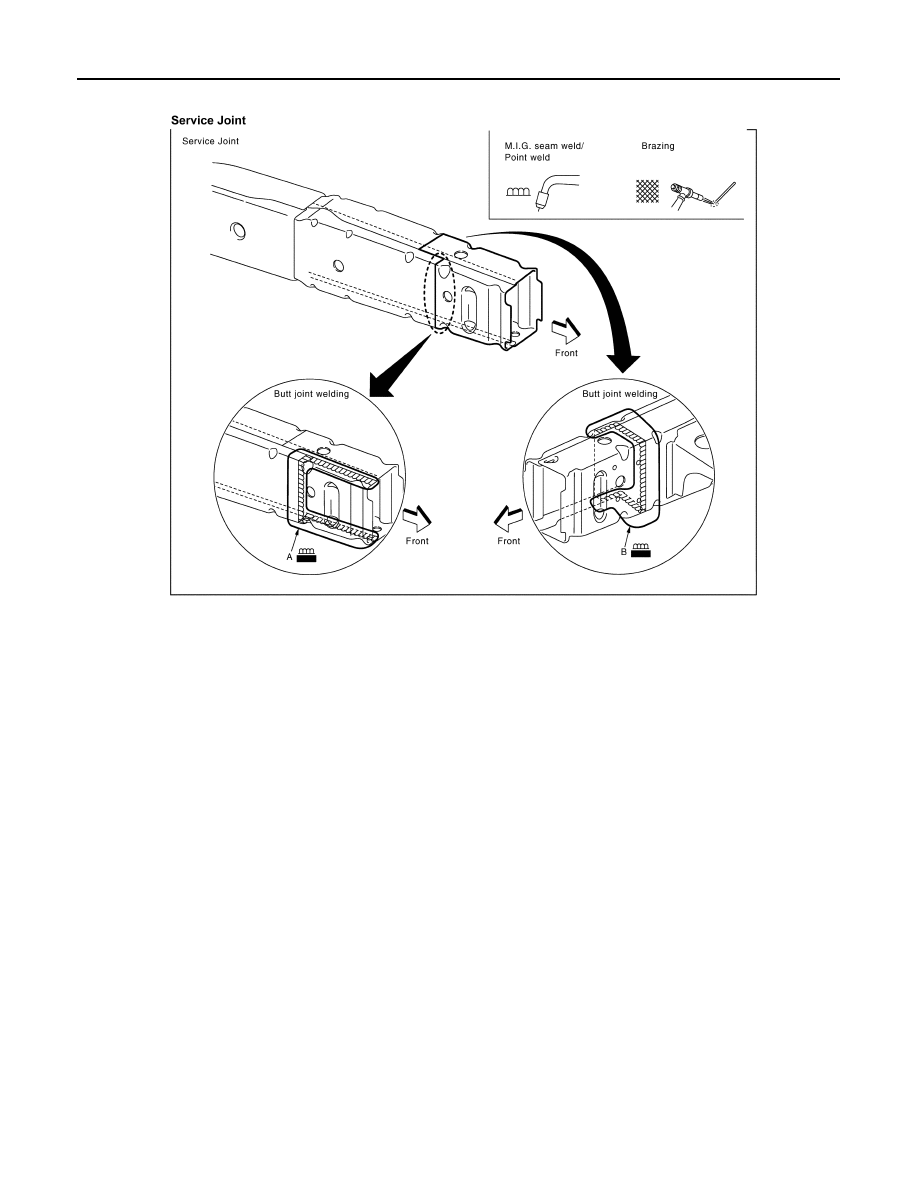

LIIA1083E
