REPLACEMENT OPERATIONS

BRM-59

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

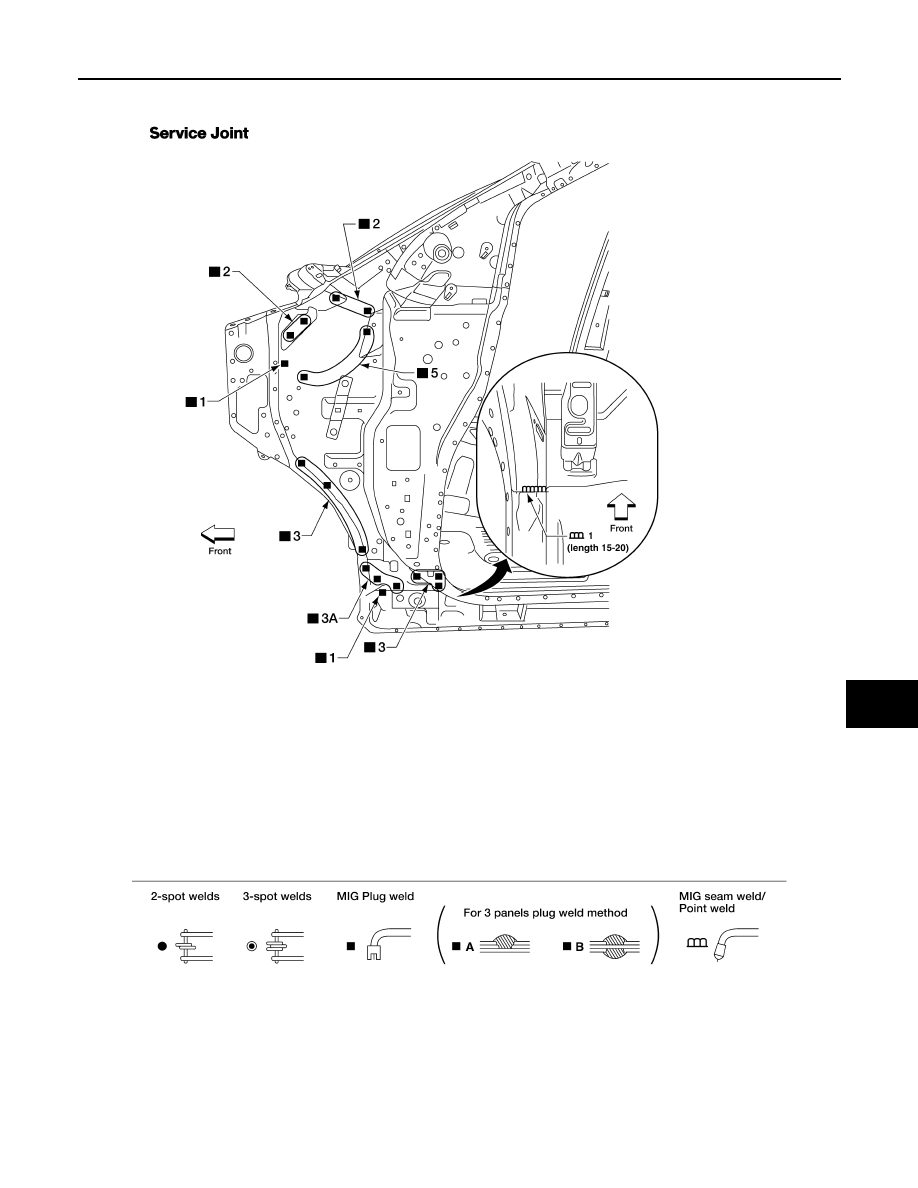

CENTER PILLAR

Change parts:

z

Dash side

ALKIA0536GB

BRM-60

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

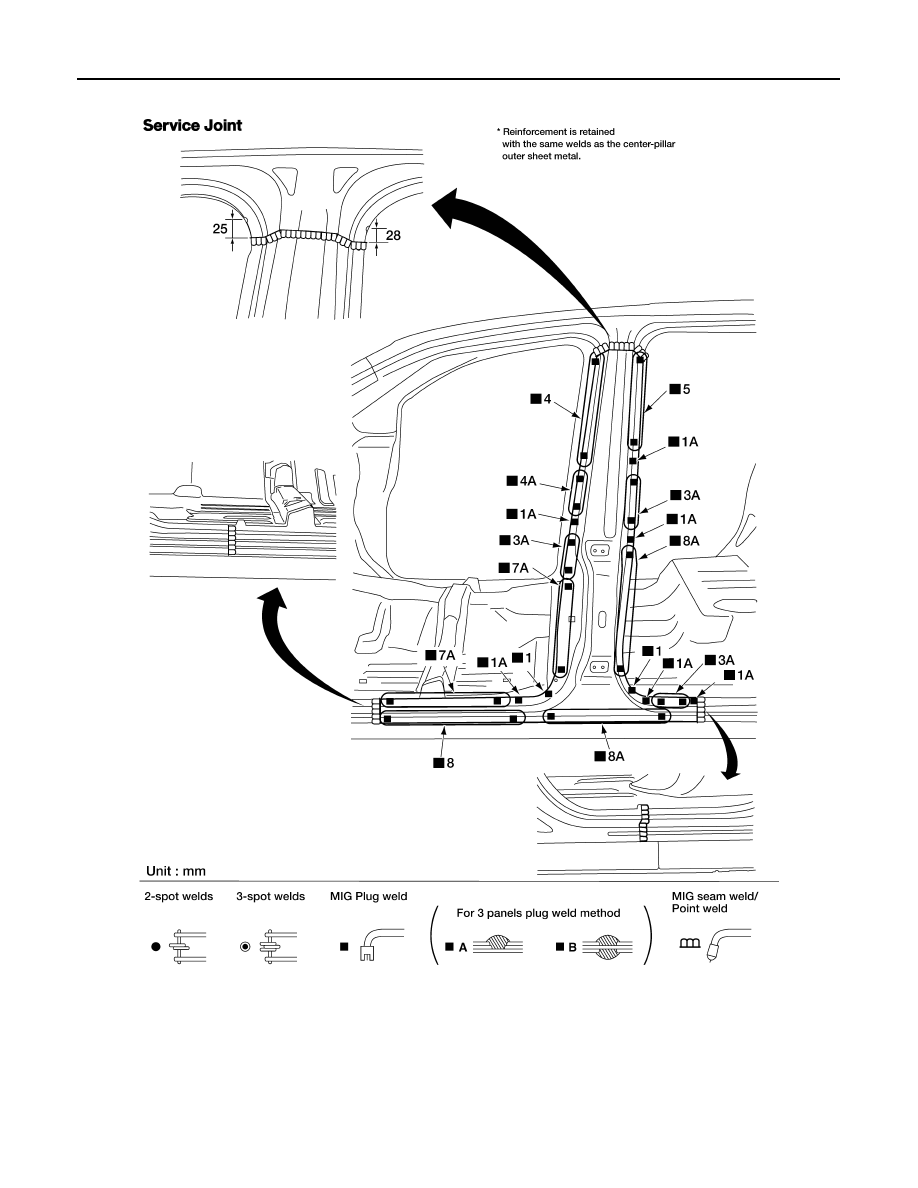

Center Pillar Outer

ALKIA0513GB

Change parts:

z

Center pillar portion of body side out-
er (Crew Cab only)

REPLACEMENT OPERATIONS

BRM-61

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

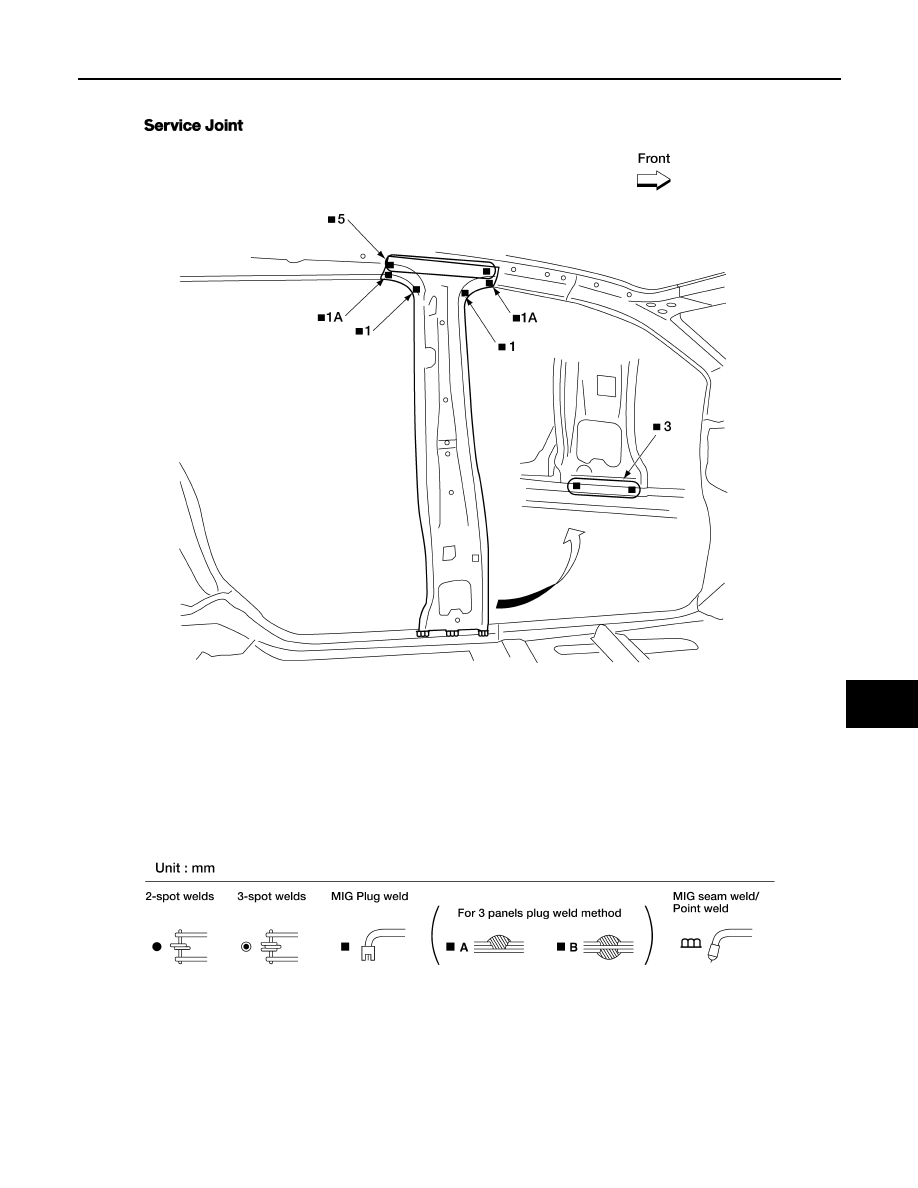

Inner Center Pillar

OUTER SILL

Work with front pillar brace, rear cab pillar and center pillar inner (if equipped) removed.

KING CAB

ALKIA0512GB

Change parts:

z

Inner center pillar (Crew Cab only)

BRM-62

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

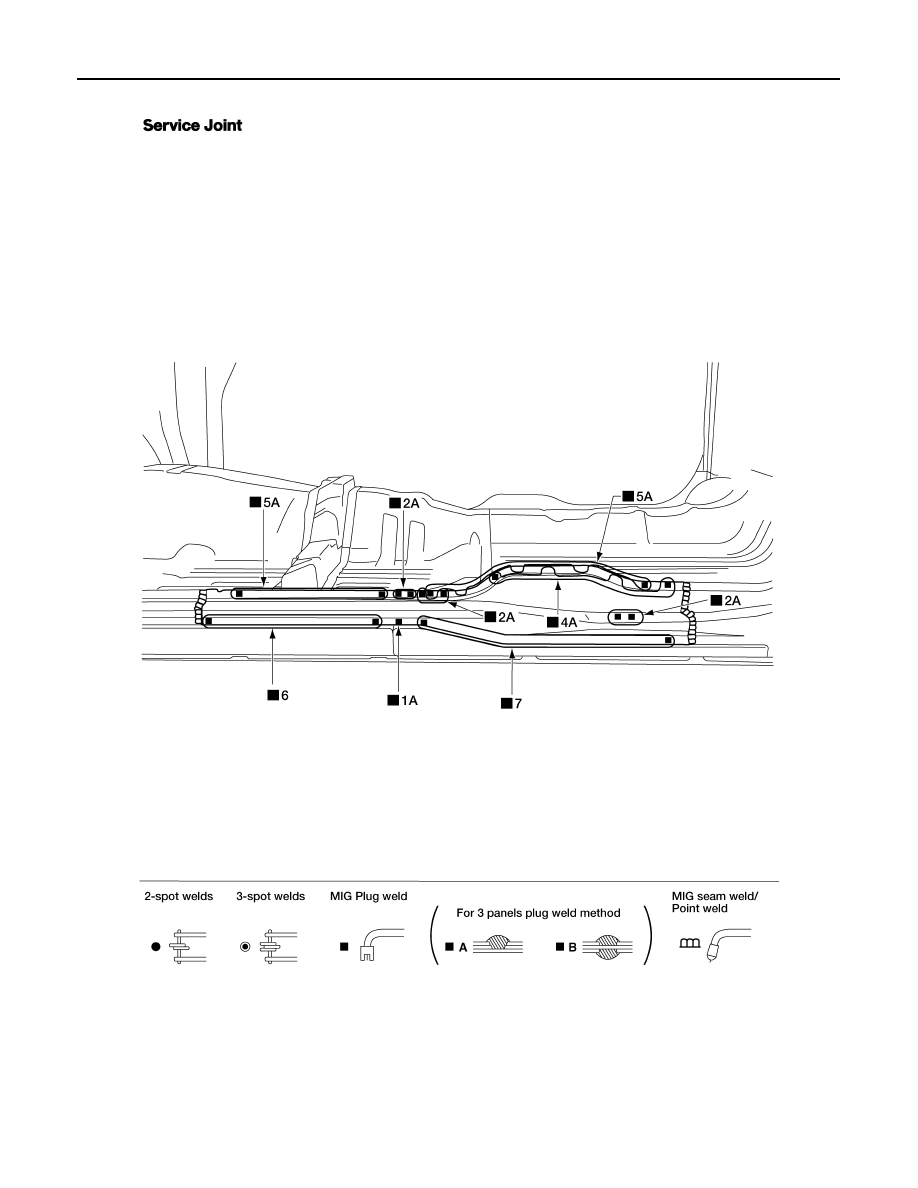

Center Sill Portion of Body Side Outer

Work with front pillar outer, rear pillar outer, and center sill portion of body side outer removed.

WIIA0344E

Change parts:

z

Center sill portion of body side outer
