STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000006165970

REMOVAL

1. Remove spiral cable. Refer to

SR-6, "Removal and Installation"

.

2. Remove the screws and remove the steering angle sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation of spiral cable, adjust steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

G SENSOR

BRC-119

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

G SENSOR

Removal and Installation

INFOID:0000000006165971

REMOVAL

1. If equipped, remove center console. Refer to

IP-23, "Disassem-

bly and Assembly"

.

2. If equipped, remove the front center seat. Refer to

SE-30,

"Removal and Installation For Front Seat"

.

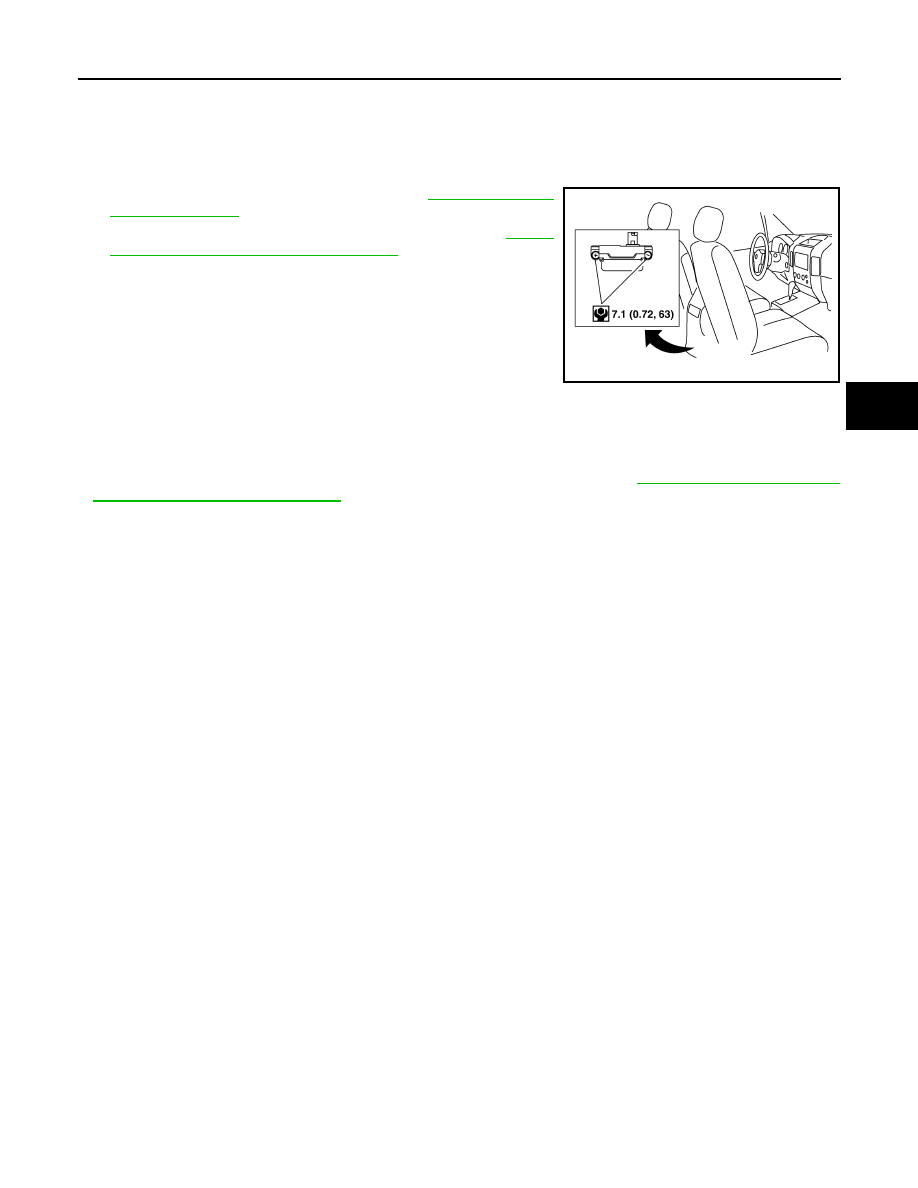

3. Remove yaw rate/side/decel G sensor nuts.

CAUTION:

• Do not use power tools to remove the yaw rate/side/decel

G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

4. Disconnect harness connector and remove the yaw rate/side/

decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not drop or strike the yaw rate/side/decel G sensor.

• After installation, calibrate the yaw rate/side/decel G sensor. Refer to

BRC-9, "CALIBRATION OF

DECEL G SENSOR : Description"

.

AWFIA0316ZZ
