BRC-18

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

ABS

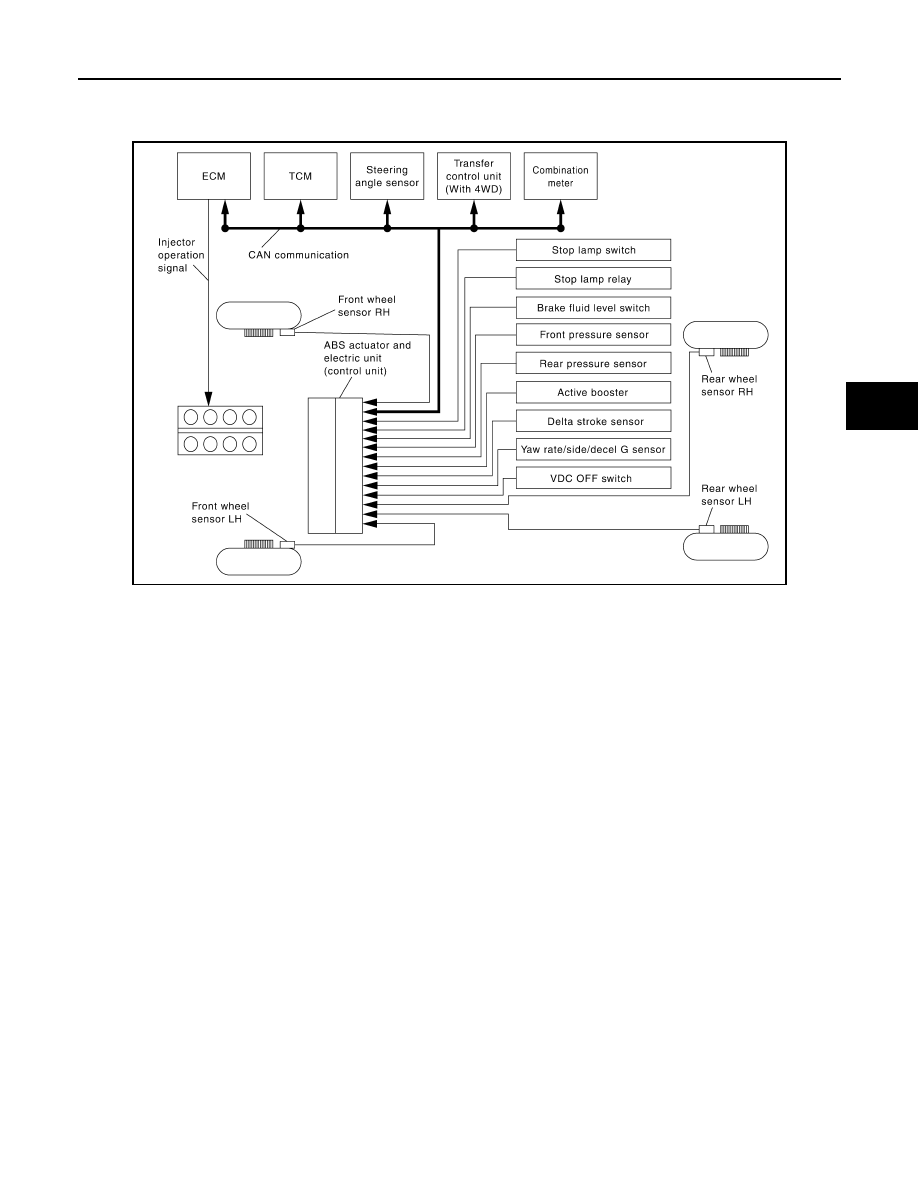

System Diagram

INFOID:0000000006648975

System Description

INFOID:0000000006165821

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-

verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0461GB

ABS

BRC-19

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

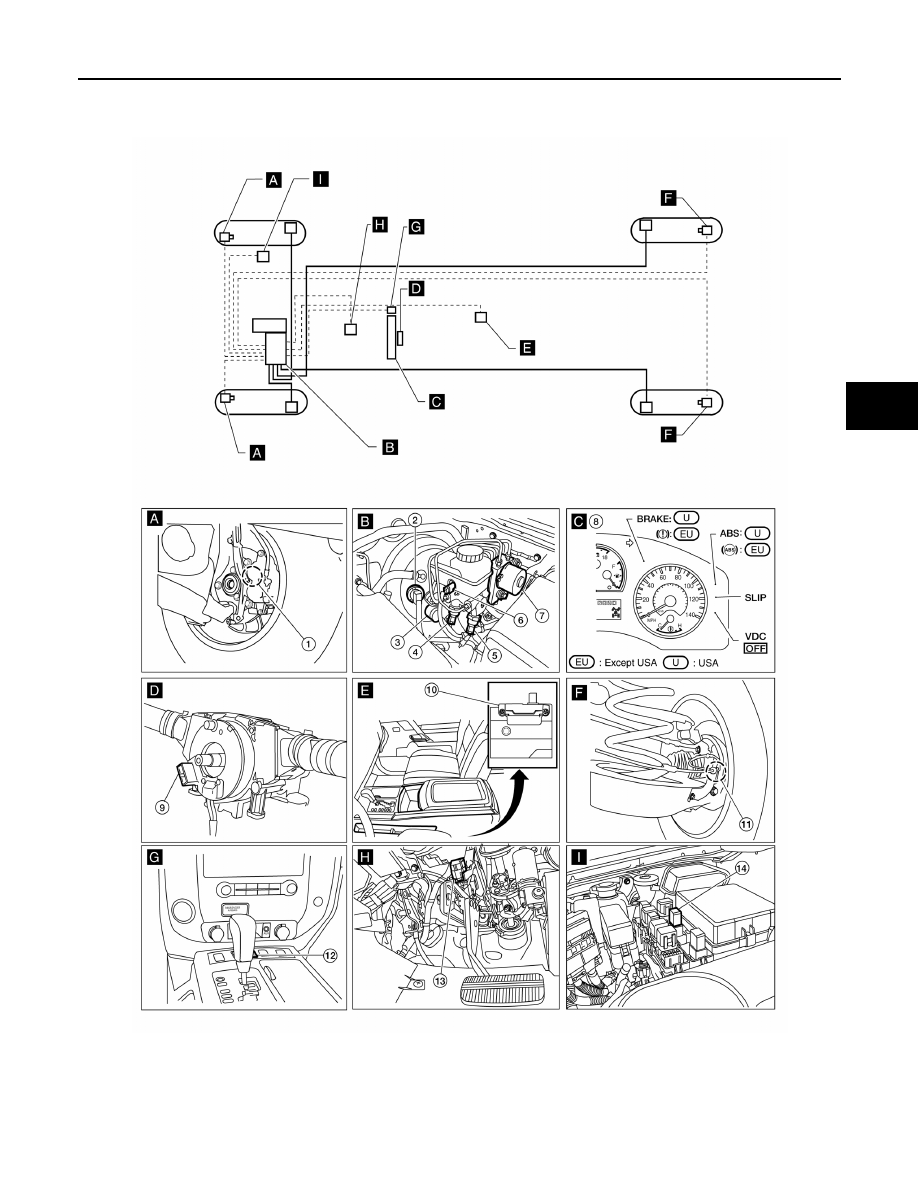

Component Parts Location

INFOID:0000000006648973

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Front pressure sensor E31

5.

Rear pressure sensor E32

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (con-
trol unit) E125

8.

Combination meter M24

9.

Steering angle sensor M17 (view
with steering wheel removed)

AWFIA0740ZZ

BRC-20

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

Component Description

INFOID:0000000006648974

10. Yaw rate/side/decel G sensor M108 11. Rear wheel sensor LH C11

Rear wheel sensor RH C10

12. VDC OFF switch M148

13. Stop lamp switch E38 (column shift),

E42 (floor shift)

14. Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-38, "Description"

Motor

Actuator relay

BRC-54, "Description"

Solenoid valve

BRC-47, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-68, "Description"

Wheel sensor

BRC-29, "Description"

Yaw rate/side/decel G sensor

BRC-40, "Description"

Stop lamp switch

BRC-45, "Description"

Front pressure sensor

BRC-56, "Description"

Rear pressure sensor

Steering angle sensor

BRC-59, "Description"

Brake fluid level switch

BRC-62, "Description"

Active booster

BRC-71, "Description"

Delta stroke sensor

BRC-74, "Description"

VDC OFF switch

BRC-78, "Description"

ABS warning lamp

BRC-80, "Description"

Brake warning lamp

BRC-81, "Description"

VDC OFF indicator lamp

BRC-82, "Description"

SLIP indicator lamp

BRC-84, "Description"

EBD

BRC-21

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

EBD

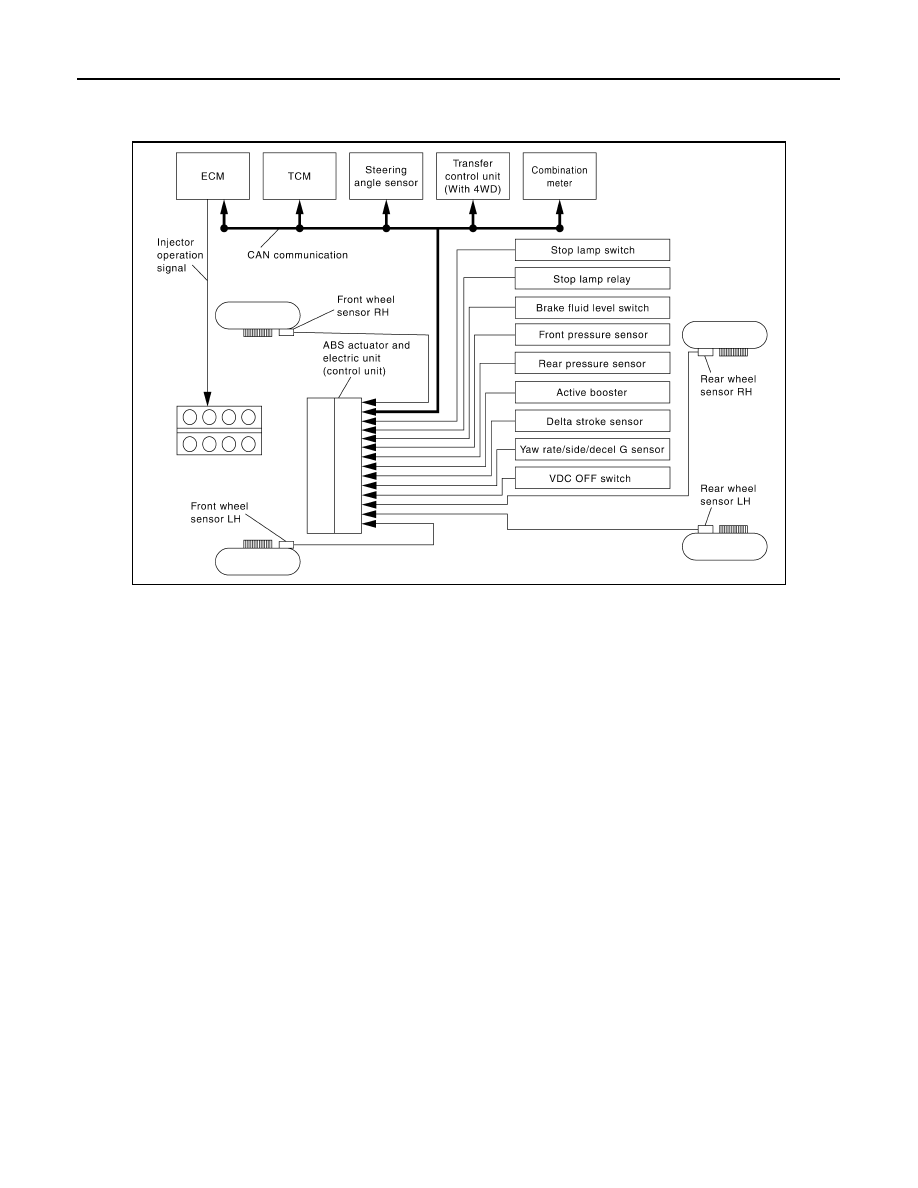

System Diagram

INFOID:0000000006648972

System Description

INFOID:0000000006165825

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear

braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0461GB
