WIRING DIAGRAM

PREMIUM AUDIO SYSTEM

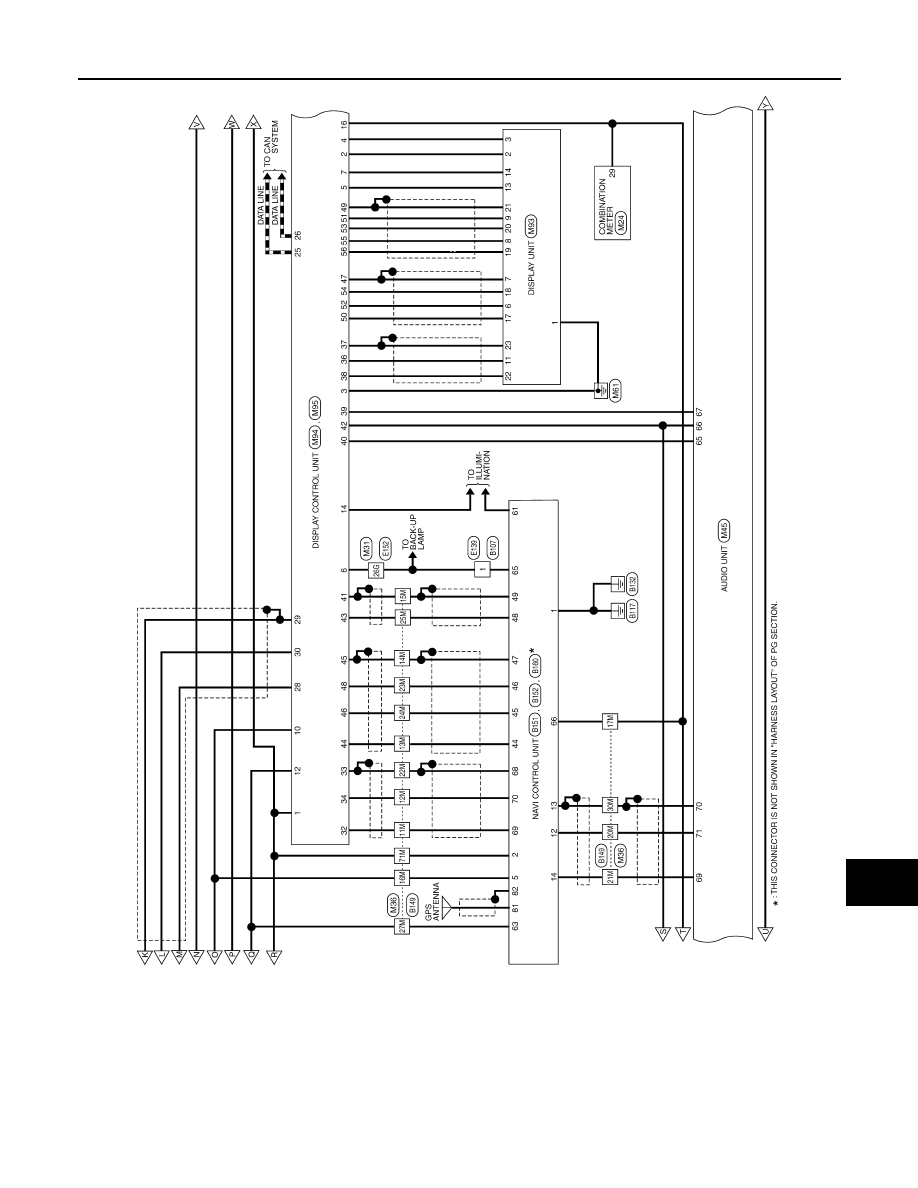

Wiring Diagram - With Navigation System

INFOID:0000000006467272

ABNWA1023GB

AV-286

< WIRING DIAGRAM >

[PREMIUM WITH NAVIGATION]

PREMIUM AUDIO SYSTEM

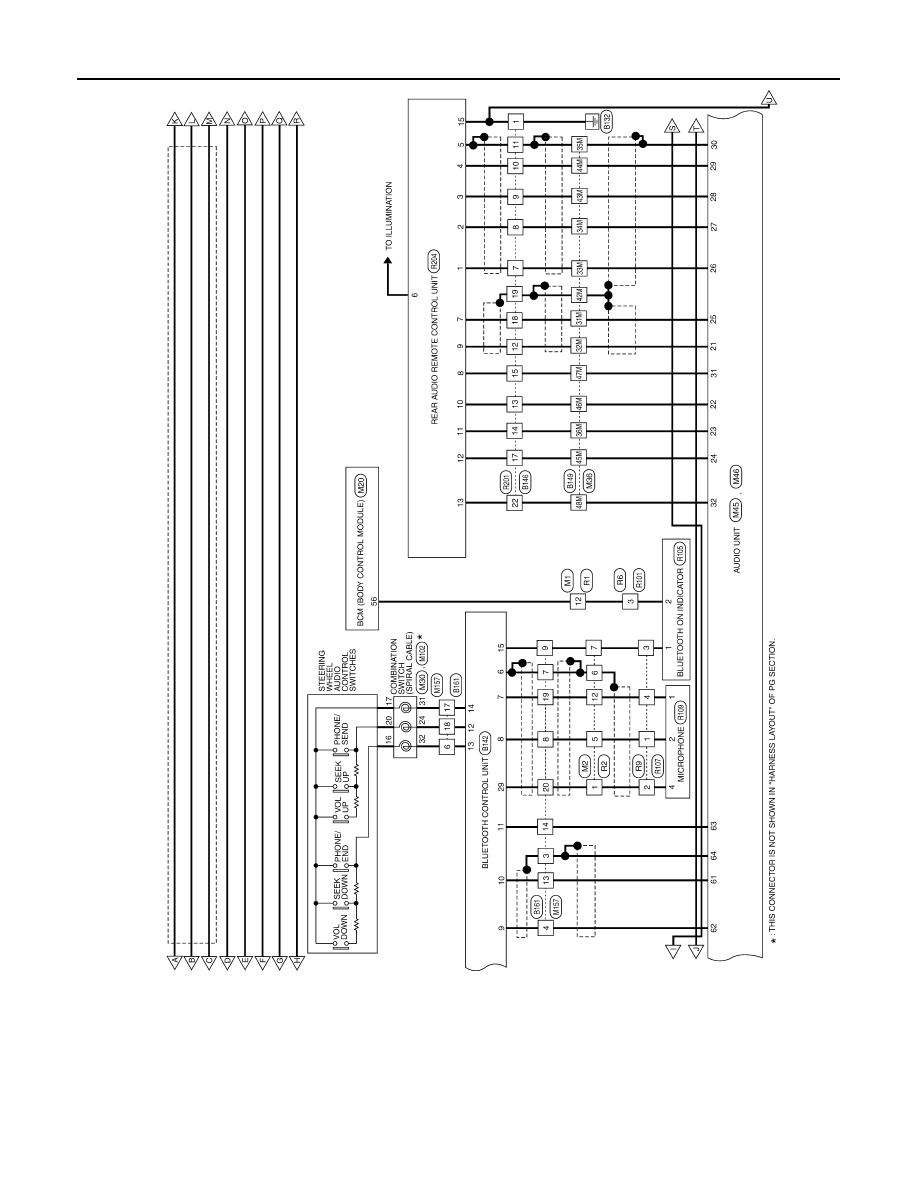

ABNWA1024GB

AV

PREMIUM AUDIO SYSTEM

AV-287

< WIRING DIAGRAM >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

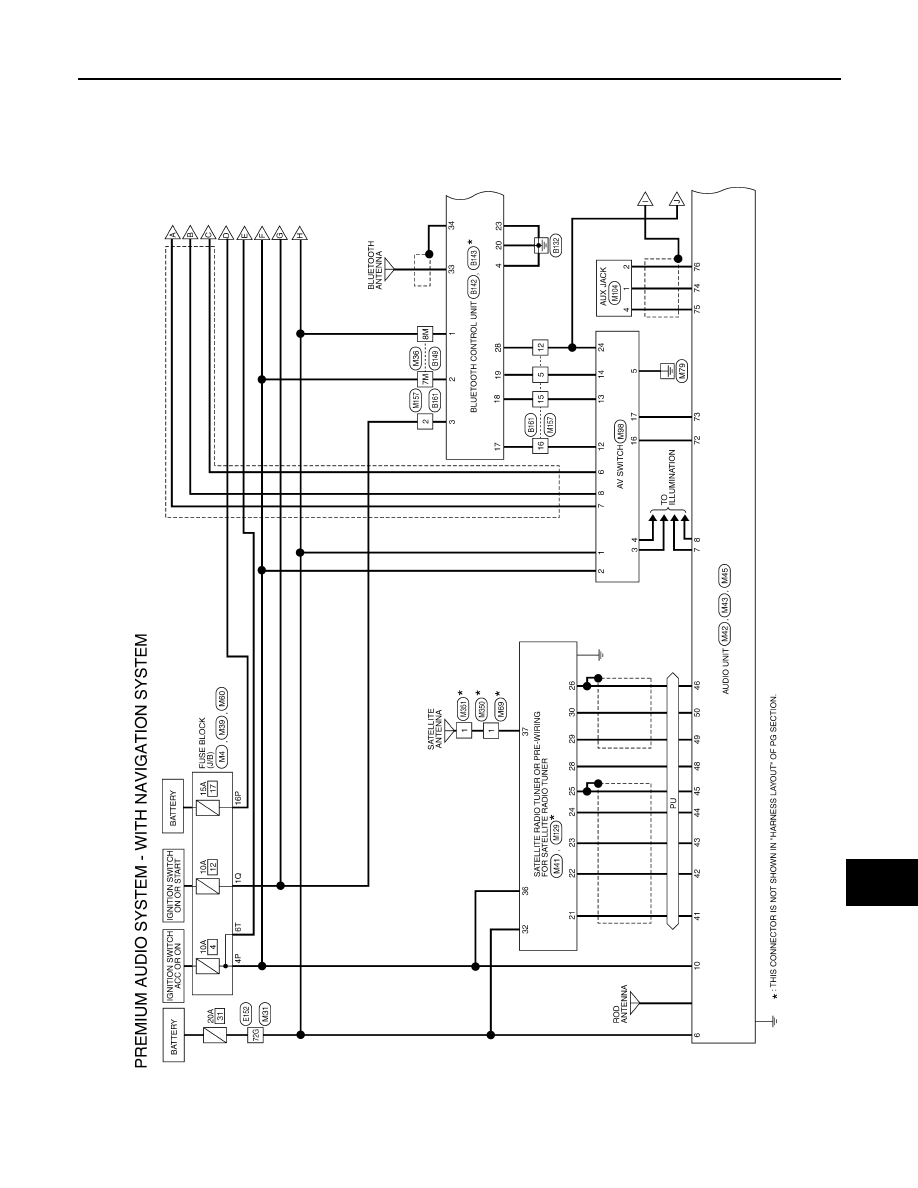

ABNWA1025GB

AV-288

< WIRING DIAGRAM >

[PREMIUM WITH NAVIGATION]

PREMIUM AUDIO SYSTEM

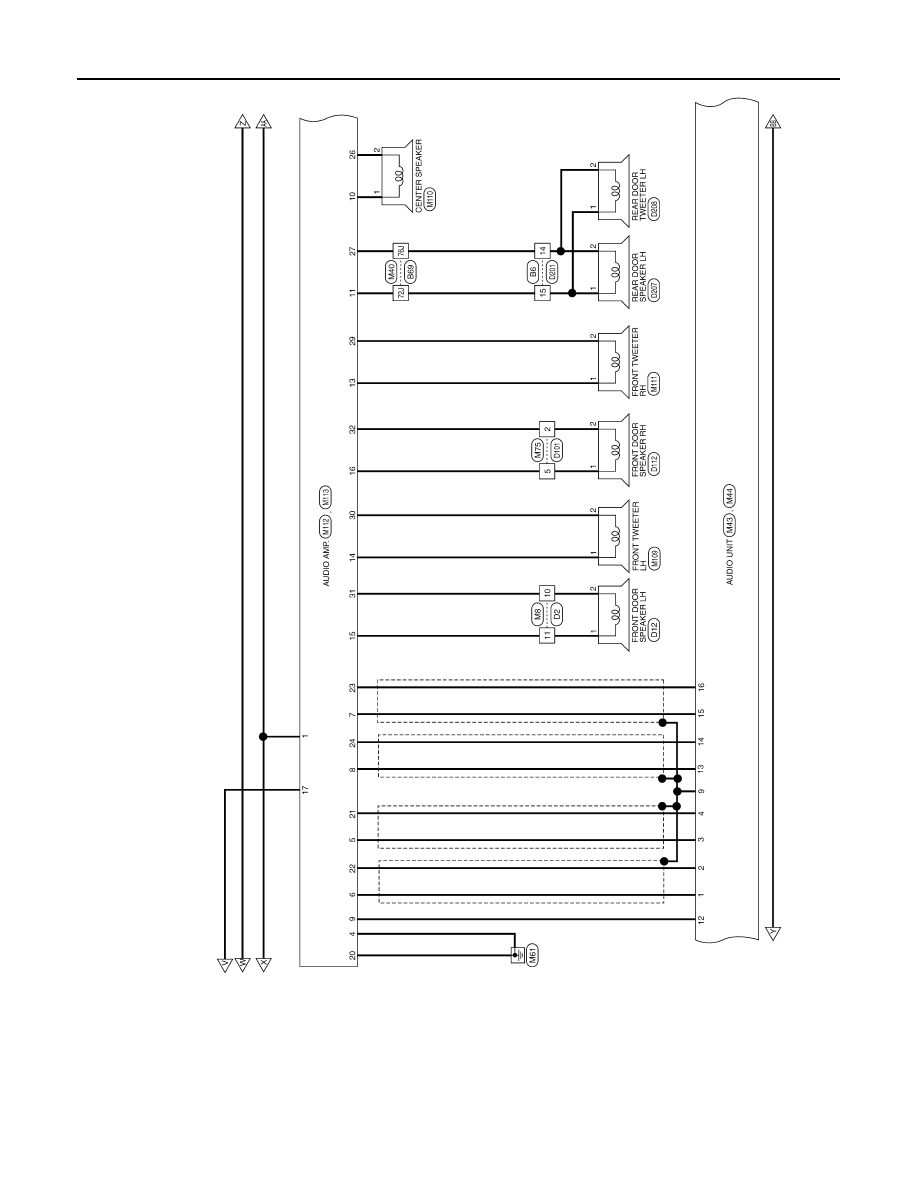

ABNWA1026GB
